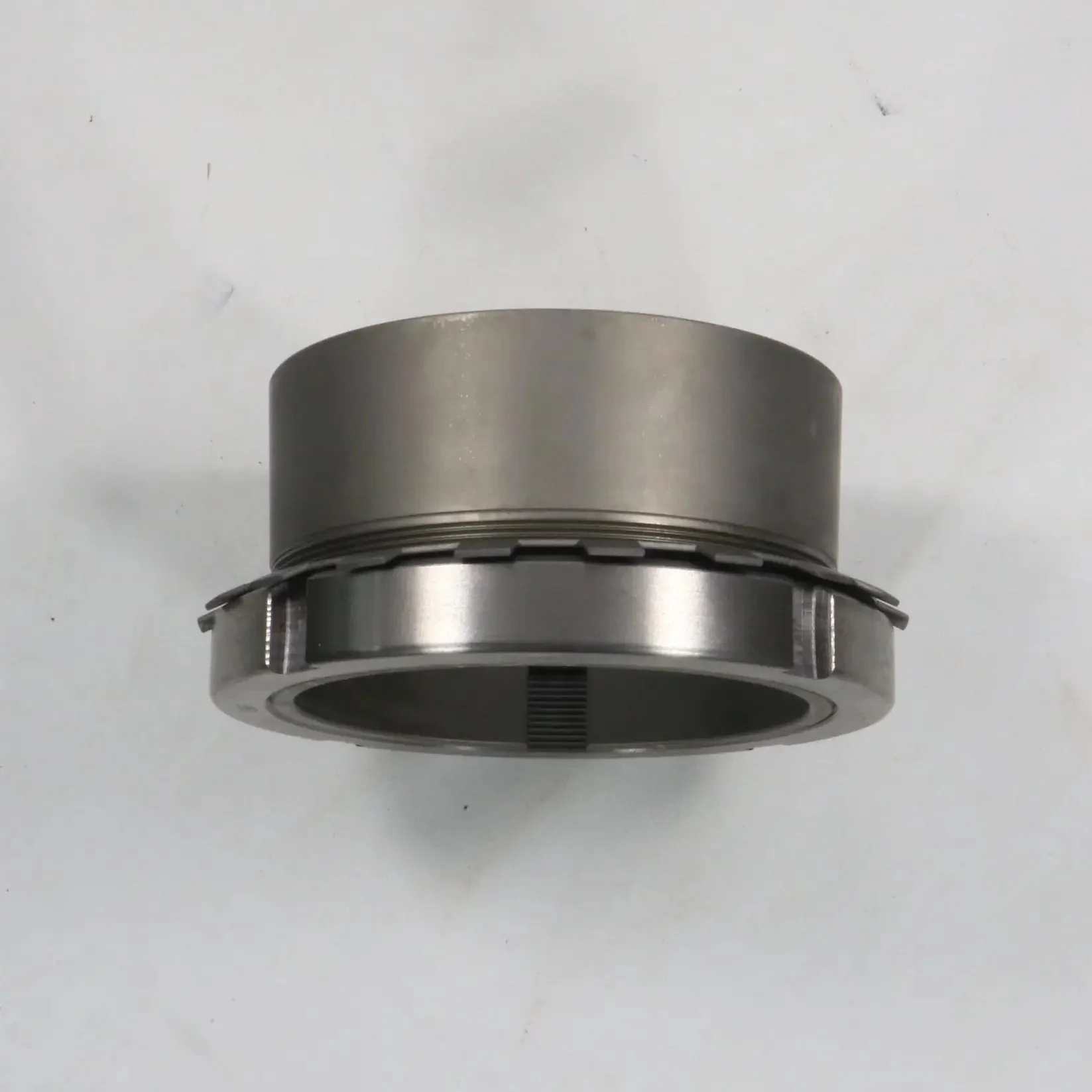

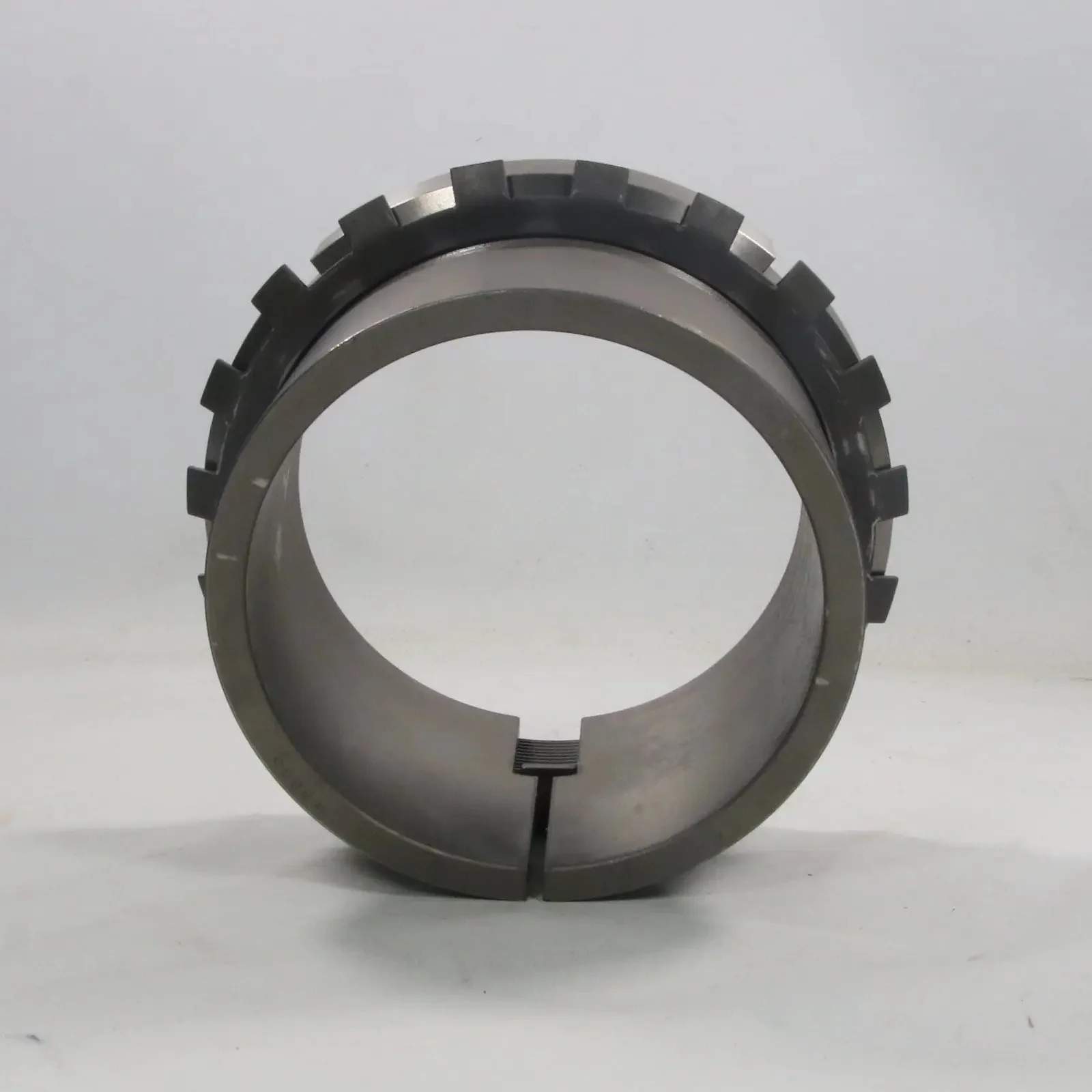

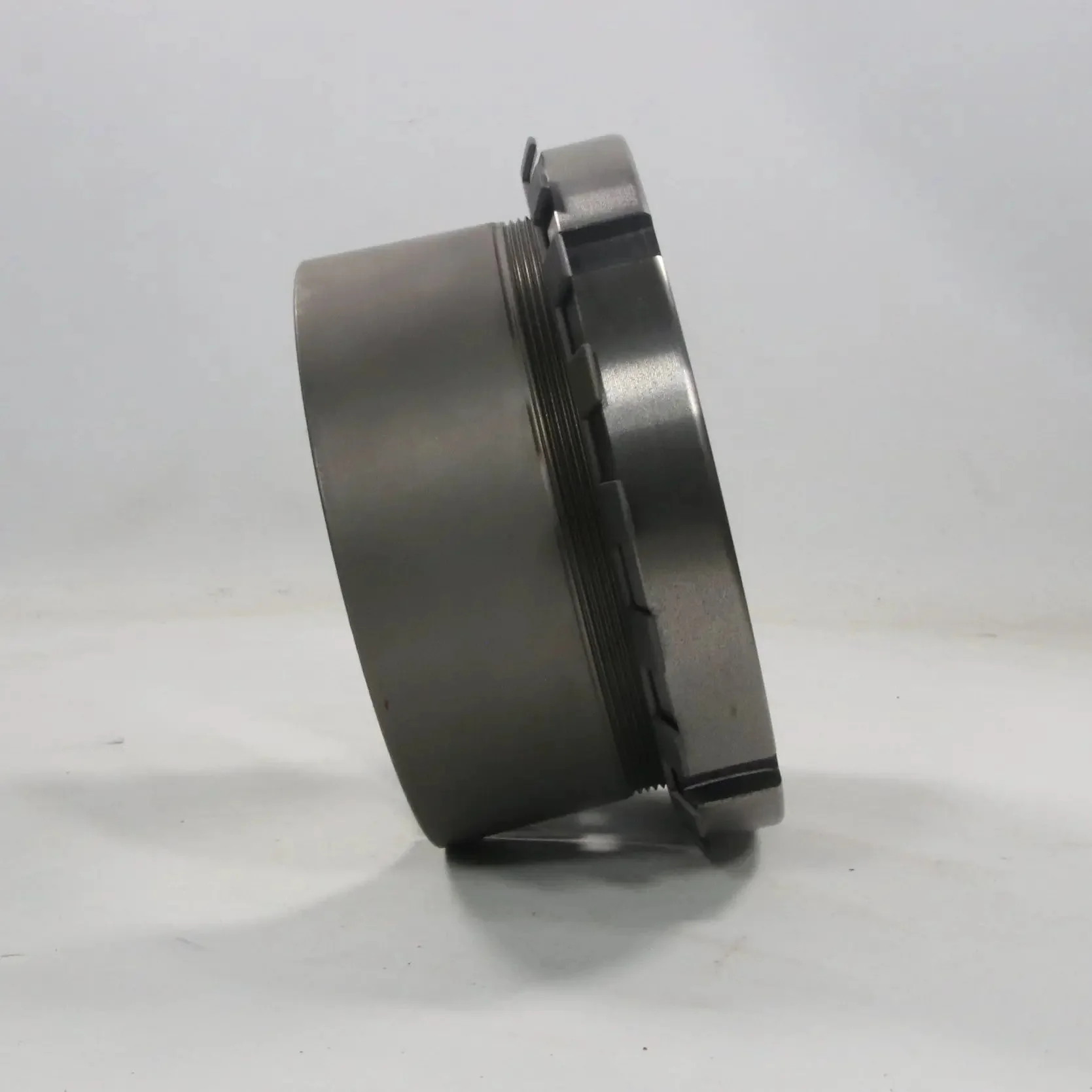

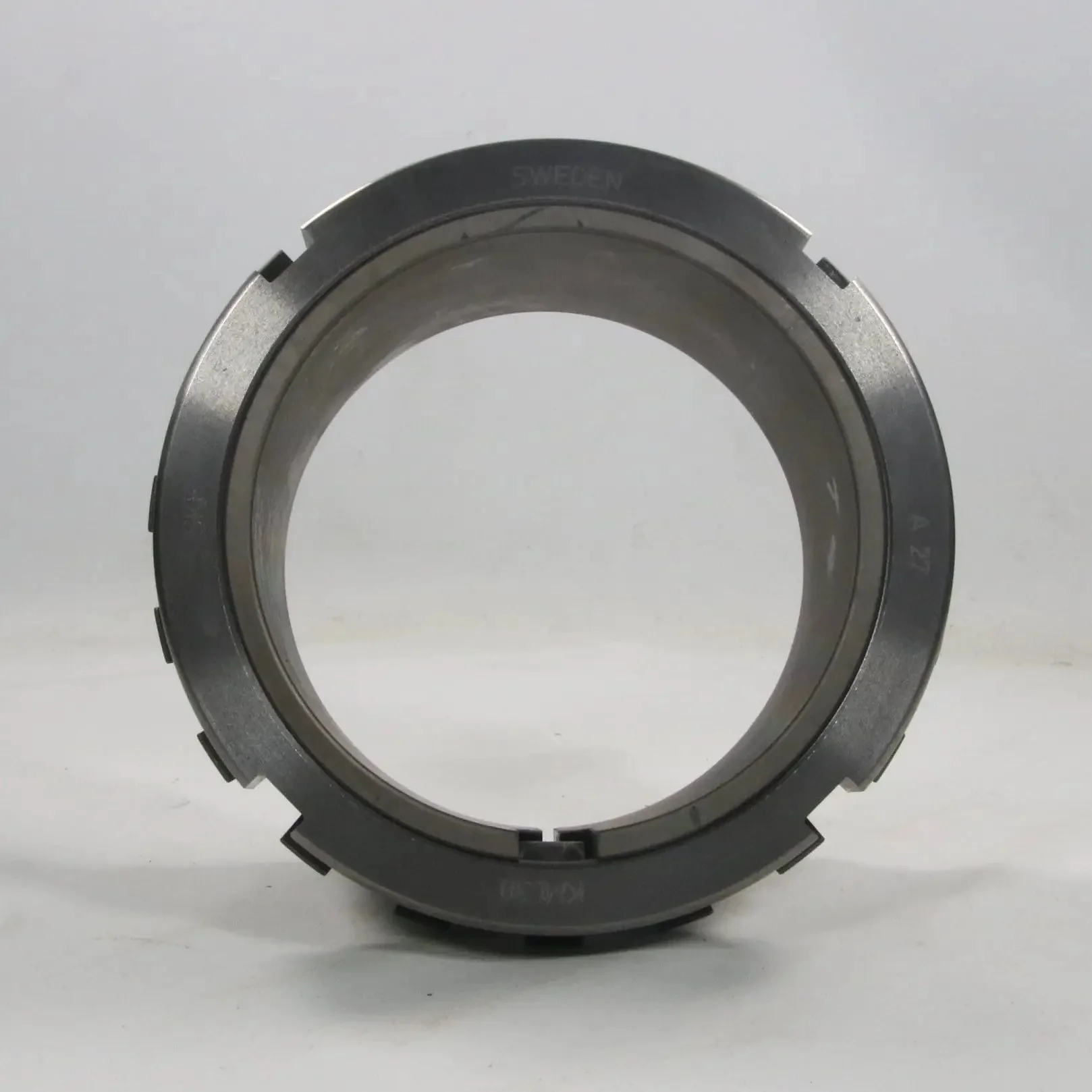

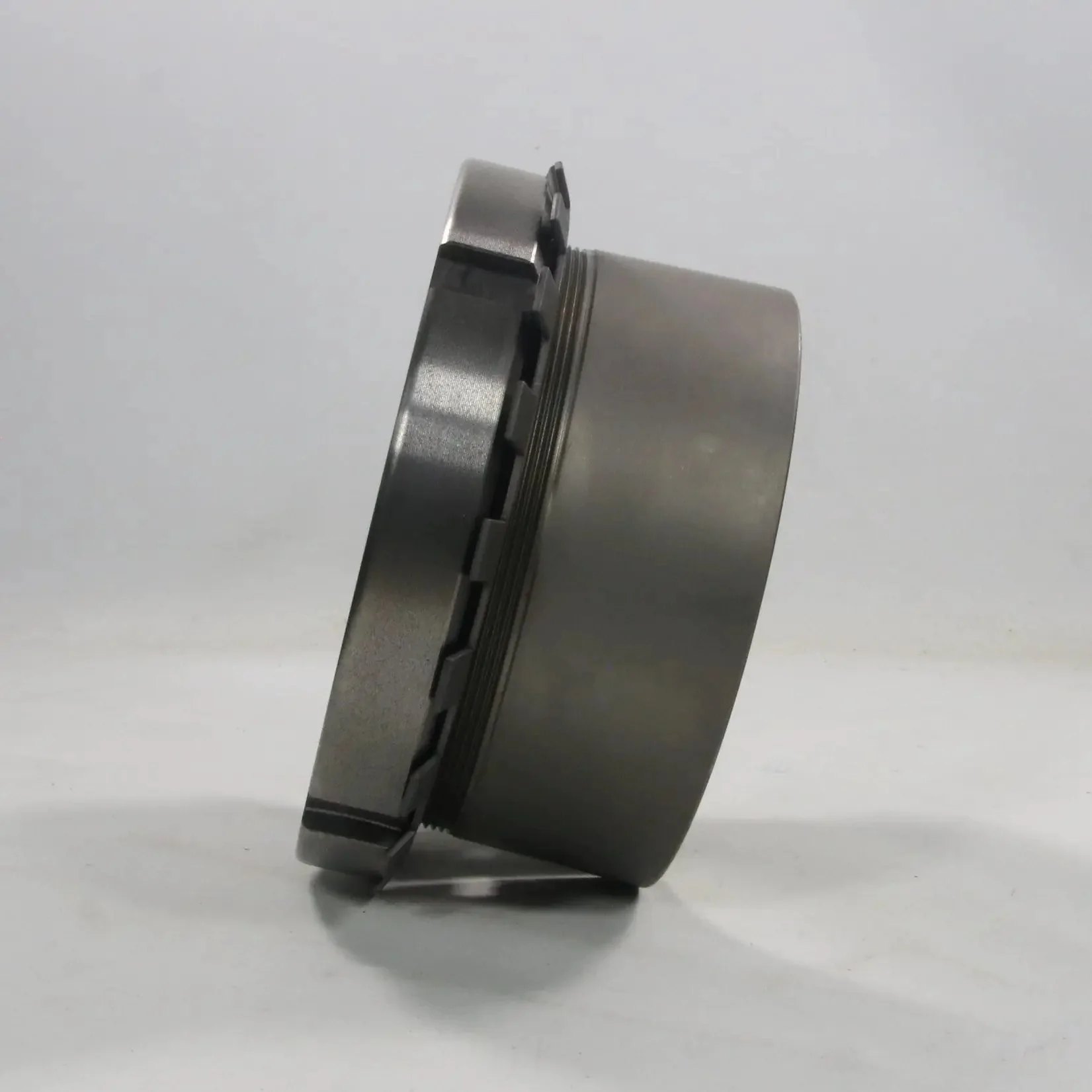

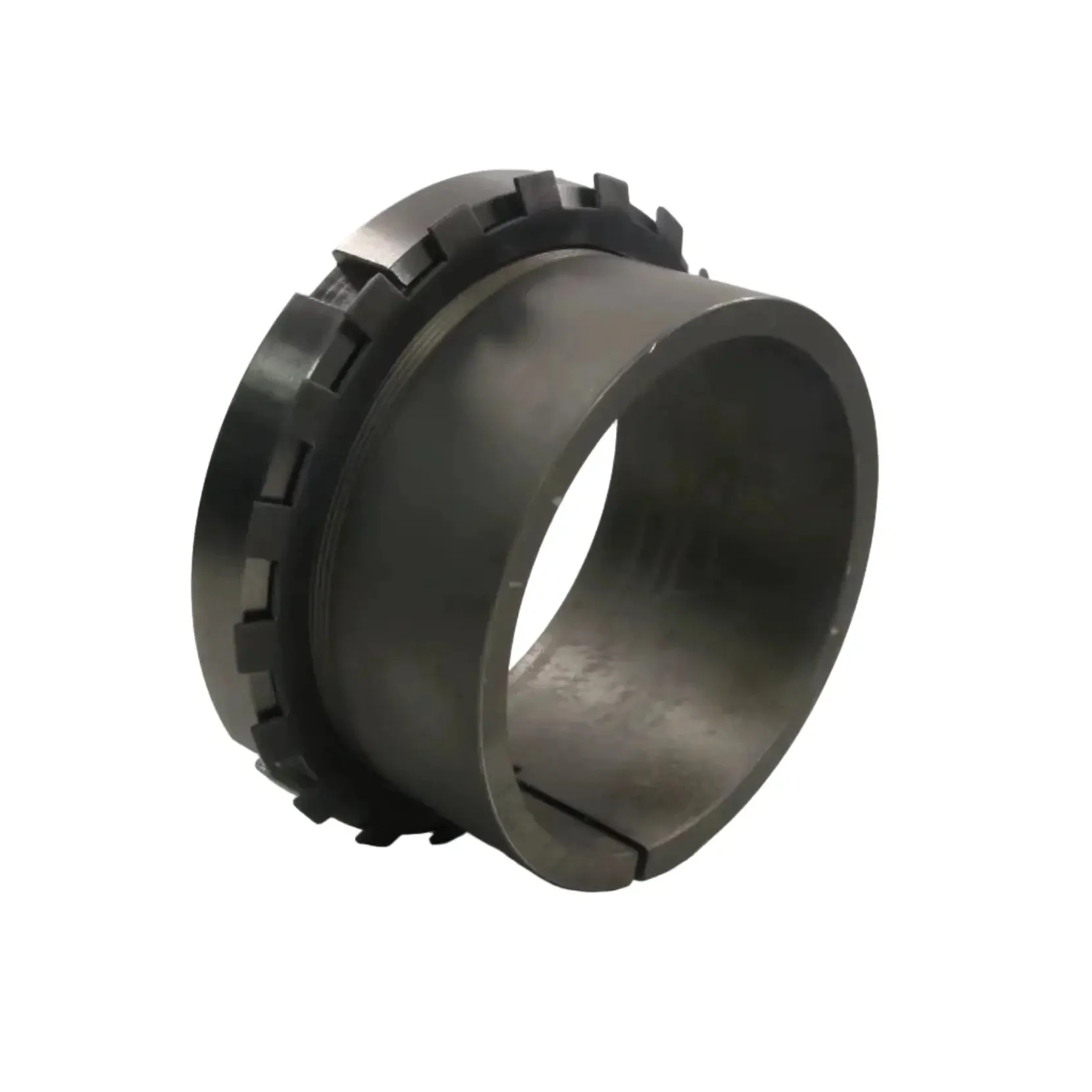

SKF H3030 Adapter Sleeve

- Brand: SKF

- Model: H3030

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: H3030; (complete kit H3030 + KML30 locknut)

- Technical specifications:
- Bore diameter: 135 mm
- Taper: 1:12 (External)
- Sleeve length: 87 mm
- Compatible bearings:
  - Self-aligning ball bearings: equivalents in tapered bore series
- Locknut: KML30
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts); SKF precision tolerances

Weight: 3.9 kg

Dimensions: 180 dia. x 87 mm

Country of origin: Sweden

HS code: 8482.99
