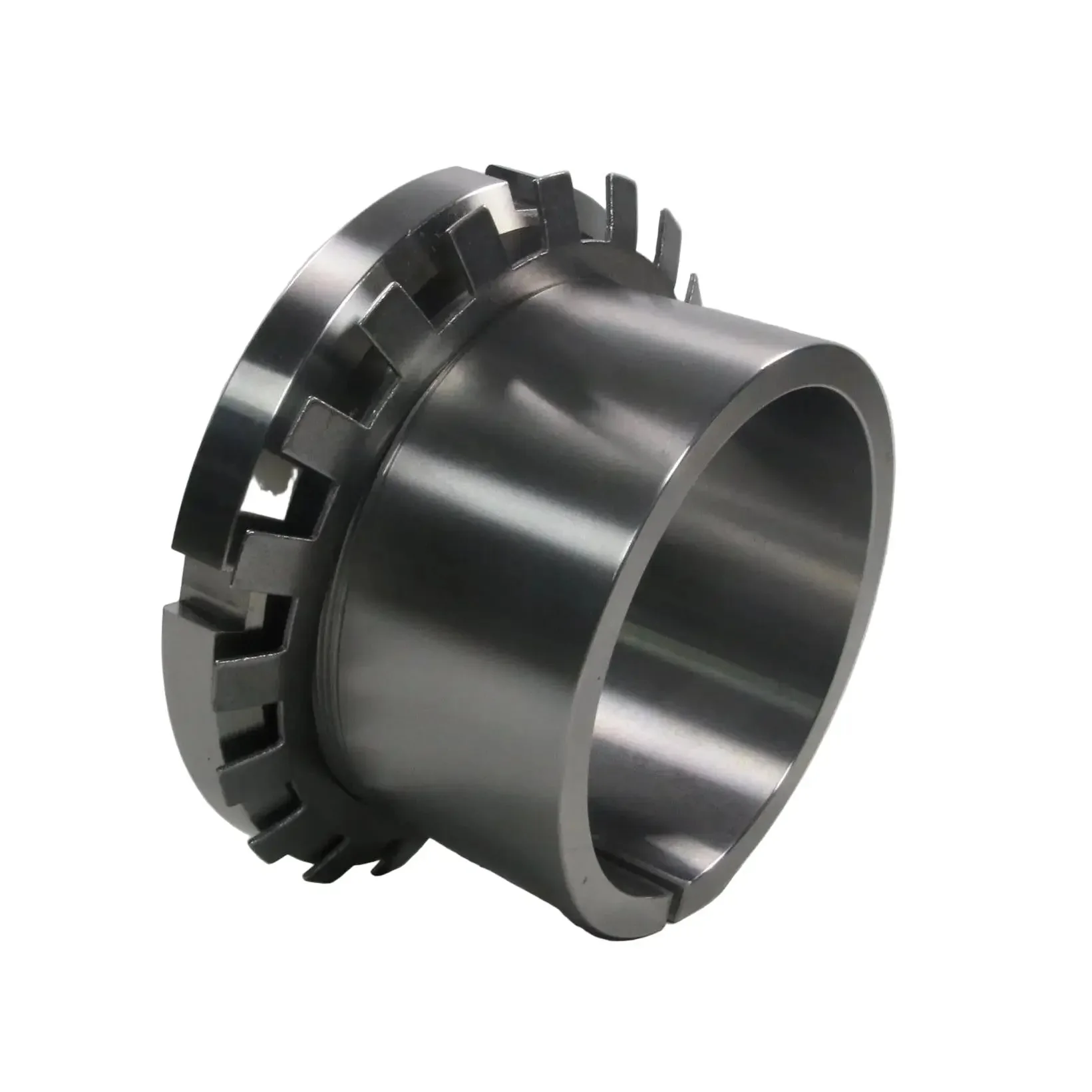

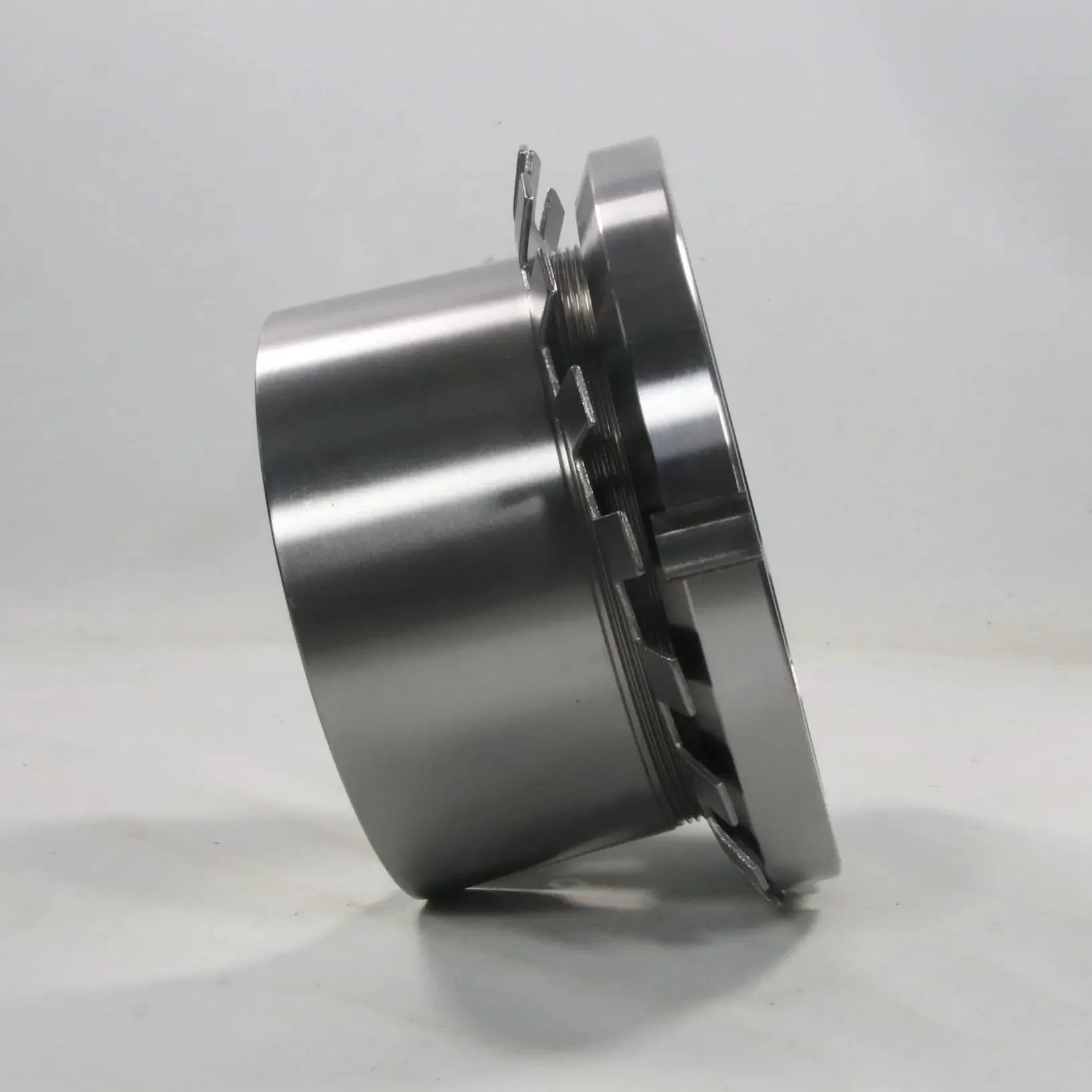

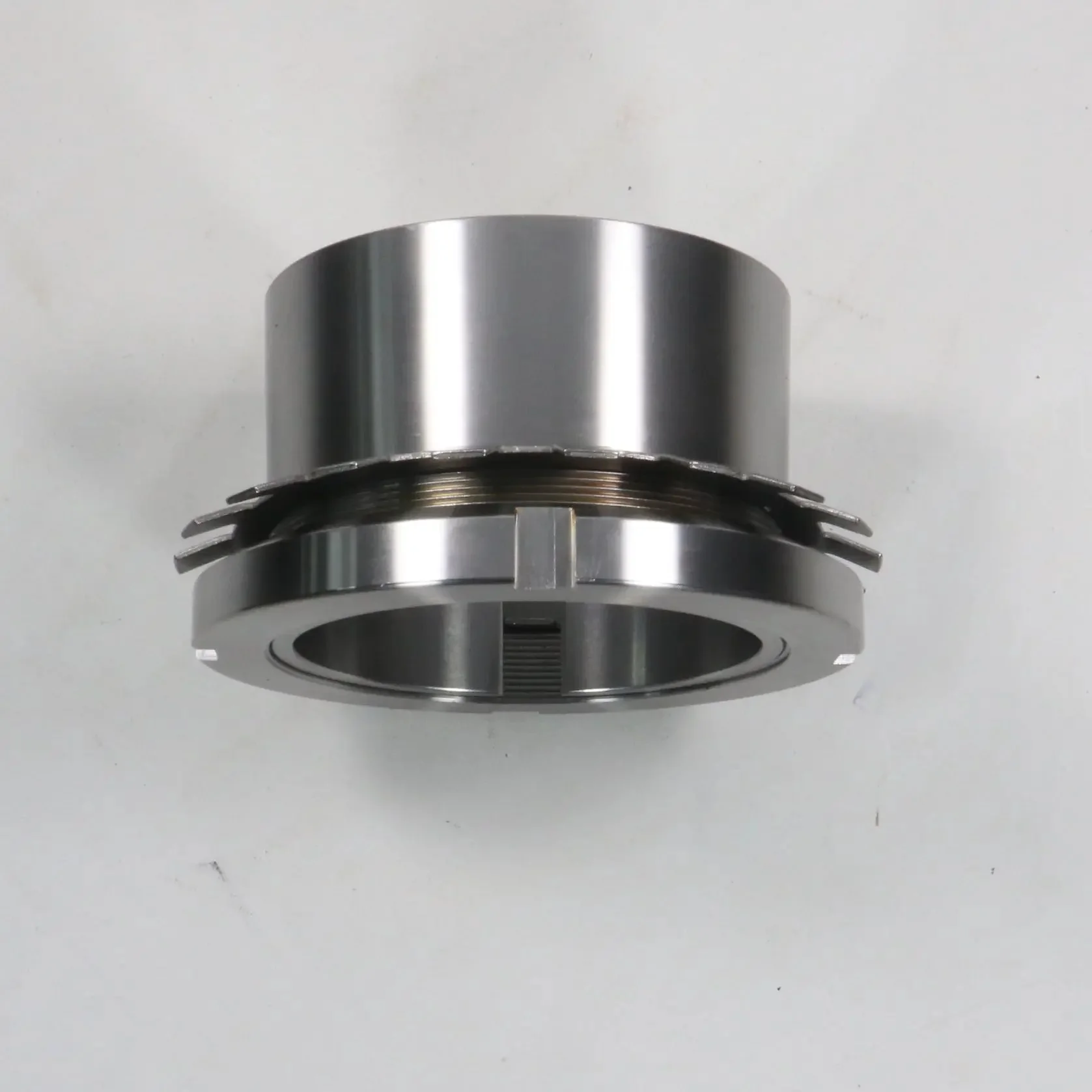

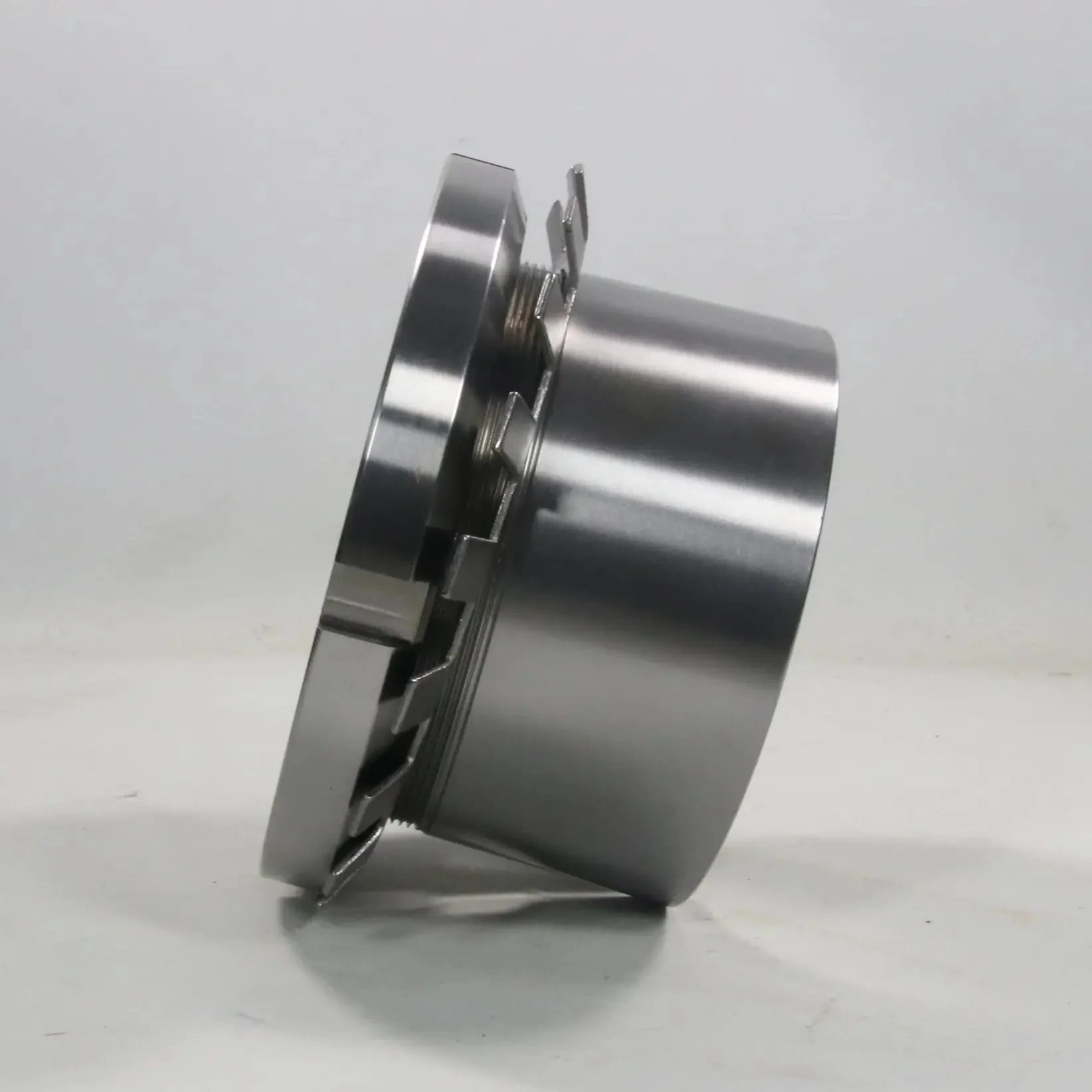

SKF H3128 Adapter Sleeve

- Brand: SKF

- Model: H3128

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: H3128; (complete kit H3128 + KM28 locknut)

- Technical specifications:
- Bore diameter: 125 mm
- Taper: 1:12
- Sleeve length: 97 mm
- Compatible bearings:
  - Spherical roller bearings: 22228 K, 23028 K, or similar
  - Self-aligning ball bearings: equivalents in tapered bore series
- Locknut: KM28
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts); SKF precision tolerances

Weight: 4.4 kg

Dimensions: 180 dia. x 97 mm

Country of origin: Sweden

HS code: 8482.99
