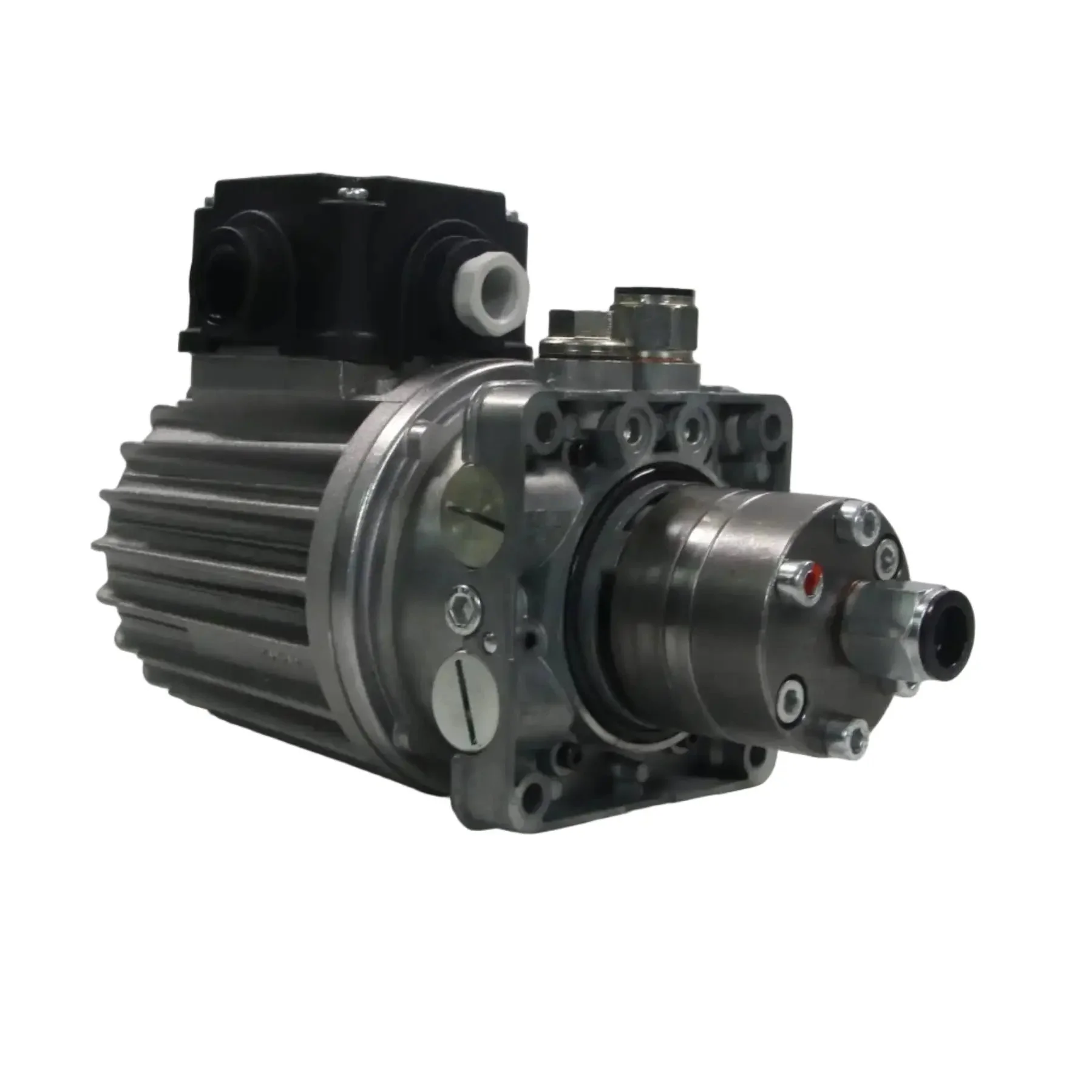

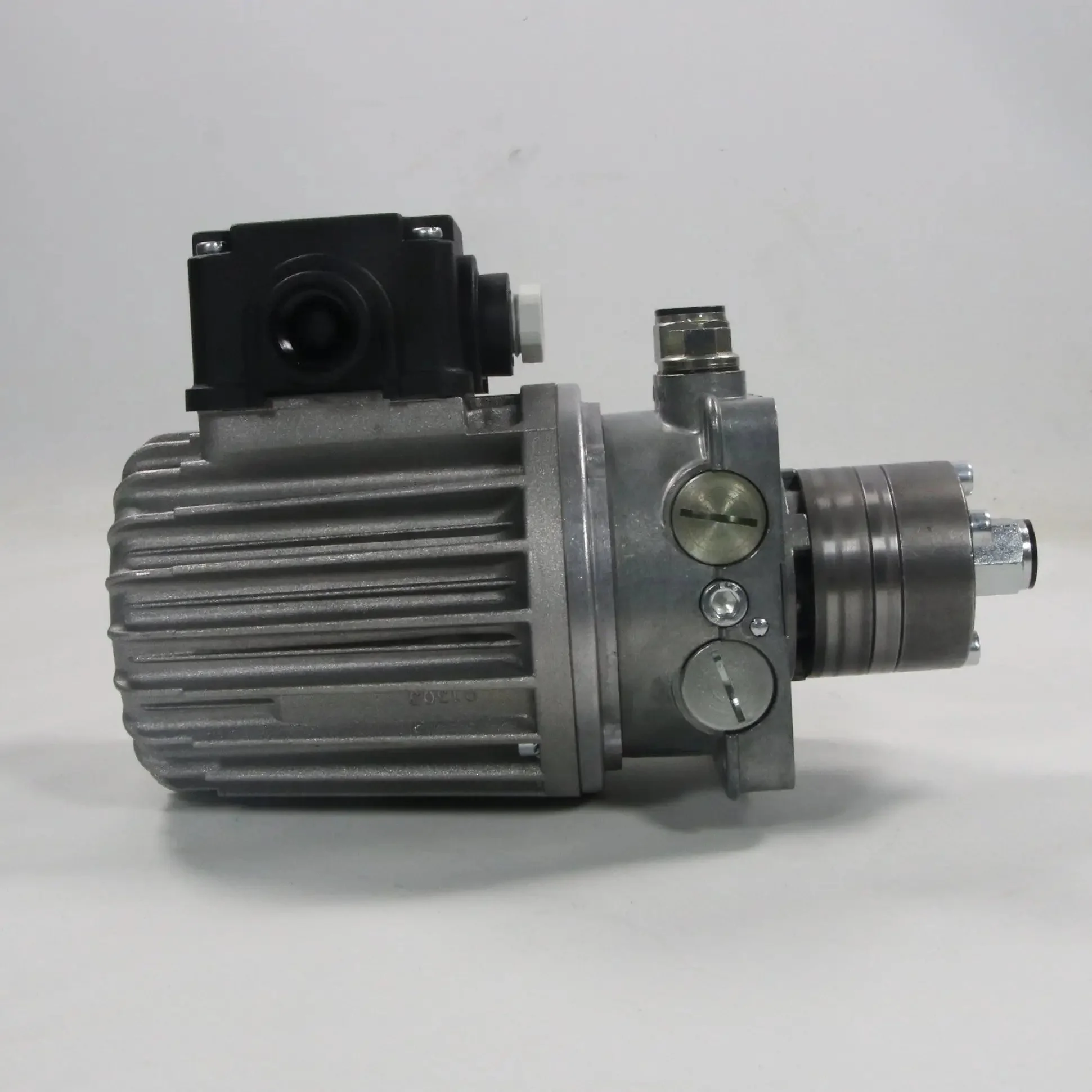

SKF Vogel DU56N2075+399 Motor & MFE5-2000+399 Gear Pump Assembly

- Brand: SKF Vogel

- Model:
- Motor: DU56N2075+399
- Gear Pump: MFE5-2000+399

- Type: Motor-Driven Gear Pump Assembly

- Part numbers: DU56N2075+399 (motor) + MFE5-2000+399 (gear pump unit)

- Technical specifications:

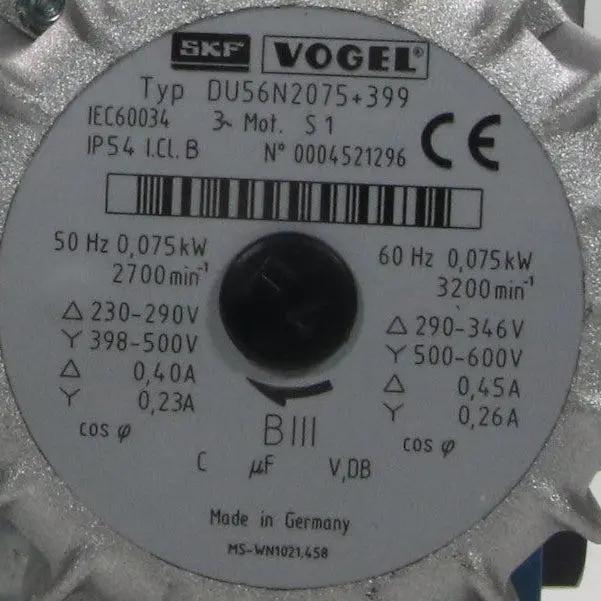

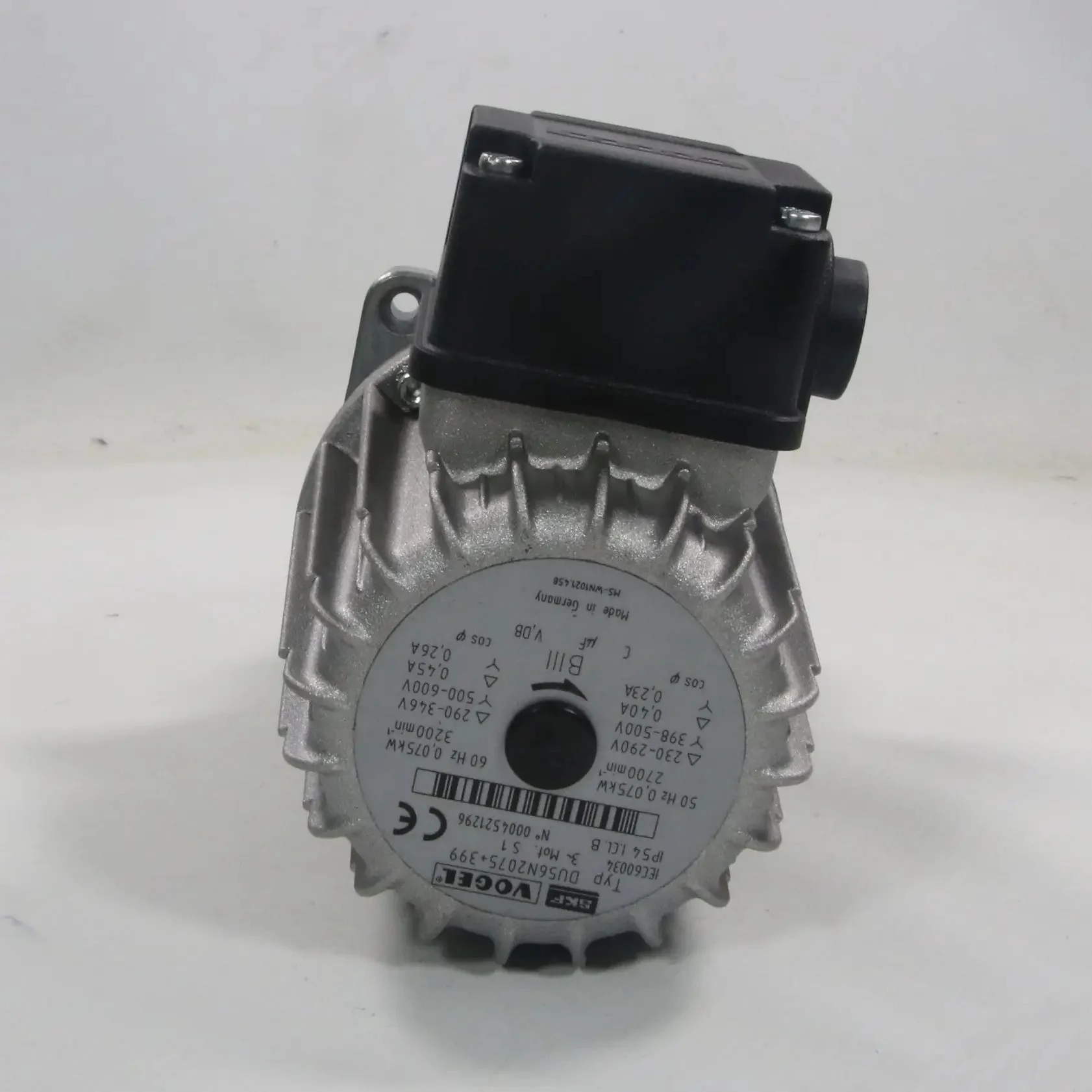

- Motor (DU56N2075+399):
  - Type: 3~Phase motor
  - Voltage: 230 - 290V, 398 - 500V @ 50Hz
  - Power:  0.75 kW
  - Speed: 2700 rpm
  - Protection class: IP54
  - Mounting: Flange
- Gear Pump (MFE5-2000+399):
  - Pump type: Multi-line gear pump
  - Flow rate: 0.5 l/min
  - Operating pressure: 28 bar max.
  - Lubricant: Oil or fluid grease
  - Reservoir: None
  - Temperature range: -10°C to +60°C
- Combined assembly: Motor directly drives gear pump; compact unit for centralized lubrication (progressive feeders, injectors, or dual-line systems); low noise; high reliability for continuous or intermittent operation
- Additional features: Pressure relief valve; easy maintenance; suitable for machine tools, presses, conveyors, or heavy machinery lubrication
- Standards: Compliant with ISO 4413 / EN ISO 4413 (hydraulic systems); CE marked; RoHS compliant

Weight: 3.2 kg

Dimensions: 220 x 120 x 140 mm

Country of origin: Germany

HS code: 8413.81
