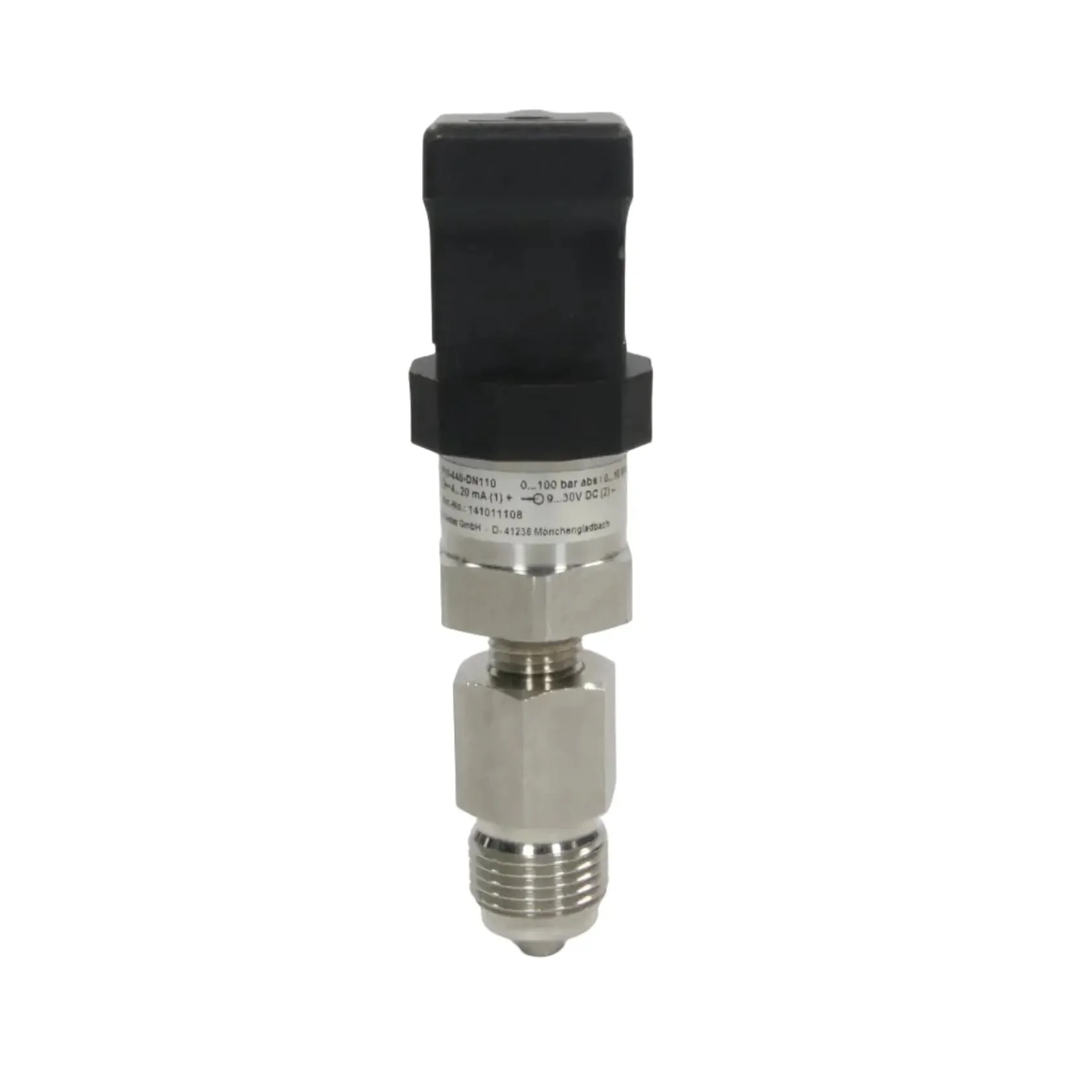

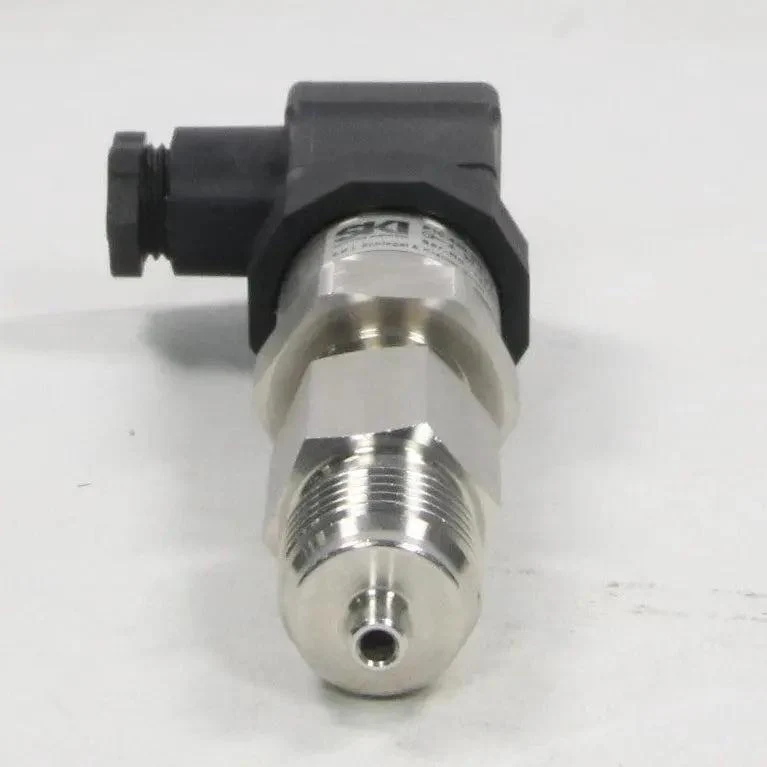

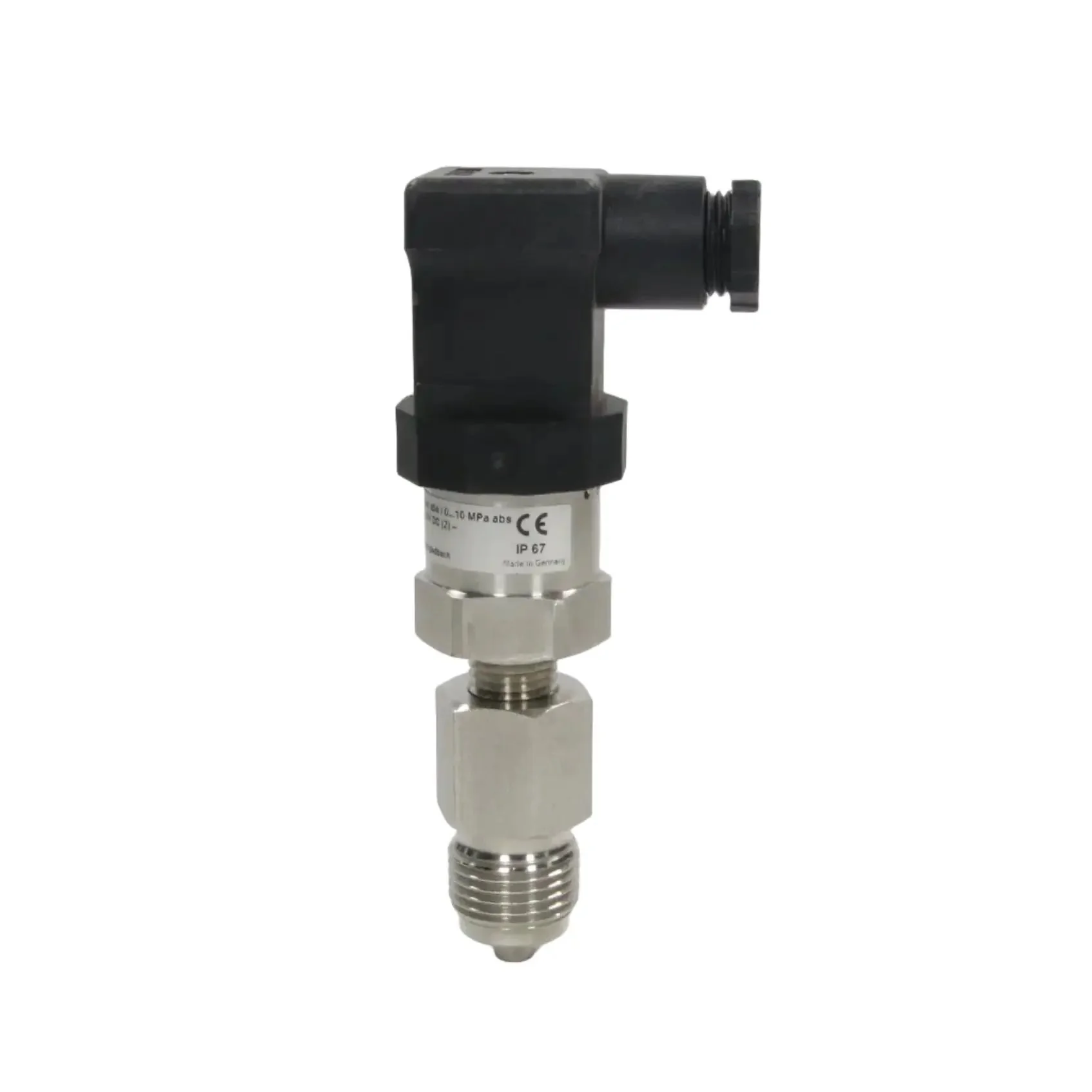

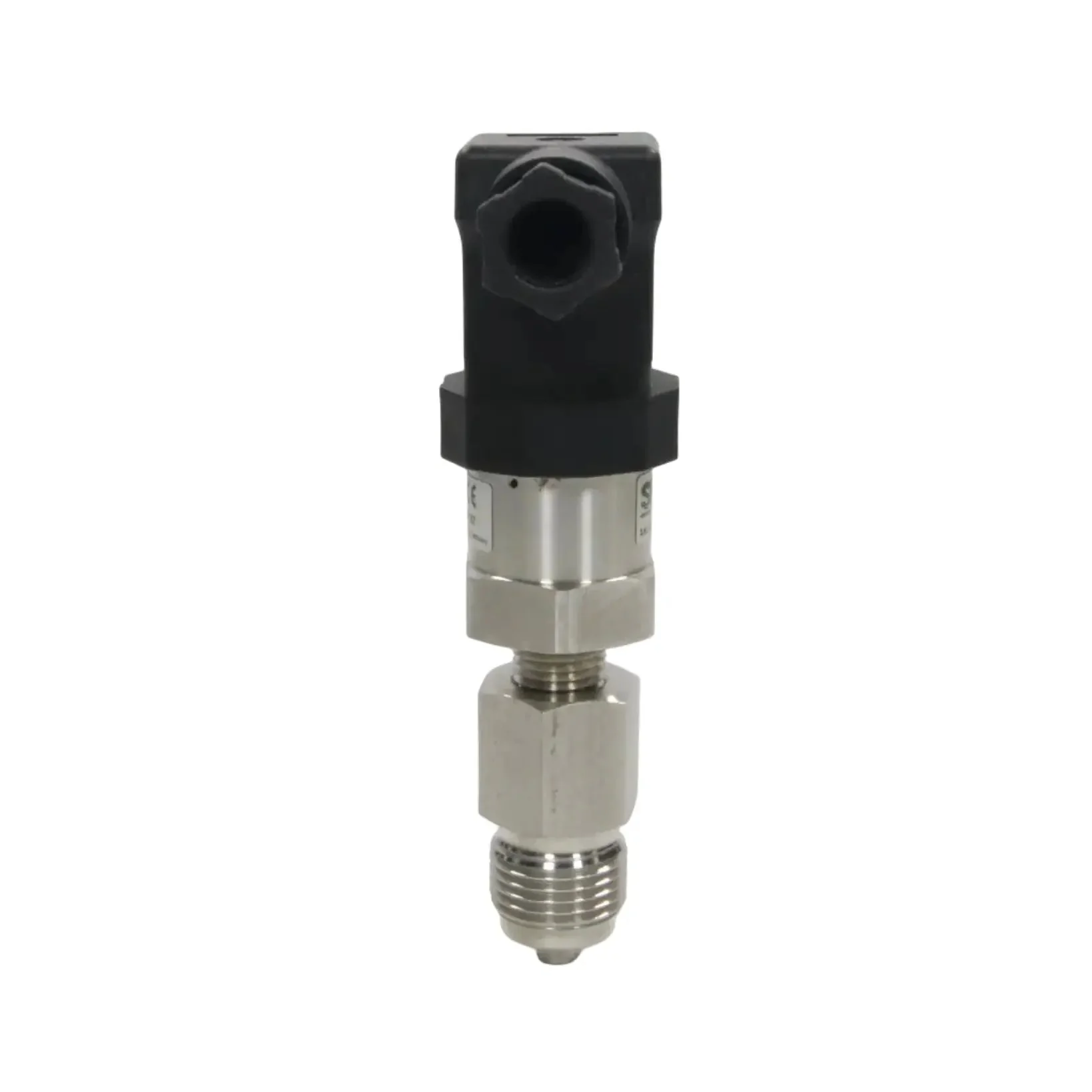

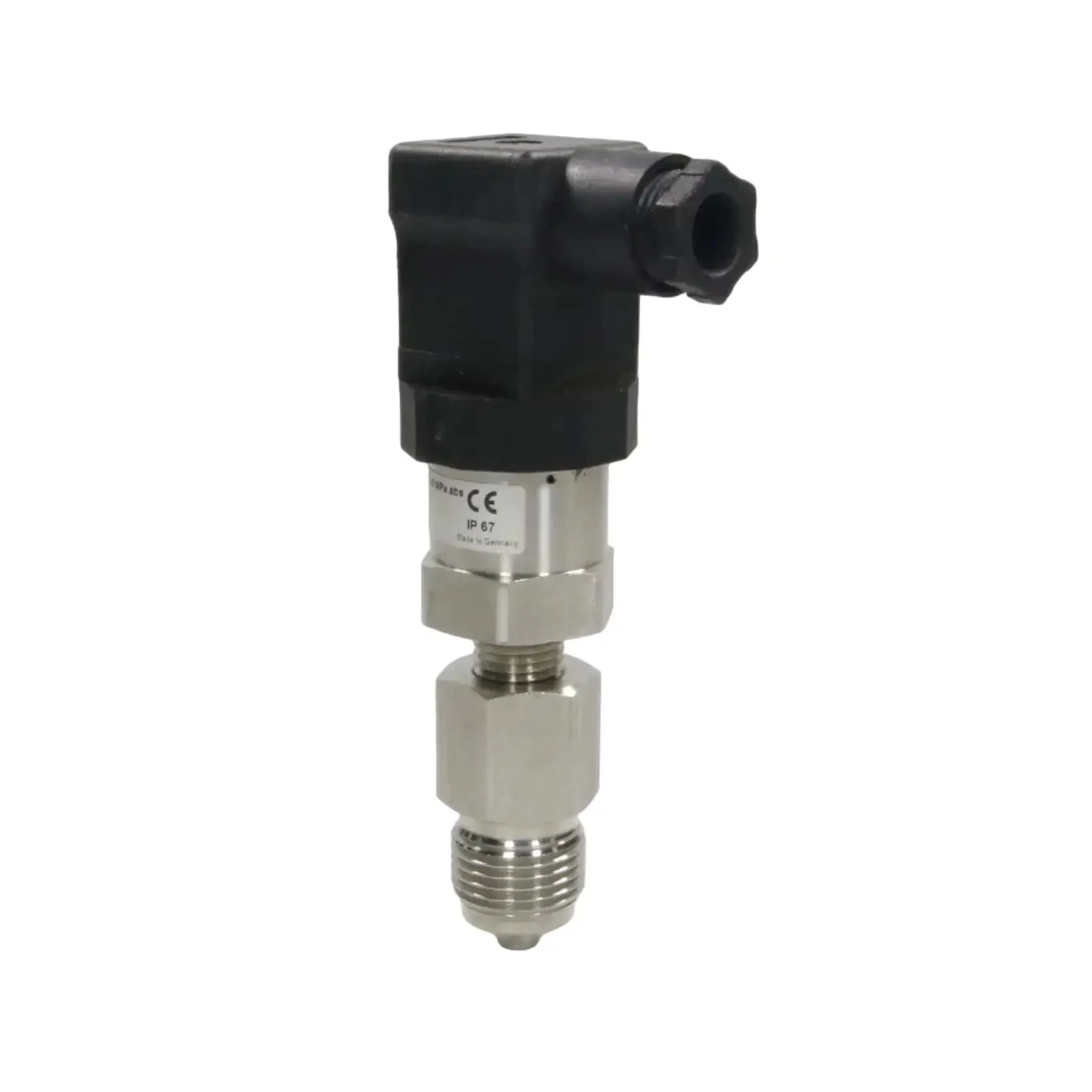

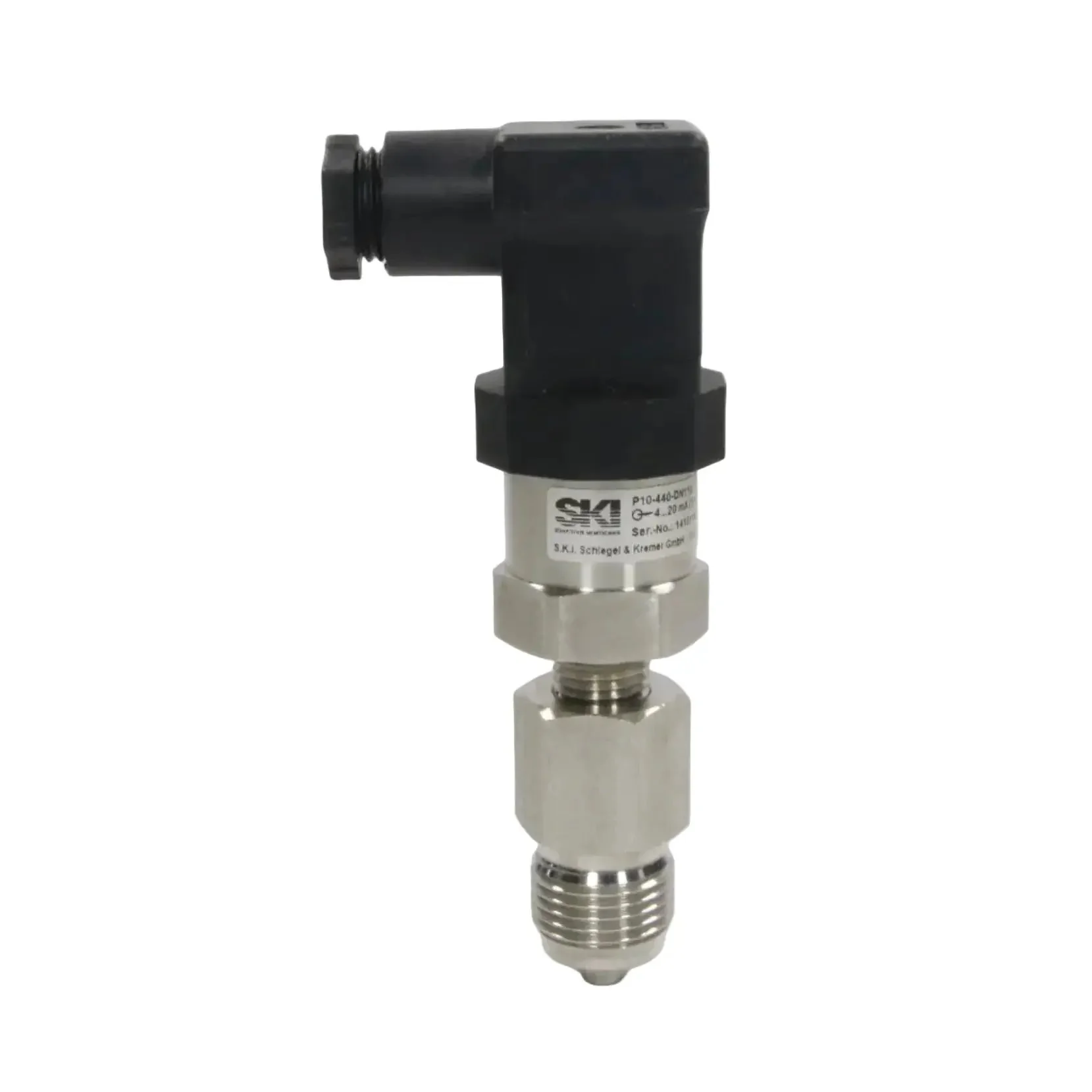

SKI Schlegel & Kremer GmbH P10-440-DN10 Pressure Transmitter

- Brand: SKI Schlegel & Kremer GmbH
- Model: P10-440-DN10
- Type: Pressure Transmitter
- All tech specs
  - Function: Industrial pressure transmitter for relative pressure measurement in liquids and gases
  - Measuring Principle: Piezoresistive sensor with stainless steel diaphragm
  - Measuring Range: 0....100 bar abs
  - Overpressure Limit: 2 × full scale
  - Accuracy: ±0.5 % FS (full scale) at 25 °C
  - Zero Point Temperature Drift: ±0.015 % FS / °C
  - Span Temperature Drift: ±0.015 % FS / °C
  - Long-term Stability: ±0.2 % FS per year
  - Output Signal: 4…20 mA (2-wire)
  - Supply Voltage: 9…30 V DC
  - Current Consumption: ≤ 22 mA
  - Response Time: ≤ 5 ms
  - Process Connection: G1/2" male thread (DN10 standard)
  - Wetted Parts: Stainless steel 1.4404 diaphragm and process connection
  - Seal Material: FKM (Viton) standard
  - Housing Material: Stainless steel 1.4404
  - Electrical Connection: M12 × 1 connector (4-pin)
  - Protection Rating: IP67
  - Operating Temperature (medium): –30 °C to +100 °C
  - Ambient Temperature: –20 °C to +80 °C
  - Vibration Resistance: 10 g (10–2000 Hz)
  - Shock Resistance: 100 g (11 ms)
  - Features: Compact design, high overload protection, reverse polarity protection, EMC resistant, discontinued
- Dimensions: Ø 40 × 130 mm
- Weight: 250 g
- Country of origin: Germany
- HS code: 902620
