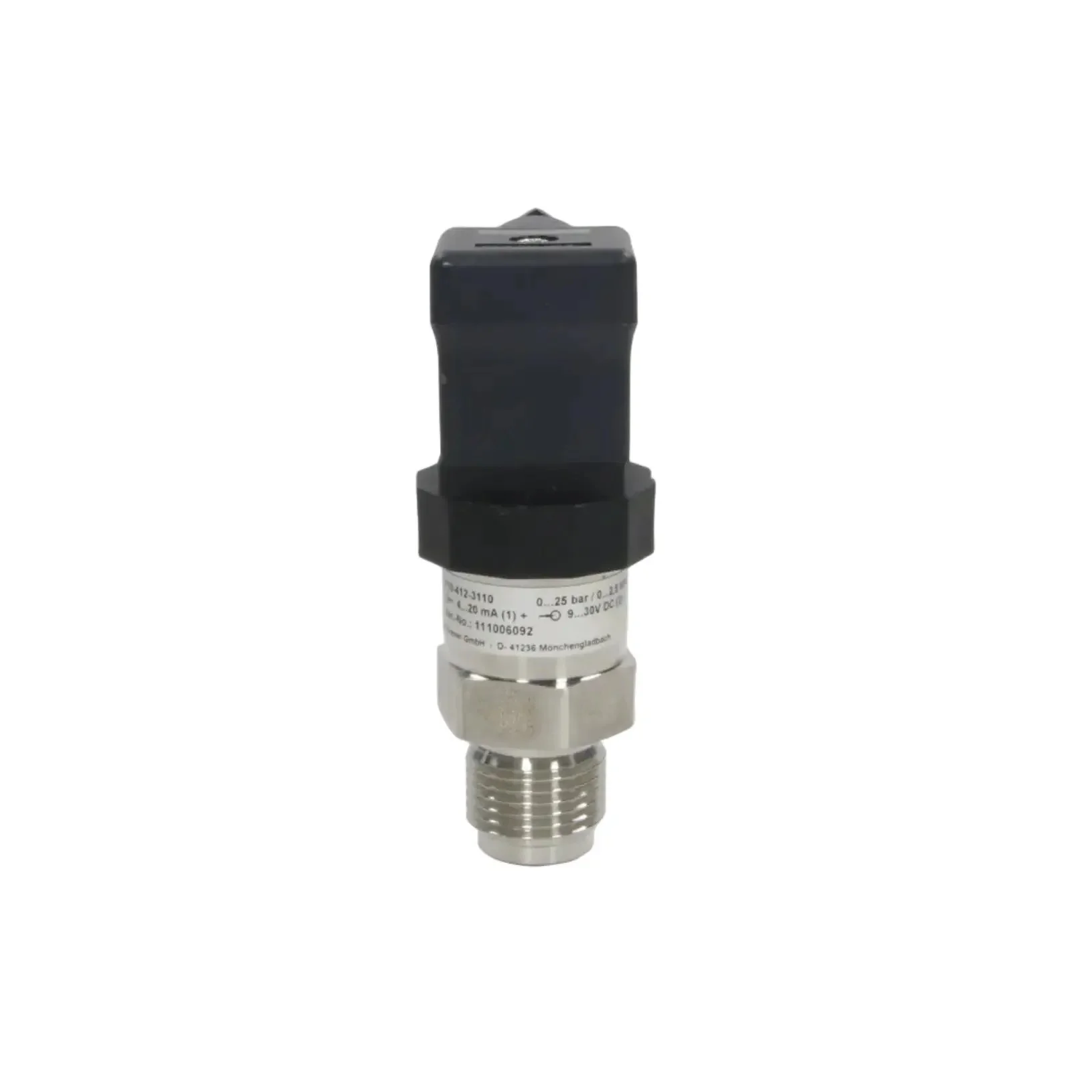

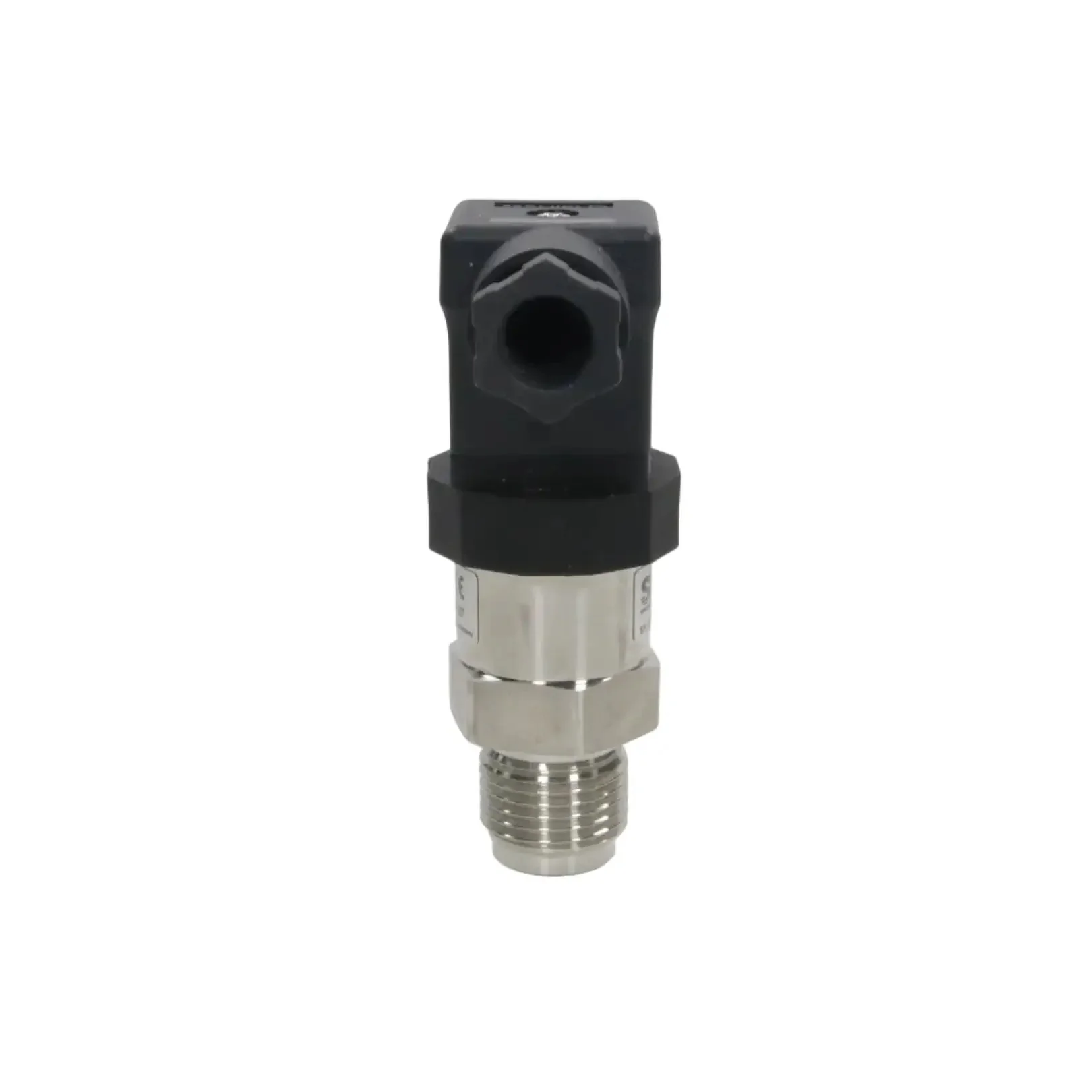

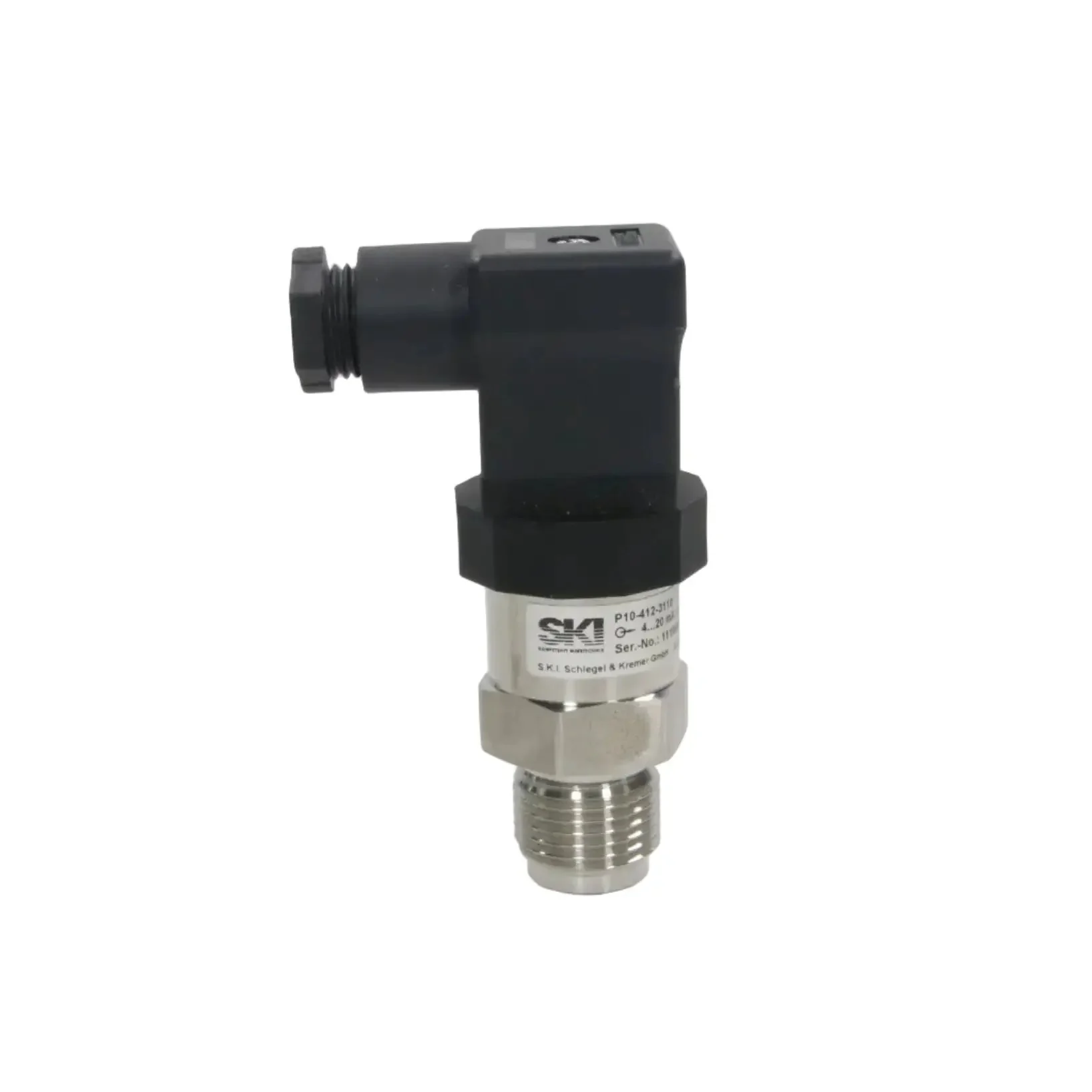

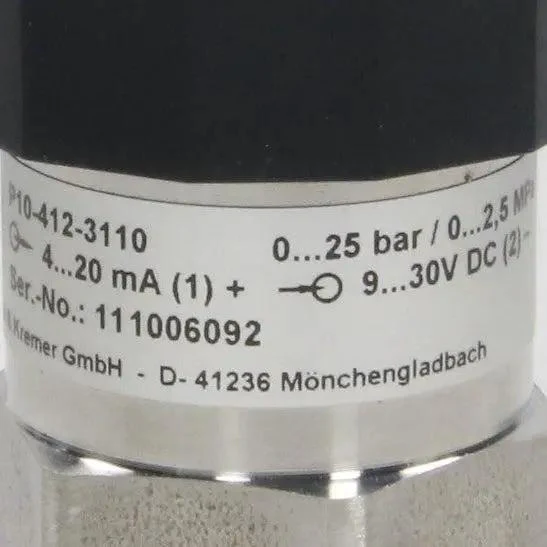

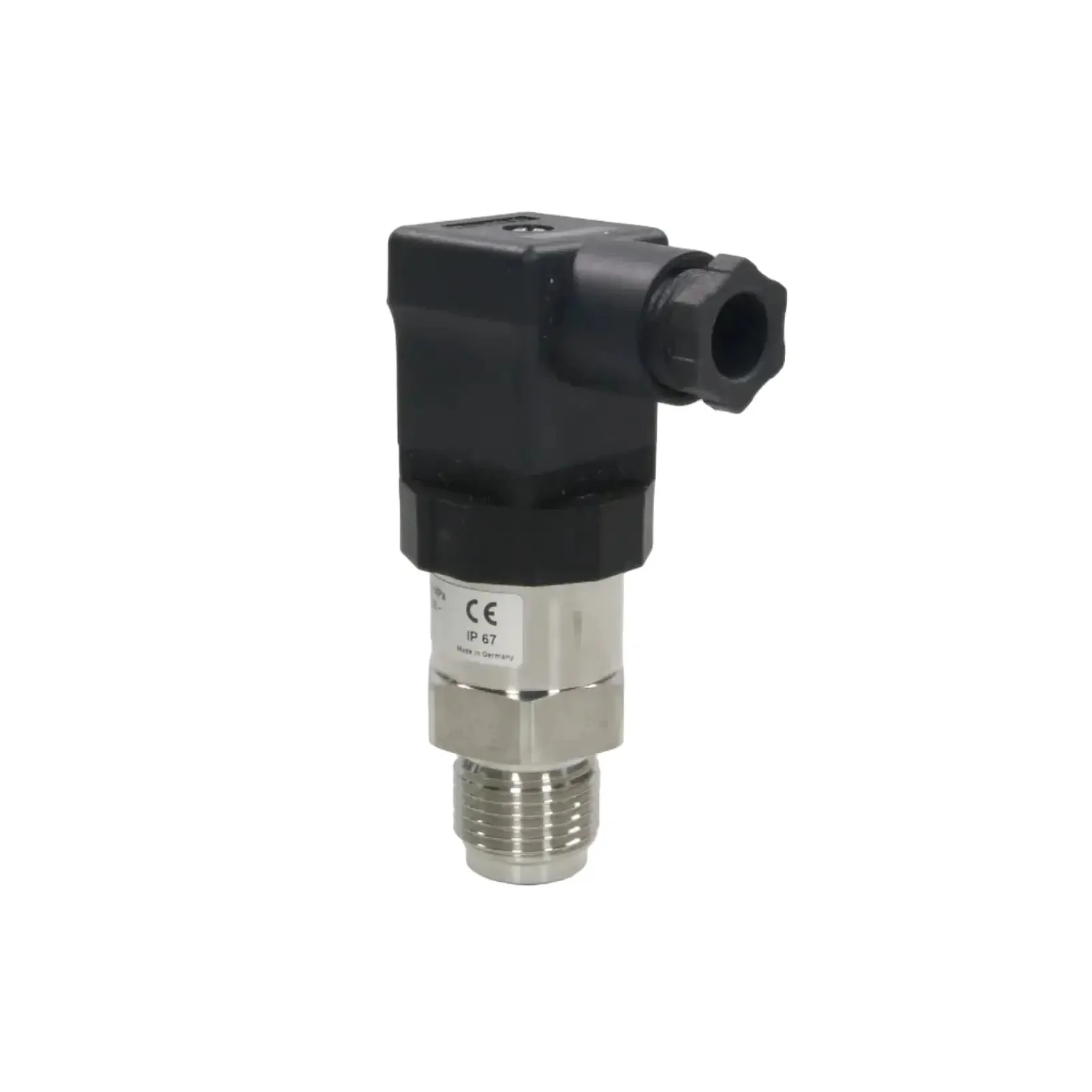

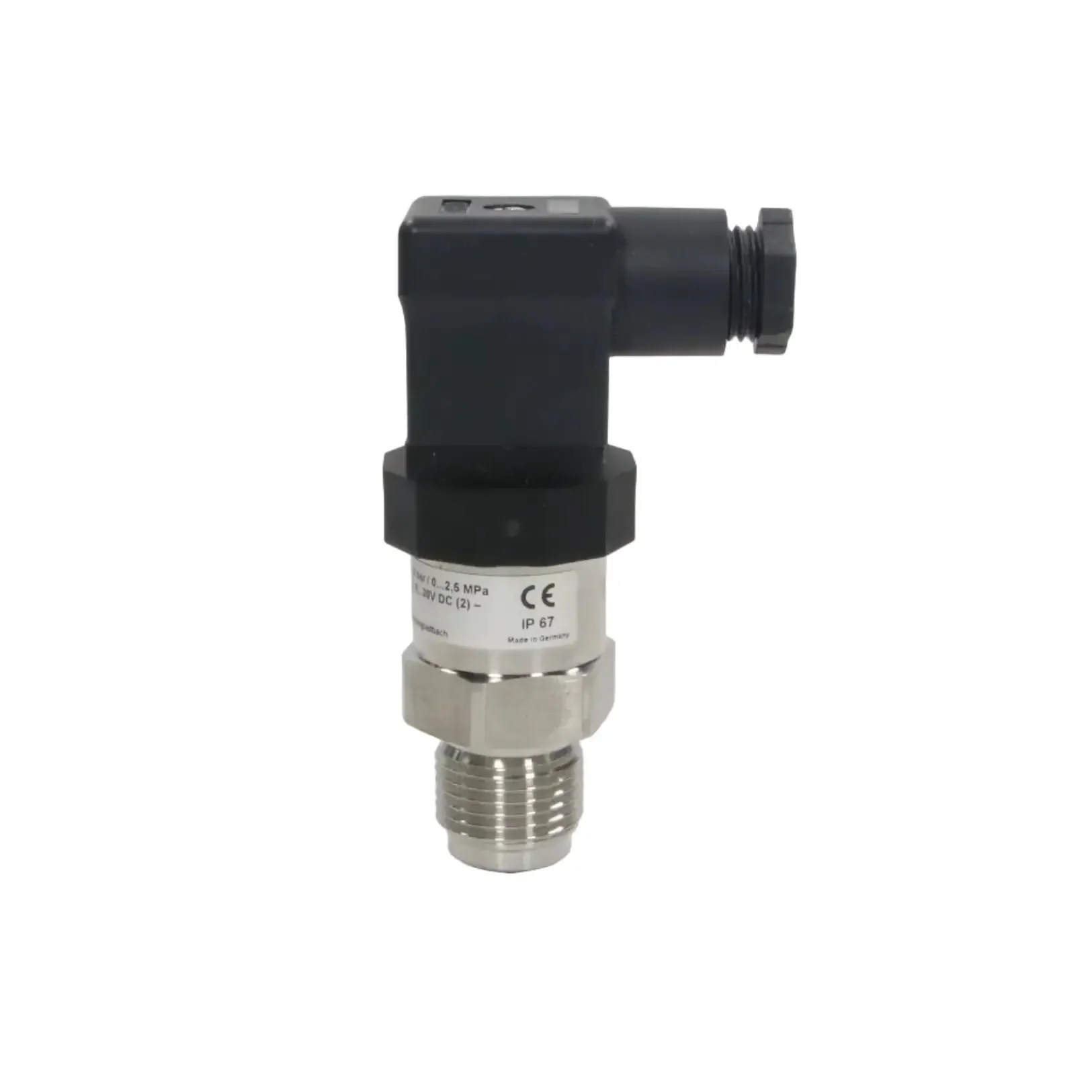

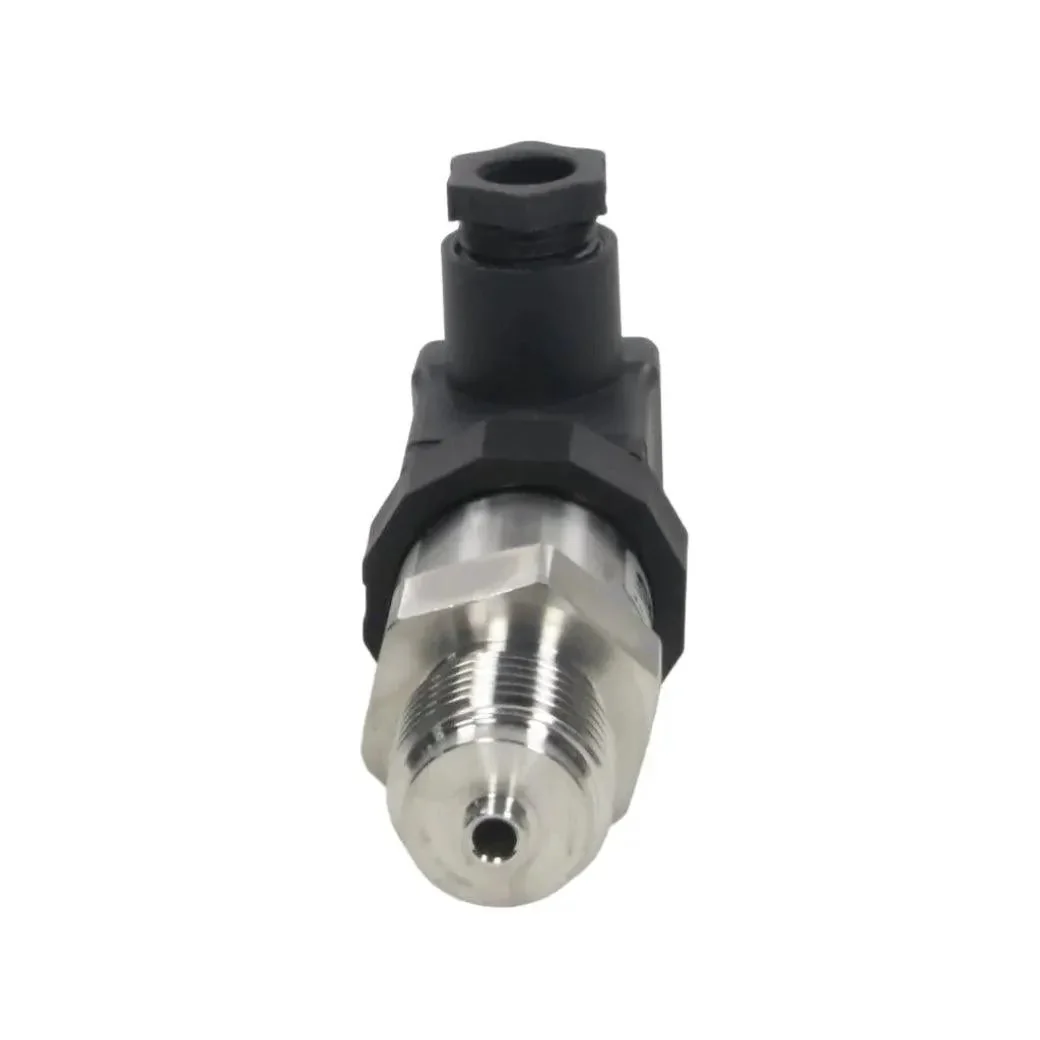

SKI Schlegel & Kremer GmbH P10-412-3110 Pressure Transmitter

- Brand: SKI Schlegel & Kremer GmbH (now part of Senseca / GHM Group)

- Model: P10-412-3110

- Type: Pressure Transmitter

- All tech specs:
  - Function: Electronic pressure transmitter for relative pressure measurement of gases and liquids
  - Measuring Principle: Piezoresistive sensor with stainless steel diaphragm
  - Measuring Range: 0 … 25 bar
  - Overpressure Limit: 2 × full scale
  - Burst Pressure: 4 × full scale
  - Accuracy: ±0.5 % of full scale
  - Long-term Stability: ≤ ±0.2 % FS per year
  - Temperature Influence: ≤ ±0.015 % FS / °C
  - Output Signal: 4 … 20 mA (2-wire)
  - Supply Voltage: 9 … 30 V DC
  - Current Consumption: ≤ 22 mA
  - Response Time: ≤ 5 ms
  - Process Connection: G1/2" male thread
  - Wetted Parts Material: Stainless steel 1.4404 diaphragm and process connection
  - Seal Material: NBR
  - Housing Material: Stainless steel 1.4404
  - Electrical Connection: M12 × 1 connector (4-pin), optional cable outlet
  - Protection Rating: IP67
  - Operating Temperature (medium): –30 °C to +100 °C
  - Ambient Temperature: –20 °C to +80 °C
  - Vibration Resistance: 10 g (10–2000 Hz)
  - Shock Resistance: 100 g (11 ms)
  - Features: Compact design, high overload protection, reverse polarity protection, EMC resistant, discontinued

- Dimensions: Ø 35 mm × 95 mm

- Weight: 220 g

- Country of origin: Germany

- HS code: 902620
