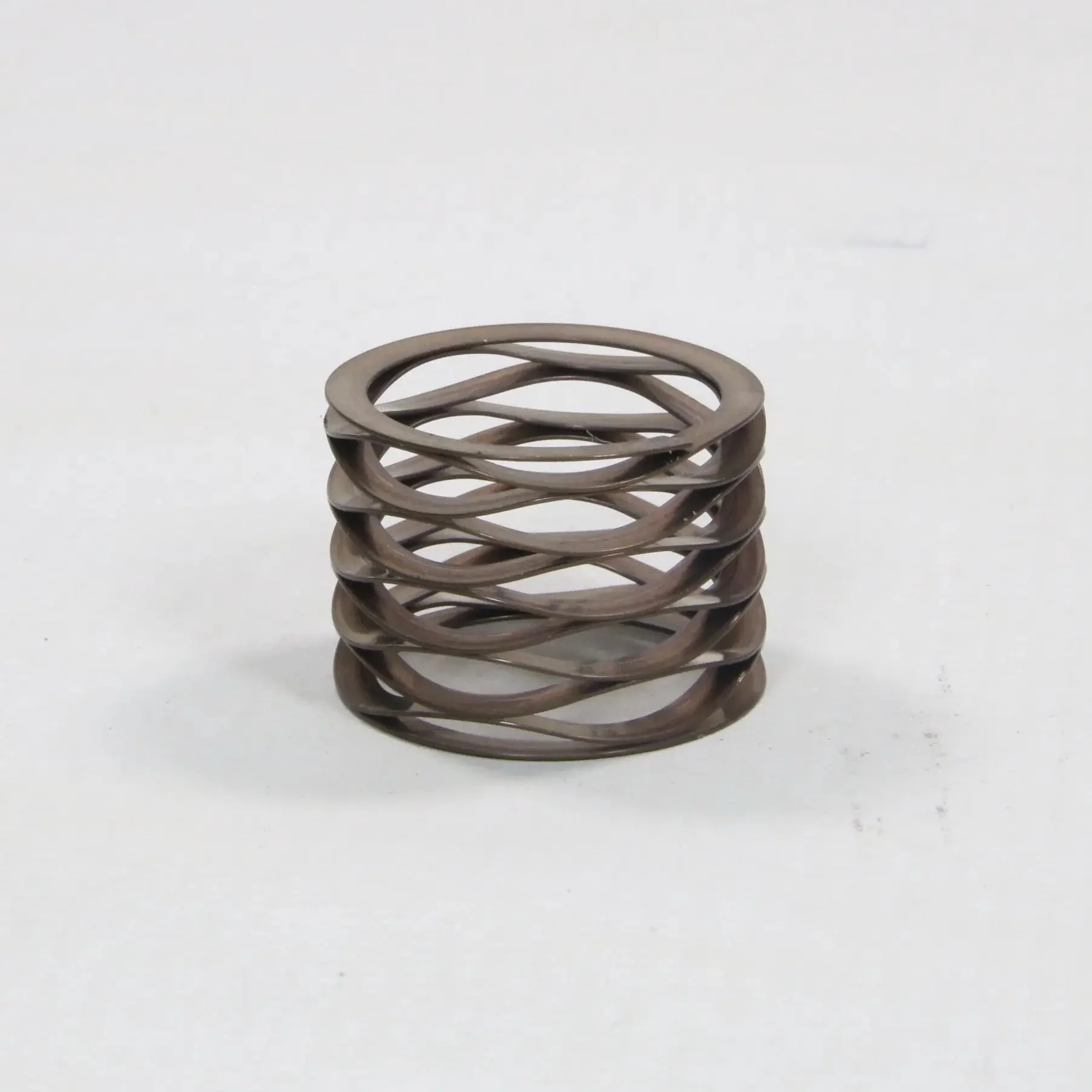

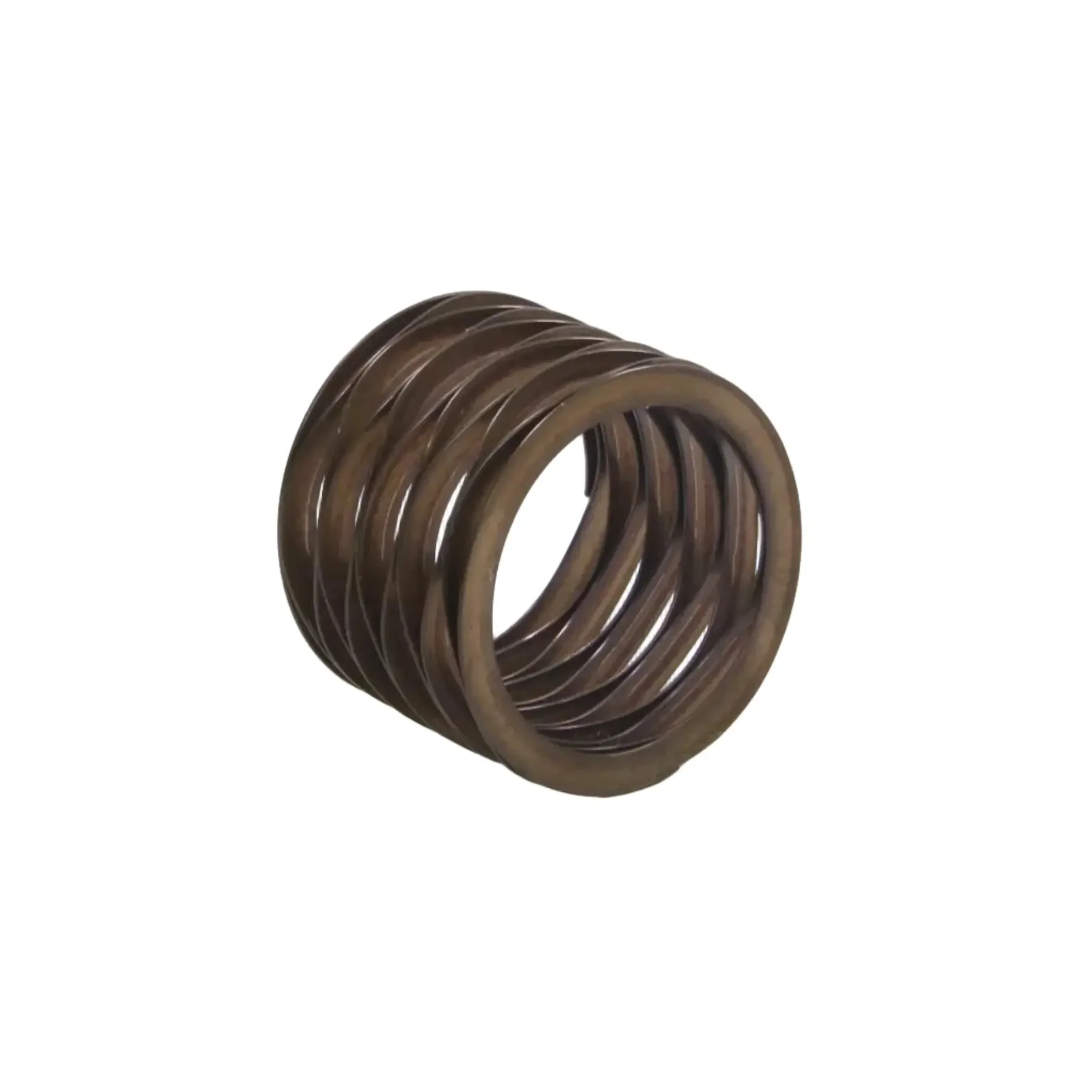

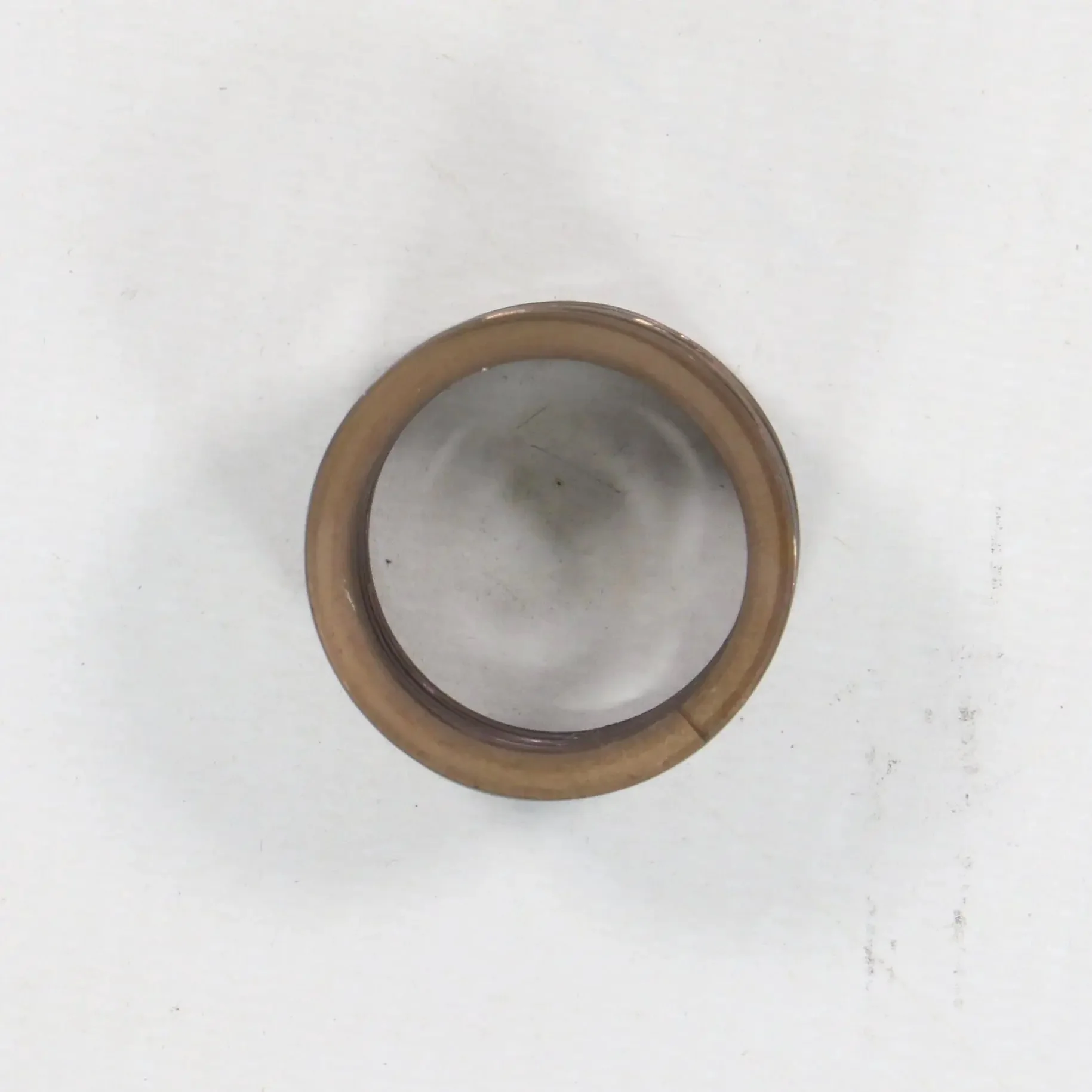

Smalley CMS35-H5-S17 Wave Spring x 15pcs
Brand: Smalley
Model: CMS35-H5-S17
Type: Crest-to-Crest Wave Springs x 15pcs
Part Number: CMS35-H5-S17
Technical Specs:
- Spring Type: Multi-turn wave spring
- Material: Stainless Steel 17-7 PH
- Operates in Bore Diameter (Db): 35.00 mm
- Clears Shaft Diameter (Ds): 27.00 mm
- Load (N): 160.0 N
- Work Height (hf): 9.42 mm
- Free Height (b): 19.56 mm
- Waves: 3.5
- Turns: 7
- Wire Thickness (t): 0.46 mm
- Spring Rate (N/mm): 15.78 N/mm
- Operating Temperature Range: -100 °C to +150 °C
- Fatigue Life: High
- Additional Features:
- Shim ends provide flat surfaces for even load distribution
- High strength-to-weight ratio
- Corrosion-resistant
Dimensions:
- Bore Diameter (Db): 35.00 mm
- Shaft Clearance Diameter (Ds): 27.00 mm

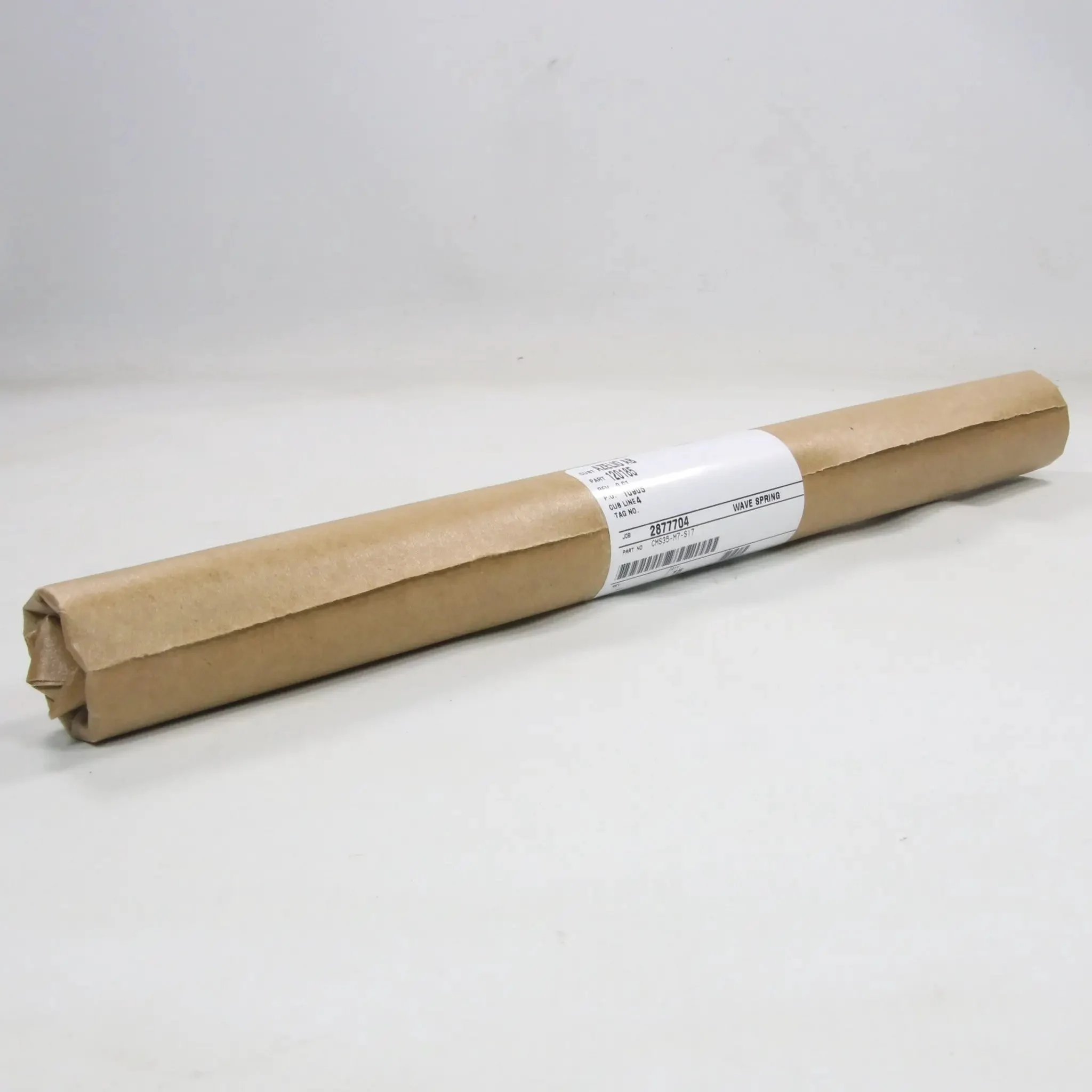

- Roll: 360 x 35 mm
Weight: 190 g (roll x 15pcs)
Country of Origin: United States
HS Code: 7320.20
