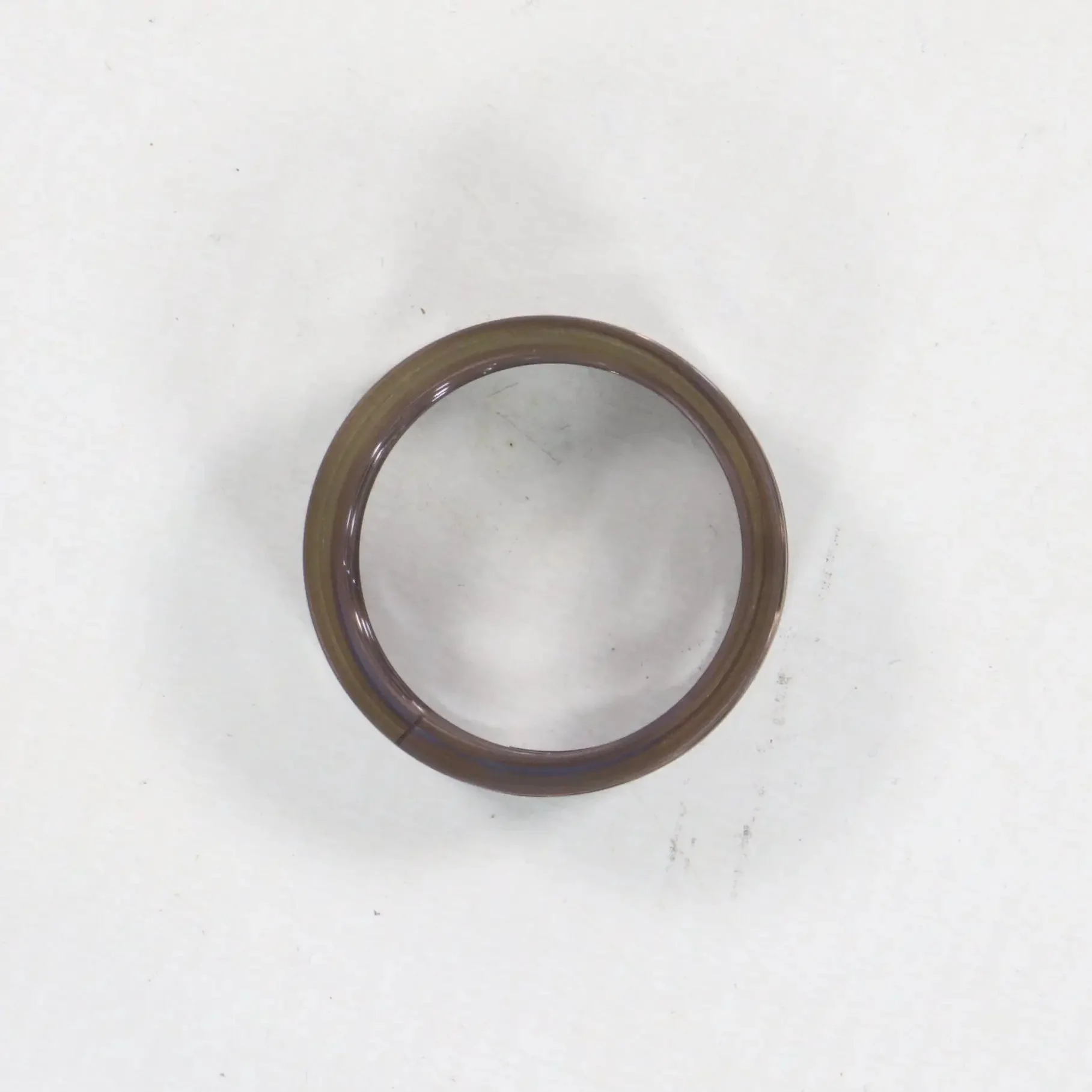

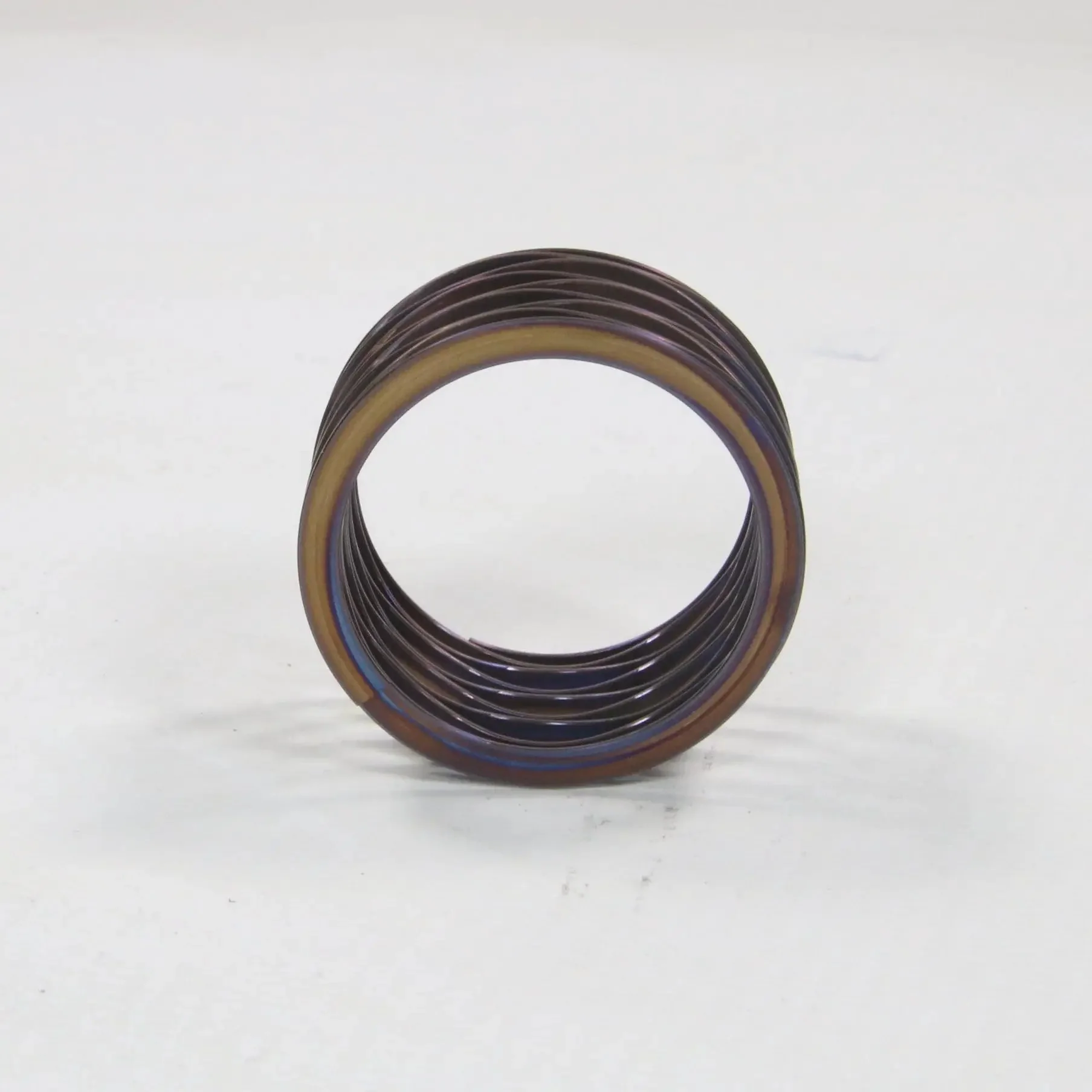

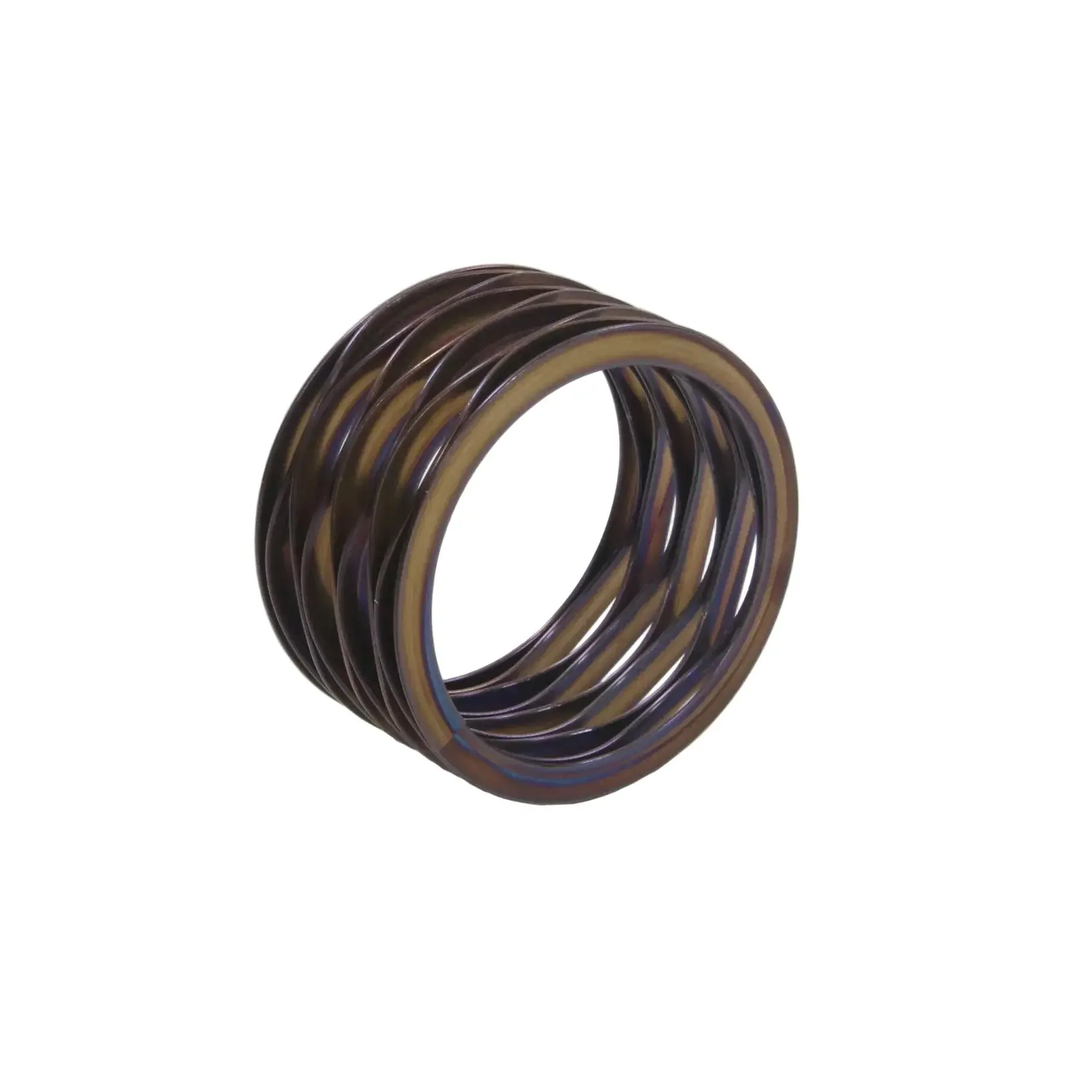

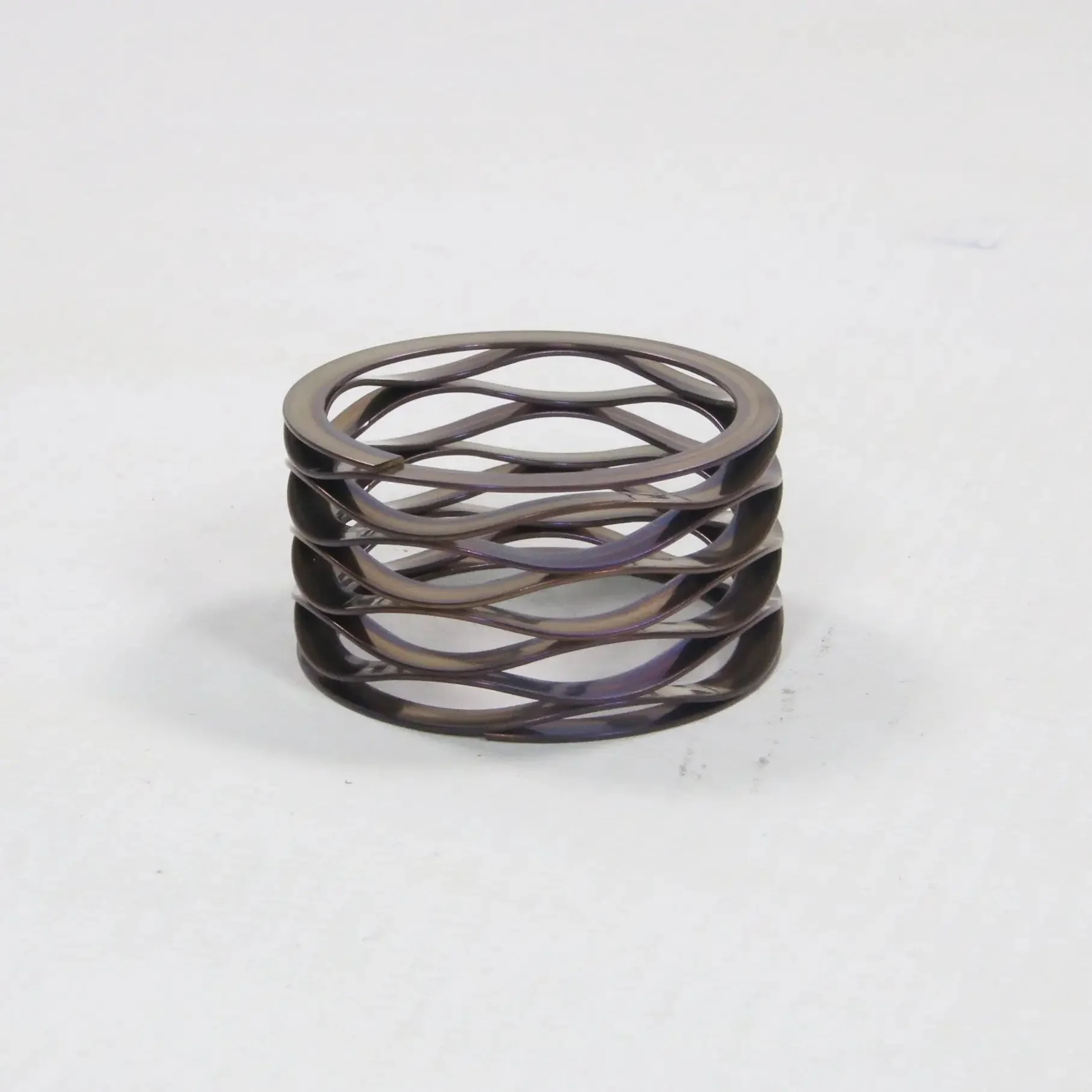

Smalley CMS45-H5-S17 Wave Spring x 15pcs
Brand: Smalley
Model: CMS45-H5-S17
Type: Crest-to-Crest Wave Springs x 15pcs

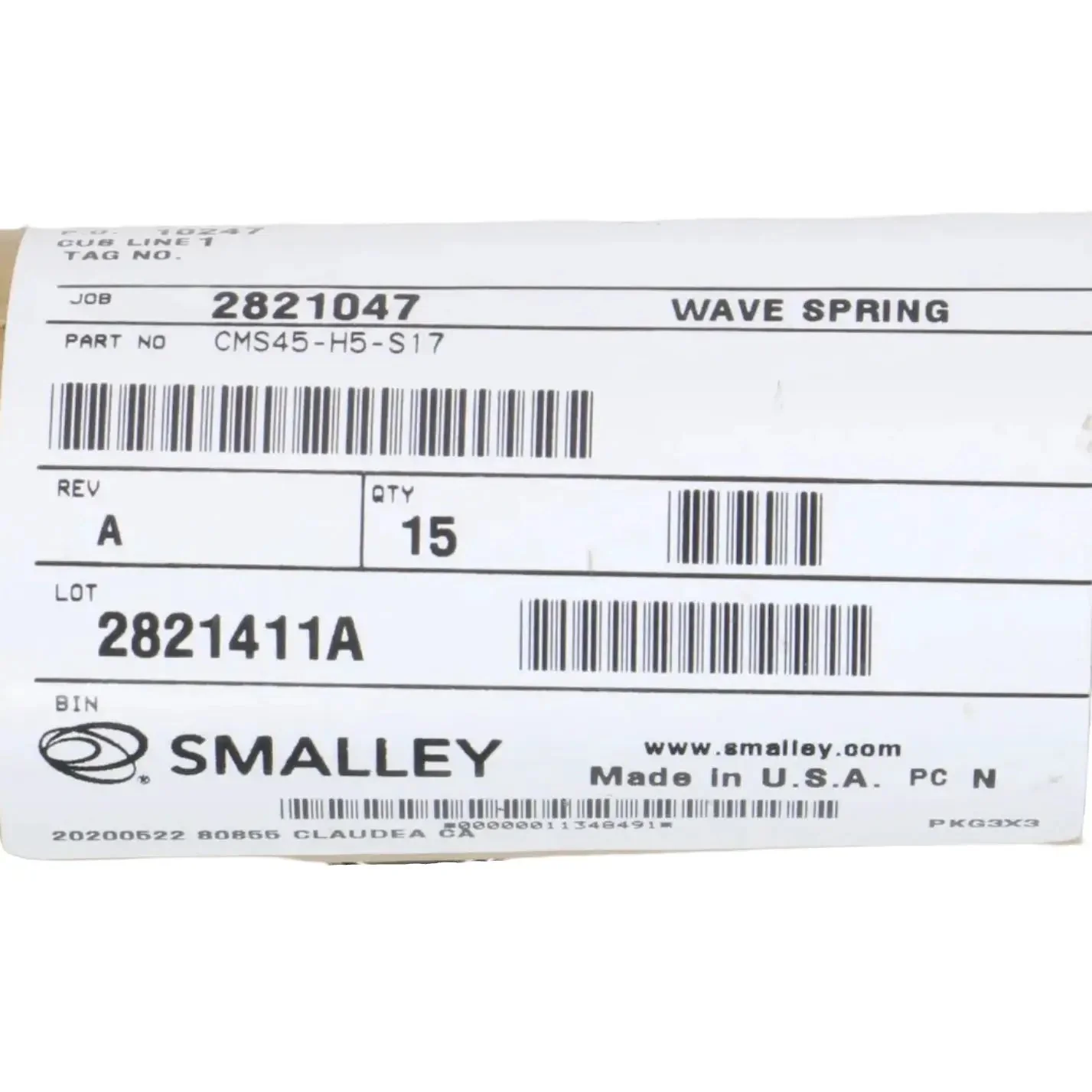

Part Number: CMS45-H5-S17
Technical Specs:
- Spring Type: Multi-turn wave spring
- Material: Stainless Steel 17-7 PH
- Operates in Bore Diameter (Db): 45.00 mm
- Clears Shaft Diameter (Ds): 35.00 mm
- Load (N): 400.0 N
- Work Height (hf): 15.37 mm
- Free Height (b): 23.11 mm
- Waves: 4.5
- Turns: 7
- Wire Thickness (t): 0.61 mm
- Spring Rate (N/mm): 51.68 N/mm
- Operating Temperature Range: -100 °C to +150 °C
- Fatigue Life: High
- Additional Features:
- Shim ends provide flat surfaces for even load distribution
- High strength-to-weight ratio
- Corrosion-resistant
Dimensions:
- Bore Diameter (Db): 45.00 mm
- Shaft Clearance Diameter (Ds): 35.00 mm

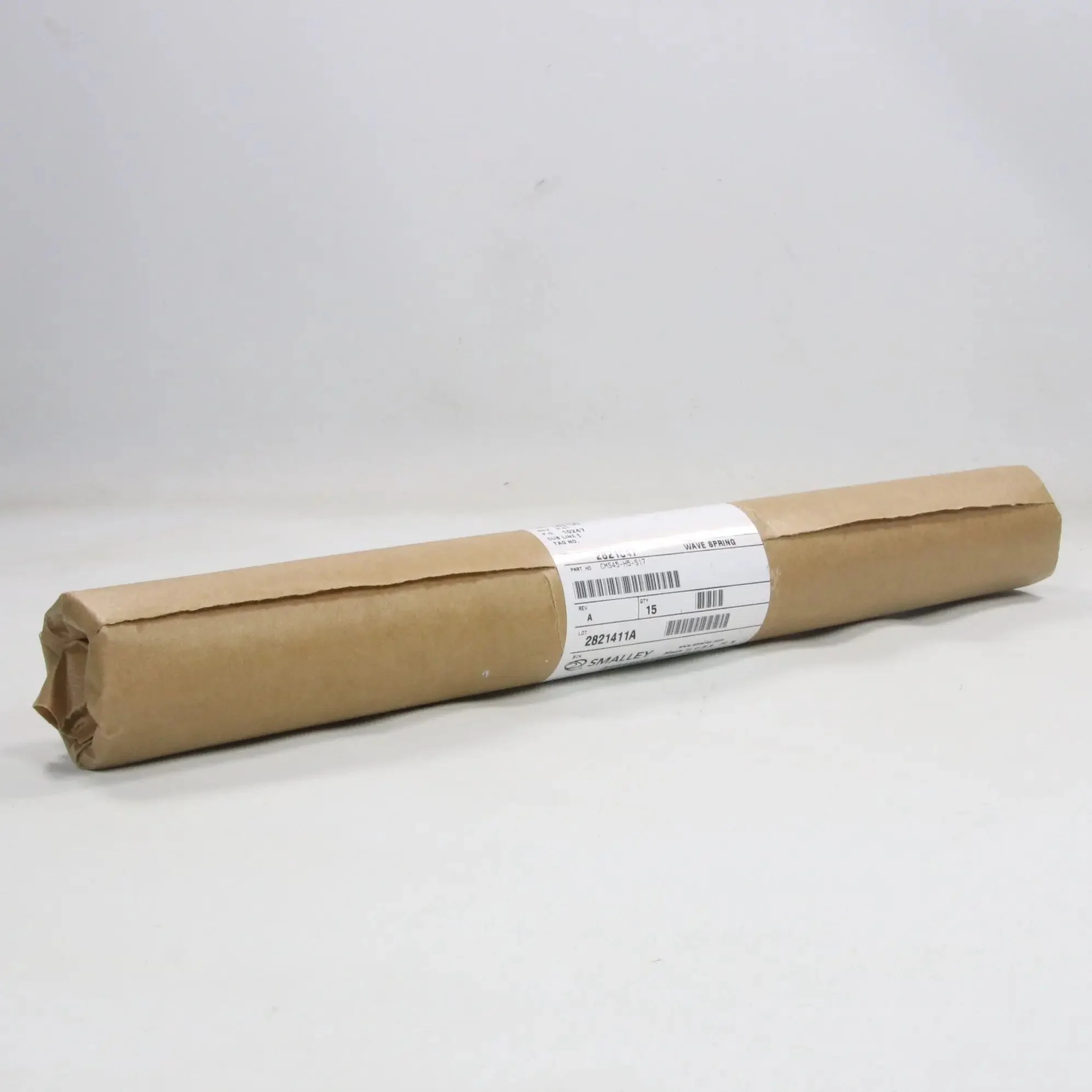

- Roll: 360 x 45 mm
Weight: 310 g (roll x 15pcs)
Country of Origin: United States
HS Code: 7320.20
