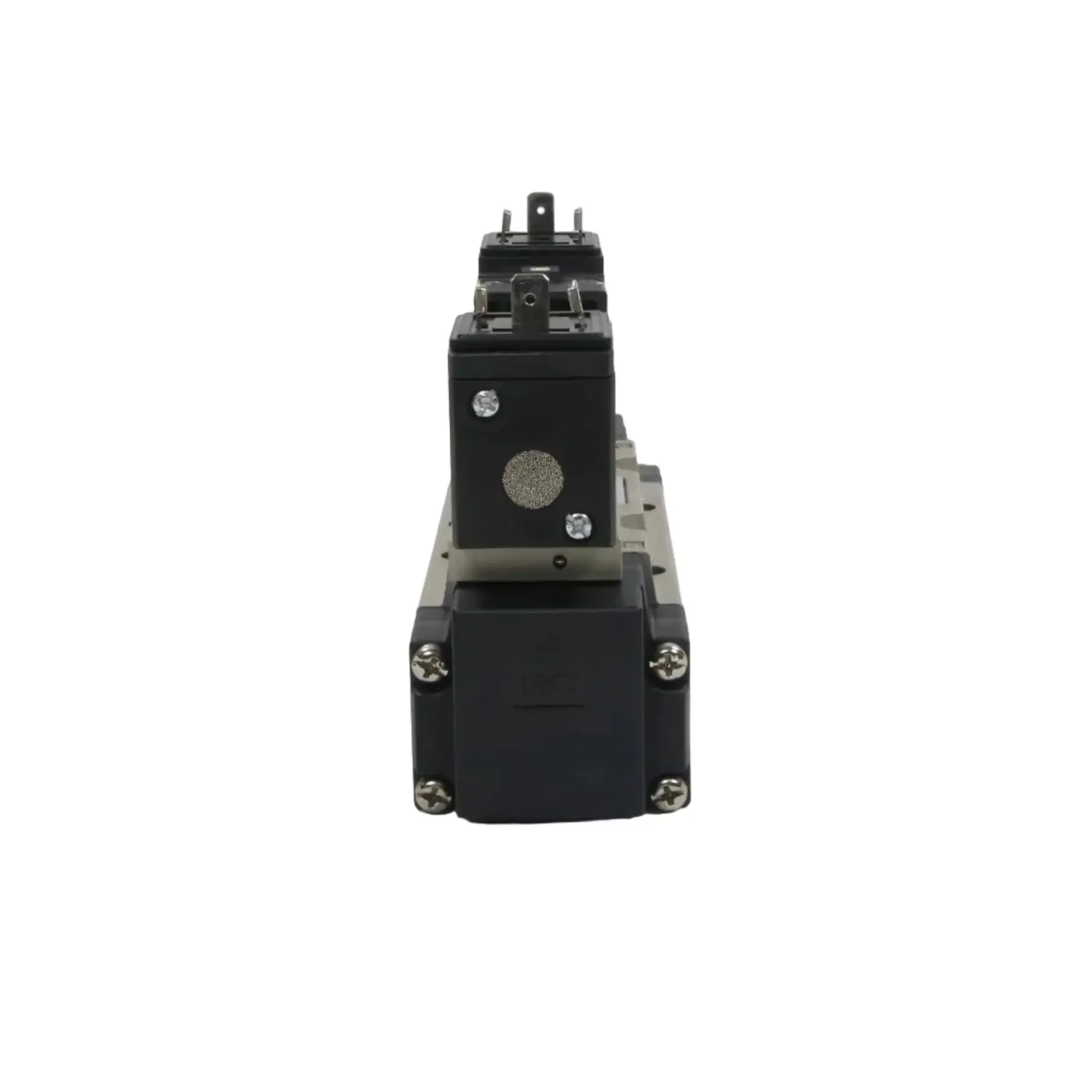

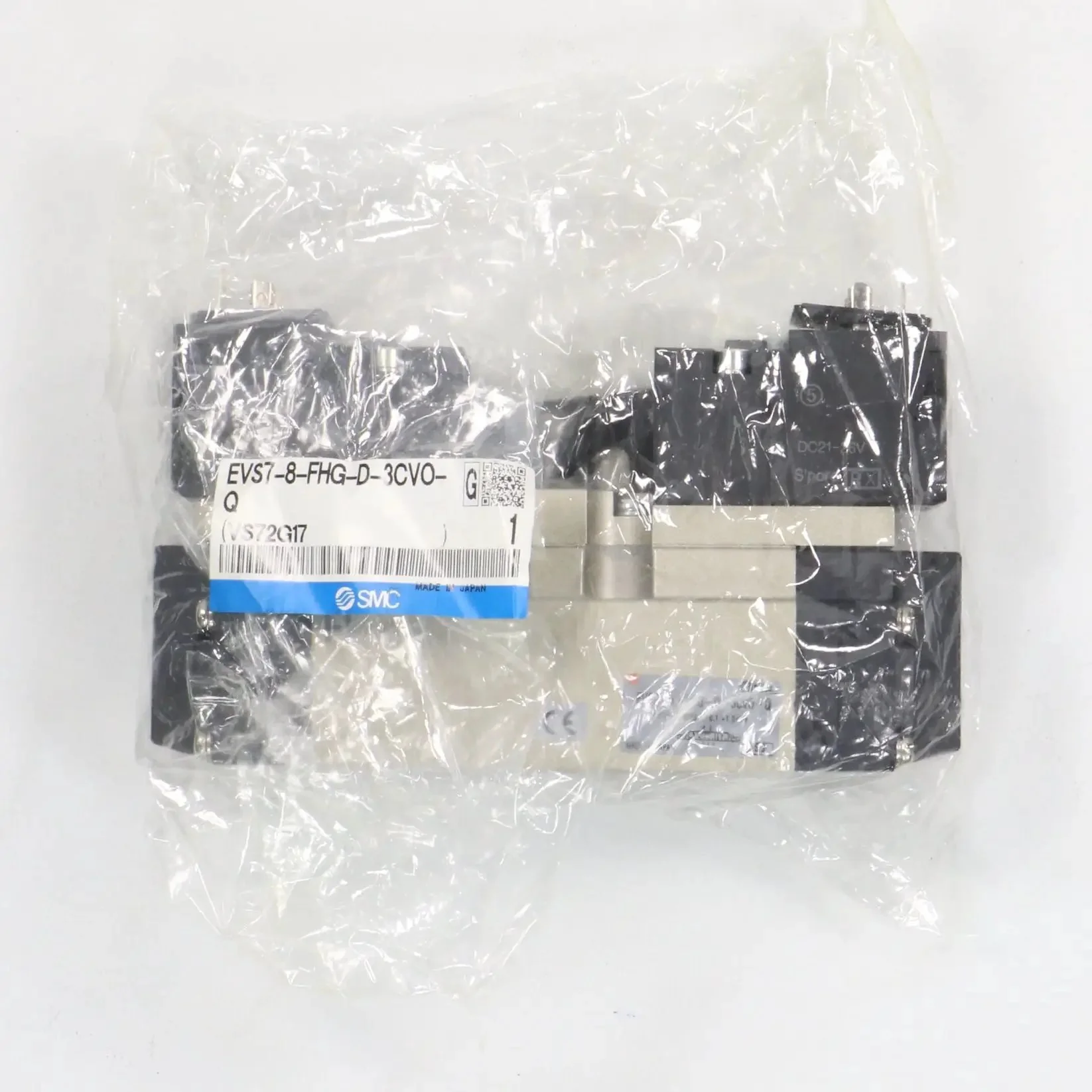

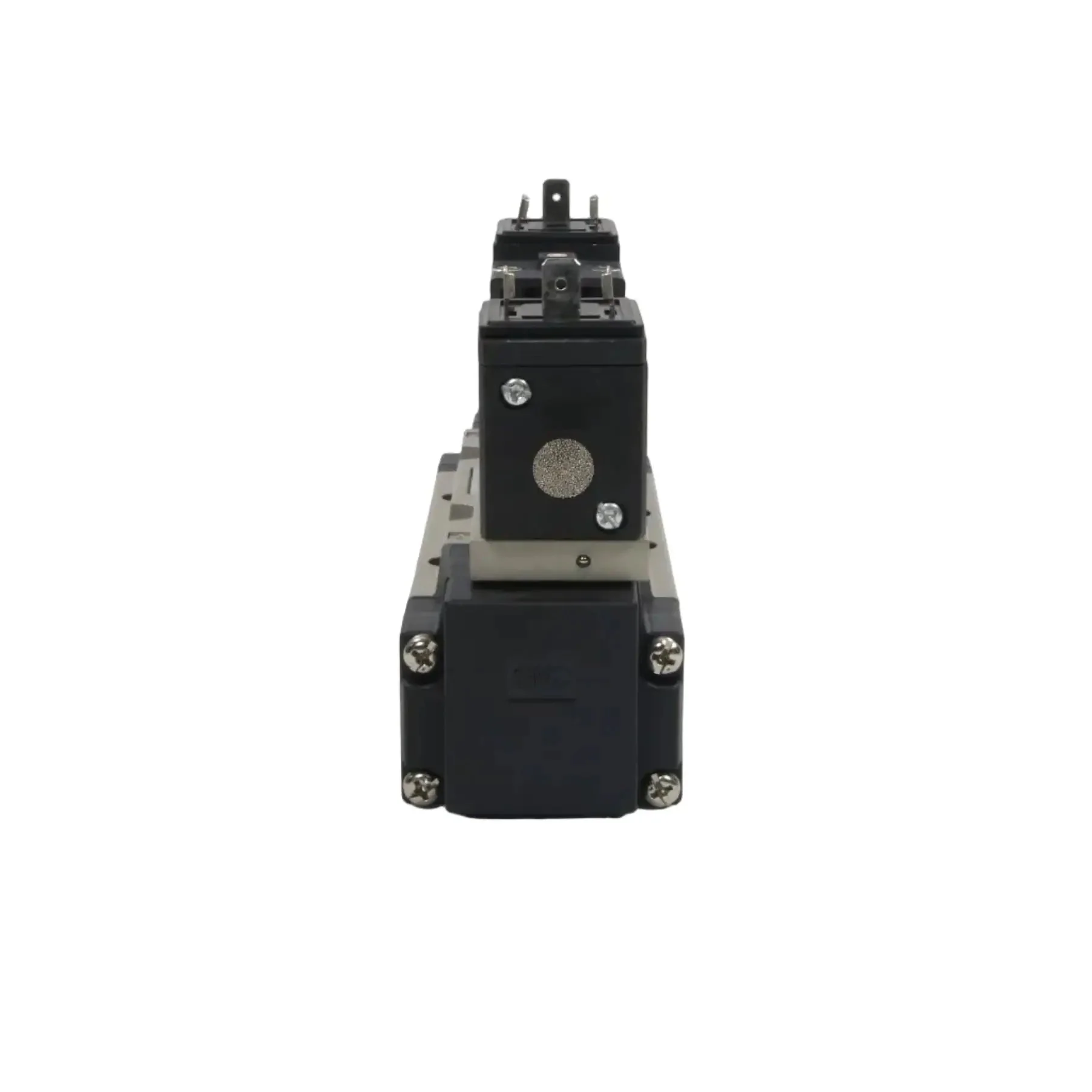

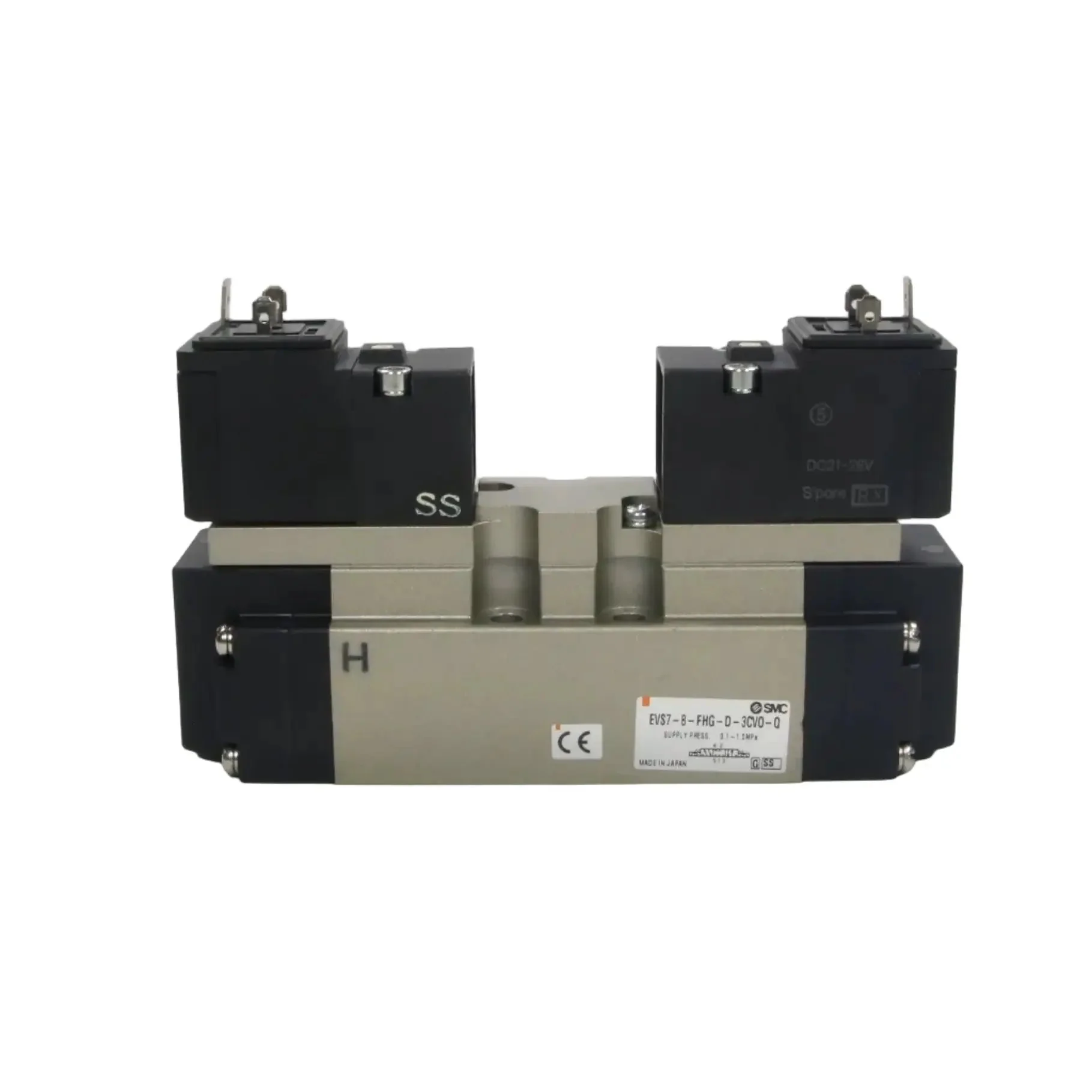

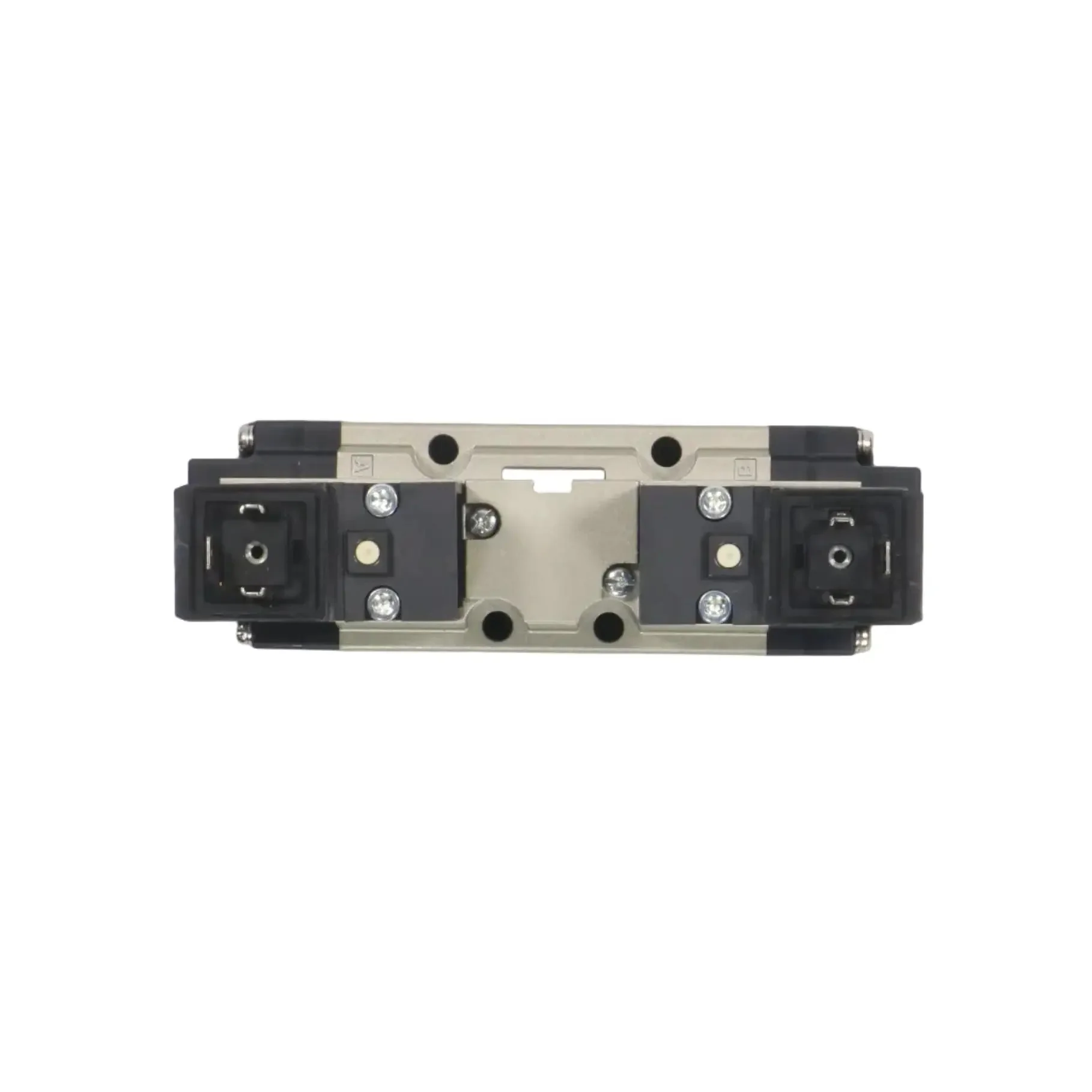

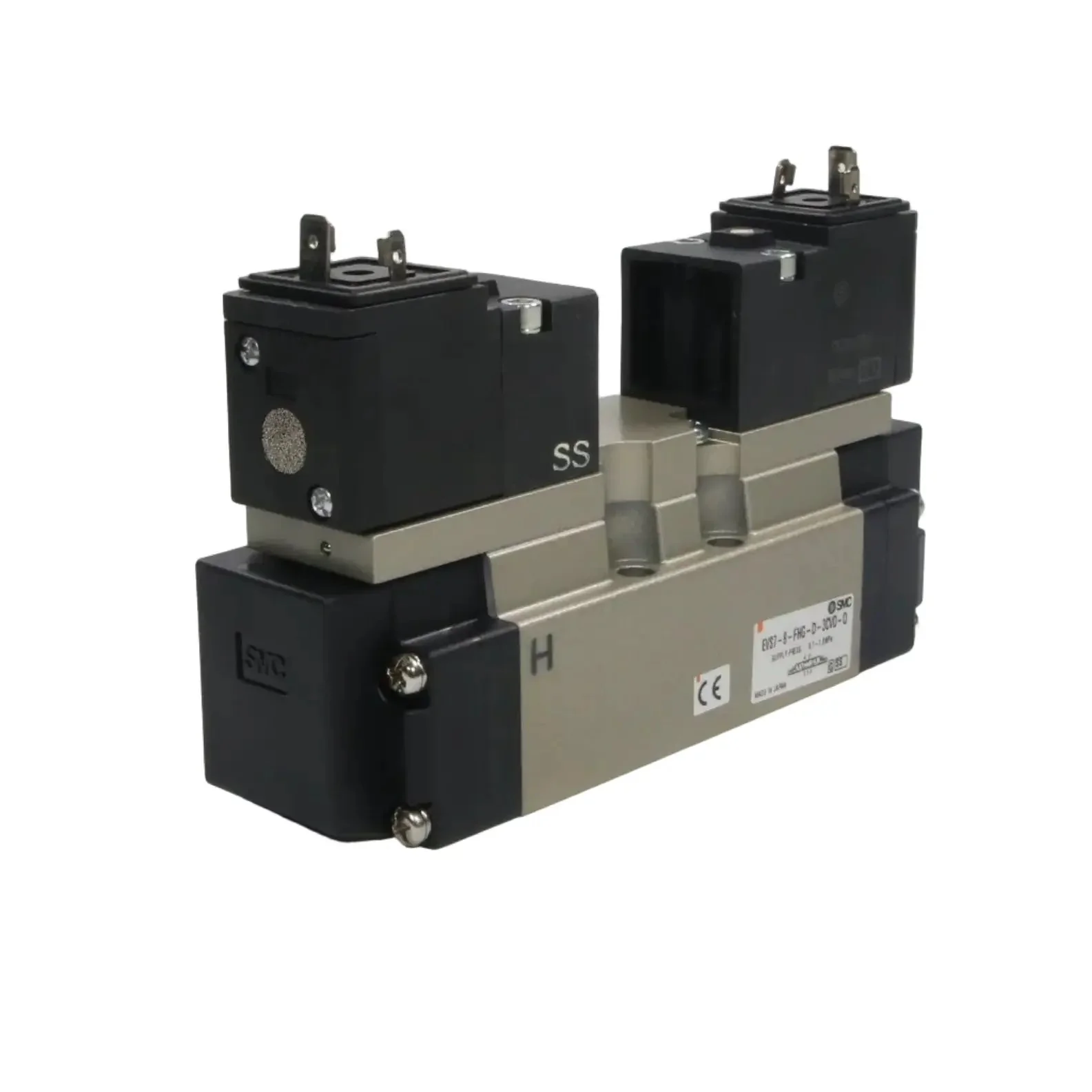

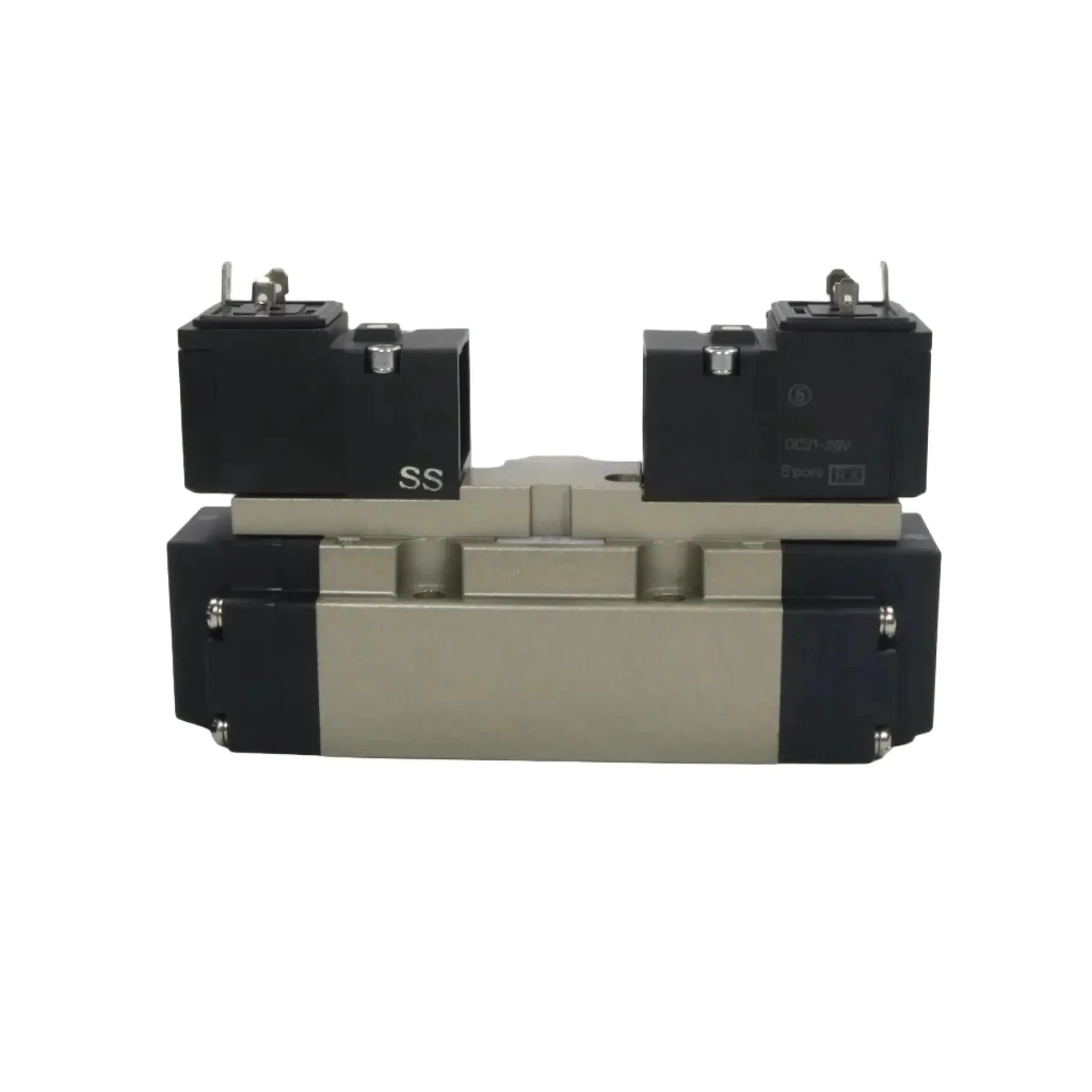

SMC EVS7-8-FHG-D-3CVO-Q 5-Port Pilot Operated Solenoid Valve

- Brand: SMC

- Model: EVS7-8-FHG-D-3CVO-Q

- Type: 5-Port Pilot-Operated Solenoid Valve

All tech specs:
- Valve function: 5-port / 3-position
- Actuation: Pilot-operated spool, metal seal
- Solenoid: Dual solenoid (3-position closed center)
- Voltage: 24 V DC
- Electrical entry: DIN terminal with light/surge voltage suppressor
- Manual override: Non-locking push type
- Pilot type: Internal pilot
- Port size: 1/4"
- Body size: 8
- Operating pressure range: 1.5 to 10 bar
- Proof pressure: 15 bar
- Ambient and fluid temperature: -10 to +50 °C
- Response time: ON: 20 ms, OFF: 38 ms
- Max. operating frequency: 5 Hz
- Lubrication: Not required
- Mounting orientation: Any direction
- Shock/Vibration resistance: 150 m/s² / 50 m/s²
- Enclosure: IP65

- Power consumption: 1.0 W
- Material: Body – aluminium die-cast, Spool – stainless steel, Seals – NBR
- Features: Energy-saving type (low power consumption), metal spool for long life and reliability, DIN terminal for easy wiring
- Part of SMC EVS7 series: High-performance pilot-operated solenoid valves for pneumatic systems in factory automation

Dimensions: 170 x 60 x 90 mm

Weight: 1.1 kg

Country of origin: Japan

HS code: 848180
