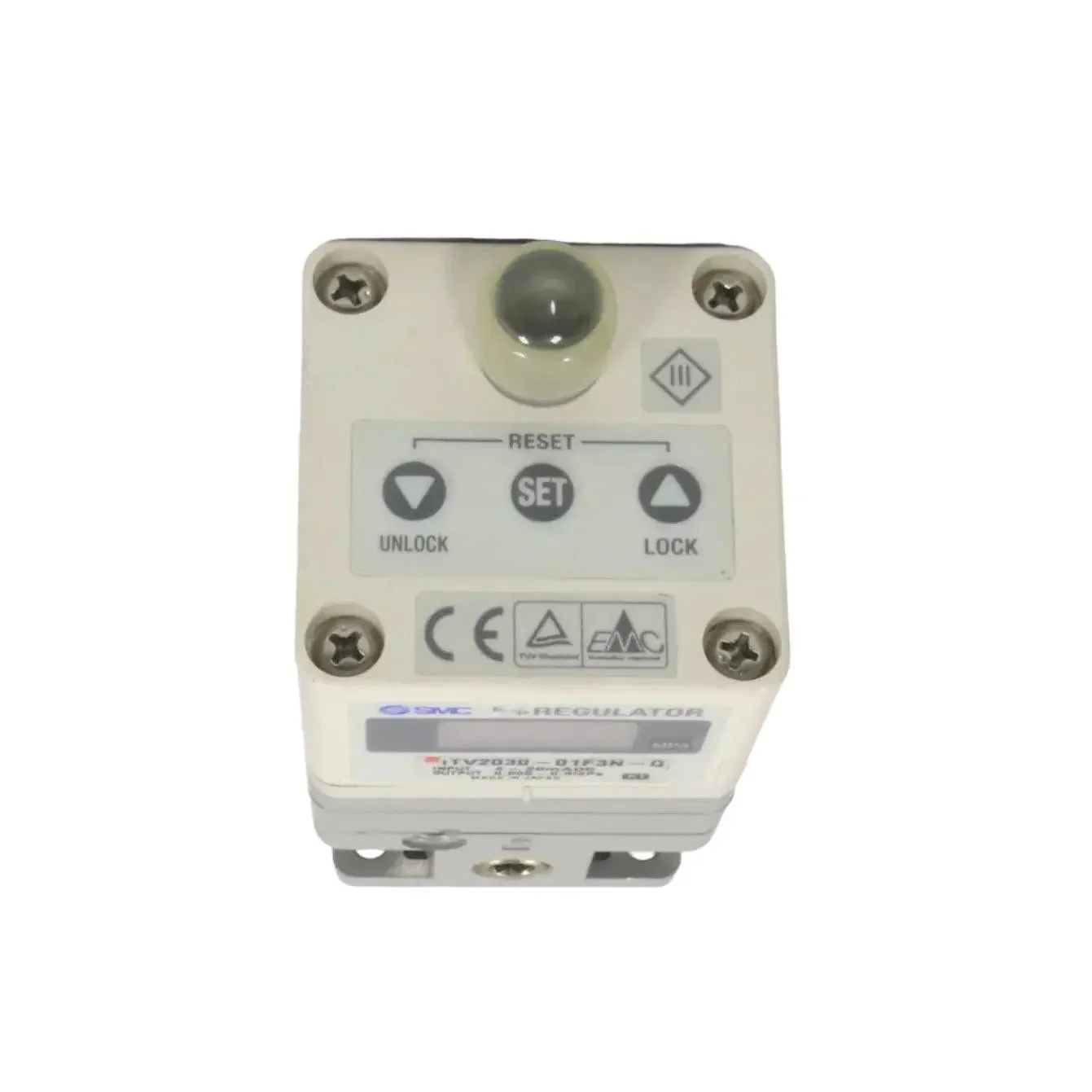

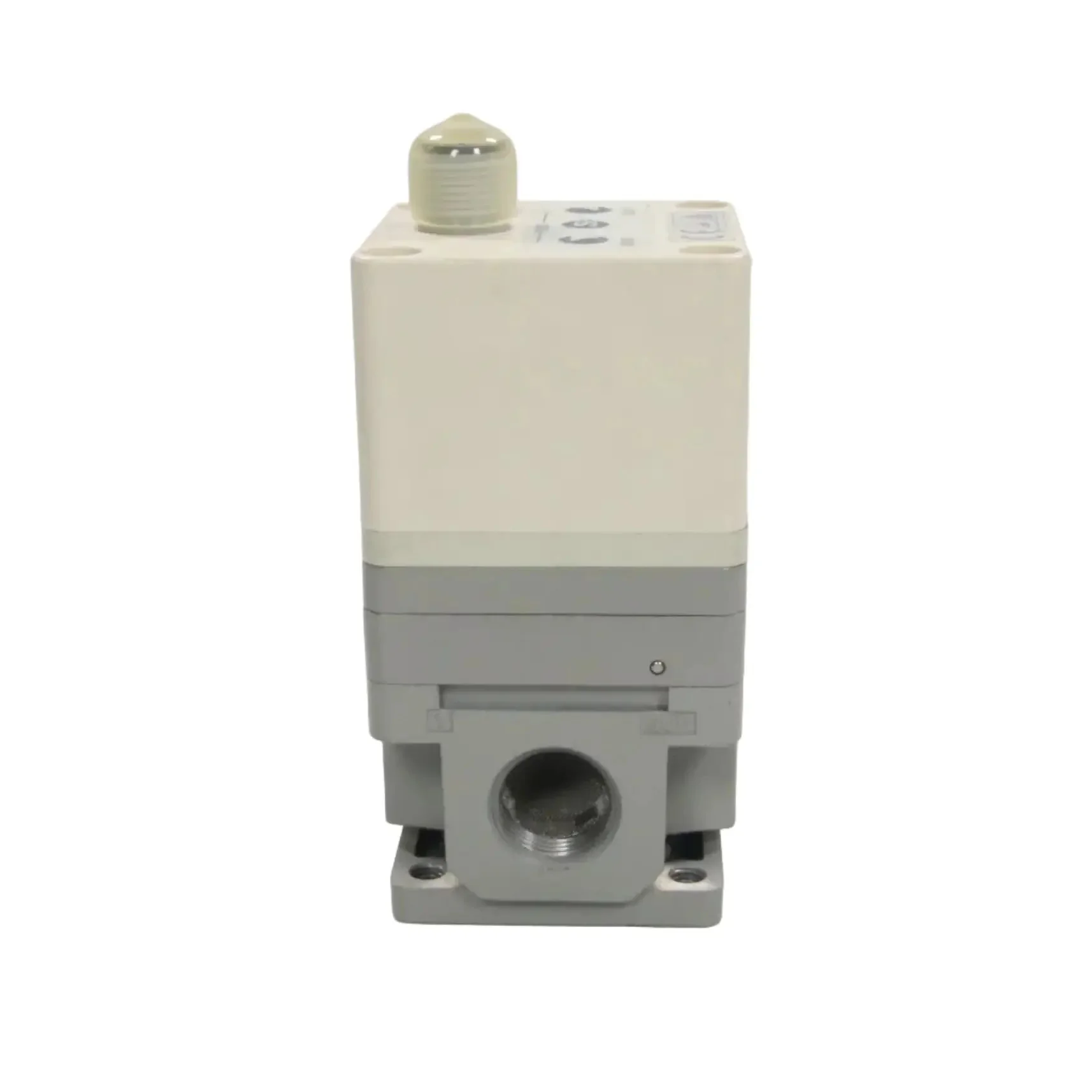

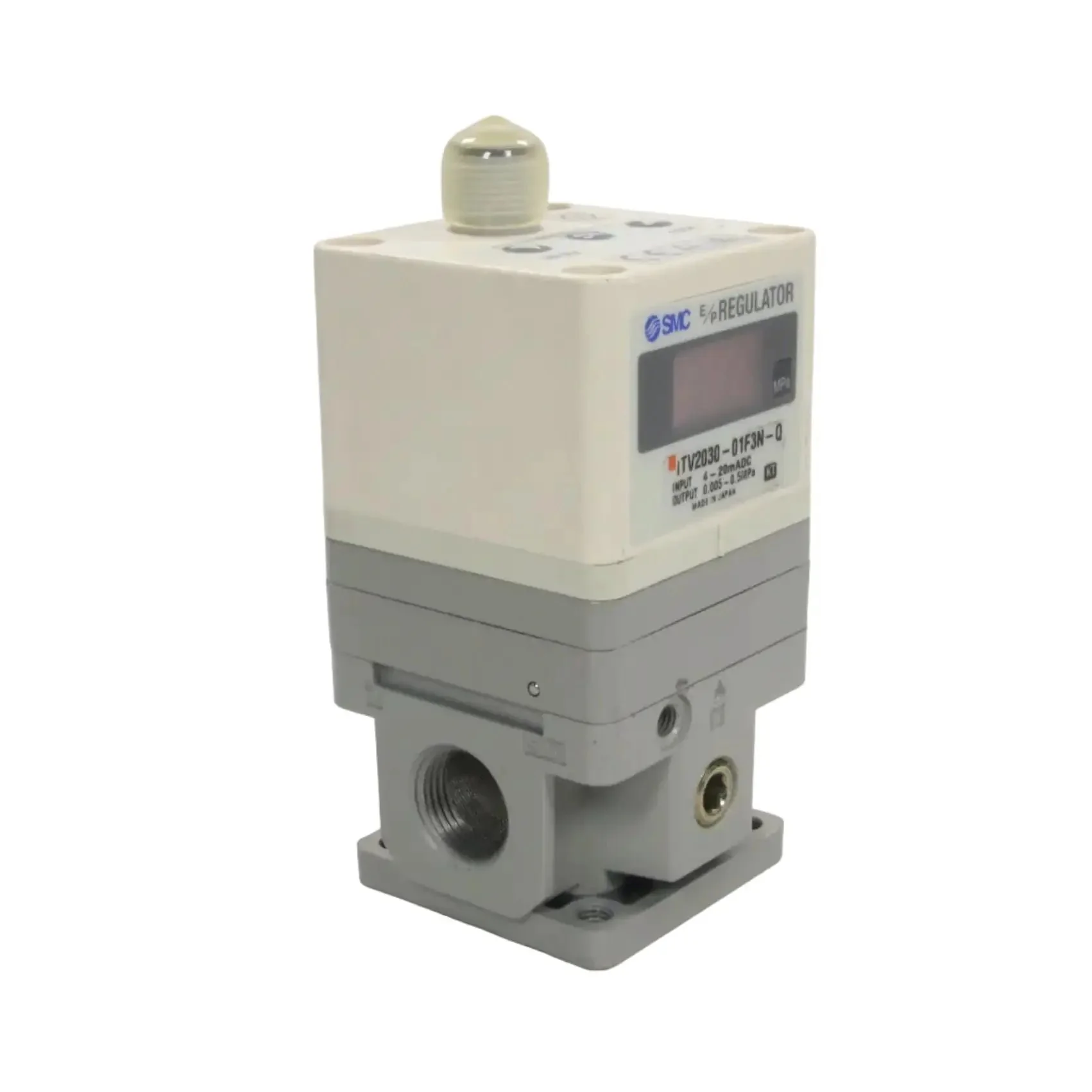

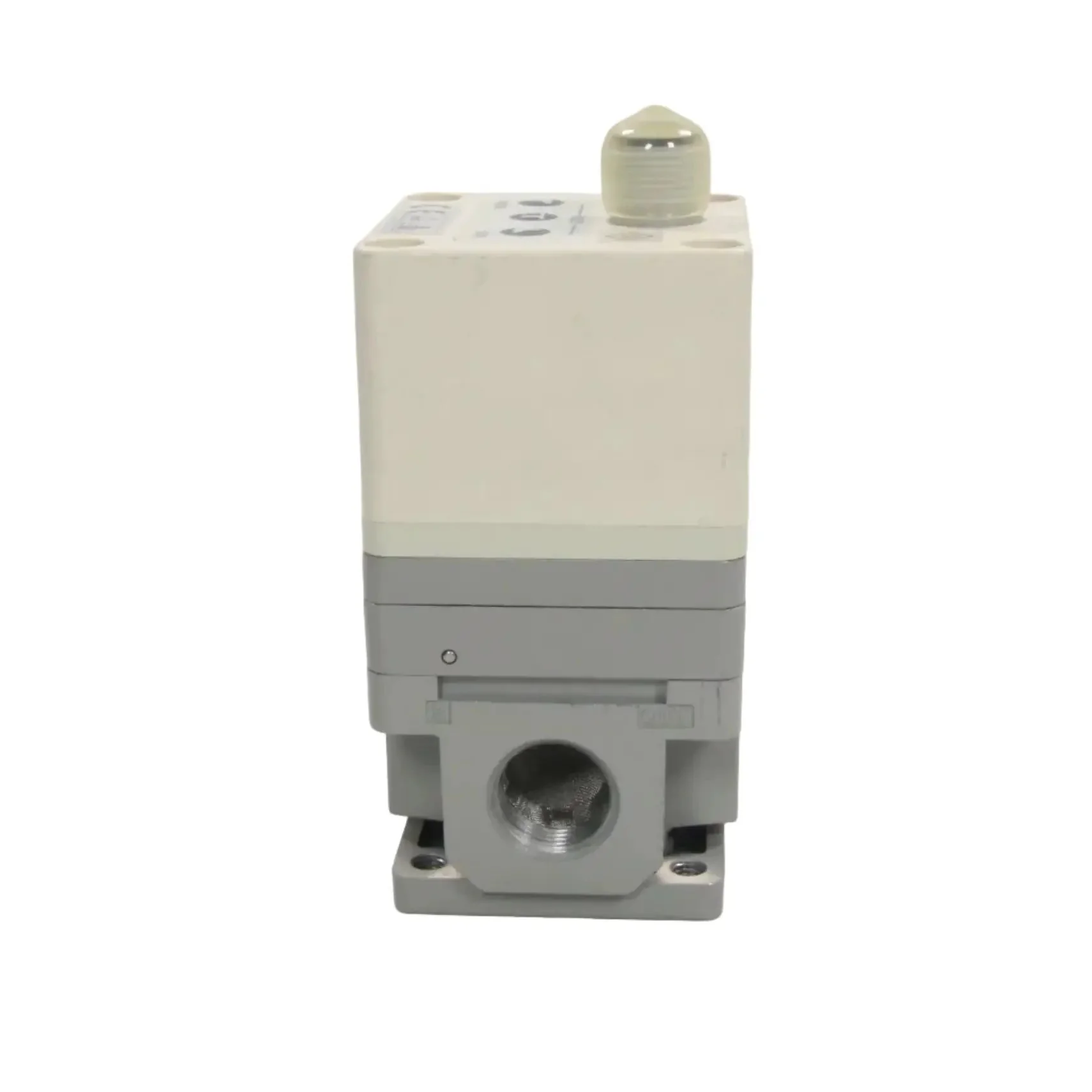

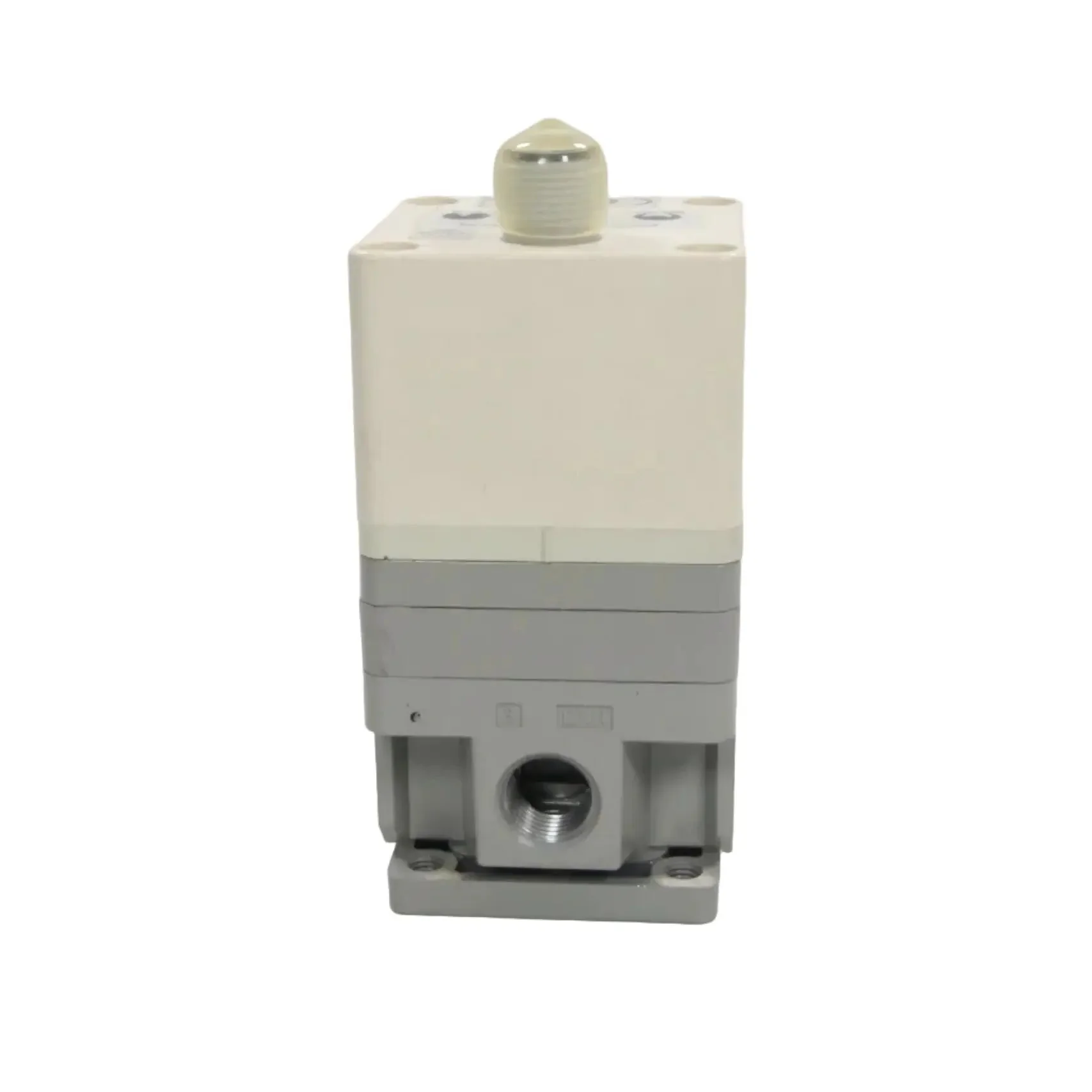

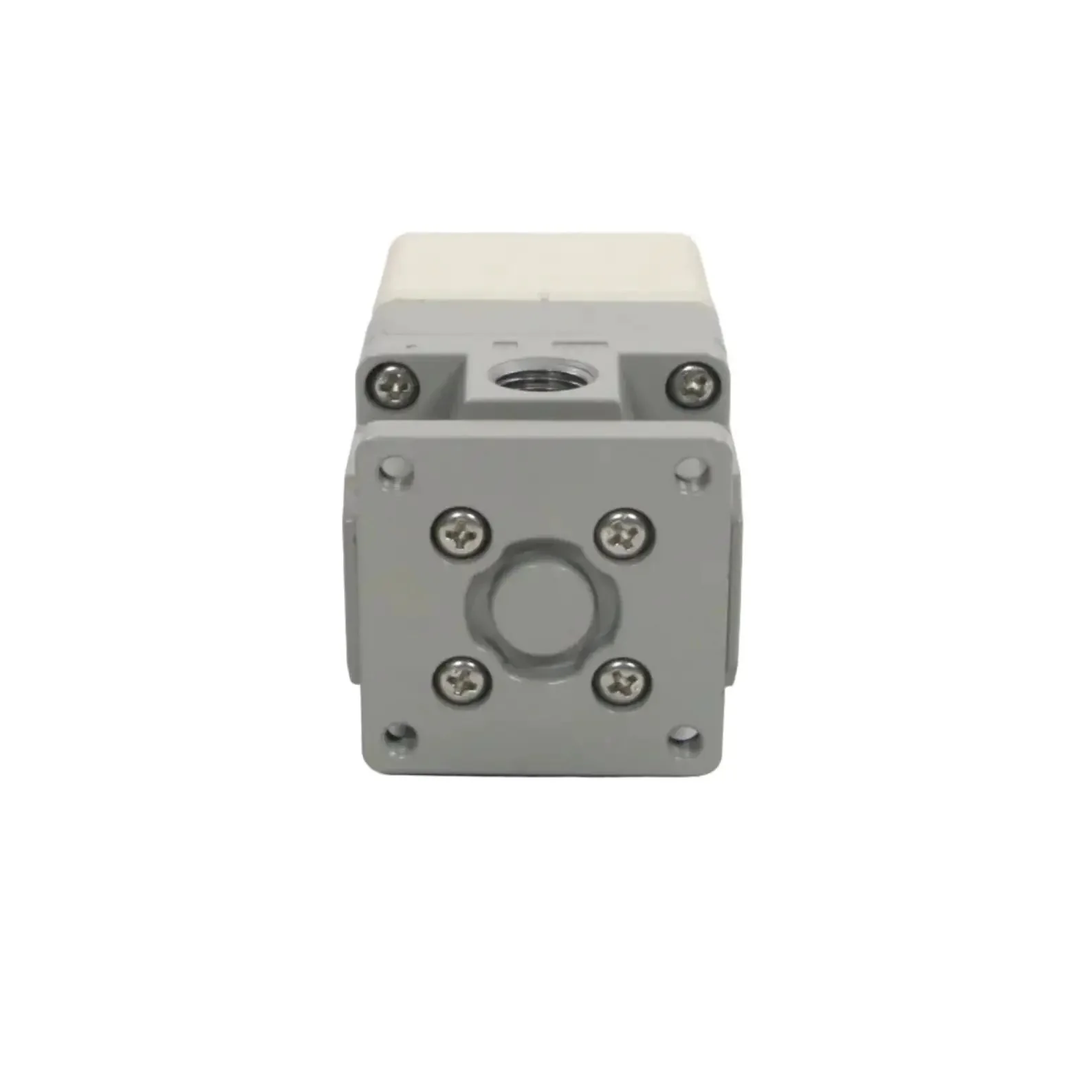

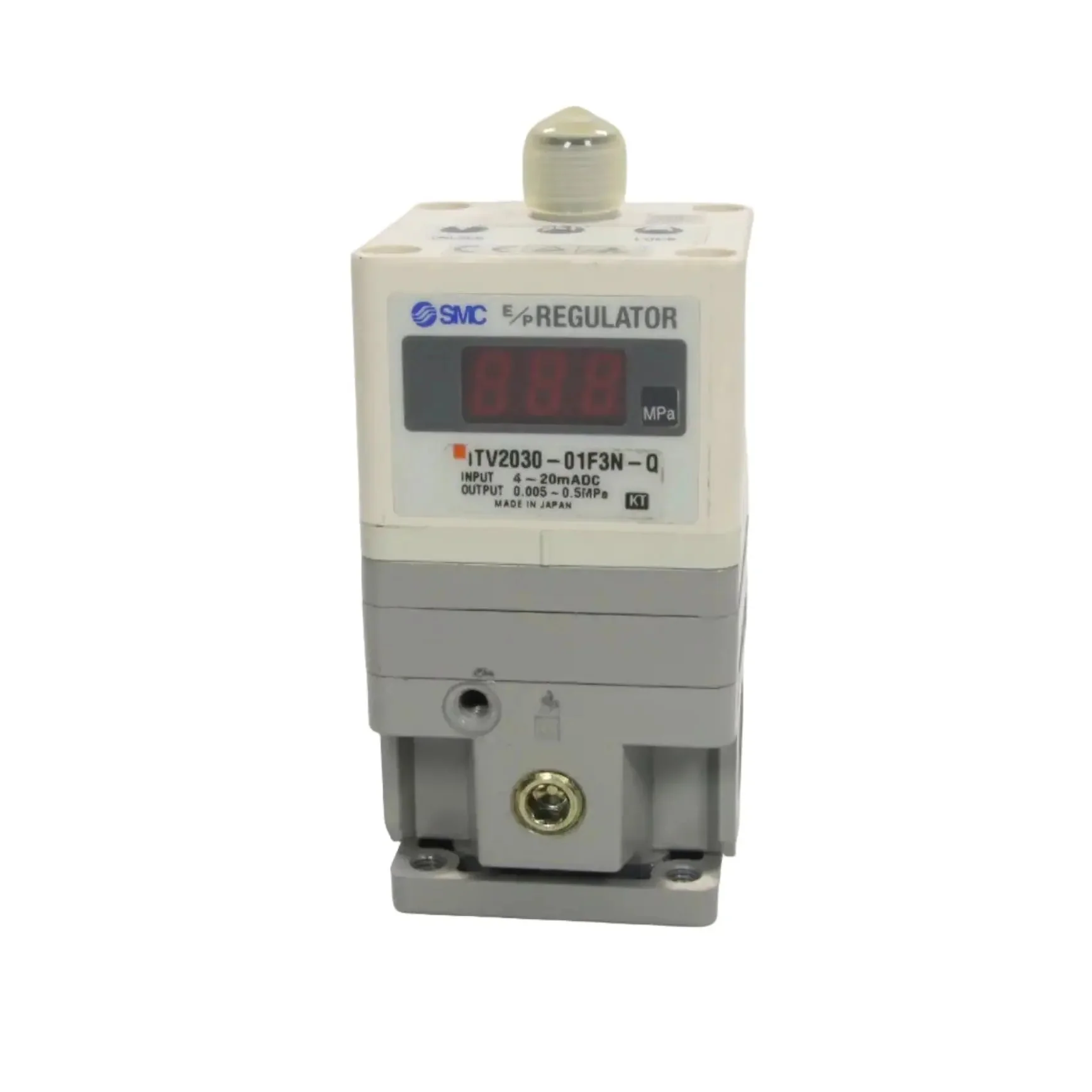

SMC ITV2030-013N-Q Electro Pneumatic Regulator

- Brand: SMC
- Model: ITV2030-013N-Q
- Type: Electro-Pneumatic Regulator
- All tech specs:
  - Function: Precise control of output pressure by converting electrical signal into proportional pneumatic pressure
  - Type: ITV2000 series
  - Supply Pressure: 0.5 MPa max (5 bar)
  - Set Pressure Range: 0.005 – 0.5 MPa (5 bar)
  - Input Signal: 4–20 mA DC
  - Sensitivity: 0.2 % F.S. or less
  - Linearity: ±1 % F.S. or less
  - Hysteresis: 0.5 % F.S. or less
  - Repeatability: ±0.5 % F.S. or less
  - Response Time: 0.1 s
  - Air Consumption: 0.18 l/min
  - Port Size: Rc 3/8"
  - Power Supply: 24 V DC ±10 %
  - Current Consumption: 170 mA or less
  - Protection Rating: IP65
  - Ambient Temperature: 0 to 50 °C (no freezing)
  - Ambient Humidity: 35 to 85 % RH (no condensation)
  - Vibration Resistance: 5 m/s² (10–500 Hz)
  - Shock Resistance: 150 m/s²
  - Mounting: Bracket or direct mount
  - Features: Built-in pressure sensor and control circuit, high precision, low power consumption, LED status indicator, exhaust port with silencer
Dimensions: 50 x 50 x 110 mm
Weight: 400 g
Country of origin: Japan
HS code: 903289
