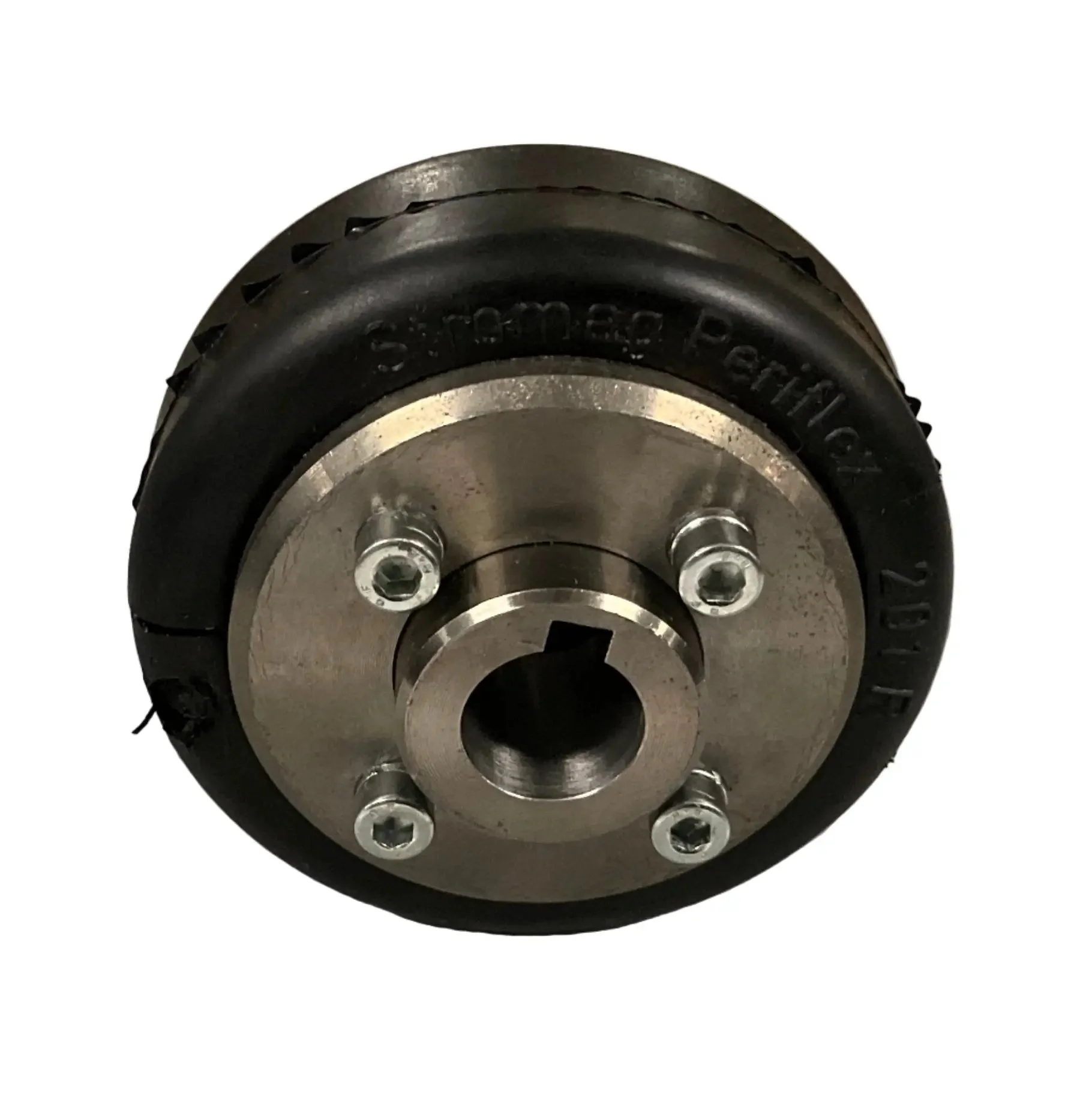

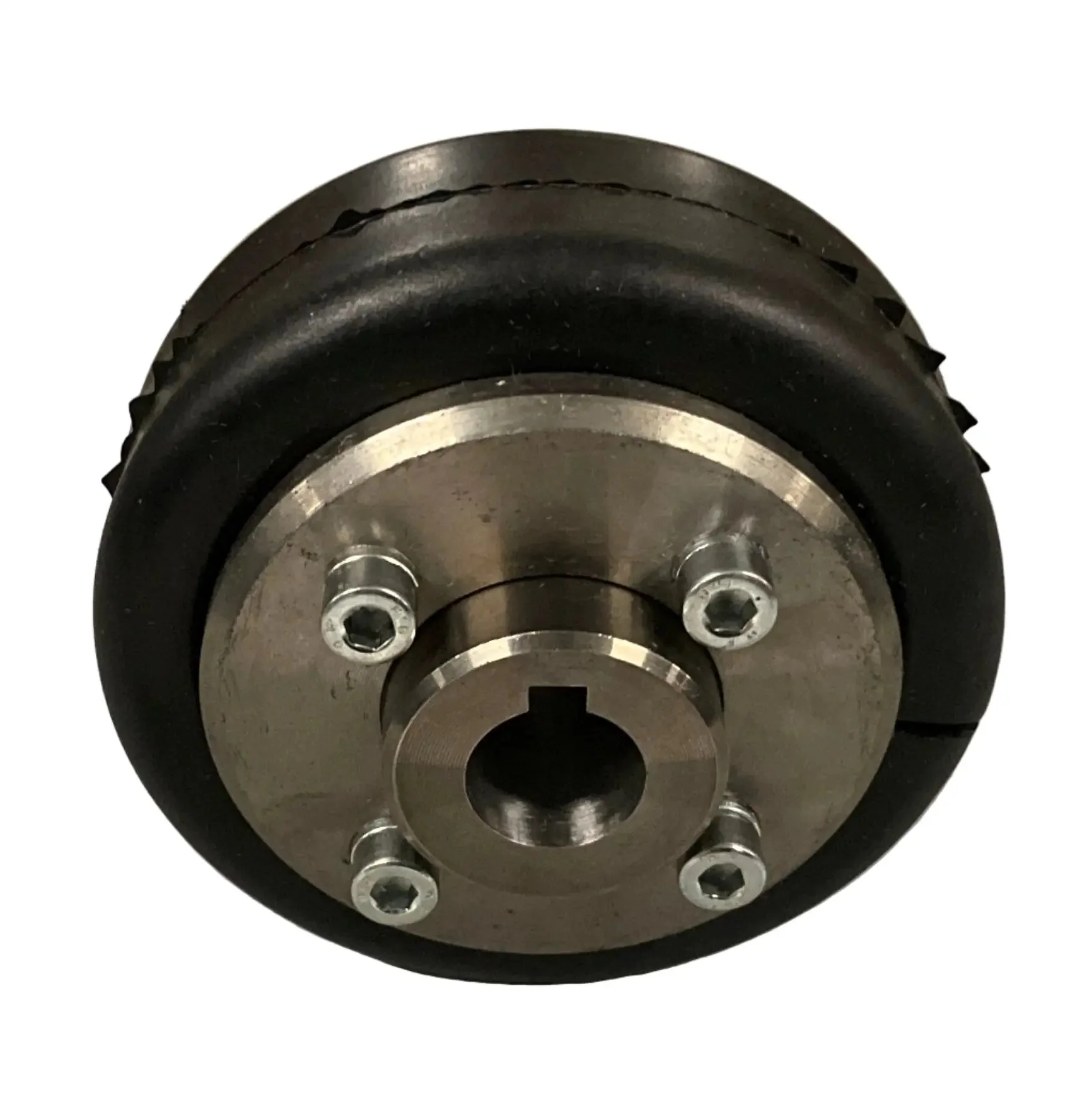

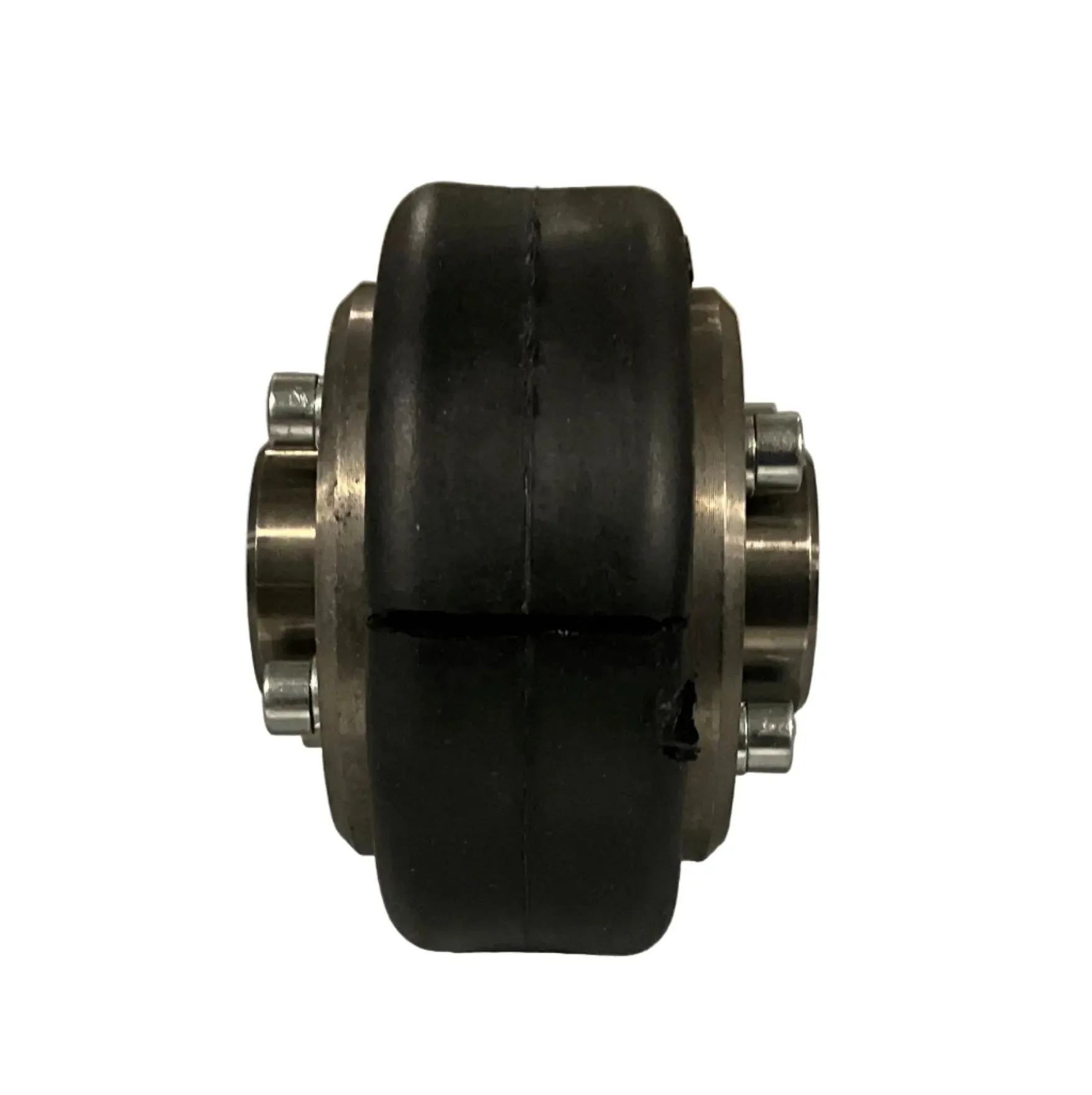

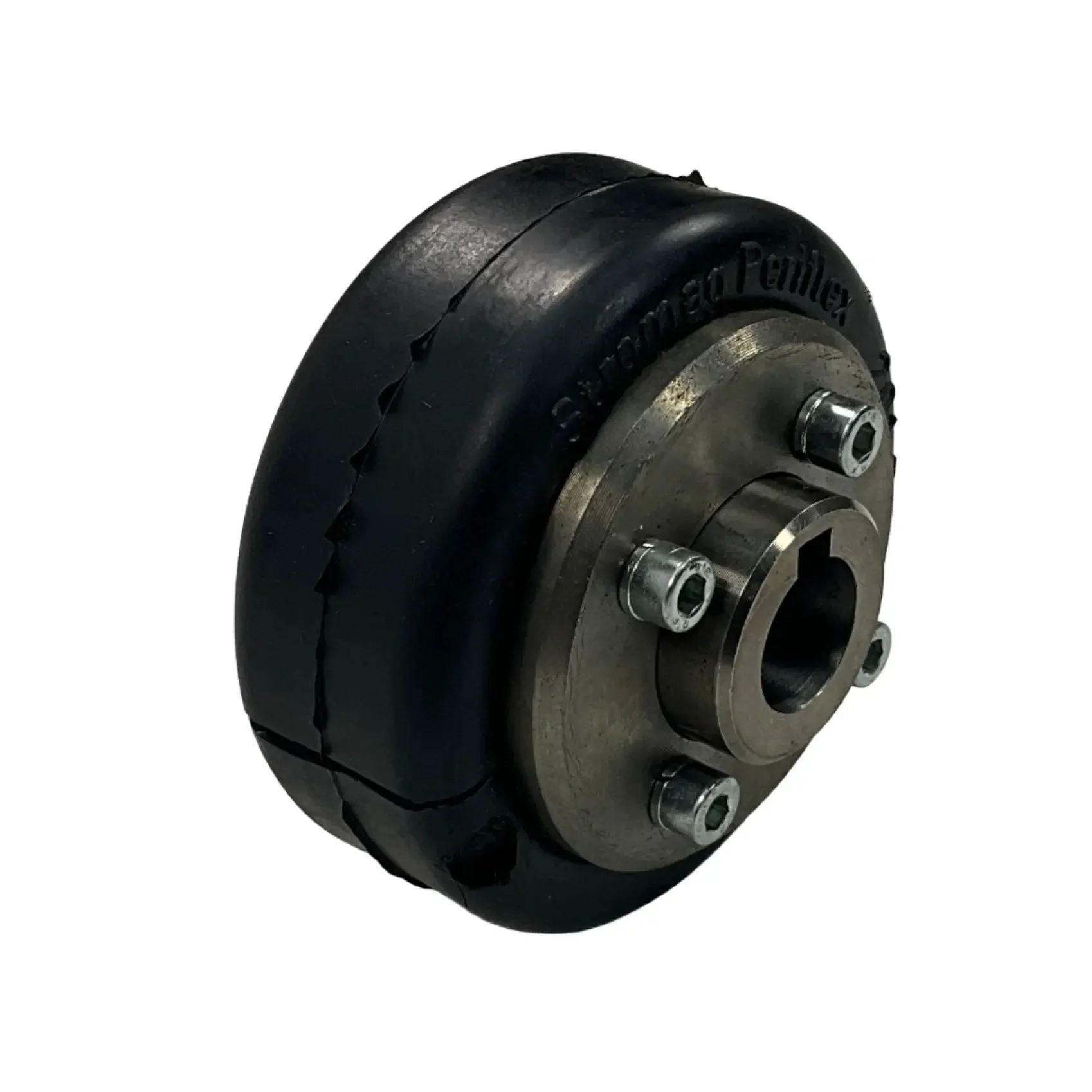

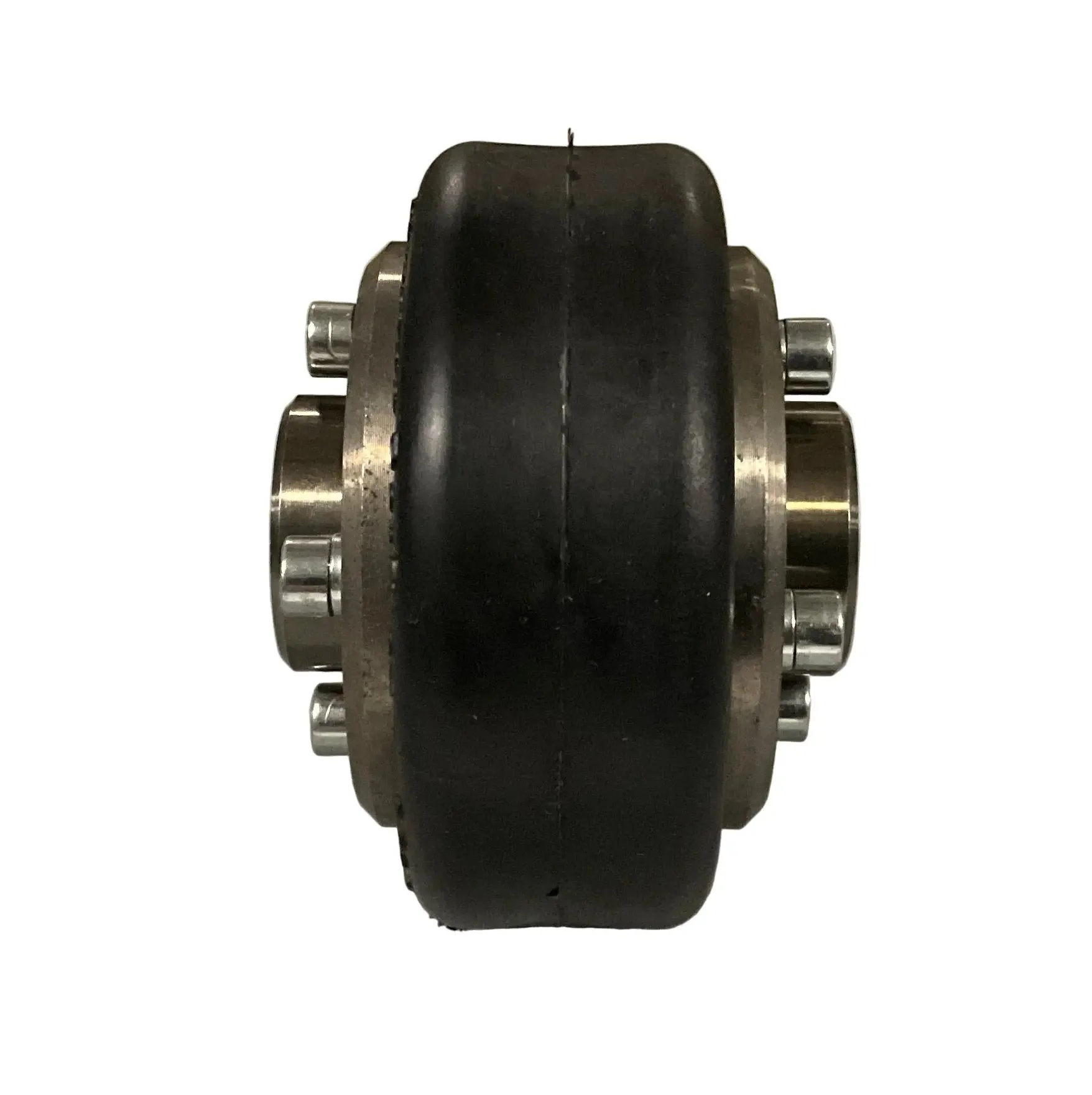

Stromag Periflex 201R Flexible Shaft Coupling

Brand: Stromag
Model: Periflex 201R
Type: Flexible Shaft Coupling (Rubber-Fabric Tyre Coupling)
Part Number: N/A

Technical Specs:
- Coupling Type: Highly flexible rubber-fabric tyre coupling
- Nominal Torque: 201 Nm
- Maximum Torque: ~603 Nm
- Shaft Diameter: 20 mm
- Material:
  - Tyre: Natural rubber with fabric inserts
  - Hubs and Pressure Rings: Steel with corrosion-resistant coating
- Operating Temperature Range: -50°C to 80°C
- Misalignment Compensation:
  - Radial: ~1 mm
  - Axial: ~1 mm
  - Angular: ~1°
- Additional Features:
  - Highly flexible design absorbs large displacements with low restoring forces
  - Wear limited to rubber tyre, minimising maintenance (tyre replaceable without moving shafts)
  - Simple installation using corrosion-resistant hubs and pressure rings
  - Certifications: ATEX Directive 2014/34/EU compliant for potentially explosive environments

Dimensions: 90 x 90 x 70mm

Weight: 800 g

Country of Origin: Germany

HS Code: 8483.60
