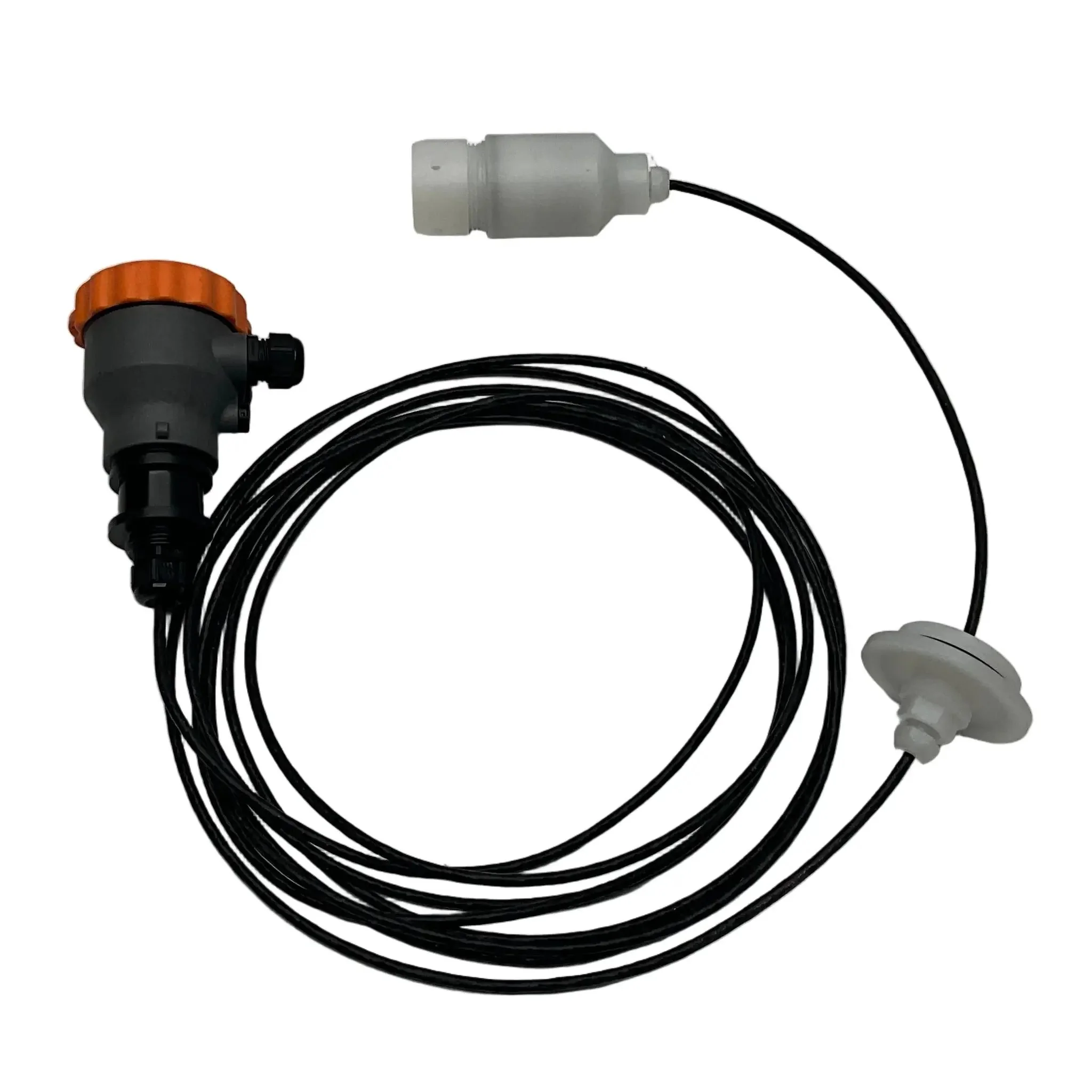

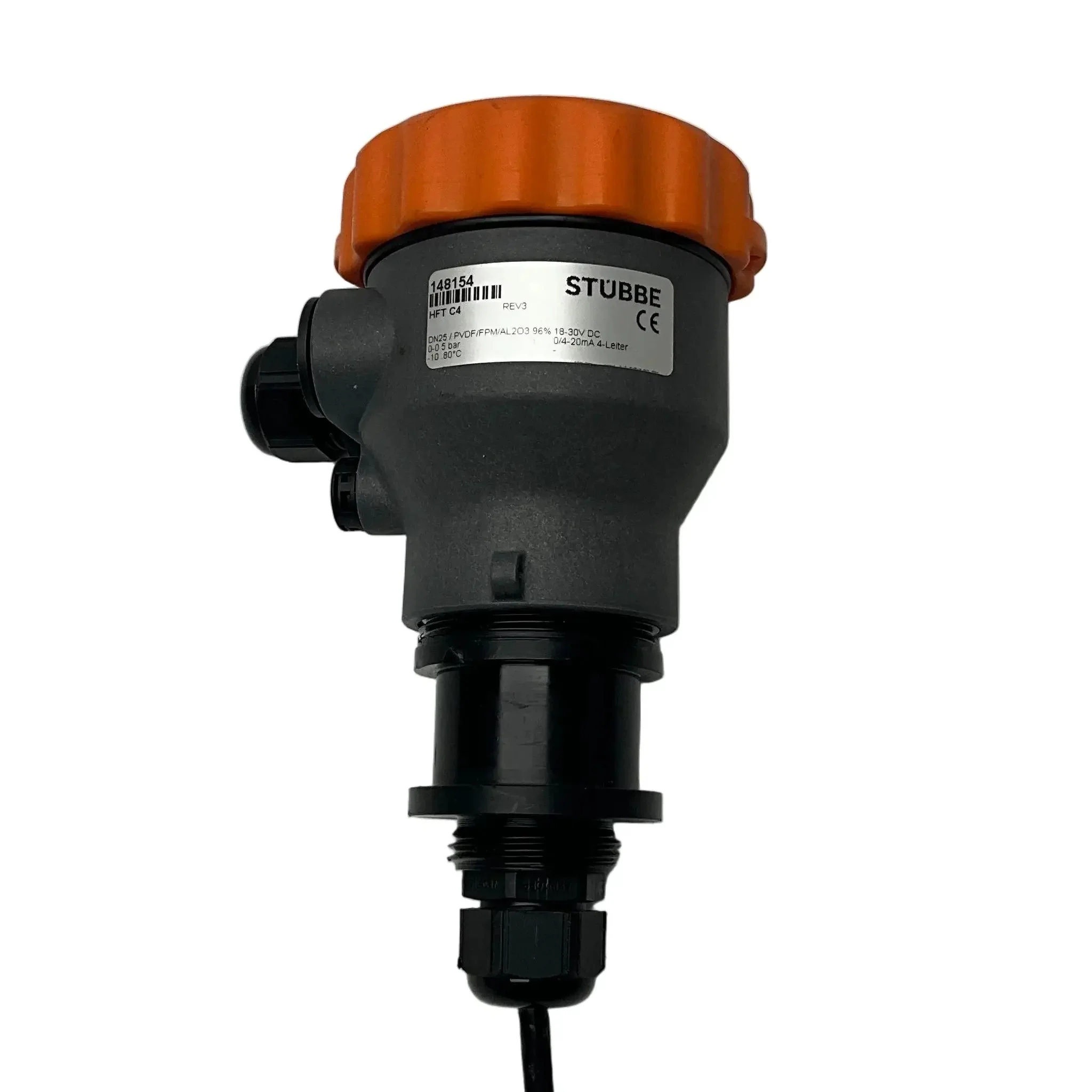

Stubbe HFT C4 Filling Level & Temperature Sensor

- Brand: Stubbe (Georg Fischer / GF Piping Systems)

- Model: HFT C4

- Type: Filling Level & Temperature Sensor

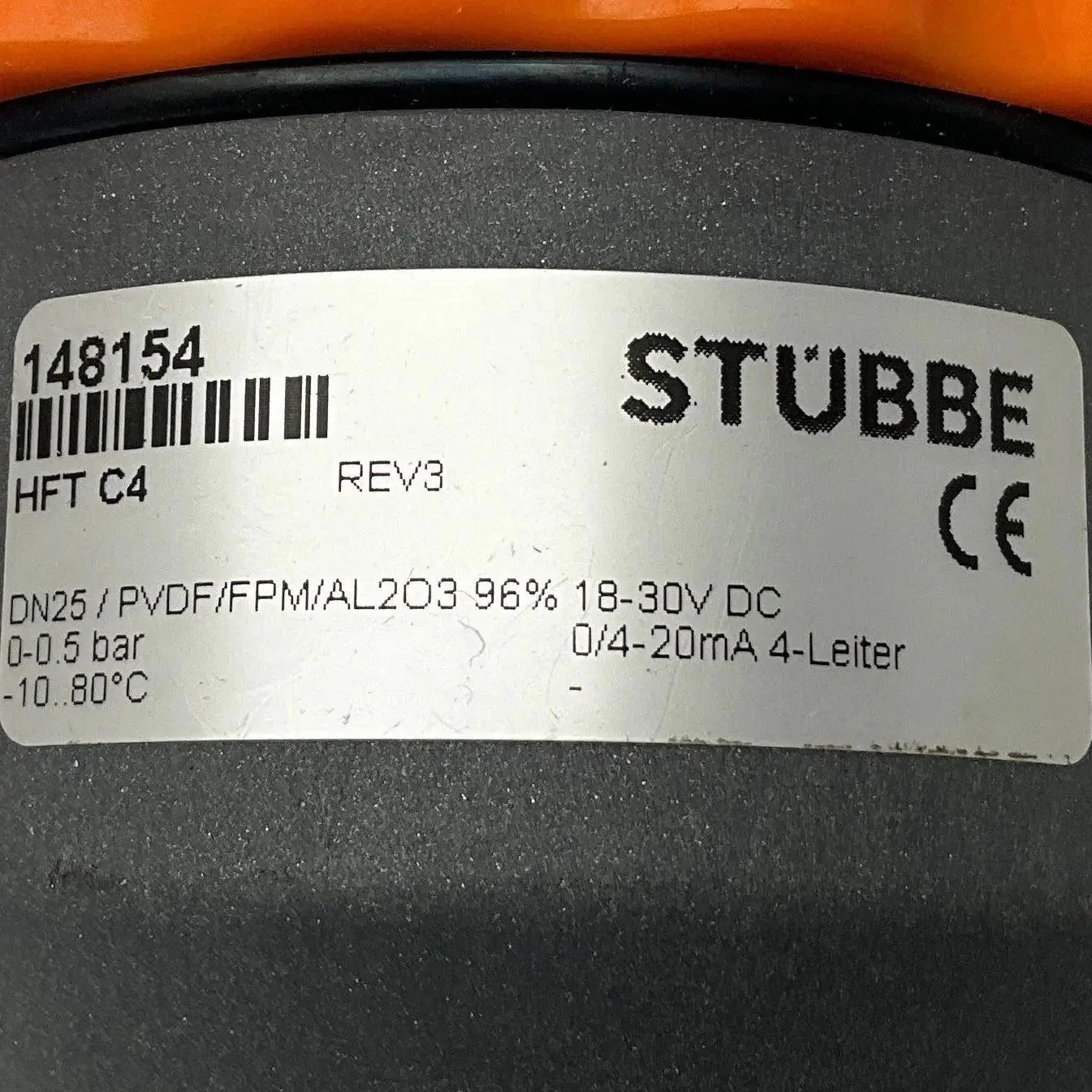

- Part number: HFT C4 REV3

- Technical specifications:
- Measuring principle: HFT for level and temperature
- Level measuring range: Probe length 7m
- Temperature range: -20°C to +80°C
- Output signal:
  - Level: 4–20 mA
  - Temperature: 4–20 mA
- Supply voltage: 18–30 V DC
- Pressure range: 0...0.5 bar
  - Level: ±1% FS
  - Temperature: ±0.5°C
- Process connection: DN 25
- Materials: PVDM/FPM
- Protection class: IP67
- Sensor module: AL2 O3 96%  Aluminium Oxide
- Additional features: Compact design; no moving parts; insensitive to foam/turbulence in many media; integrated temperature sensor for combined level/temp monitoring; easy calibration; suitable for aggressive chemicals, water, oils, or food; low maintenance
- Standards: Compliant with IEC/EN 61010, 61326; CE marked

Weight: 2.1 kg

Dimensions: 300 x 160 x 360 mm

Country of origin: Germany

HS code: 9026.10
