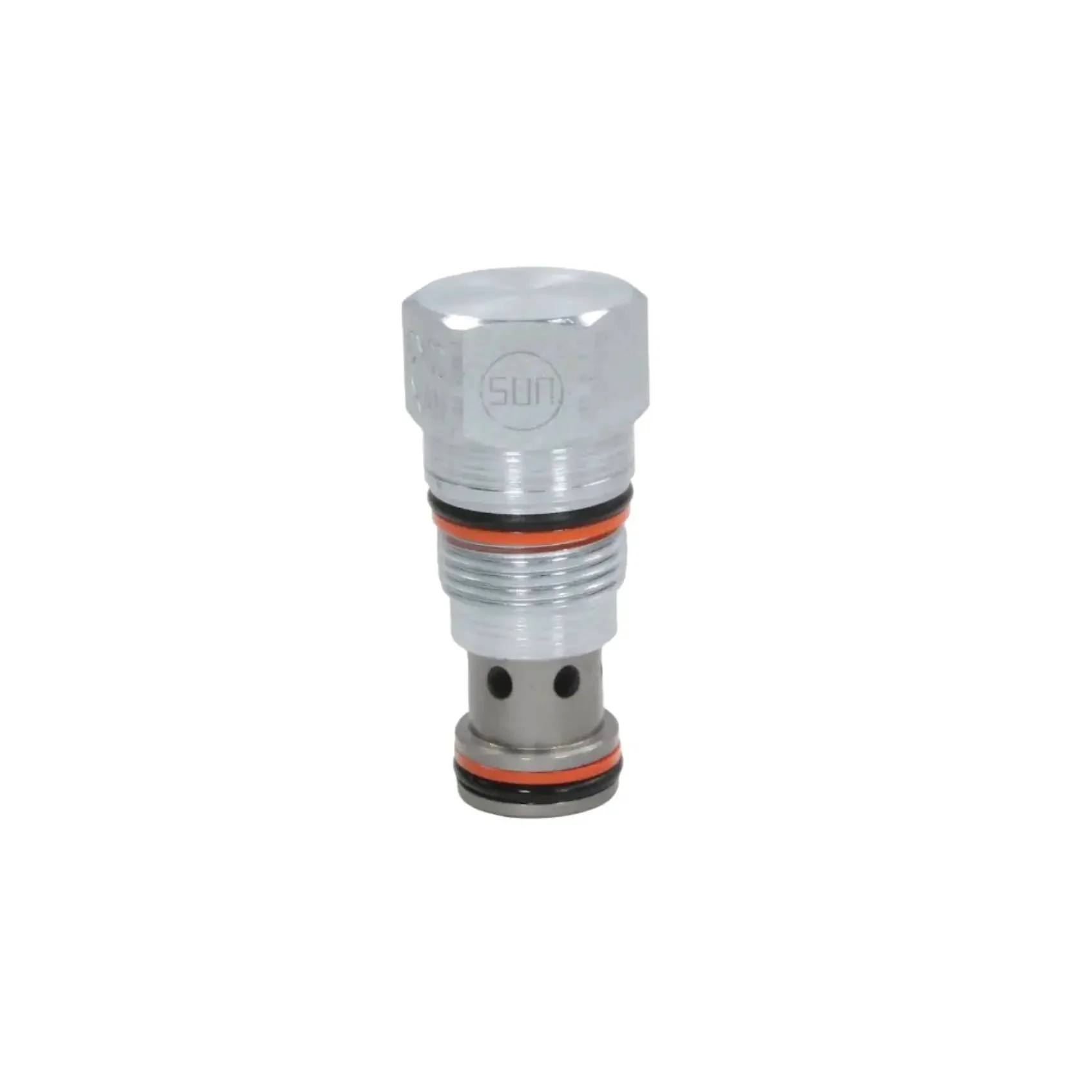

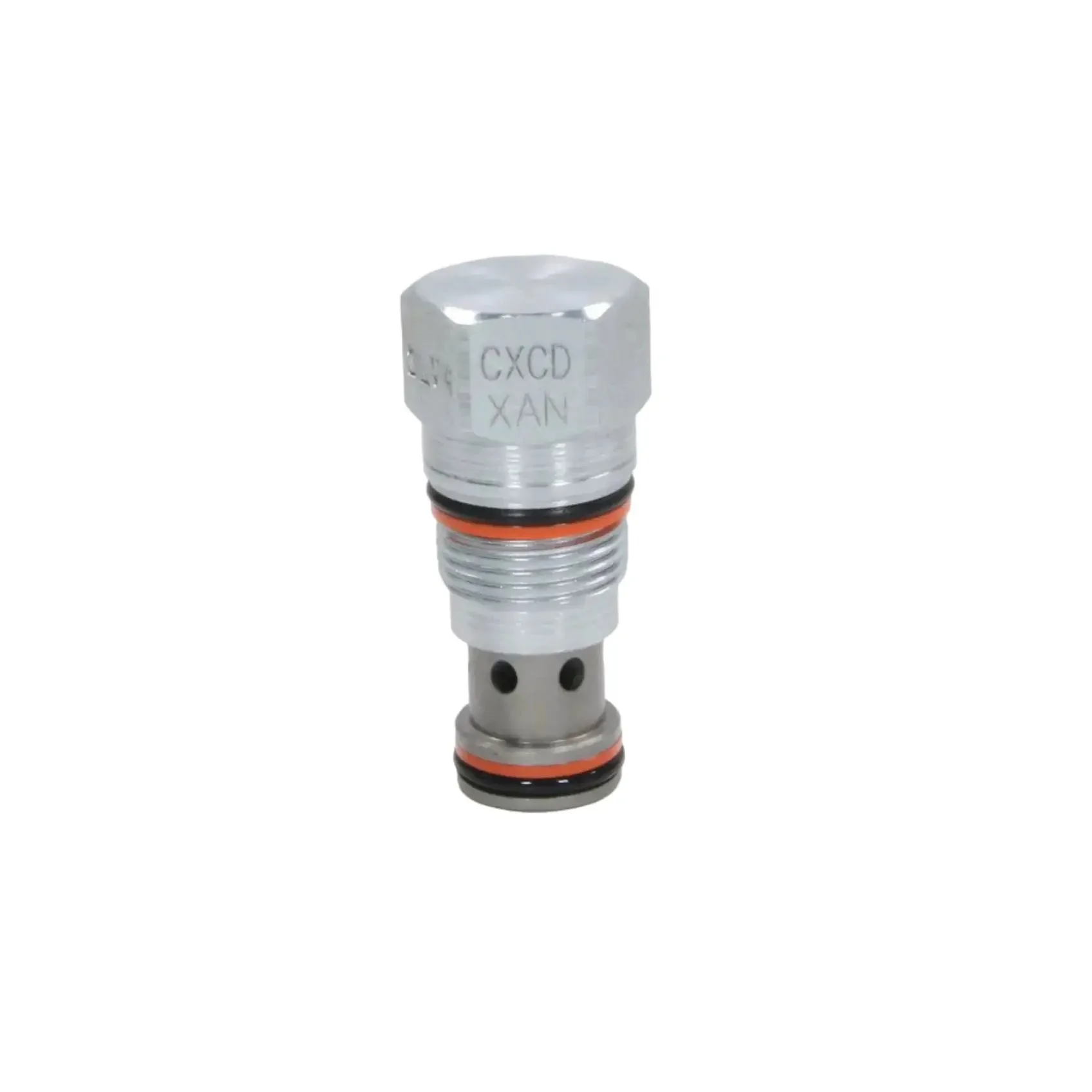

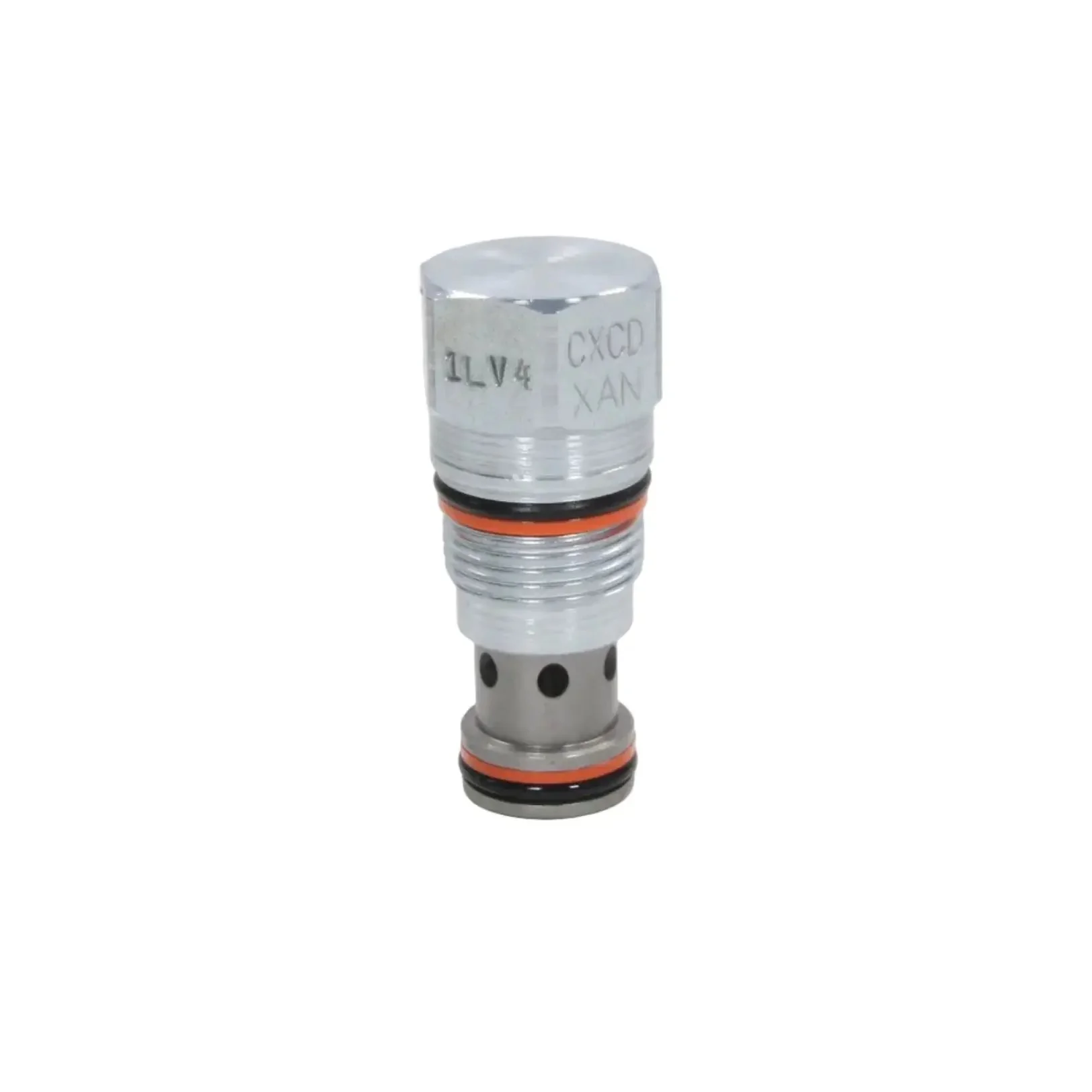

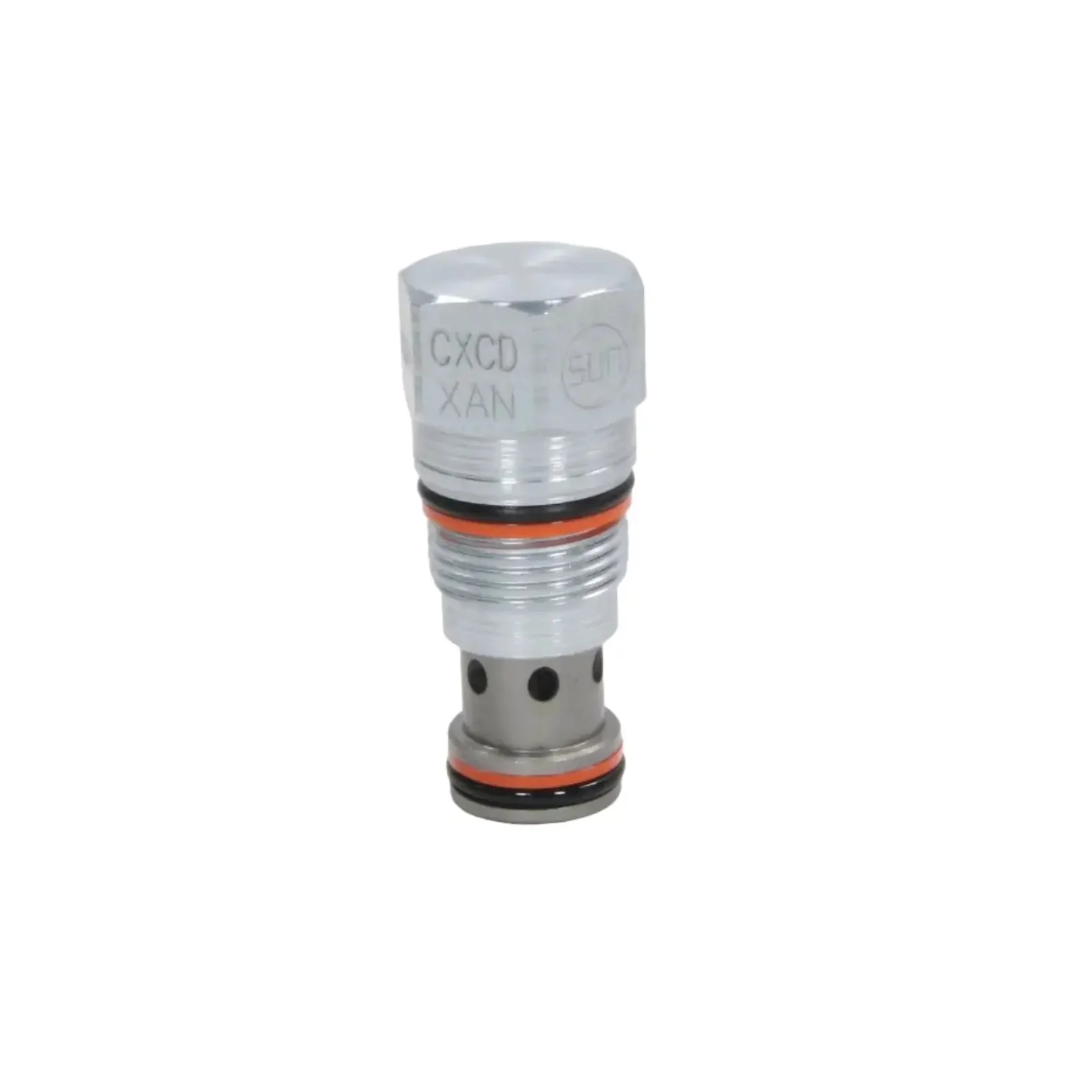

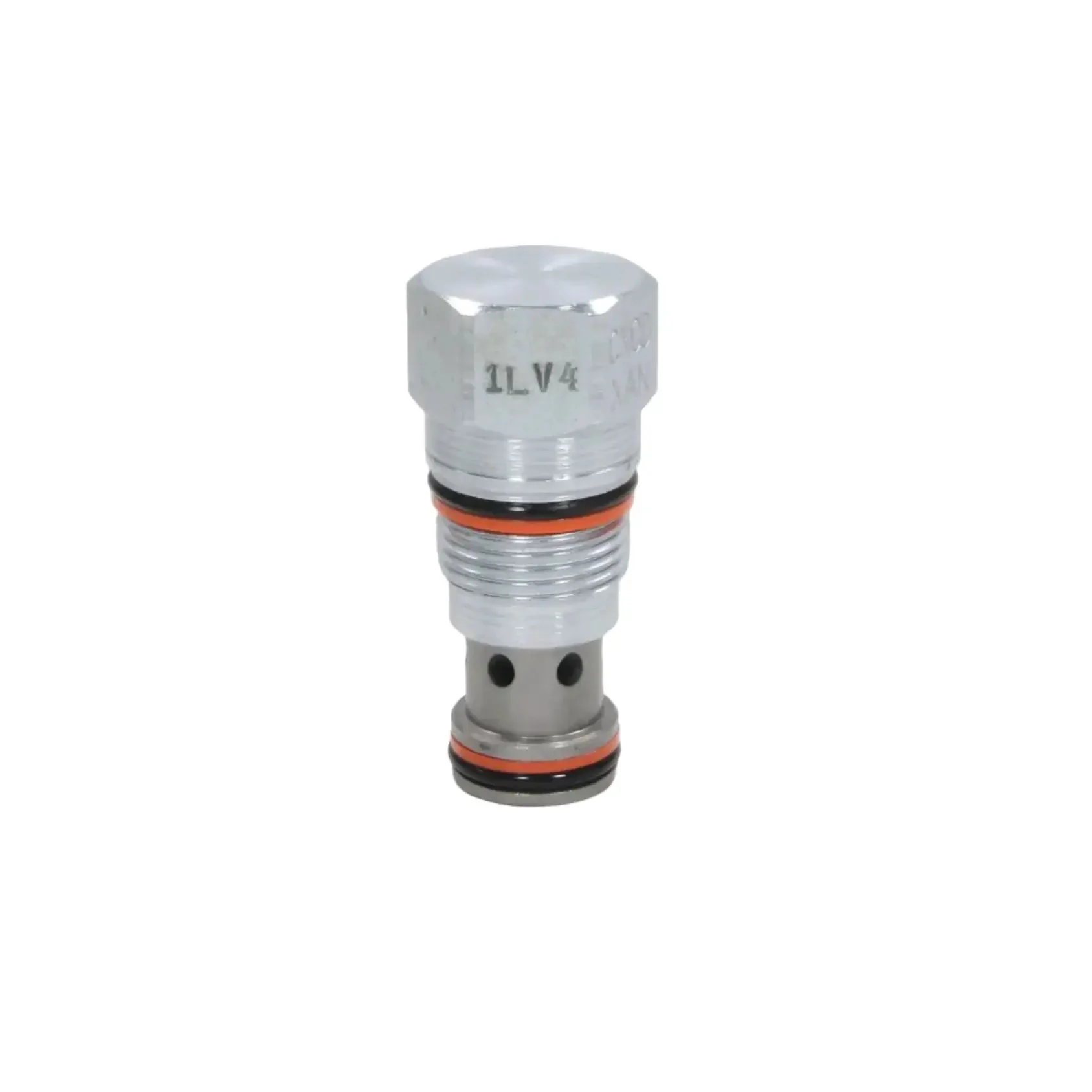

Sun Hydraulics CXCD-XAN Free-Flow Side-to-Nose Check Cartridge Valve

- Brand: Sun Hydraulics

- Model: CXCD-XAN

- Type: Free-Flow Side-to-Nose Check Cartridge Valve

- All tech specs:
- Function: Allows free flow from inlet (port 2, side) to outlet (port 1, nose) and blocks reverse flow (check valve, on/off component)
- Flow direction: Side-to-nose free flow
- Nominal flow capacity: 60 L/min
- Maximum operating pressure: 350 bar
- Cracking pressure: 0.3 bar
- Maximum valve leakage: 0.07 cc/min
- Cavity: T-13A
- Valve construction: Cartridge style, corrosion-resistant variant
- Material: Stainless teel body with hardened working parts
- Ports: 3 ports (inlet port 2 side, outlet port 1 nose, typically no third port for basic check)
- Installation torque: 41-47 Nm
- Valve hex size: 22 mm
- Features: High flow relative to size, reliable one-way flow control, suitable for hydraulic circuits requiring free flow in one direction and positive shut-off in reverse, robust for industrial and mobile hydraulics

Dimensions: 115 X 40 X 40 mm

Weight: 150 g

Country of origin: United States

HS code: 848120
