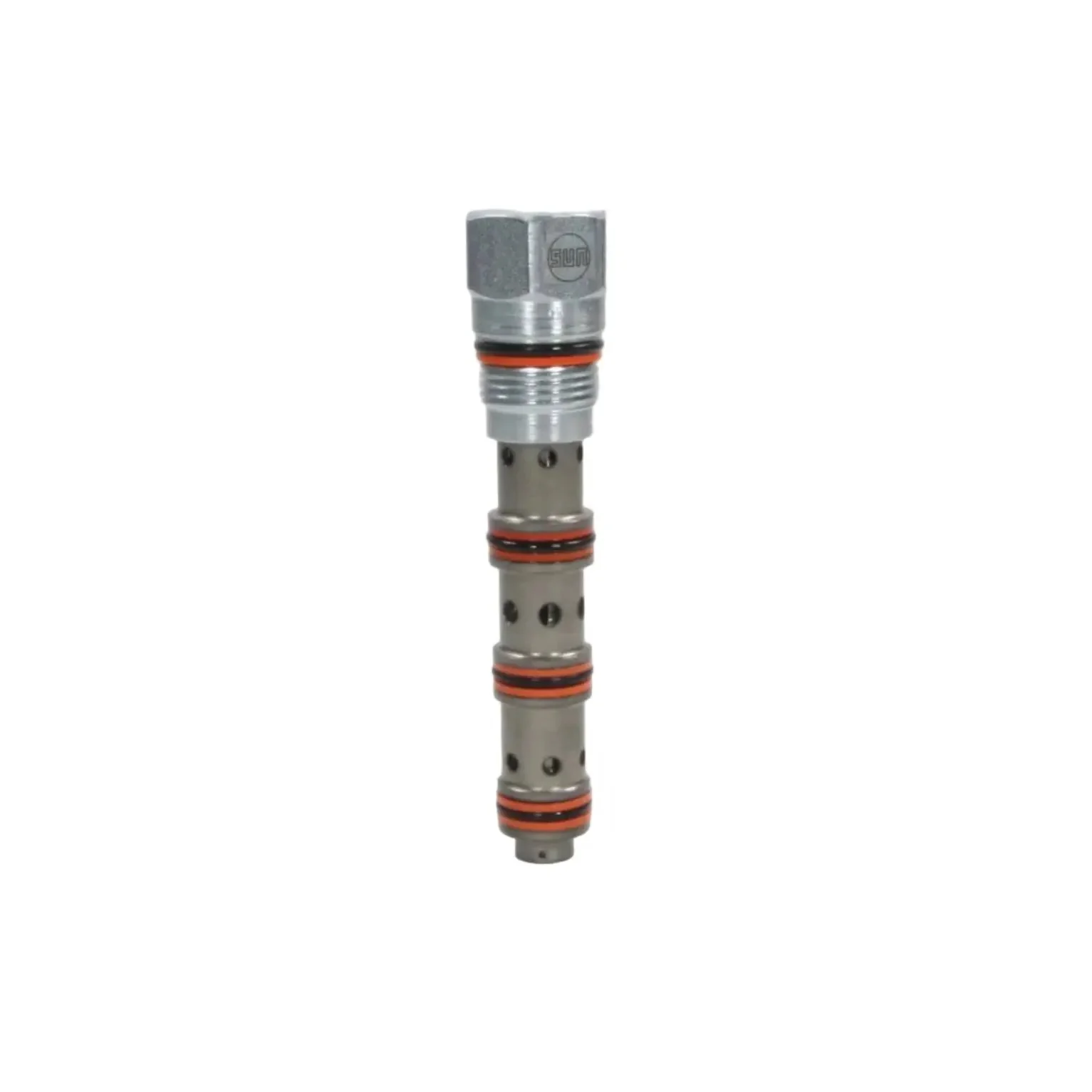

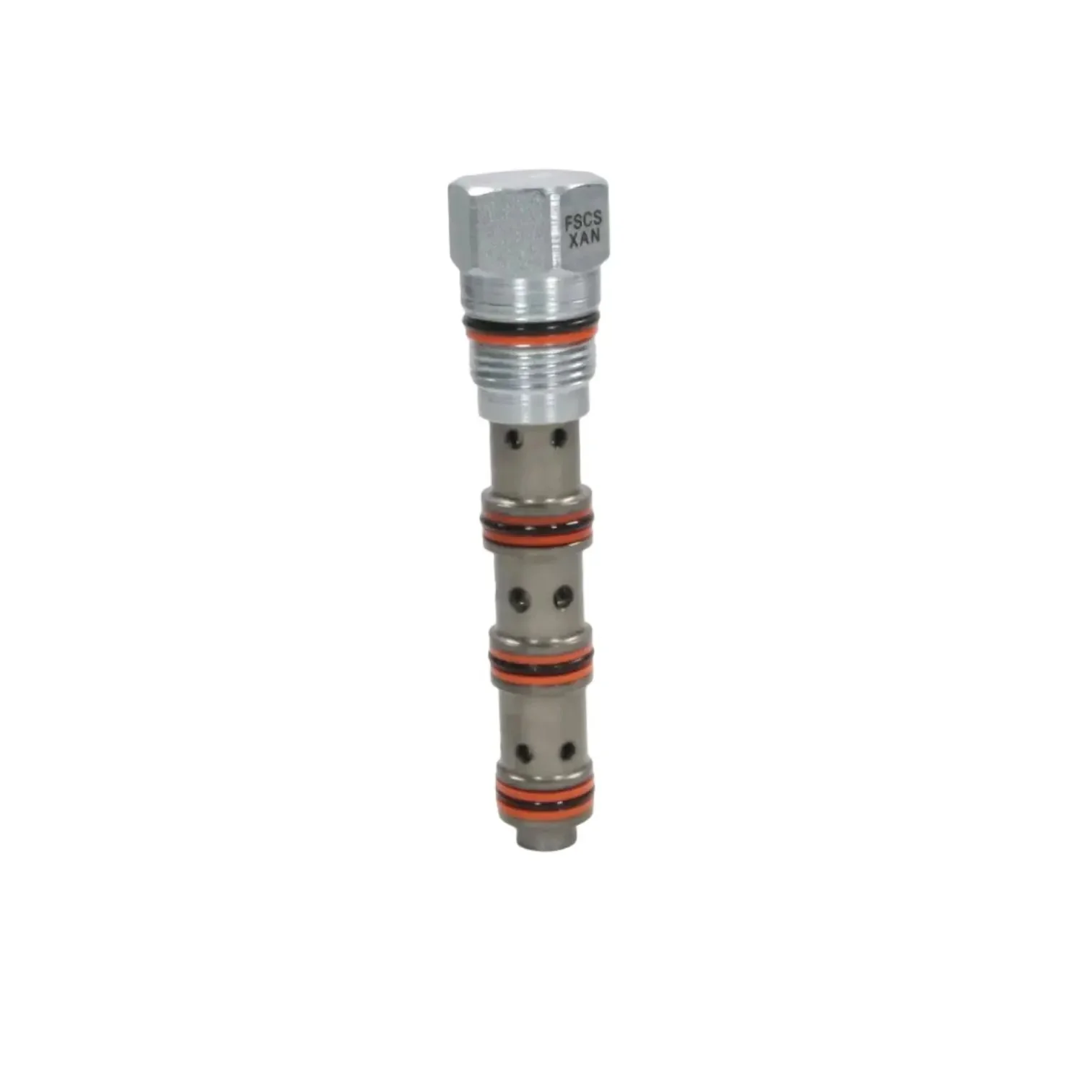

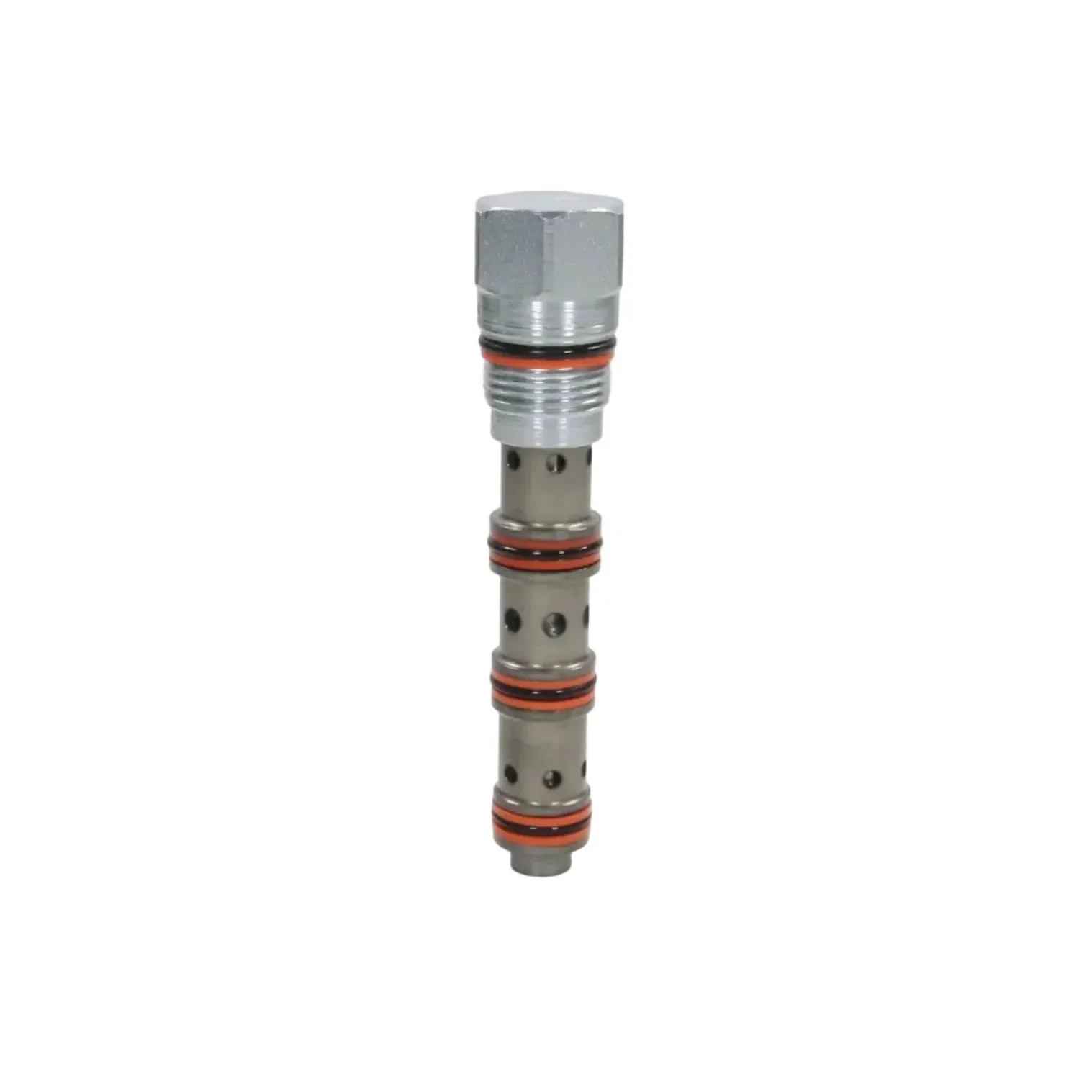

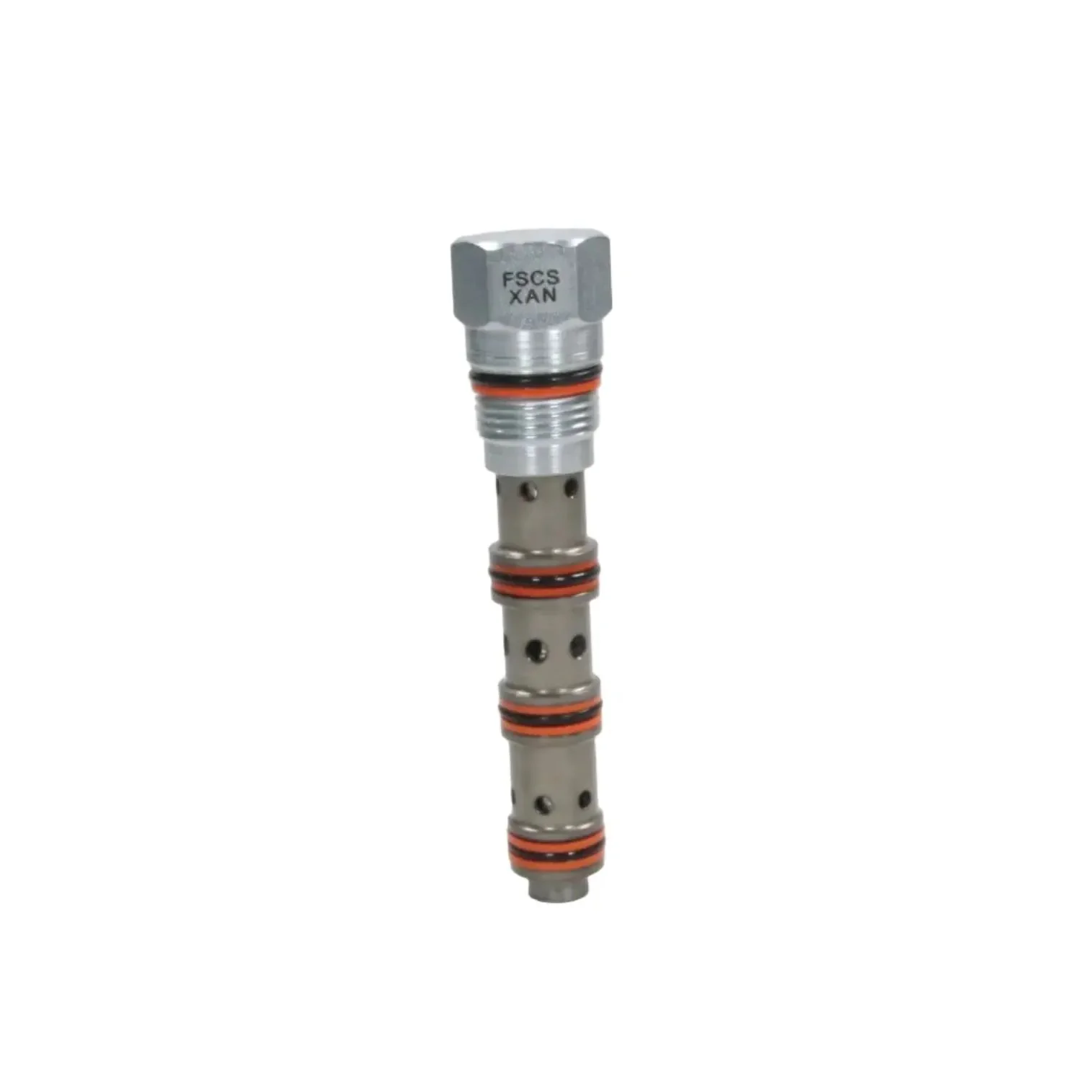

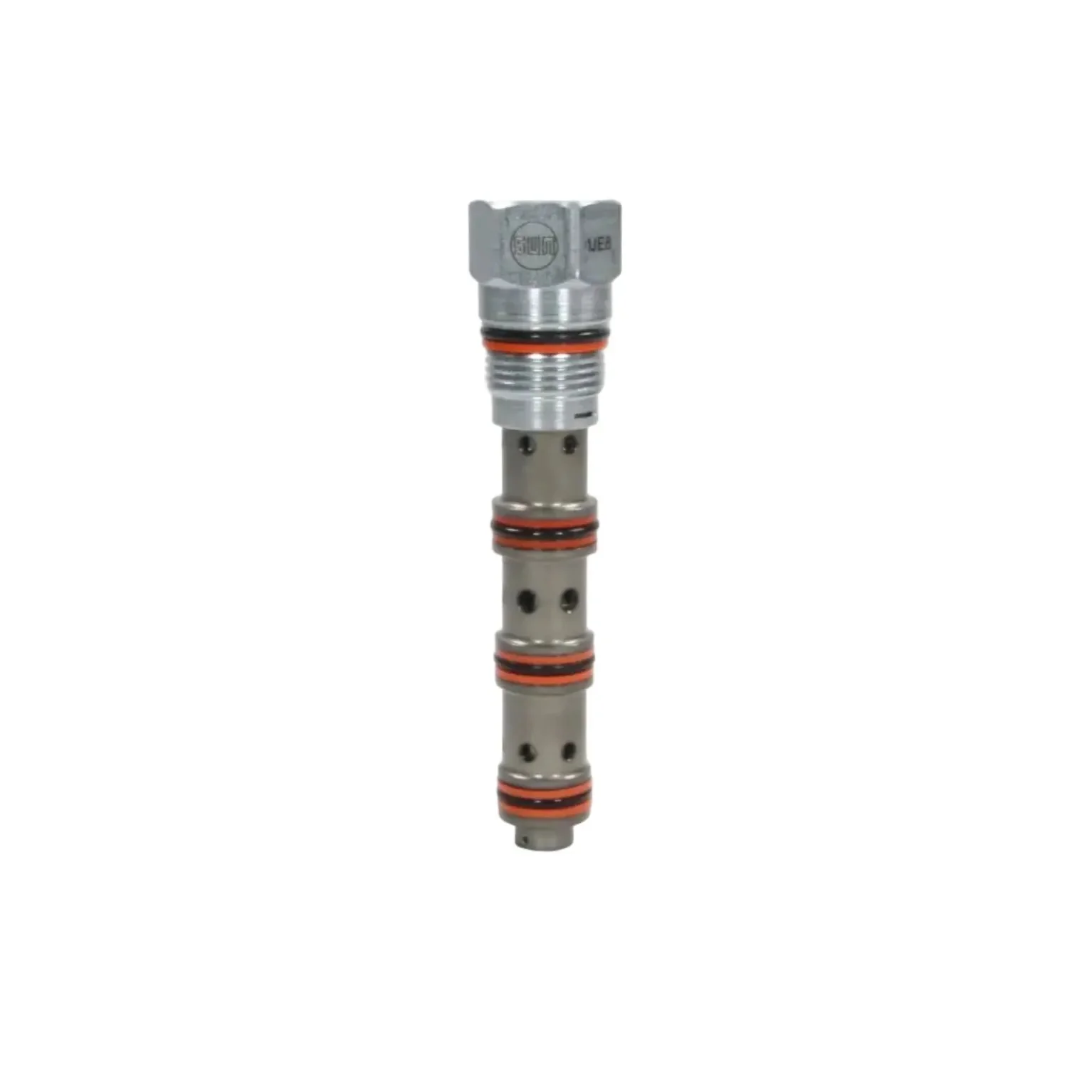

Sun Hydraulics FSCSXAN Synchronizing Flow Divider-Combiner Cartridge Valve

- Brand: Sun Hydraulics

- Model: FSCSXAN

- Type: Synchronizing Flow Divider-Combiner Cartridge Valve

- All tech specs
- Function: Splits flow equally in one direction (divider) and combines flow in the opposite direction (combiner); synchronizing feature allows two hydraulic cylinders to fully stroke and synchronize at the end of the stroke (when the first cylinder reaches the end, pressure builds to force the second to catch up)
- Nominal flow split ratio: 50/50
- Flow range: 6 - 30 L/min
- Cavity: T-31A
- Maximum operating pressure:  350 bar
- Pressure compensation: Yes
- Construction: Sliding spool design with floating style to minimise binding from excessive installation torque or cavity/cartridge mismatches
- Material: Steel body with hardened working parts
- Ports: 3 ports (common, A, B)
- Installation torque: 41-47 Nm
- Features: High synchronisation accuracy for cylinder applications, robust for industrial hydraulic systems, no adjustment required for split ratio

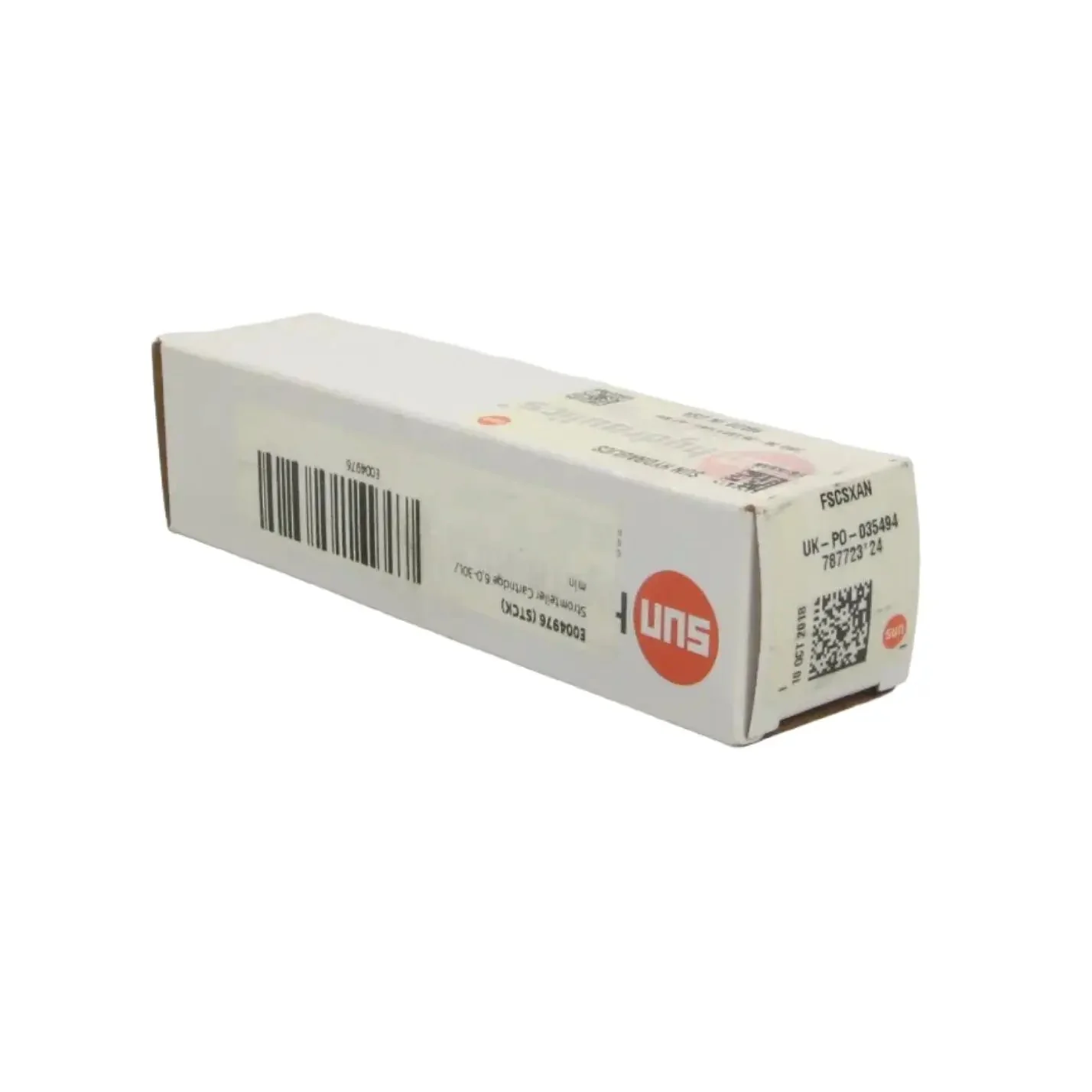

Dimensions: 160 x 40 x 40 mm (box)

Weight: 200 g

Country of origin: United States

HS code: 848120
