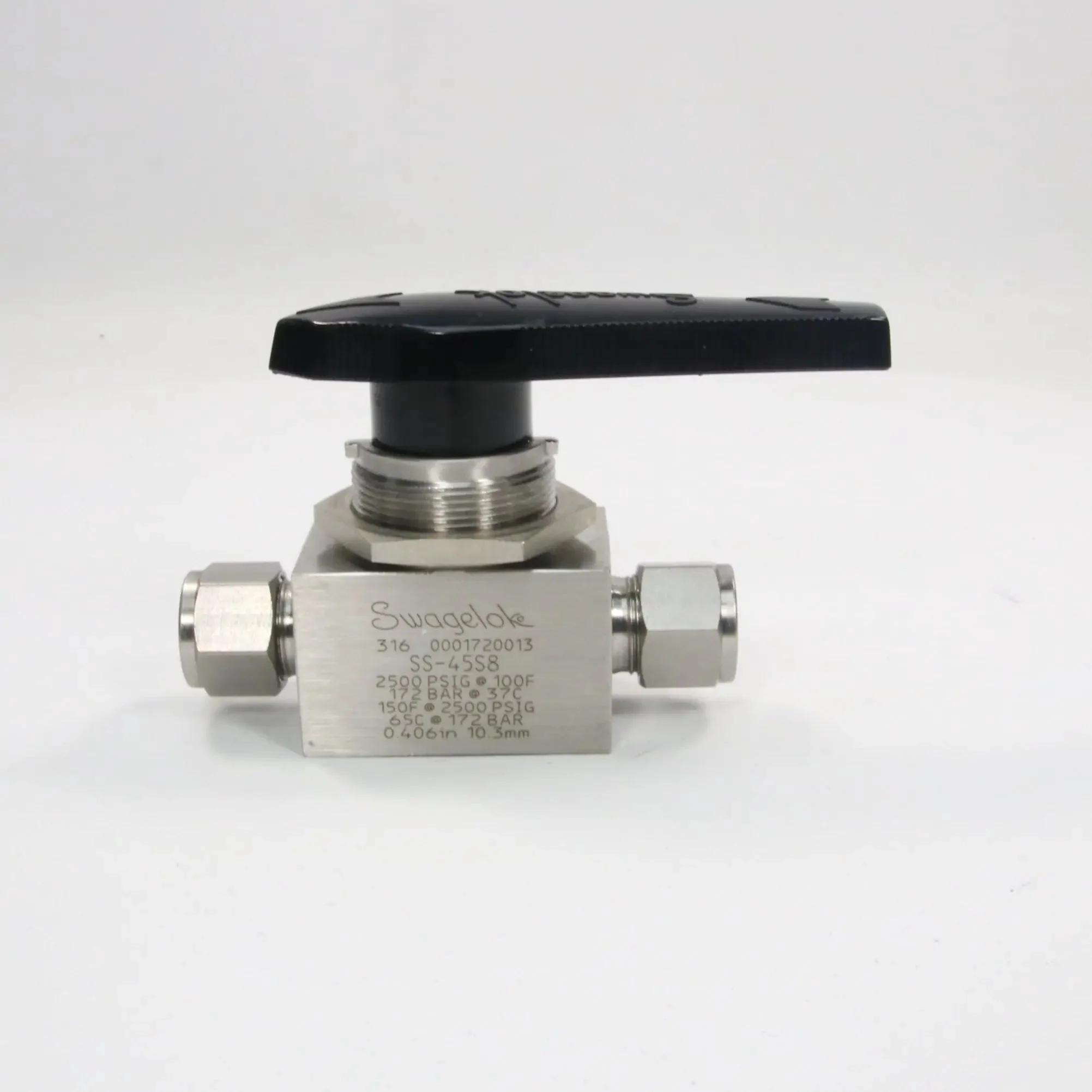

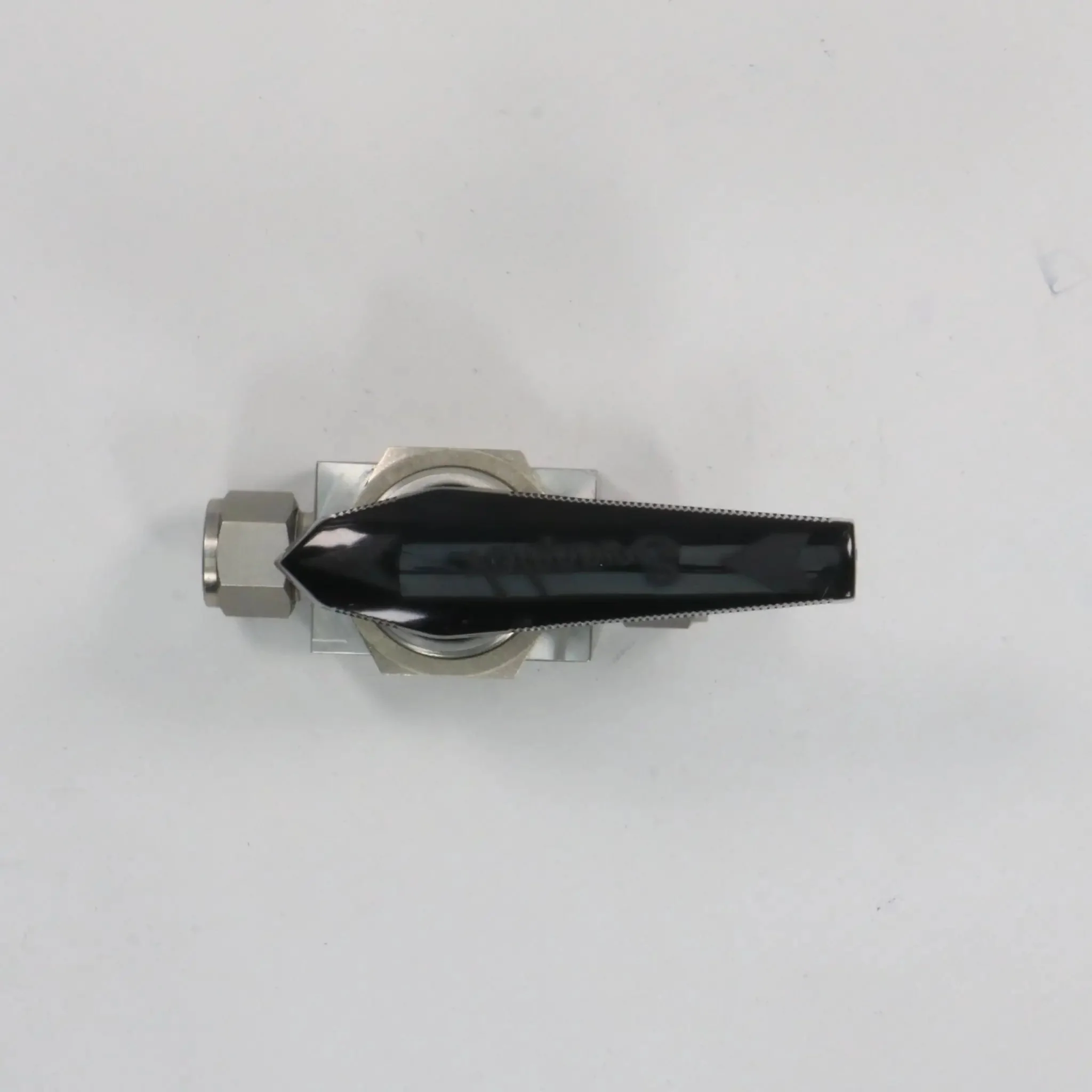

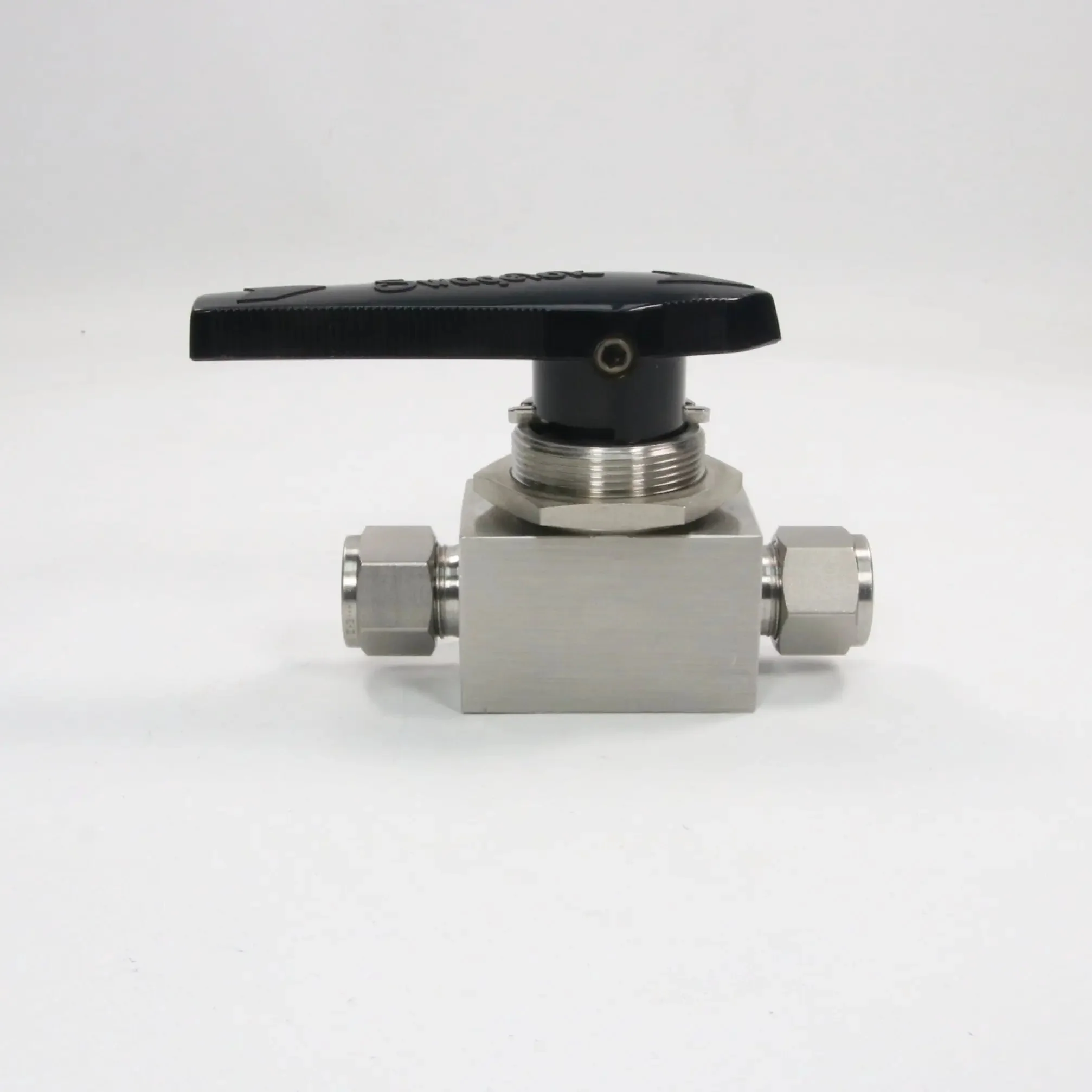

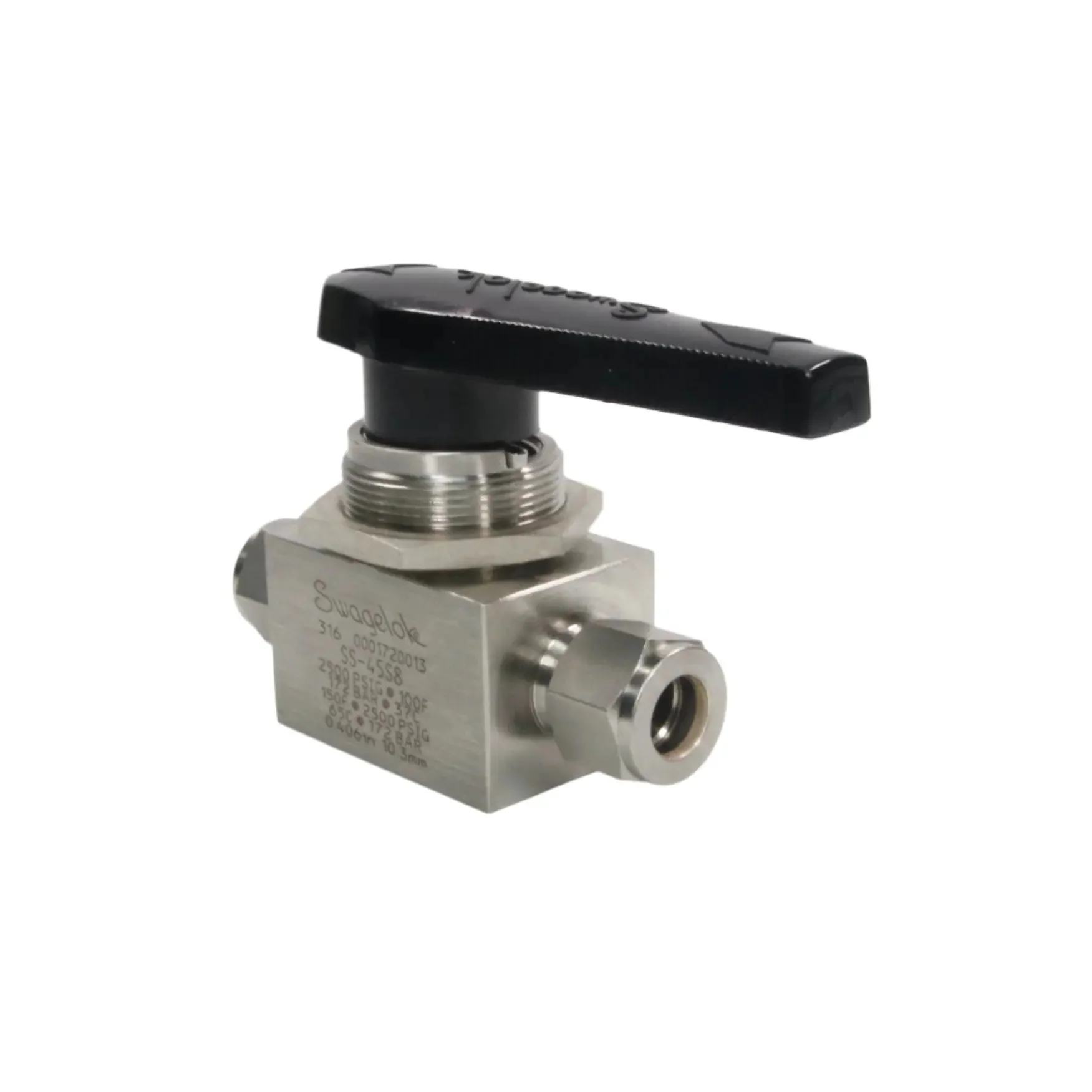

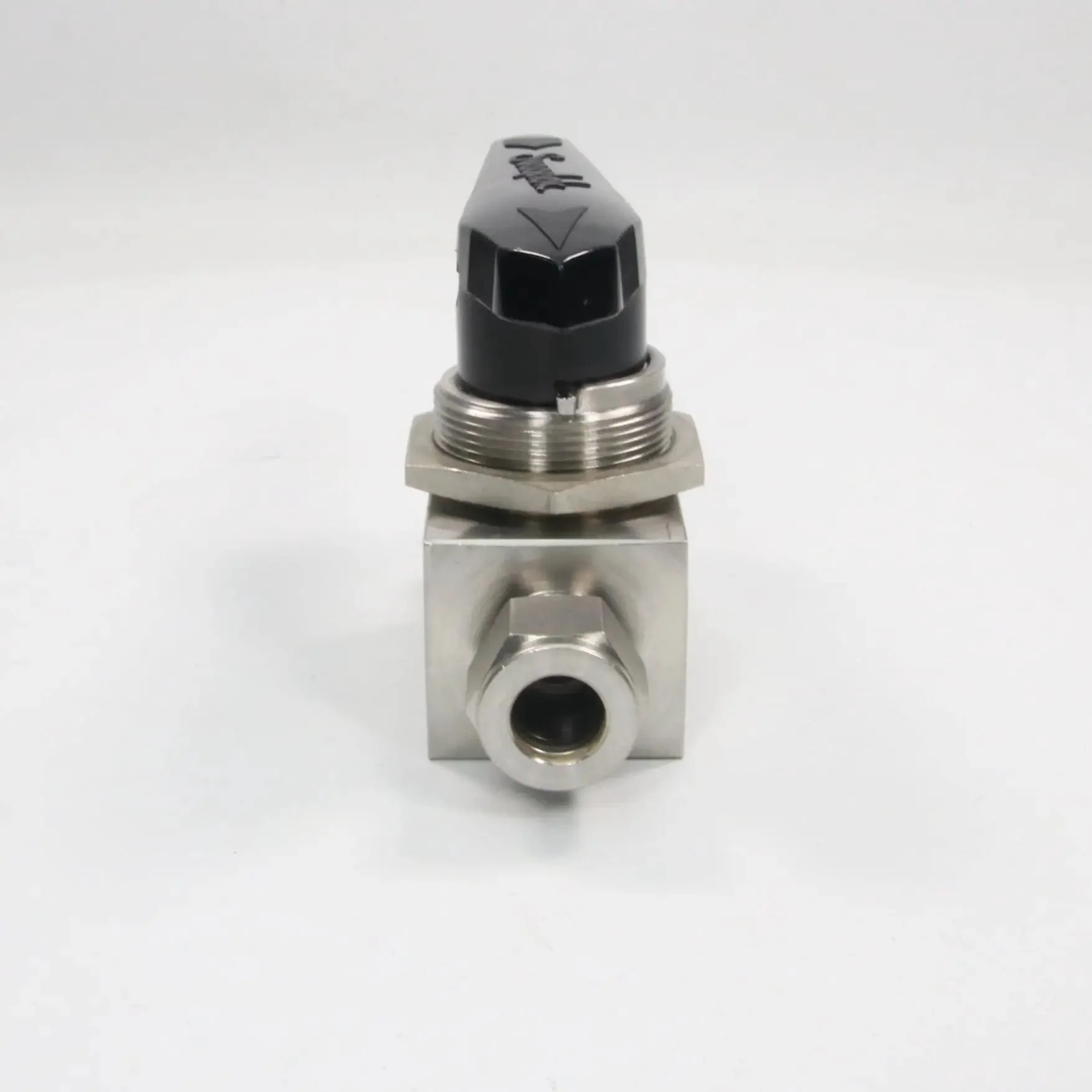

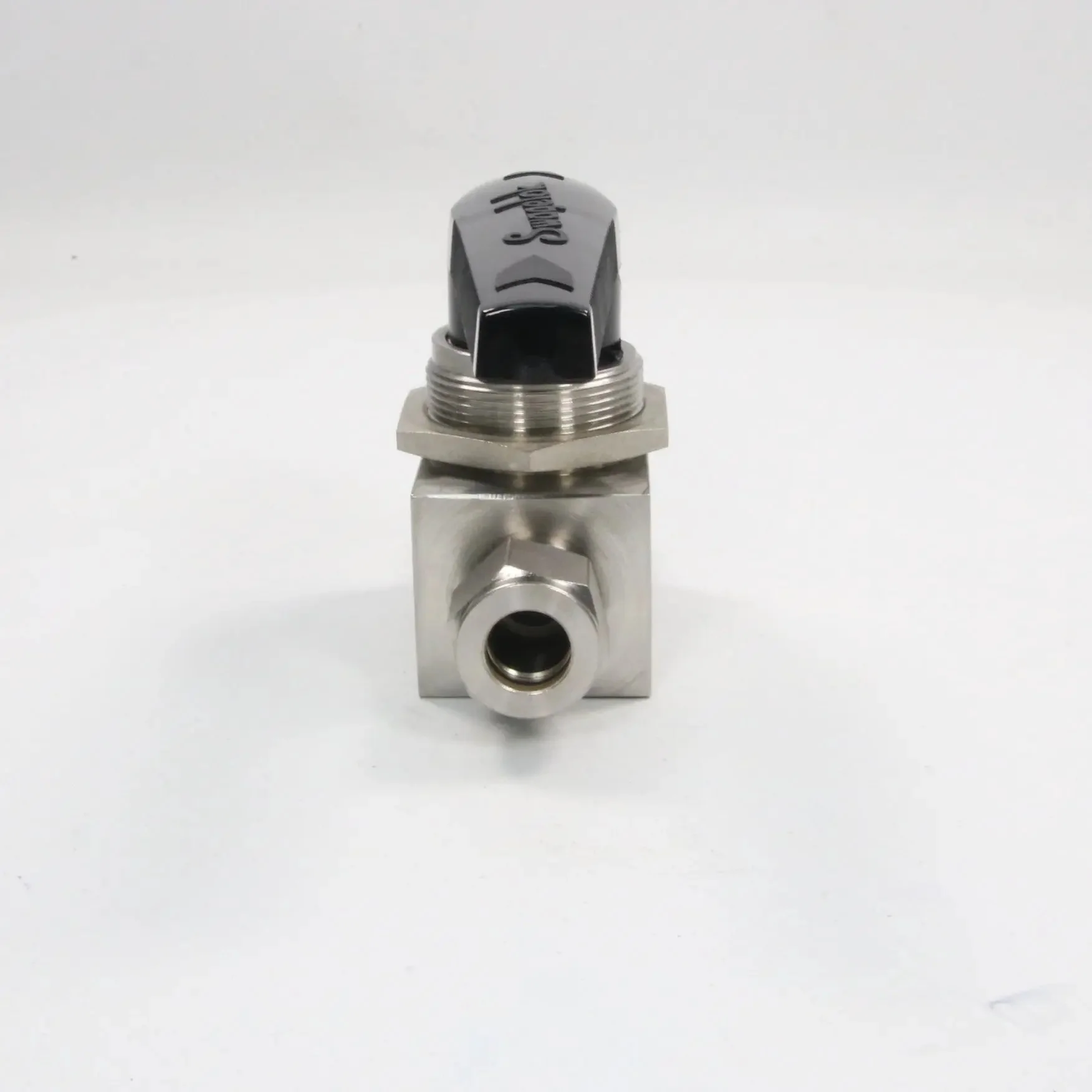

Swagelok SS-45S8 Ball Valve
- Brand: Swagelok
- Part Number: SS-45S8
- Type: Ball Valve
- Body Material: 316 stainless steel
- Ball/Stem Material: Stainless steel
- Handle Style: Lever
- Handle Color: Black
- Packing Material: PTFE
- Ring/Disc Material: PTFE-Coated stainless steel
- Orifice Size: 0.406 in (10.3 mm)
- Flow Pattern: 2-Way, Shutoff, Straight
- Flow Coefficient (Cv): 12
- Pressure Rating:
- 172 bar at 37.8°C
- 103 bar at 65.6°C
- Temperature Rating: 18 to 65.6°C
- End Connections: 1/2 in. Swagelok® tube fitting
- Cleaning Process: Standard Cleaning and Packaging (SC-10)
- Service Class: General
- Low Emissions Certified: Yes
- Testing: Tested according to WS-22
$230.38
Swagelok SS-45S8 Ball Valve—
$230.38
Description
- Brand: Swagelok
- Part Number: SS-45S8
- Type: Ball Valve
- Body Material: 316 stainless steel
- Ball/Stem Material: Stainless steel
- Handle Style: Lever
- Handle Color: Black
- Packing Material: PTFE
- Ring/Disc Material: PTFE-Coated stainless steel
- Orifice Size: 0.406 in (10.3 mm)
- Flow Pattern: 2-Way, Shutoff, Straight
- Flow Coefficient (Cv): 12
- Pressure Rating:
- 172 bar at 37.8°C
- 103 bar at 65.6°C
- Temperature Rating: 18 to 65.6°C
- End Connections: 1/2 in. Swagelok® tube fitting
- Cleaning Process: Standard Cleaning and Packaging (SC-10)
- Service Class: General
- Low Emissions Certified: Yes
- Testing: Tested according to WS-22
