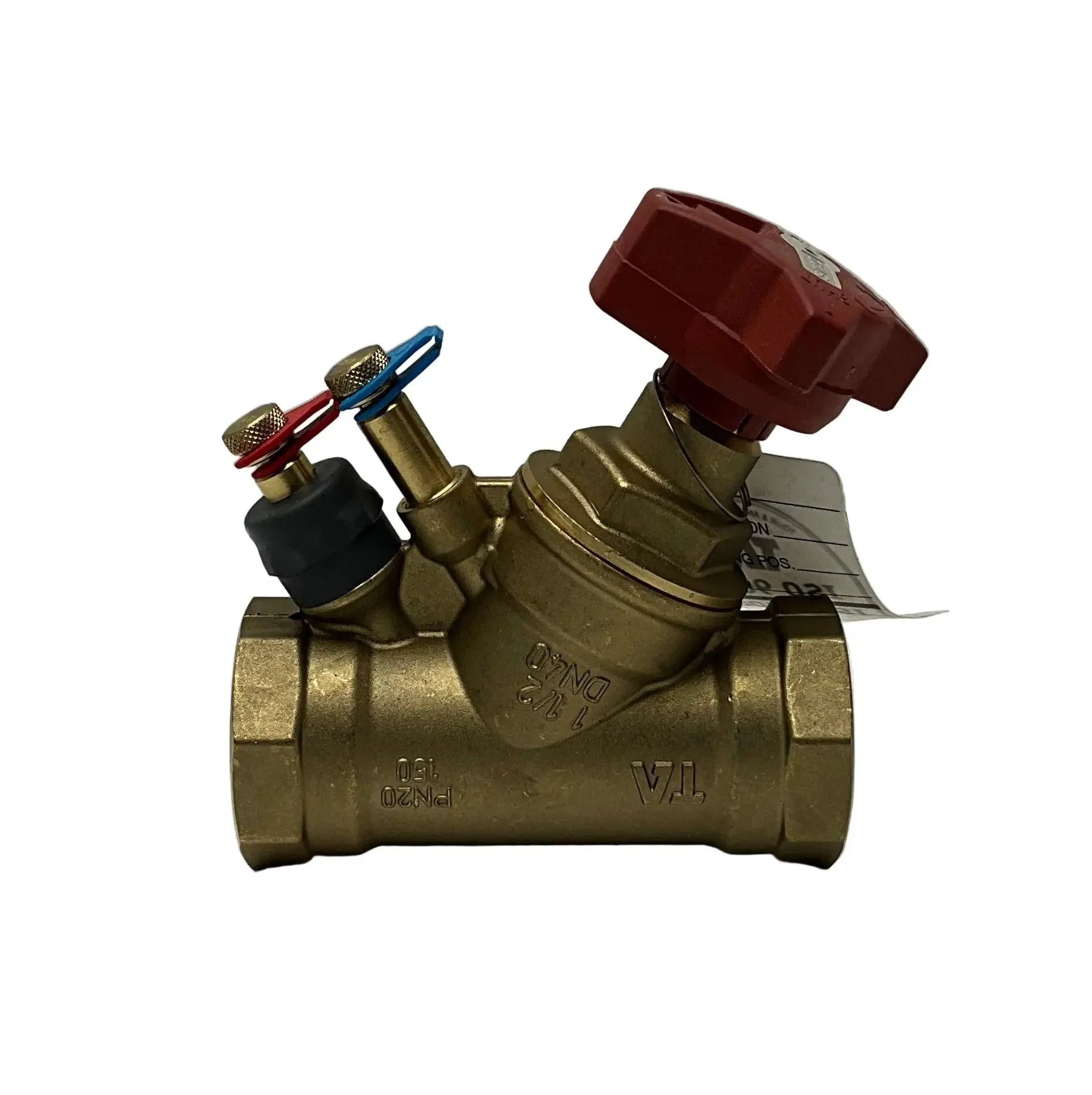

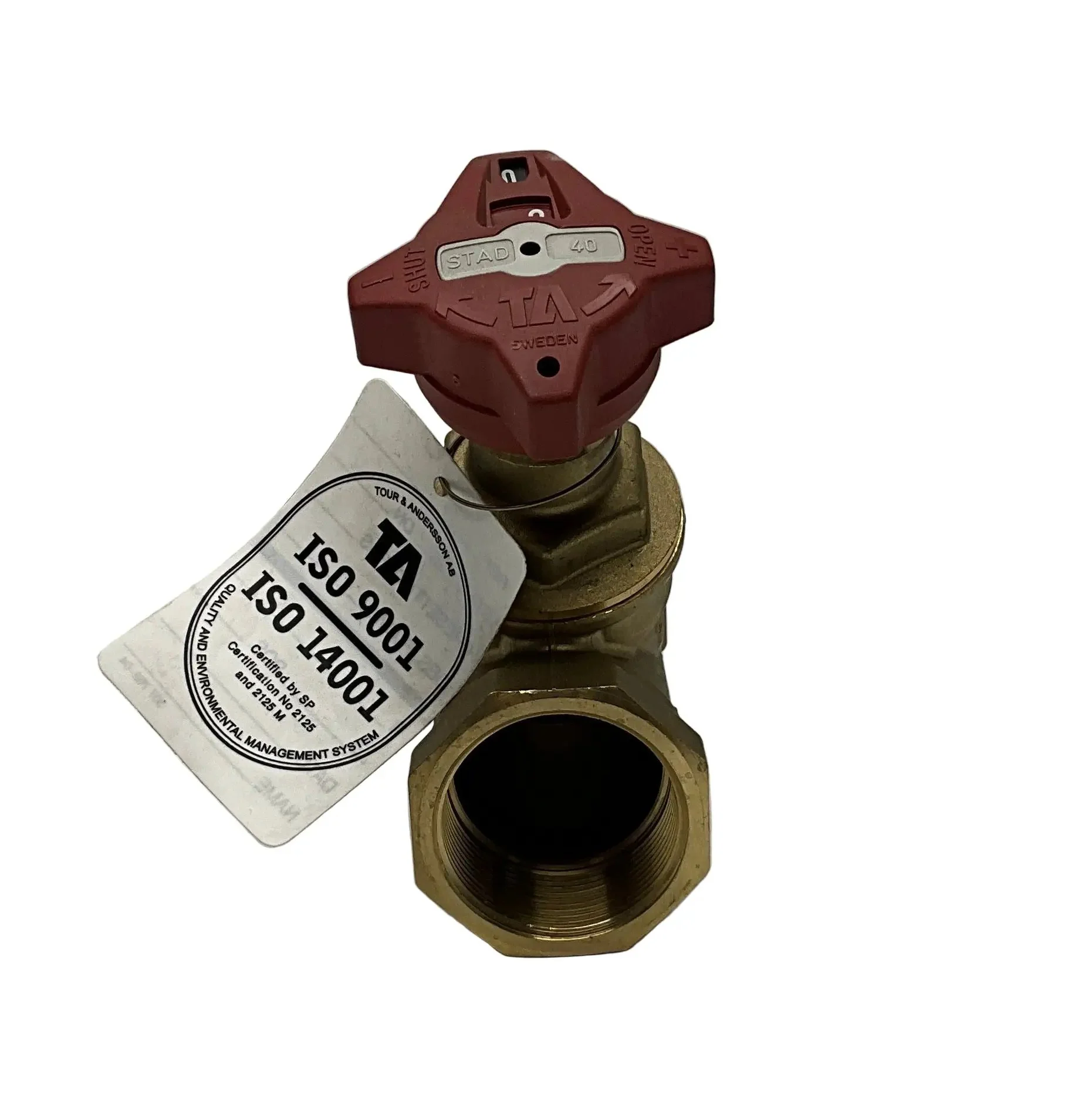

IMI TA Stad 52 151-040 DN40 Balancing Valve

Brand: IMI TA
Model: STAD
Type: Manual Balancing Valve
Part Number: 52 151-040

Technical Specs:
- Valve Type: Threaded, manual balancing valve with pre-setting and measuring function
- Nominal Size (DN): 40
- Connection Type: Female threads G 1 1/2" (ISO 228)
- Pressure Rating: PN 25 (max. working pressure 25 bar)
- Kvs Value: 19.2 m³/h
- Temperature Range: -20°C to +120°C continuous; intermittent up to +150°C
- Media: Water or neutral fluids, water-glycol mixtures (0-57%)
- Body Material: Brass
- Seal Material: EPDM
- Additional Features:
  - Handwheel with micrometer scale for precise adjustment
  - Memory stop for repeatable settings
  - Suitable for differential pressure measurement
- Certifications: CE and DVGW compliant

Dimensions: 160 x 160 x 70 mm

 Weight: 1.6 kg

Country of Origin: Sweden

HS Code: 8481.80
