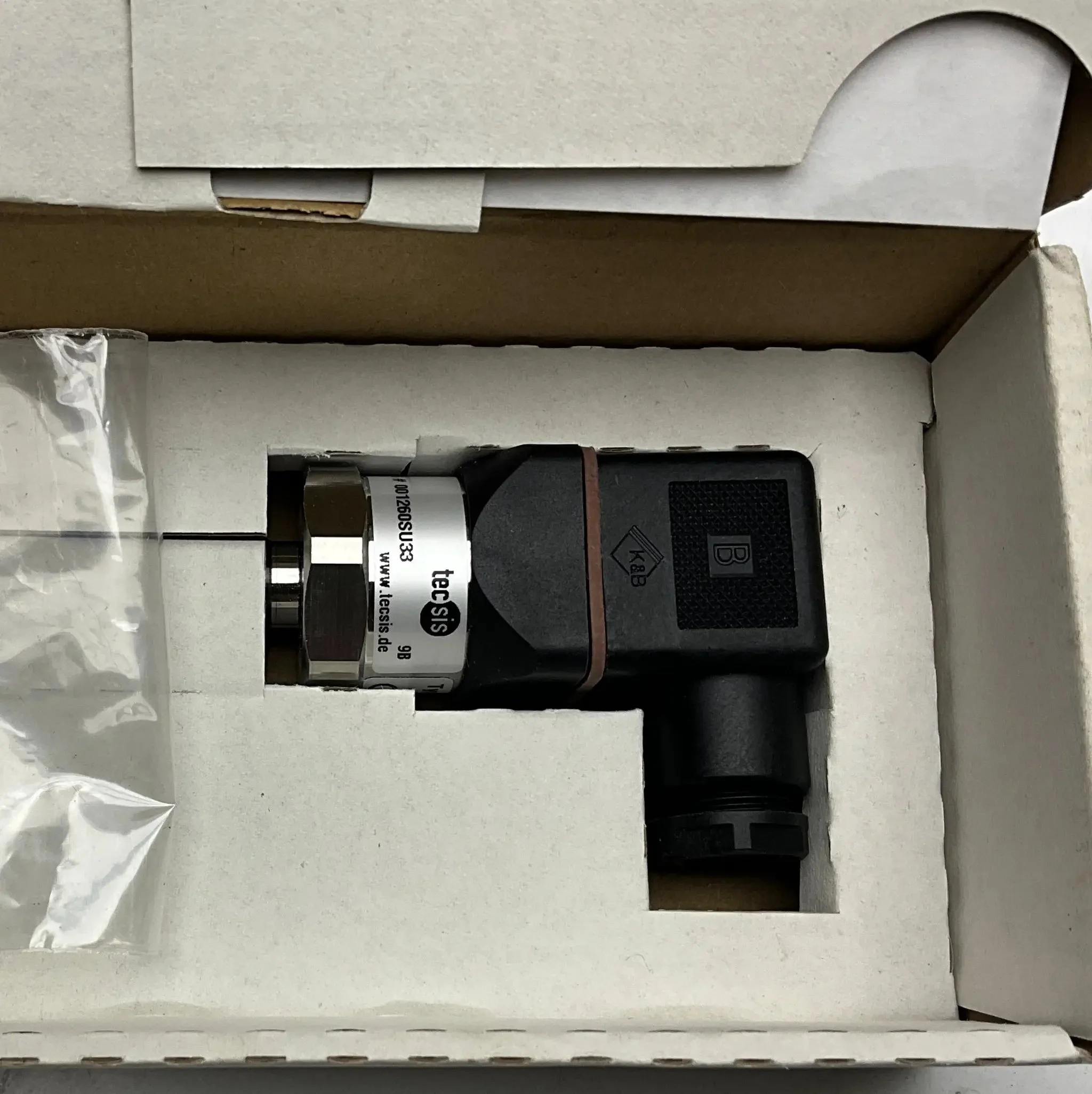

Tecsis P3297B081001 Pressure Sensor

- Brand: Tecsis (now part of WIKA Group)
- Model: P3297B081001
- Type: Pressure Sensor
- Part Number: P3297B081001

- Technical Specs:
- Measuring Principle: Piezoresistive pressure sensor with stainless steel measuring cell
- Measuring Range: 0 – 100 bar
- Overpressure Limit: 2 × full scale
- Burst Pressure: 4 × full scale
- Accuracy: ±0.5 % FS (BFSL) standard
- Repeatability: ≤ ±0.2 % FS
- Temperature Influence: ≤ ±0.2 % FS / 10 K (zero point), ≤ ±0.2 % FS / 10 K (measuring range)
- Process Temperature Range: –30 °C to +100 °C
- Ambient Temperature Range: –20 °C to +80 °C
- Supply Voltage: 8–30 V DC
- Output Signal: 4–20 mA (2-wire)
- Load Resistance: Max 600 Ω at 24 V supply
- Response Time: ≤ 10 ms
- Process Connection: G 1/4 A (male thread)
- Wetted Parts: Stainless steel 1.4571 (316Ti)
- Housing Material: Stainless steel
- Electrical Connection: M12 × 1 connector, 4-pin
- Protection Class: IP67
- Additional Features:
  - Compact design for tight spaces
  - Robust stainless steel construction
  - High resistance to shock and vibration

Dimensions: 170 x 90 x 50 mm

Weight: 220 g

Country of Origin: Germany

HS Code: 9026.20
