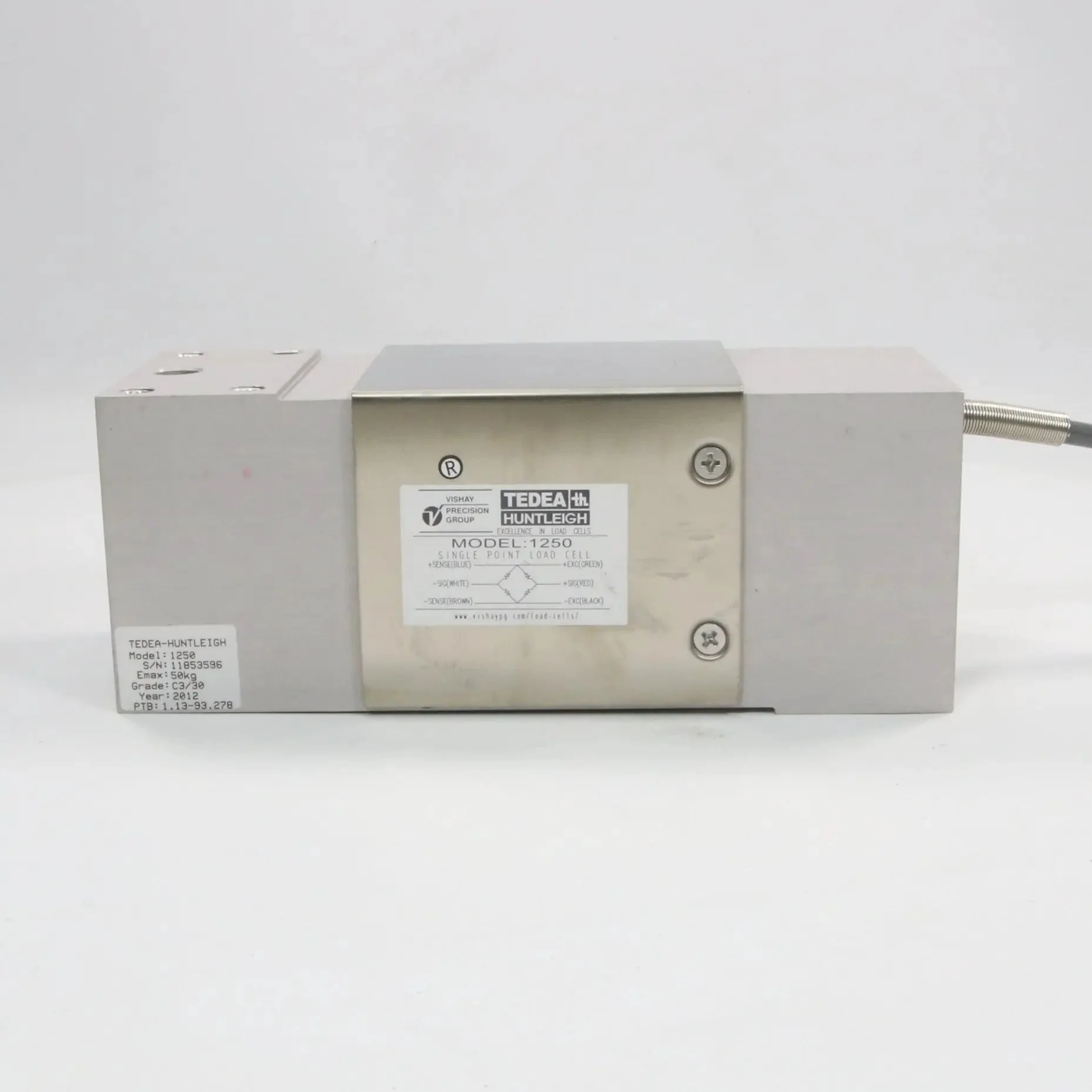

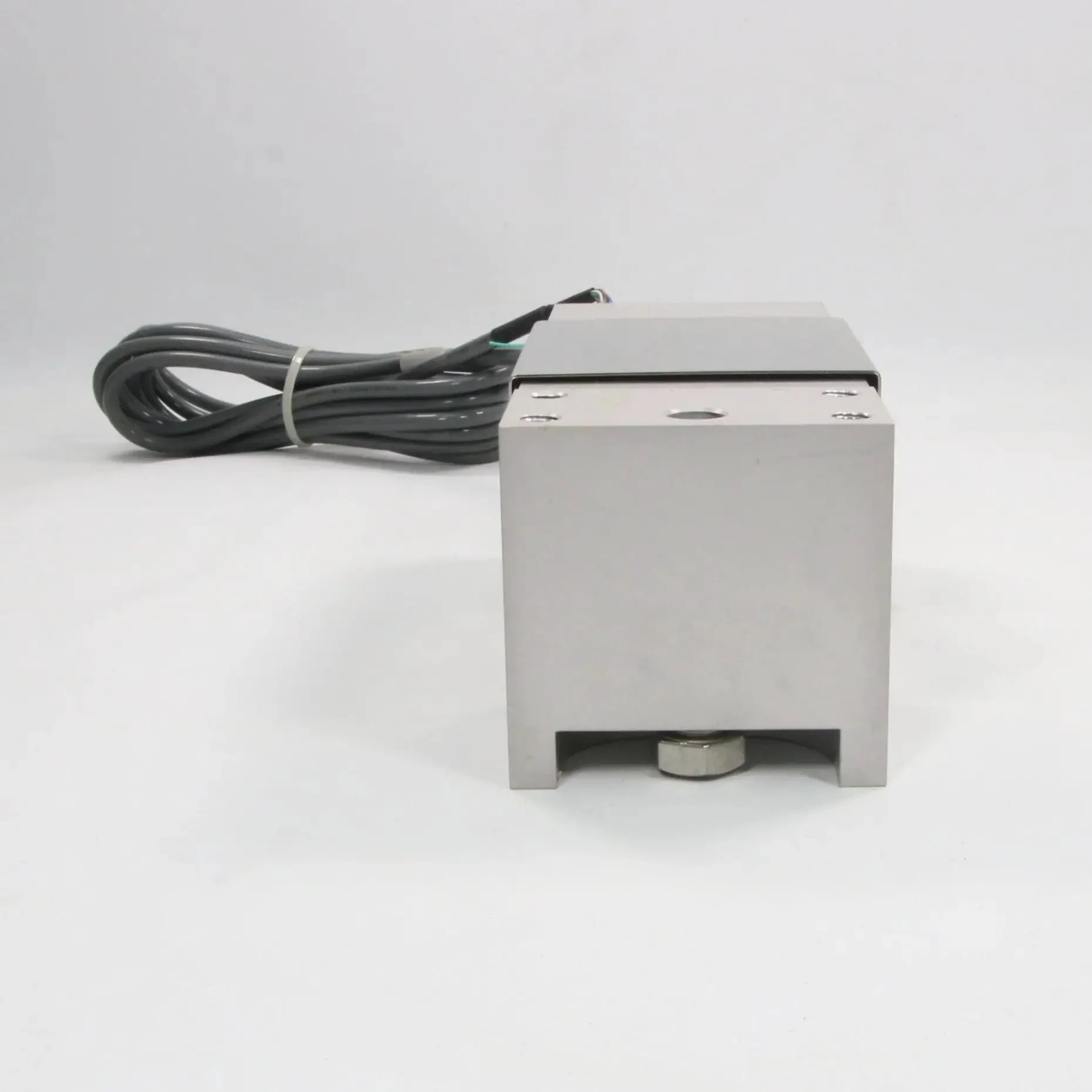

Tedea Huntleigh 1250 Single Point Load Cell
- Brand: Tedea Huntleigh (Vishay Precision Group)
- Model: 1250
- Type: Single point load cell (aluminum, high-capacity off-center loading for platform scales)
- All Tech Specs:
- Material: Anodized aluminum (lightweight and corrosion-resistant)
- Capacity Range: 50 kg
- Sensitivity: 2 mV/V (nominal output at full scale)
- Accuracy Class: 0.02% total error (combined nonlinearity, hysteresis, non-repeatability)
- Excitation Voltage: 5-15 VDC (maximum 18 VDC)
- Input Resistance: 415 ± 10 Ohms
- Output Resistance: 350 ± 3 Ohms
- Insulation Resistance: >5000 MOhm at 50 VDC
- Zero Balance: ±1% of full scale
- Safe Overload: 150% of rated capacity
- Ultimate Overload: 300% of rated capacity
- Cable: 10 ft (3 m) 6-conductor, shielded (potted for humidity resistance)
- Operating Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Compensated Temperature Range: -10°C to +70°C (14°F to 158°F)
- Temperature Effect: ±0.02% of full scale / °C (zero); ±0.02% of full scale / °C (span)
- Protection Rating: IP65 standard (dust-tight, water-resistant); optional IP67 for wash-down
- Approvals: NTEP certified (Class III S 5,000 divisions, Cert. 89-054A); OIML R60; optional ATEX EEx ia IIC T4 for hazardous areas
- Features: Humidity-resistant potted cavities for harsh environments; direct mounting for large platforms; suitable for bench, floor, counting, and hanging scales; long-term stability
- Dimension: 200 mm length x 50 mm width x 40 mm height (7.87 in x 1.97 in x 1.57 in; approximate, varies slightly by capacity)
- Weight: 2.8 KG
- Country of Origin: Israel
- HS Code: 9031.82 (weighing machinery, load cells)
