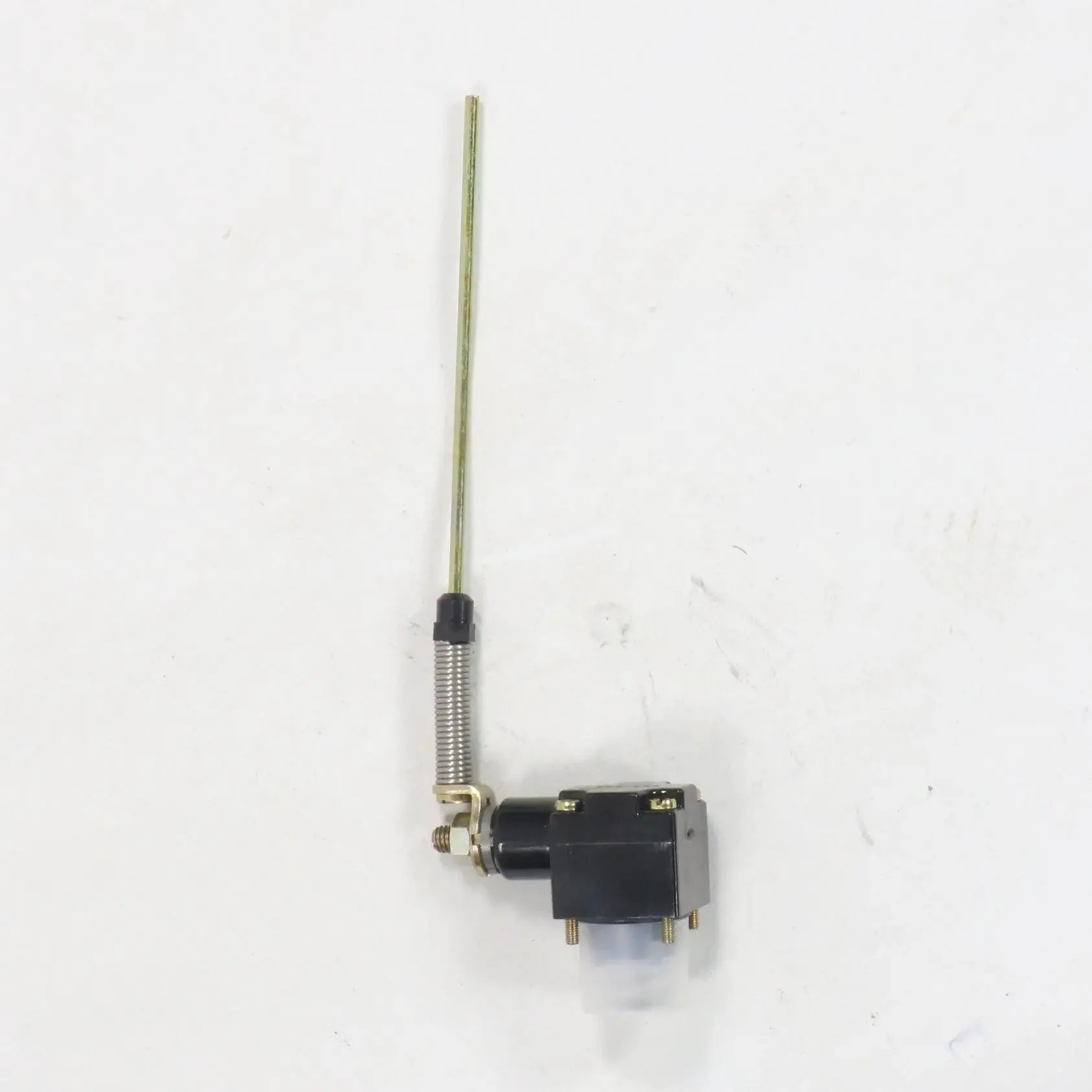

Telemecanique ZCK D91 Limit Switch Head

- Brand: Telemecanique

- Model: ZCK-D91

- Type: Limit Switch Head / Actuator Head

- Part number: 064714

- Technical specifications:
- Actuator type: Rotary lever
- Head orientation: Rotary 360°
- Compatible bodies: ZCK-J (metal body with 1 cable entry) or ZCK-L (metal body with 2 cable entries) – forms complete limit switch ZCKJxx or ZCKLxx when assembled
- Degree of protection: IP66 / IP67 / NEMA 4X
- Operating temperature: -25°C to +70°C
- Mechanical durability: 30 million operations
- Materials: Zinc alloy; steel roller
- Additional features: Positive opening contacts when assembled with body; high vibration/shock resistance; modular design; suitable for conveyor end detection, machine guards, crane limits, or position control
- Standards: IEC/EN 60947-5-1 compliant; CE, UL, CSA approvals

Weight: 130 g

Dimensions: 220 x 65 x 30 mm

Country of origin: France

HS code: 8536.50
