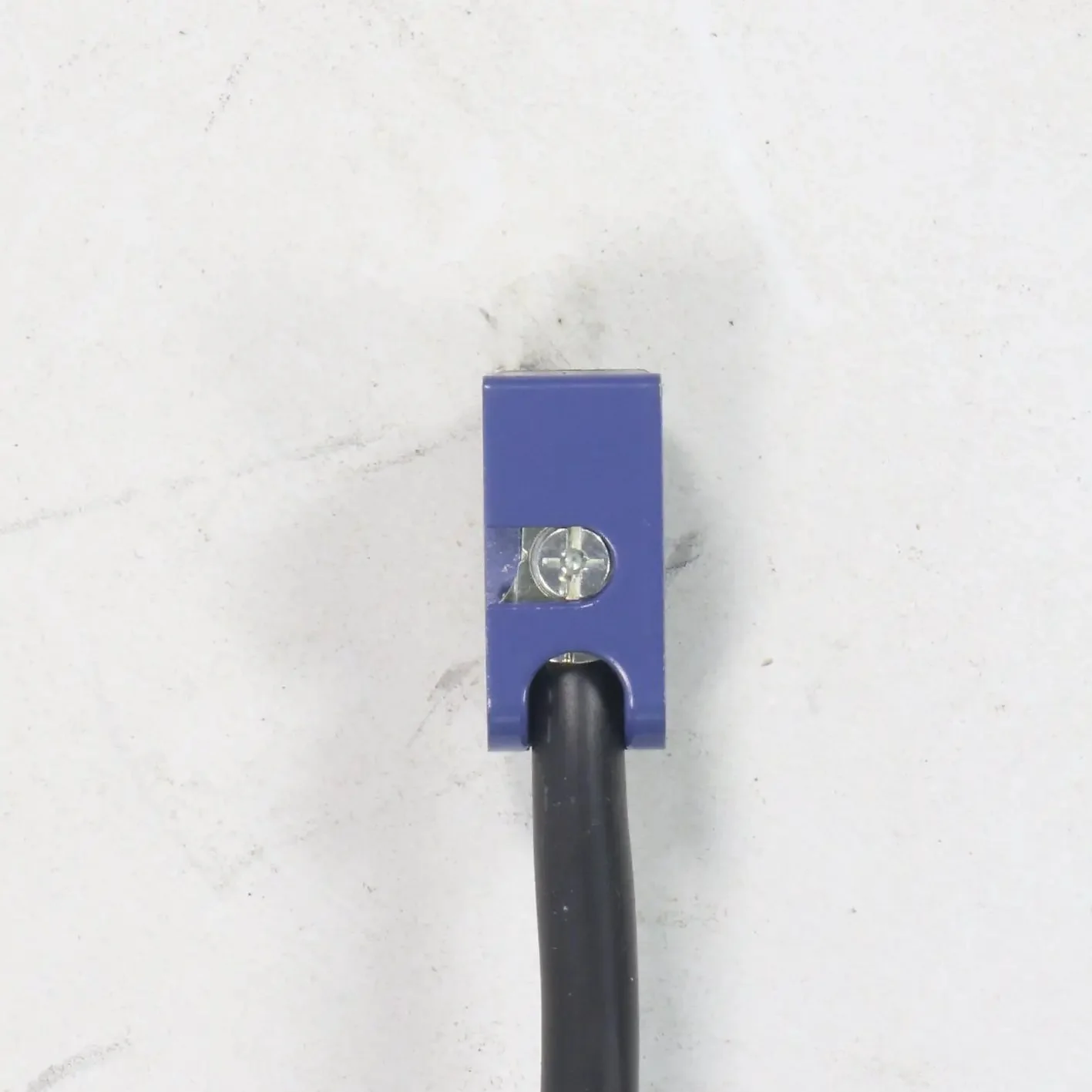

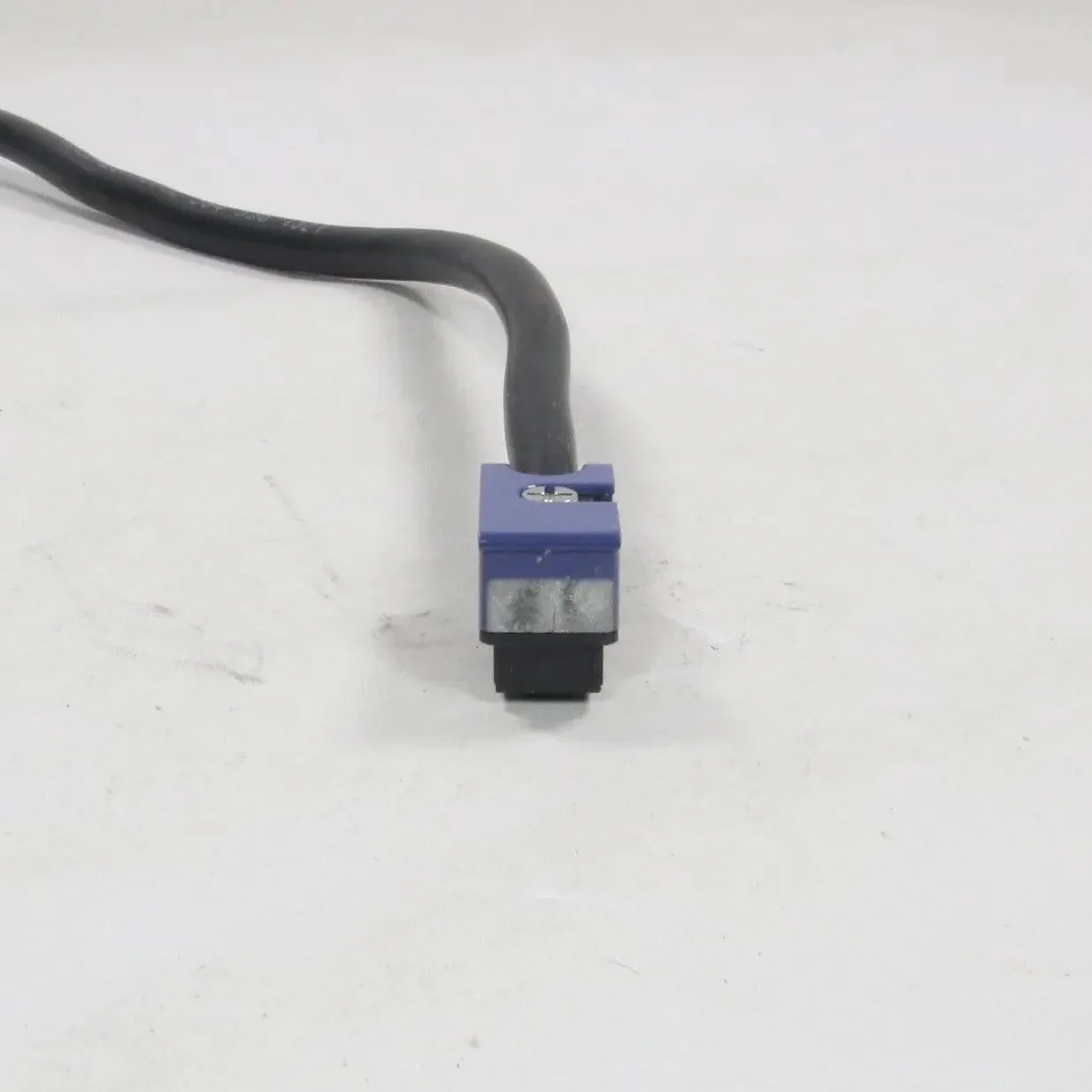

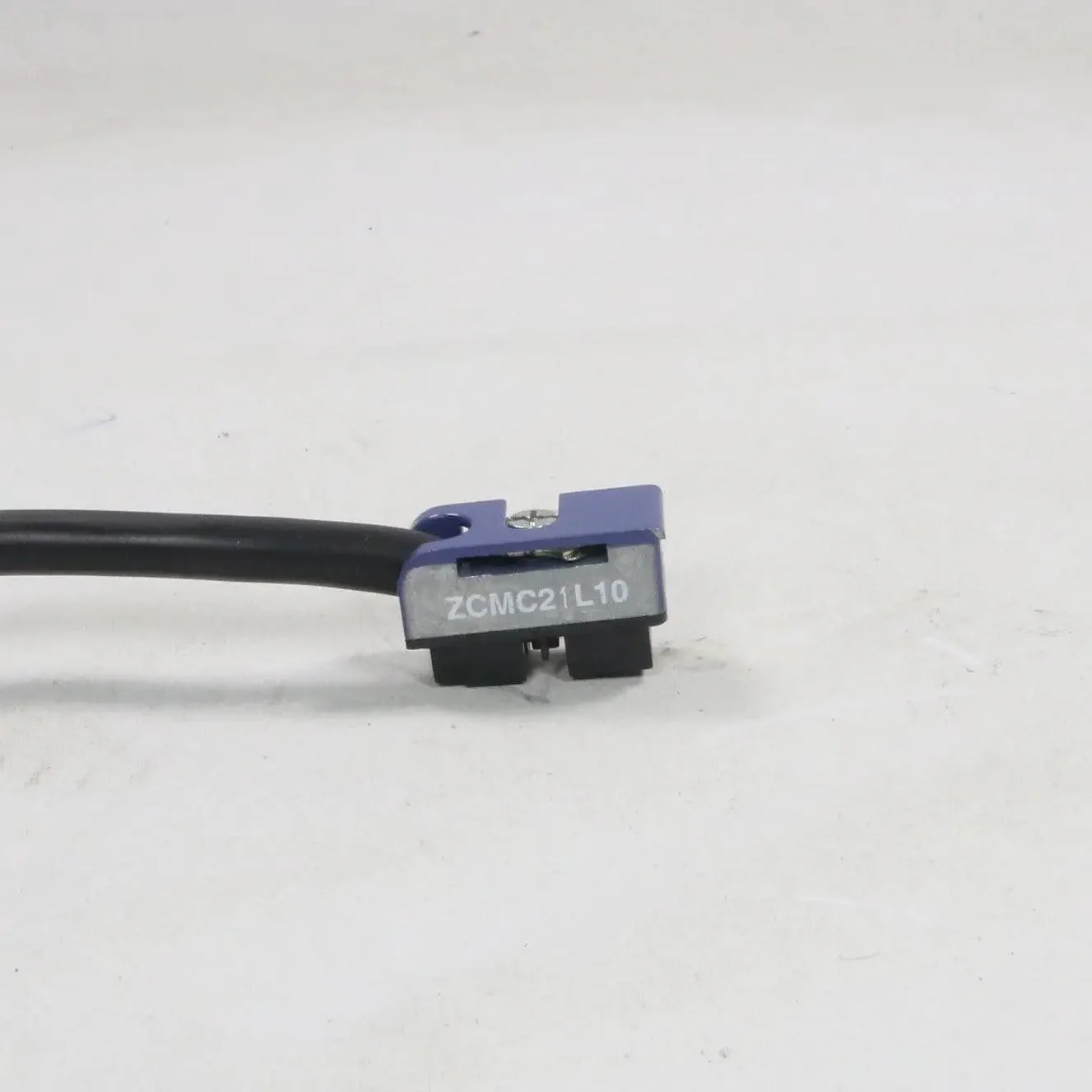

Telemecanique ZCMC21L10 Pre-cabled Limit Switch Body

- Brand: Telemecanique

- Model: ZCMC21L10

- Type: Pre-cabled Limit Switch Body / Connection Assembly

- Part number: ZCMC21L10

- Technical specifications:
- Contact configuration: 1 NO + 1 NC (snap action; positive opening)
- Cable: PvR (polyvinyl chloride rubber insulated; oil-resistant)

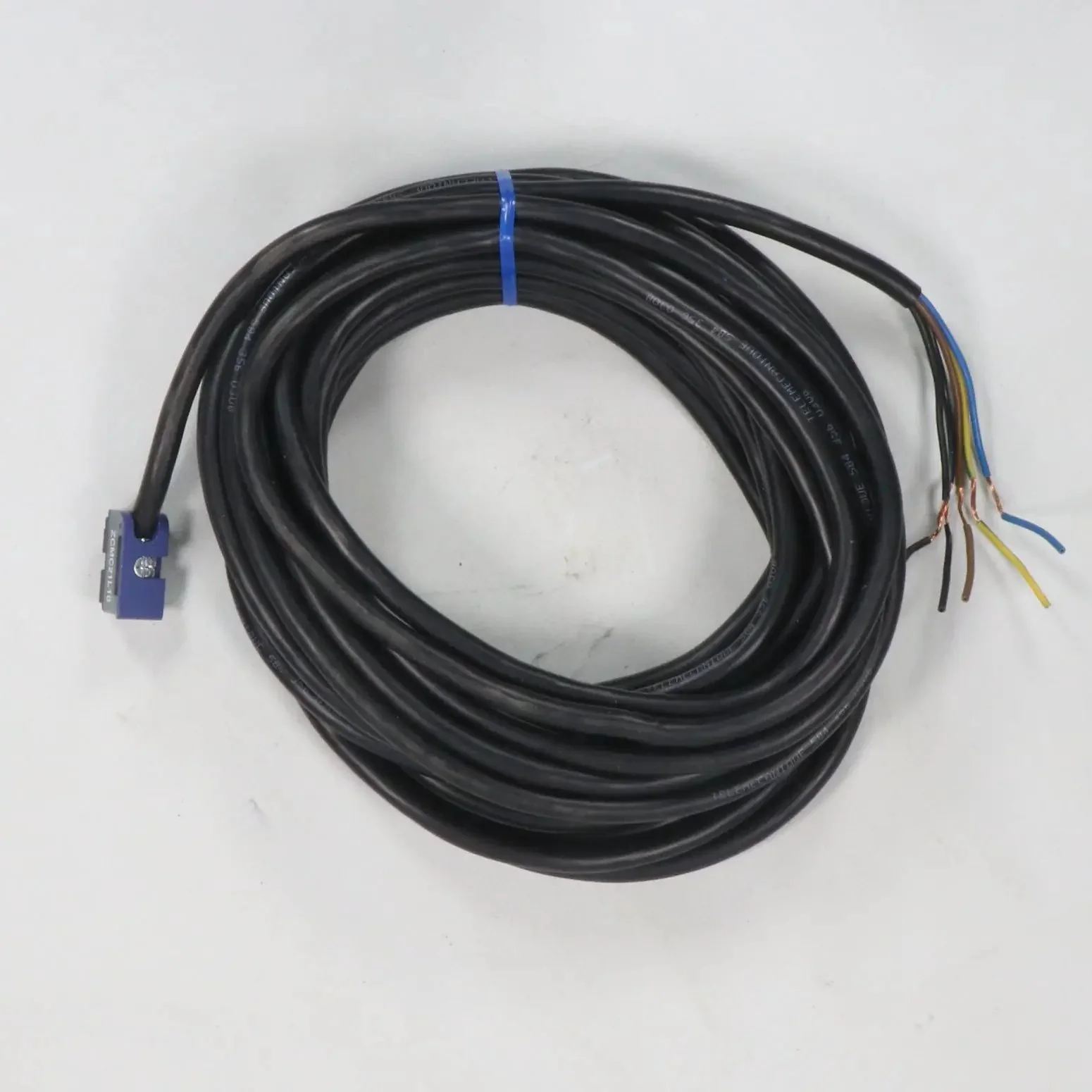

- Cable type: Pre-cabled (fixed 10 m cable with free ends; no connector)
- Compatible heads/actuators: XCMD21 series
- Degree of protection: IP66 / IP67 / IP68
- Operating temperature: -25°C to +70°C
- Mechanical durability: High
- Electrical durability: 1 million cycles
- Housing material: Metal
- Additional features: Snap-action contacts for fast switching; suitable for harsh industrial environments; modular XC Standard series
- Standards: IEC/EN 60947-5-1 compliant; CE, UL, CSA approvals

Weight: 900 g

Dimensions: 30 x 10 x 20 mm (10m cable)

Country of origin: France

HS code: 8536.50
