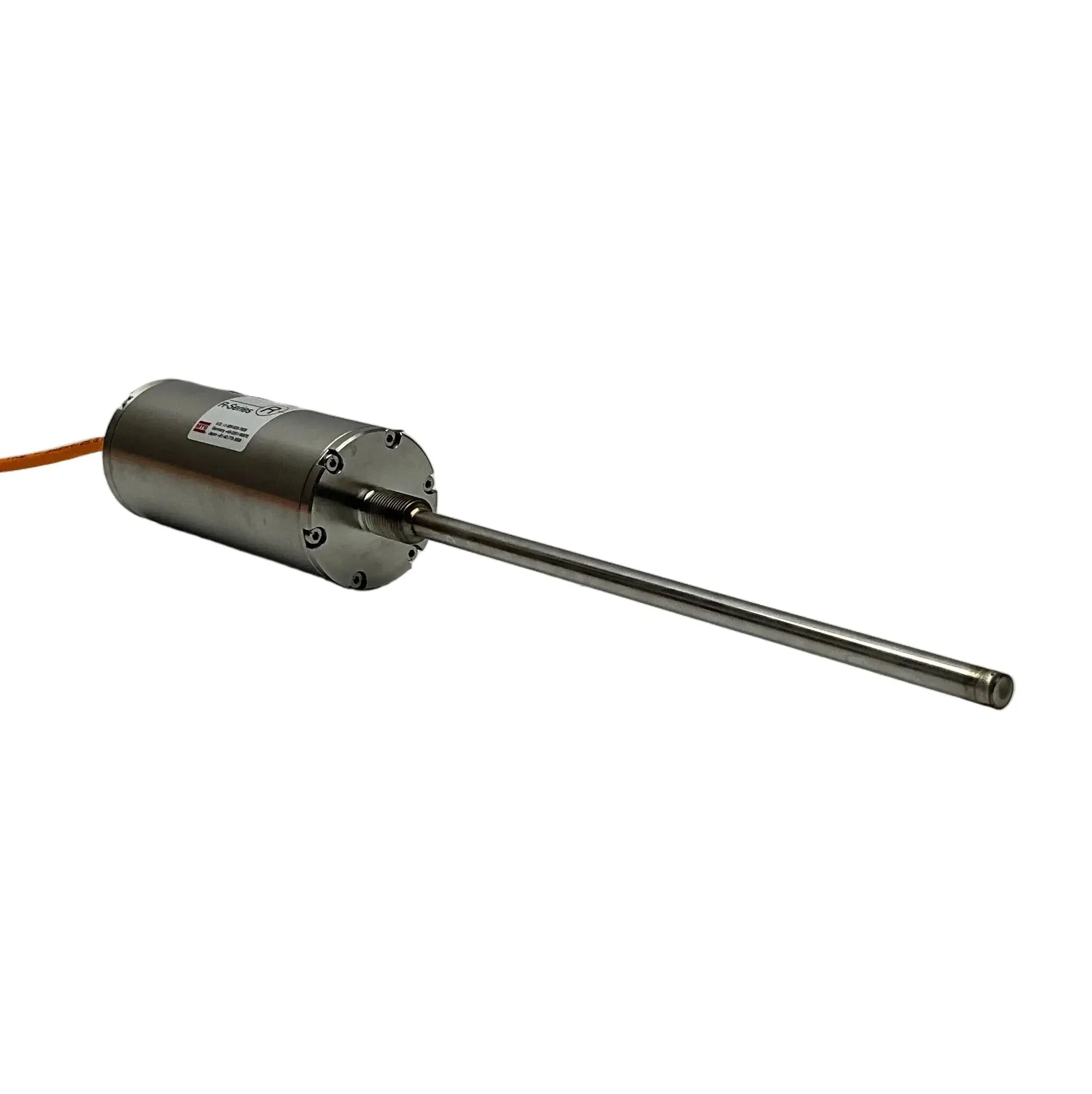

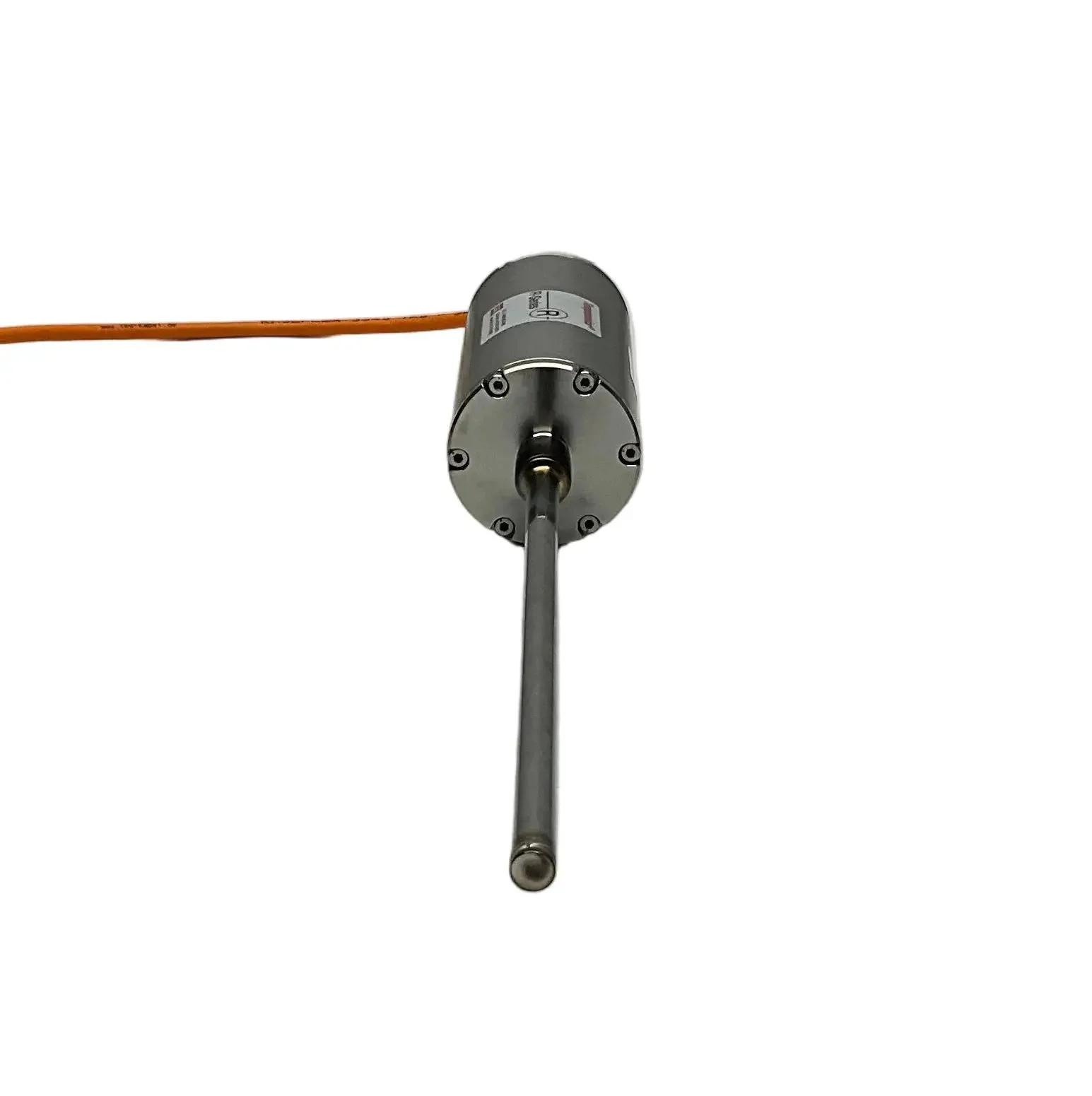

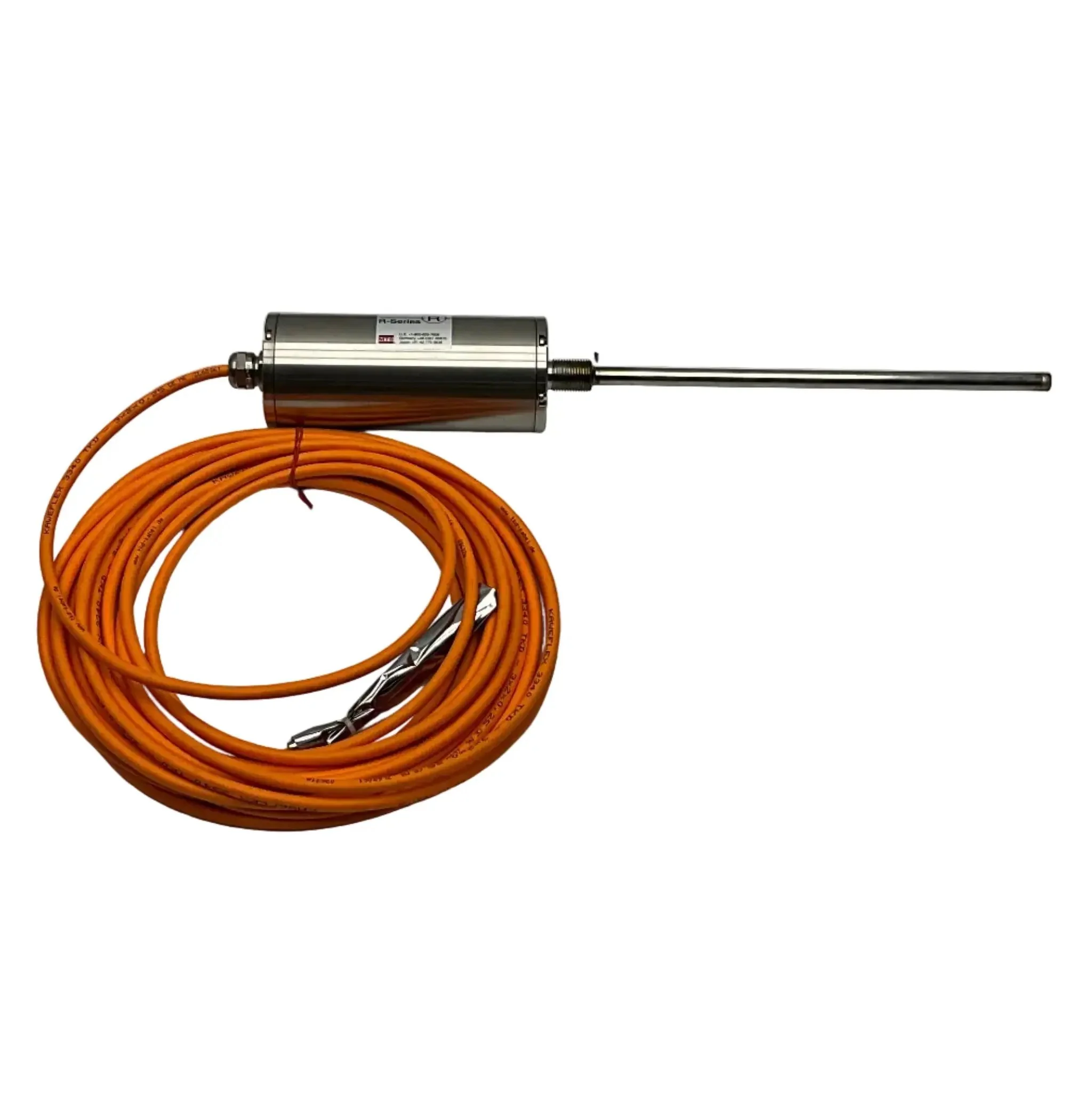

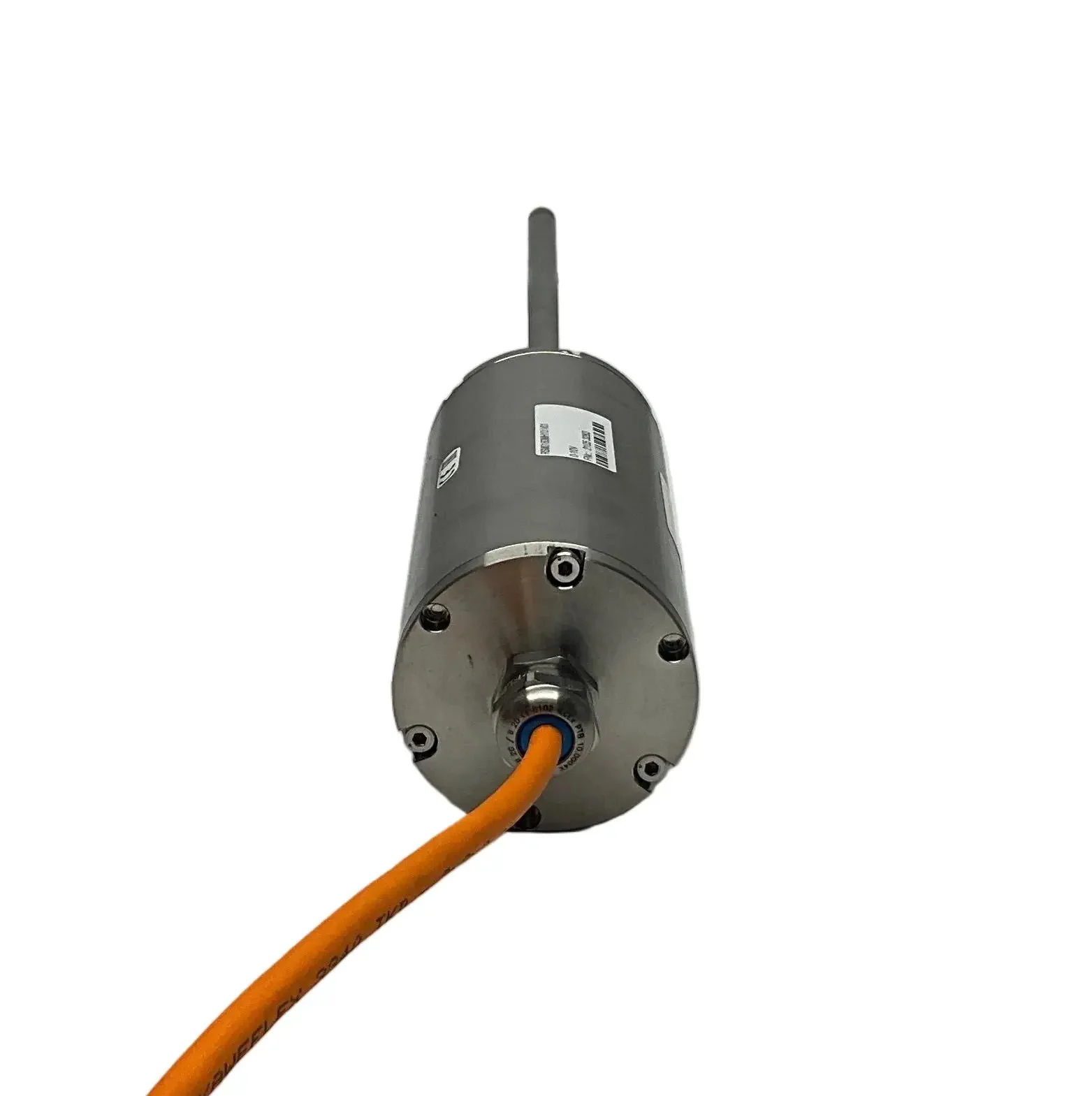

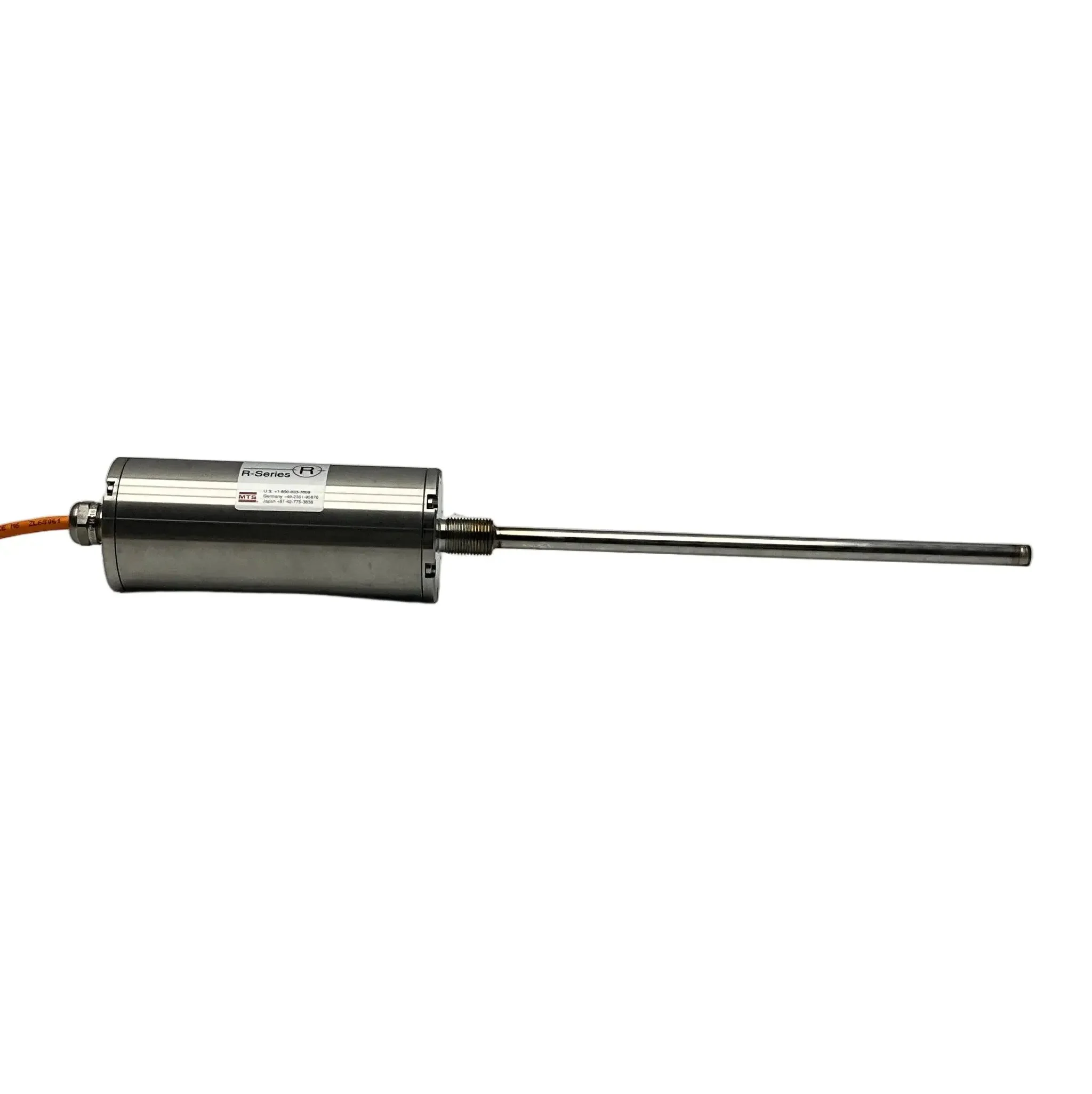

Temposonics R Series Linear Position/Level Sensor

- Brand: Temposonics (Amphenol Temposonics)
- Model: R Series (RSM)
- Type: Linear Position/Level Sensor

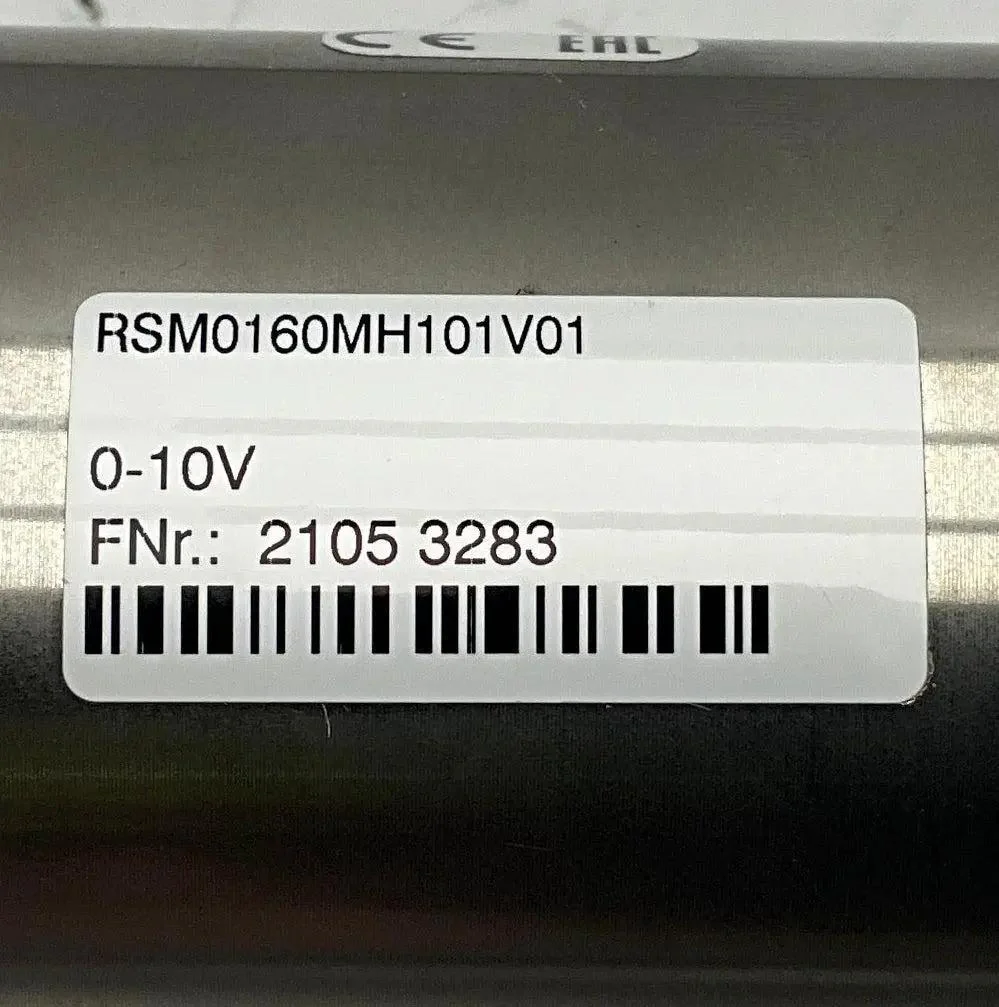

- Part Number: RSM0160MH101V01

Technical Specs:
- Output Signal: Analog 0–10 V DC
- Protection Class: IP67 / IP68
- Housing Material: Stainless steel (AISI 304 / 1.4301)
- Rod Material: Stainless steel (AISI 304)
- Probe Diameter: 10 mm
- Rod length: 275 mm (incl thread)
- Mounting: 1/2” thread
- Electrical Connection: Cable
- Additional Features:
  - High shock and vibration resistance
  - Low temperature drift
  - Easy installation and calibration
  - Reverse polarity protection
  - Short-circuit proof
  - EMC compliant (EN 61000-6-2/4)

Dimensions: 450 x 60 x 60 mm (excluding 5m cable)

Weight: 3.0 kg

Country of Origin: Germany

HS Code: 9026.10
