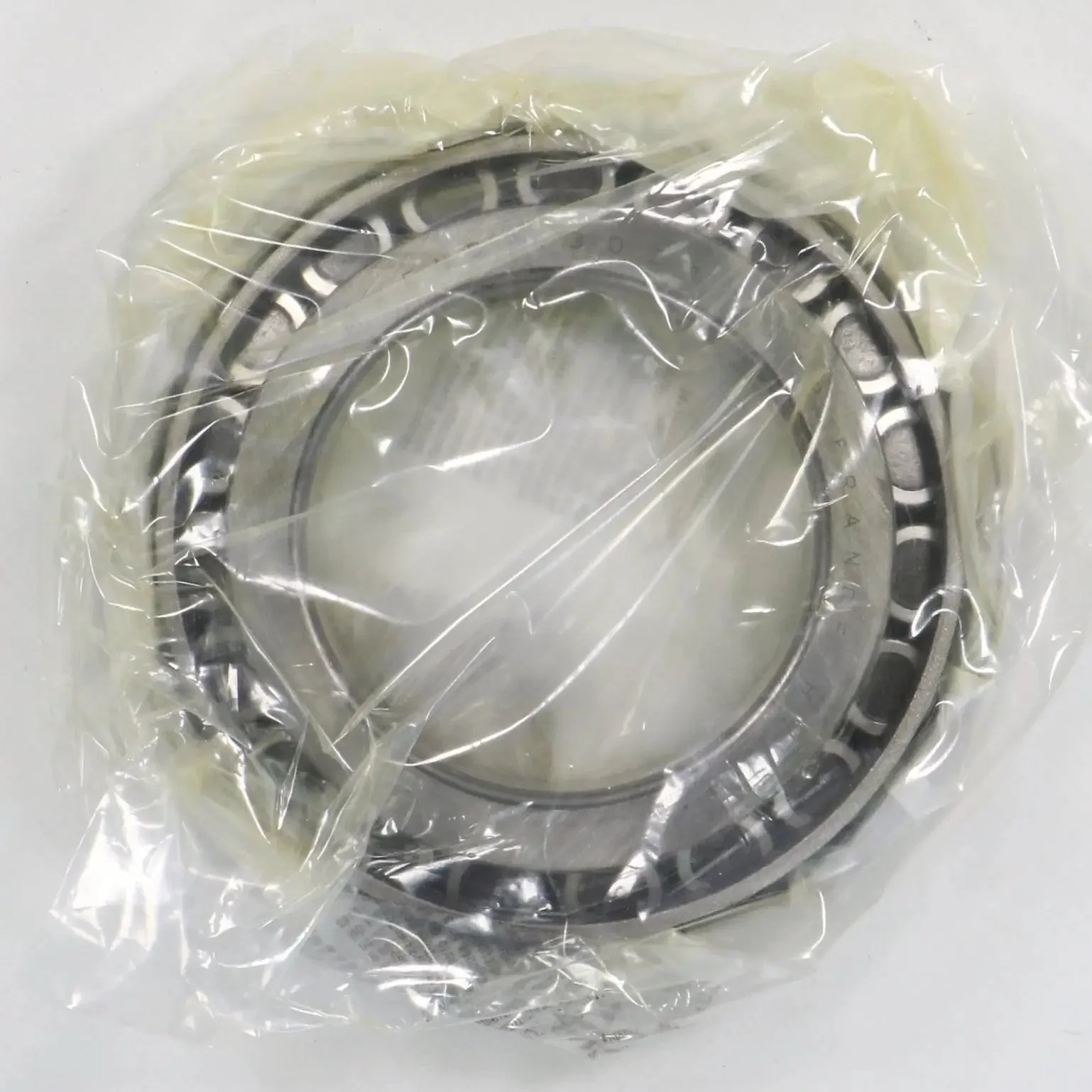

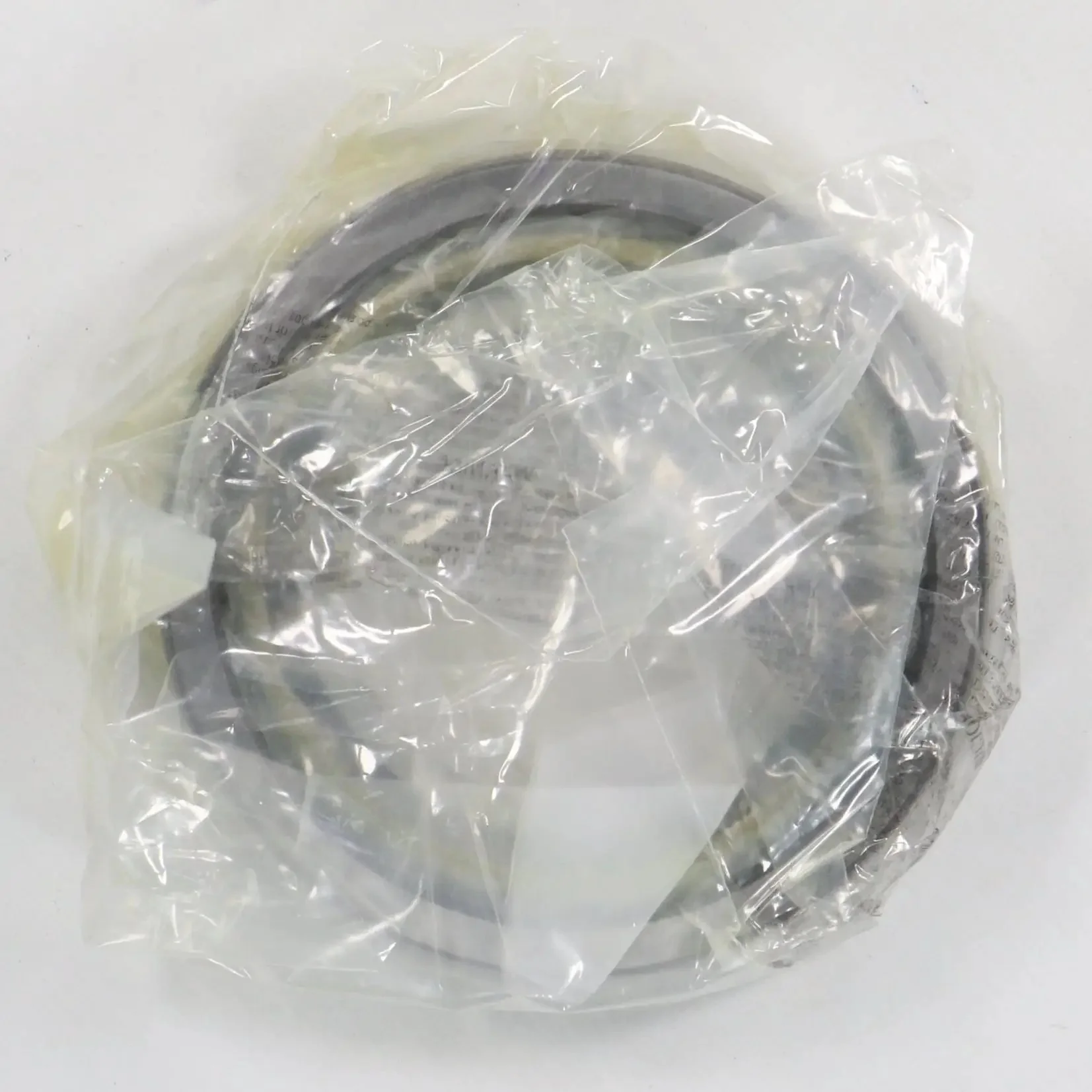

Timken Tapered Roller Bearings 30217 - 90KA2

- Brand: Timken

- Model: 30217 - 90KA2

- Type: Tapered Roller Bearing

- Part number: HA2211

- Technical specifications:
- Bore diameter (d): 85 mm
- Outer diameter (D): 150 mm
- Width (T): 30.5 mm
- Inner ring width (B): 28 mm
- Outer ring width (C): 25 mm
- Dynamic load rating (C): 198 kN
- Static load rating (C0): 248 kN
- Limiting speed: 3000 rpm (grease lubrication); 4000 rpm (oil lubrication) – approximate values for standard conditions
- Cage: Pressed steel cage
- Material: High-carbon chromium bearing steel (GCr15 / 52100); hardened and ground raceways/rollers
- Clearance: Normal (CN) clearance
- Tolerance class: P0 / ABEC 1
- Temperature range: -30°C to +120°C
- Lubrication: Grease or oil
- Additional features: Optimized roller/raceway geometry for reduced friction and heat; high load-carrying capacity; separable inner/outer rings for mounting; suitable for combined radial/axial loads in one direction; metric series for global compatibility
- Standards: Compliant with ISO 355; ABMA standards; Timken precision tolerances

Weight: 2.1 kg

Dimensions: Bore Ø 85 mm; Outer Ø 150 mm; Width 30.5 mm

Country of origin: France

HS code: 8482.20
