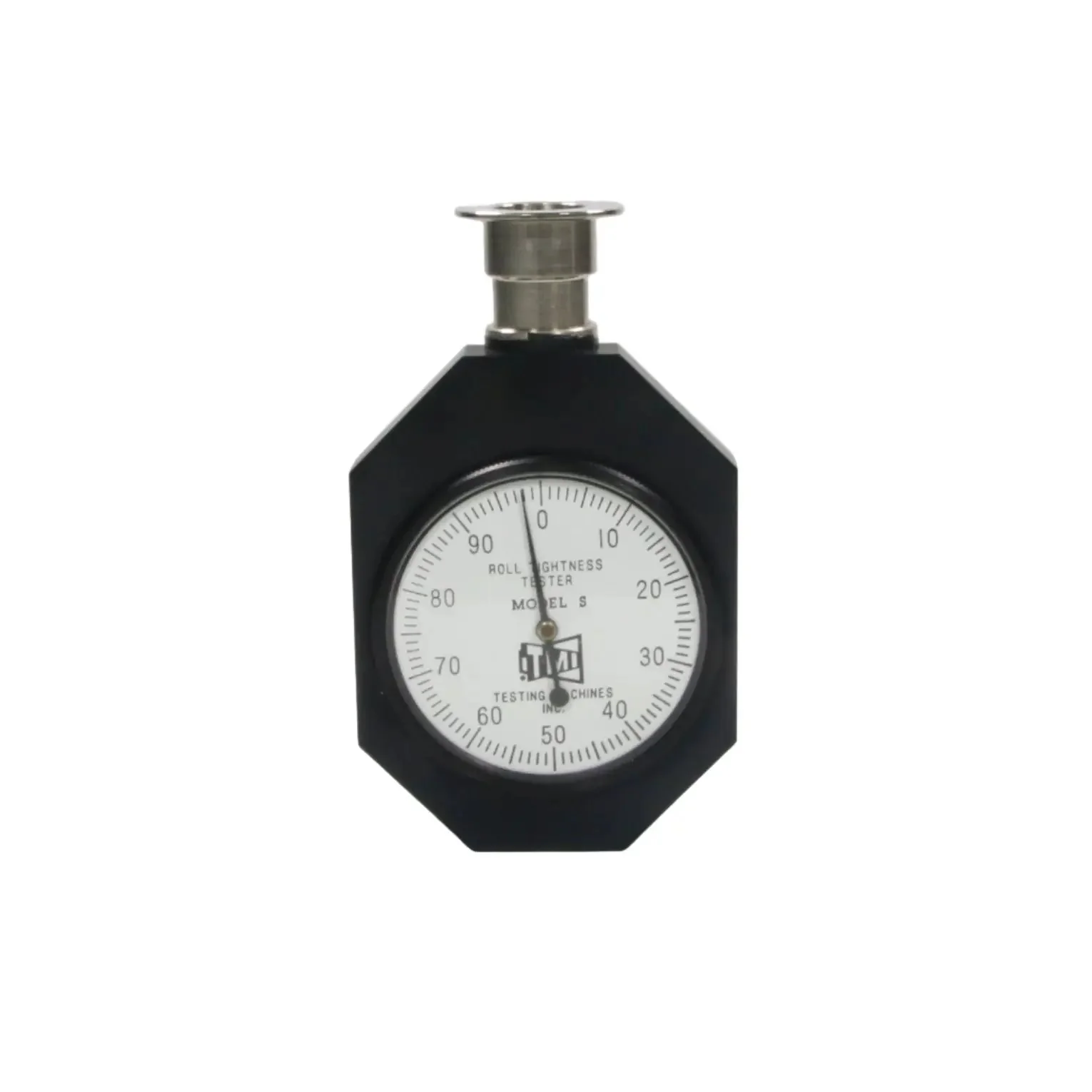

TMI 40-54-02 Roll Tightness Tester
- Brand: TMI (Testing Machines Inc.)
- Model: 40-54-02 (Model S)
- Type: Roll Tightness Tester (High Roll Hardness)
- Technical Specifications:
- Function: Measures roll hardness/profile of coated, bond, kraft, tag, less porous stock by controlled penetration of a measuring head into the roll surface
- Measurement Principle: Mechanical penetration depth under constant force (Smith method)
- Measuring Range: 0 – 100 TMI units
- Resolution: 1 TMI unit
- Penetration Depth: 0 – 12.7 mm
- Force: Fixed spring load (approx. 3.8 N)
- Roll Diameter Capacity: 100 – 1200 mm
- Display: Analog dial gauge (direct reading in TMI scale)
- Power Supply: None required
- Operating Temperature: 0°C to 50°C
- Standards: Compliant with TAPPI T834, ISO 12625-12, and industry roll hardness testing
- Features: Portable, lightweight, instant reading, no batteries, rugged aluminum housing
- Dimensions: 210 x 170 x 90 mm
- Weight: 1.2 kg
- Country of Origin: USA
- HS Code: 902480
Original: $1,094.29
-70%$1,094.29
$328.29
Description
- Brand: TMI (Testing Machines Inc.)
- Model: 40-54-02 (Model S)
- Type: Roll Tightness Tester (High Roll Hardness)
- Technical Specifications:
- Function: Measures roll hardness/profile of coated, bond, kraft, tag, less porous stock by controlled penetration of a measuring head into the roll surface
- Measurement Principle: Mechanical penetration depth under constant force (Smith method)
- Measuring Range: 0 – 100 TMI units
- Resolution: 1 TMI unit
- Penetration Depth: 0 – 12.7 mm
- Force: Fixed spring load (approx. 3.8 N)
- Roll Diameter Capacity: 100 – 1200 mm
- Display: Analog dial gauge (direct reading in TMI scale)
- Power Supply: None required
- Operating Temperature: 0°C to 50°C
- Standards: Compliant with TAPPI T834, ISO 12625-12, and industry roll hardness testing
- Features: Portable, lightweight, instant reading, no batteries, rugged aluminum housing
- Dimensions: 210 x 170 x 90 mm
- Weight: 1.2 kg
- Country of Origin: USA
- HS Code: 902480
