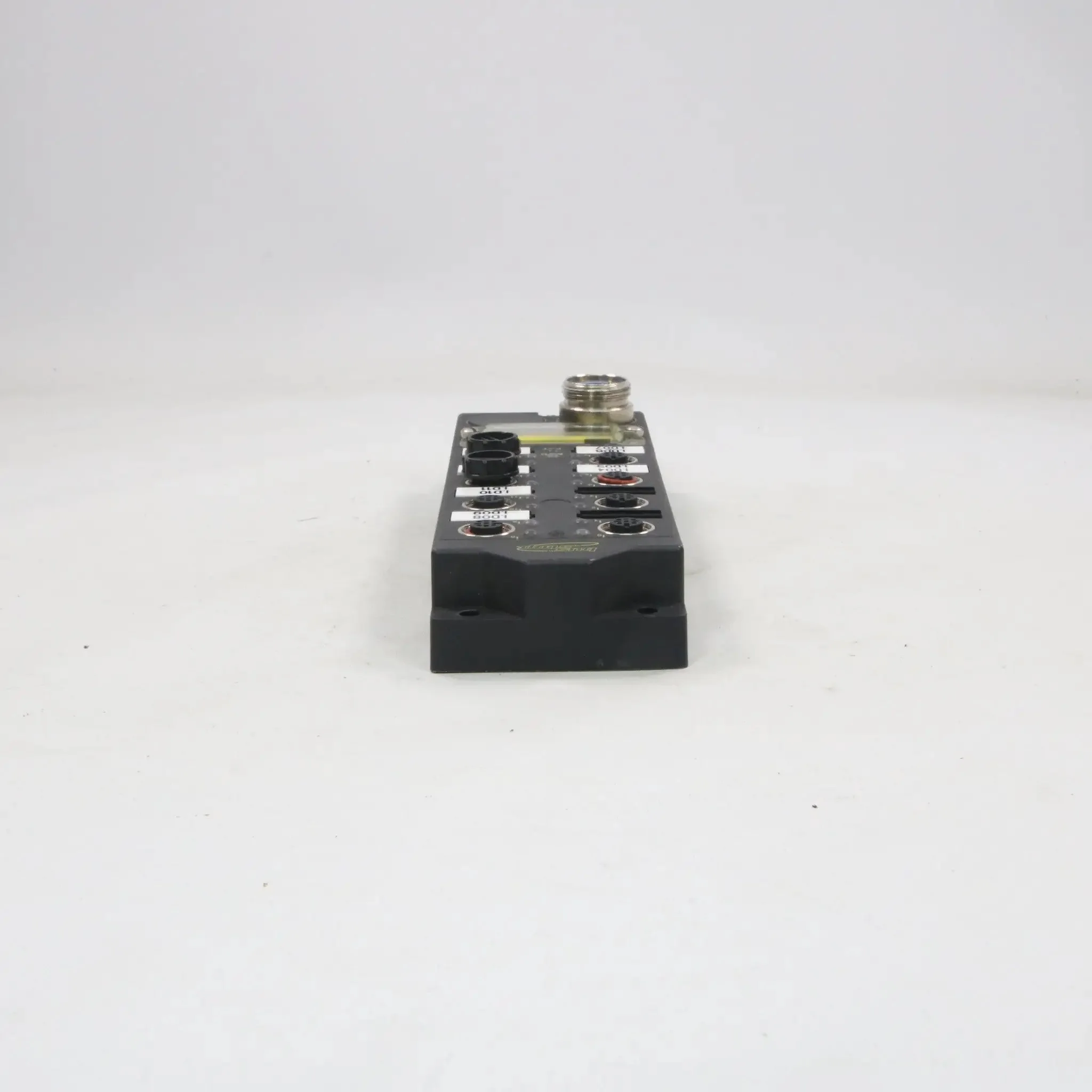

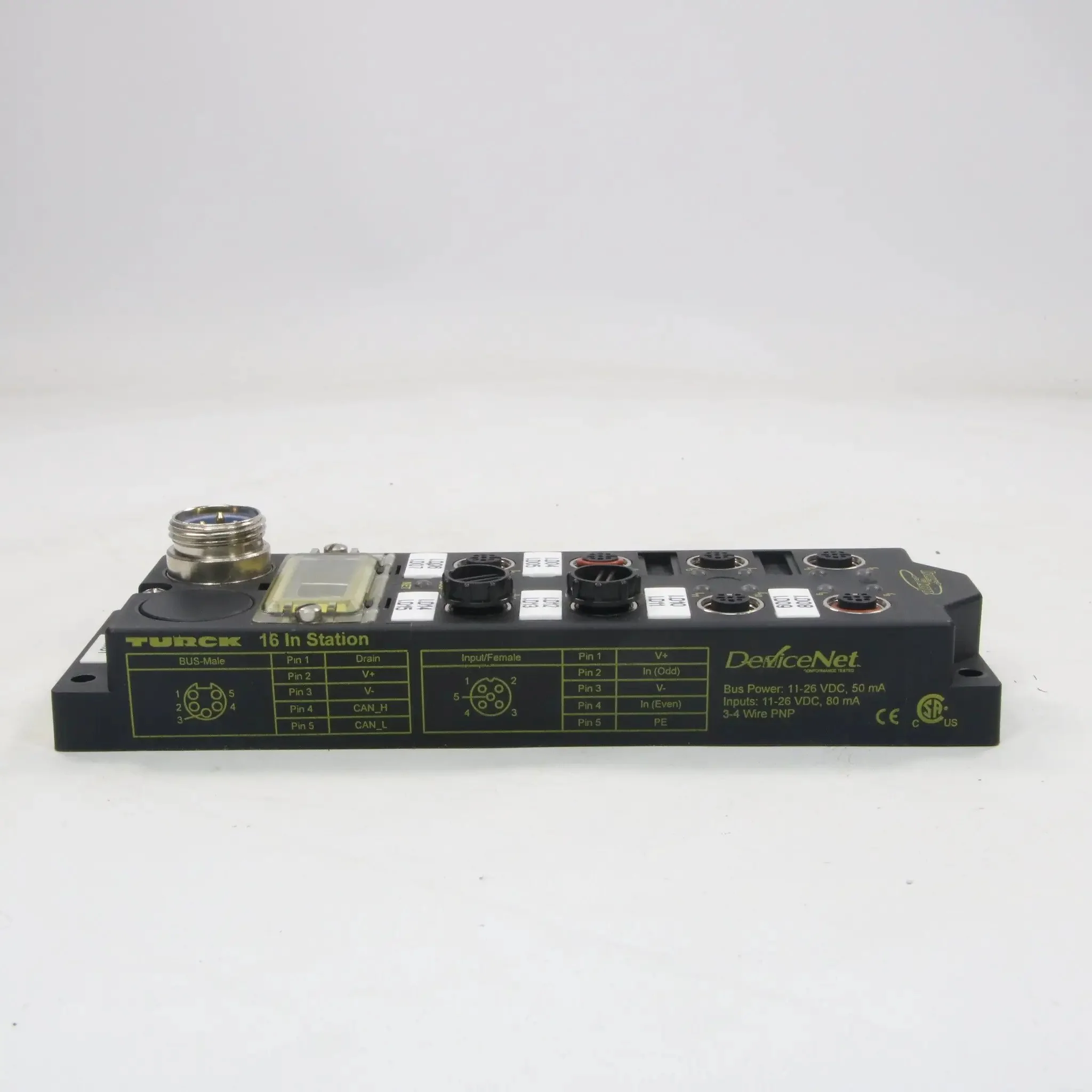

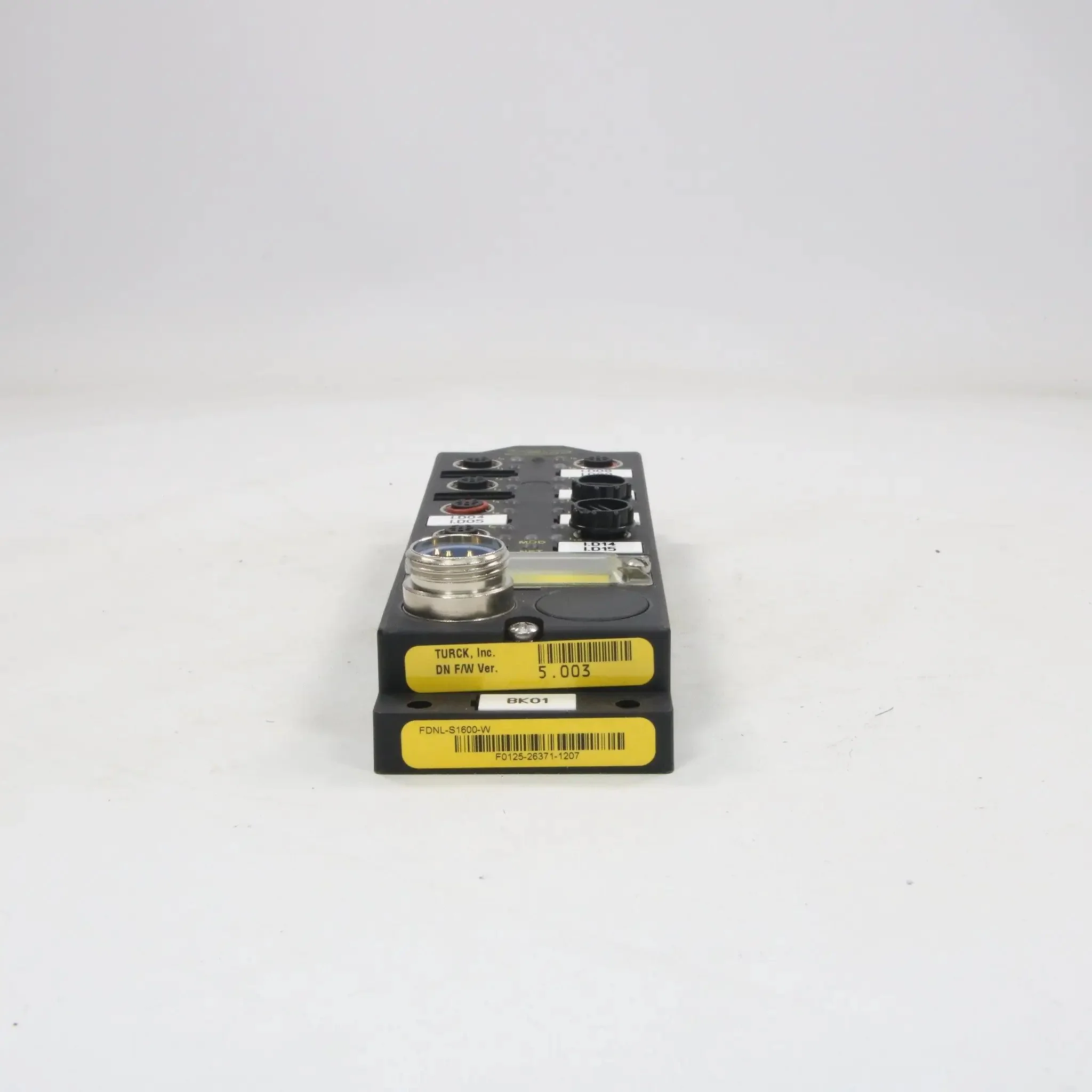

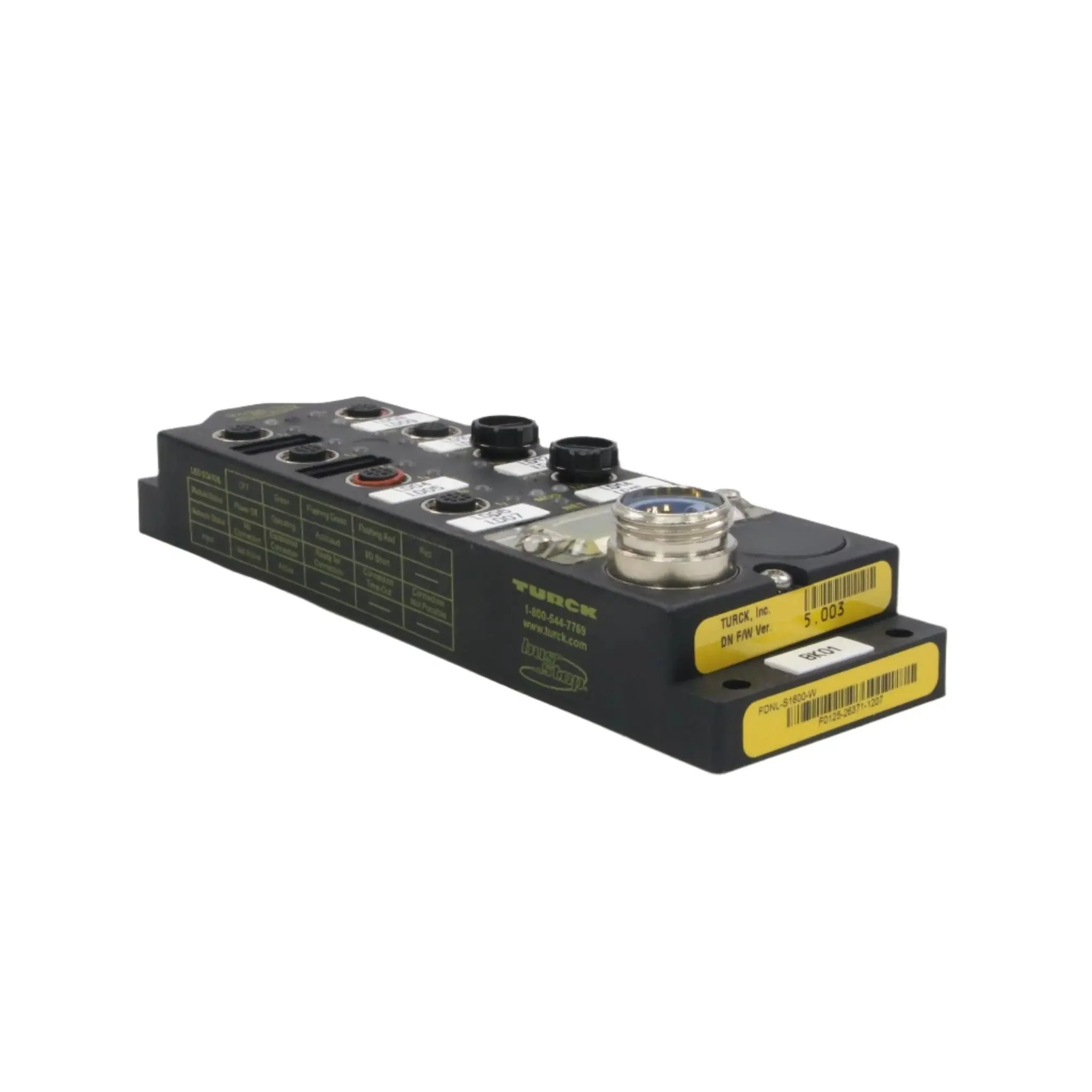

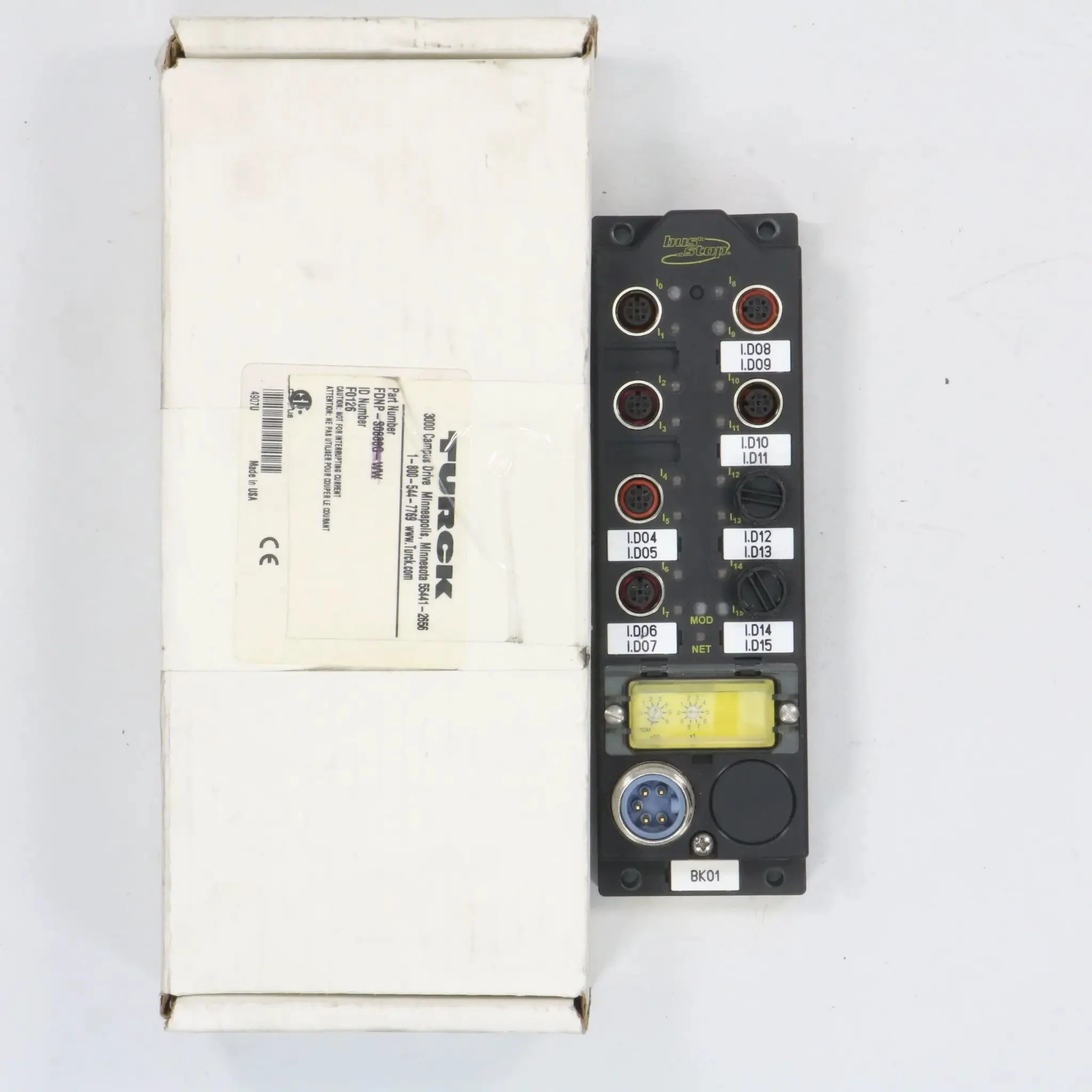

Turck FDNL-S1600-W I/O Module

Turck FDNL-S1600-W I/O Module Specifications

• Product Type: Digital Block Remote Input Module
• Brand: Turck
• Series: FDN Series
• Model Number: F0125
• Part Number: FDNL-S1600-W
• Equivalent Part Numbers: F0125, FDNLS1600W
• Main Function: Remote I/O Controller
• Design: For DeviceNet Fieldbus
• Inputs: 16 Digital PNP Inputs
  • 120mA per port
  • Group short-circuit detection
  • Earth ground on pin 5
• I/O Capacity: 16 I/O (16 Digital Inputs)
• Connection Type:

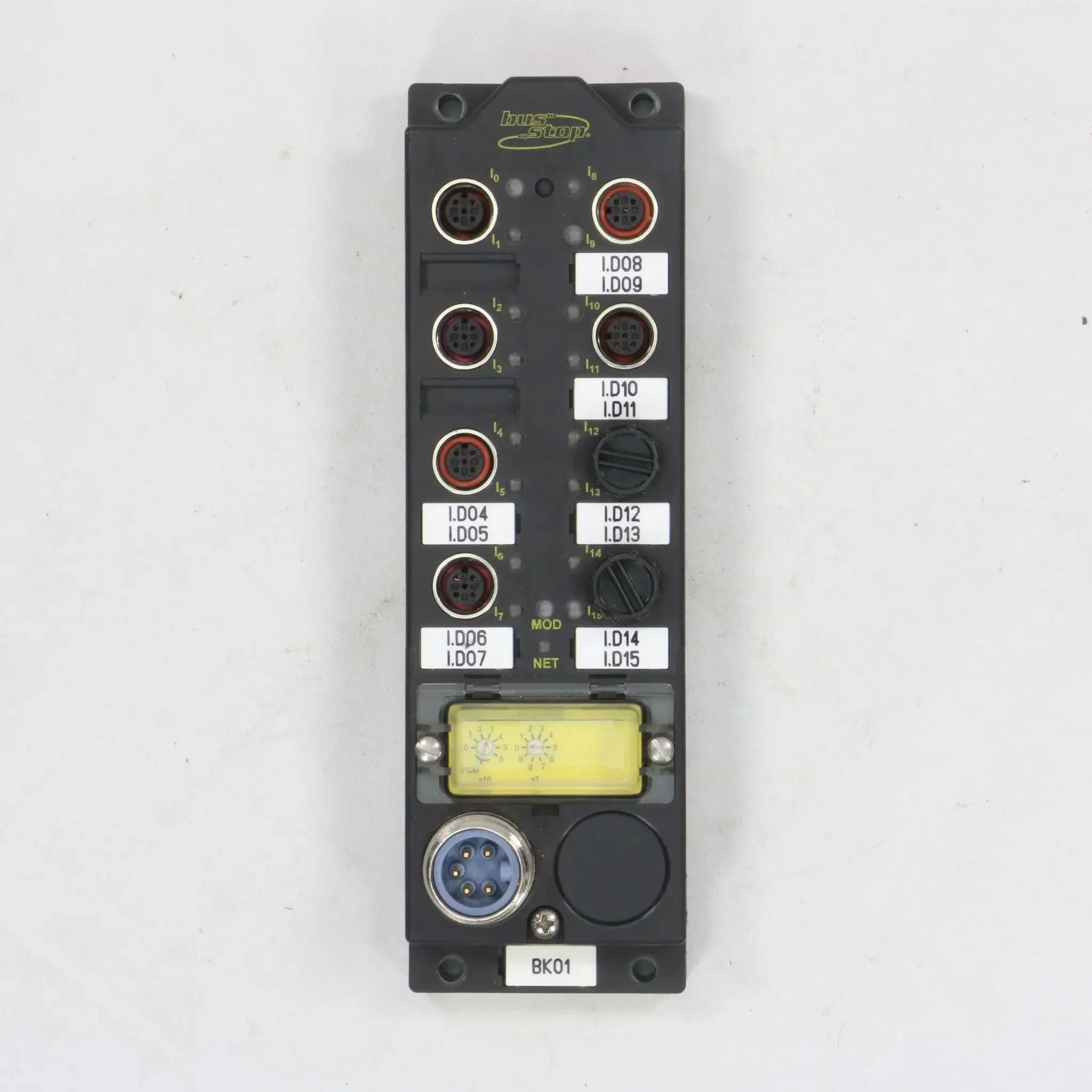

  • 8 x 5-pin M12 female connectors (I/O ports)
  • 2 x 5-pin 7/8" (male + female) rotated keyway connectors (Fieldbus)
• Connection Capacity: 8 ports
• Supply Voltage: 11-26Vdc (12Vdc / 24Vdc nominal)
• Communication Protocol: DeviceNet
• Communication Speed: 125kbps, 250kbps, 500kbps (Automatic Communication Rate Detection)
• Protection Functions:
  • Short-circuit protection
  • Earth ground
• Housing Material: Fiberglass reinforced nylon
• Connector Material: Nickel-plated brass
• Mounting Mode: Surface mounting
• Protection Rating: IP67
• Ambient Temperature Range: -40°C to +70°C
• Dimensions:
  • Height: 197 mm
  • Width: 60 mm
  • Depth: 40.3 mm
• Features:
  • Short-circuit monitoring
  • Module-related diagnostics
  • Two channels per connector
  • Vibration and shock-resistant
  • Encapsulated module electronics

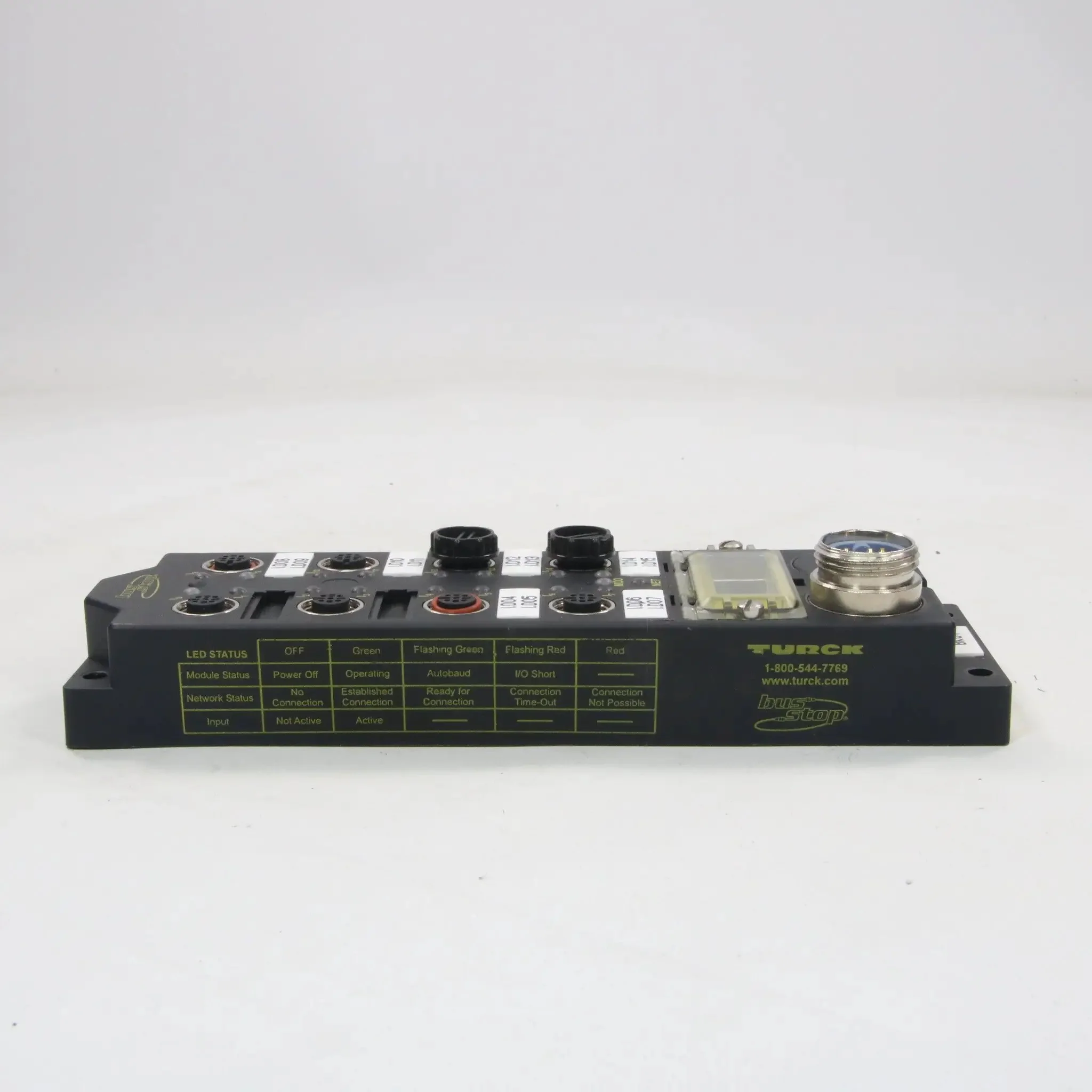

  • LED indicator
• Applications: Suitable for on-machine, field installation, and hazardous areas
• Compliance: CE, UL, CSA, FM
• Location of Origin: United States
• Benefits: Panel or machine-mounted expandable I/O for placing control at the point of use; supports a wide range of industrial communication protocols
