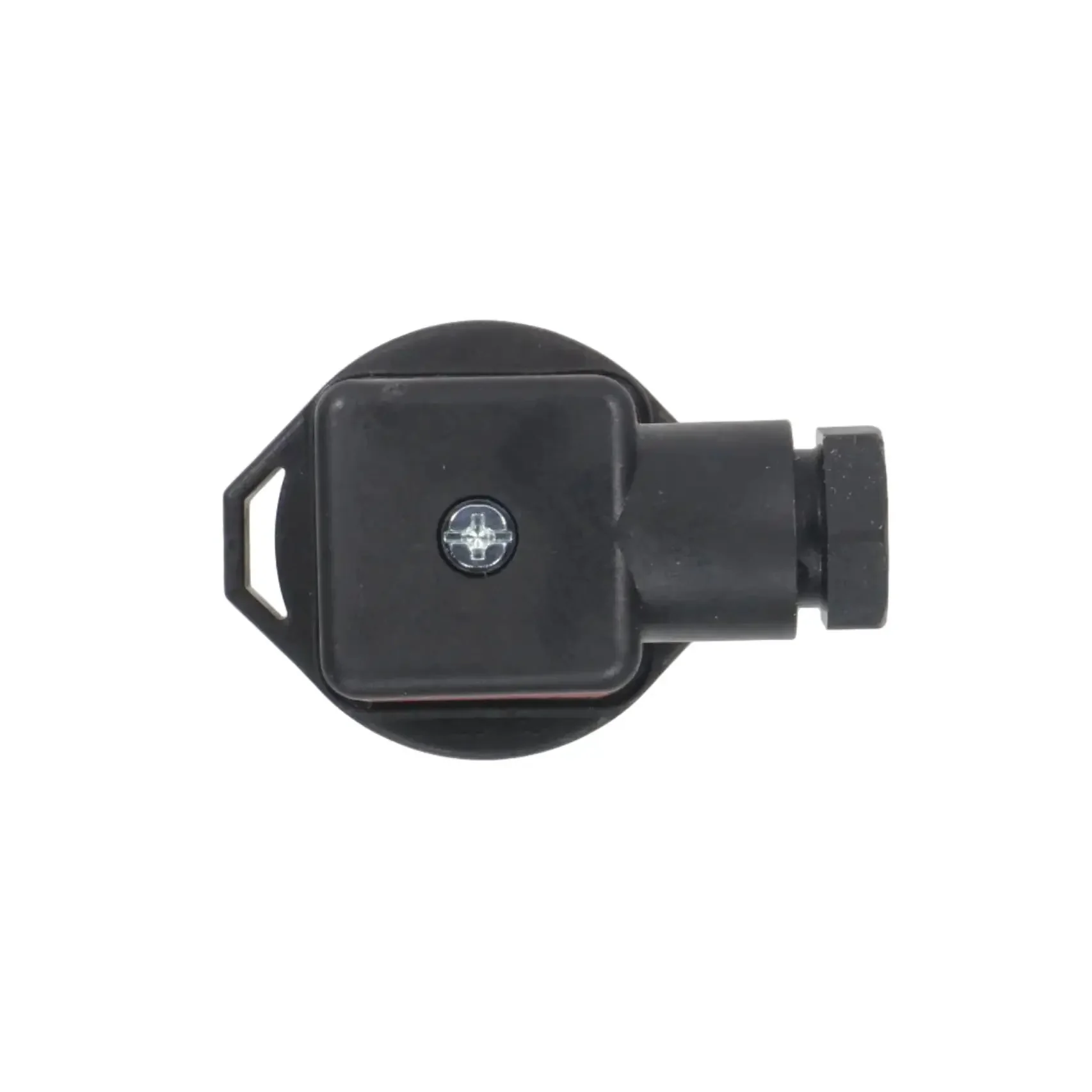

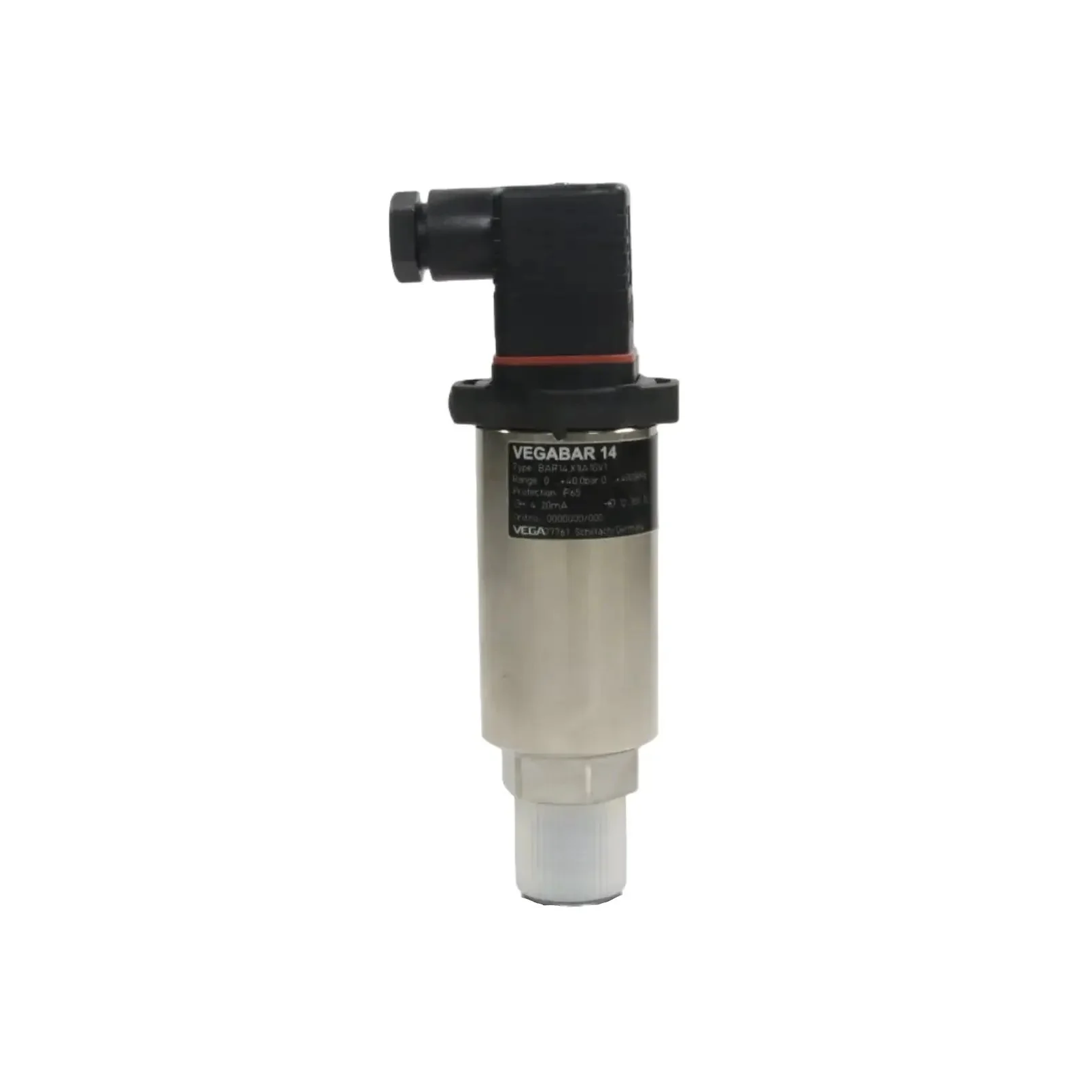

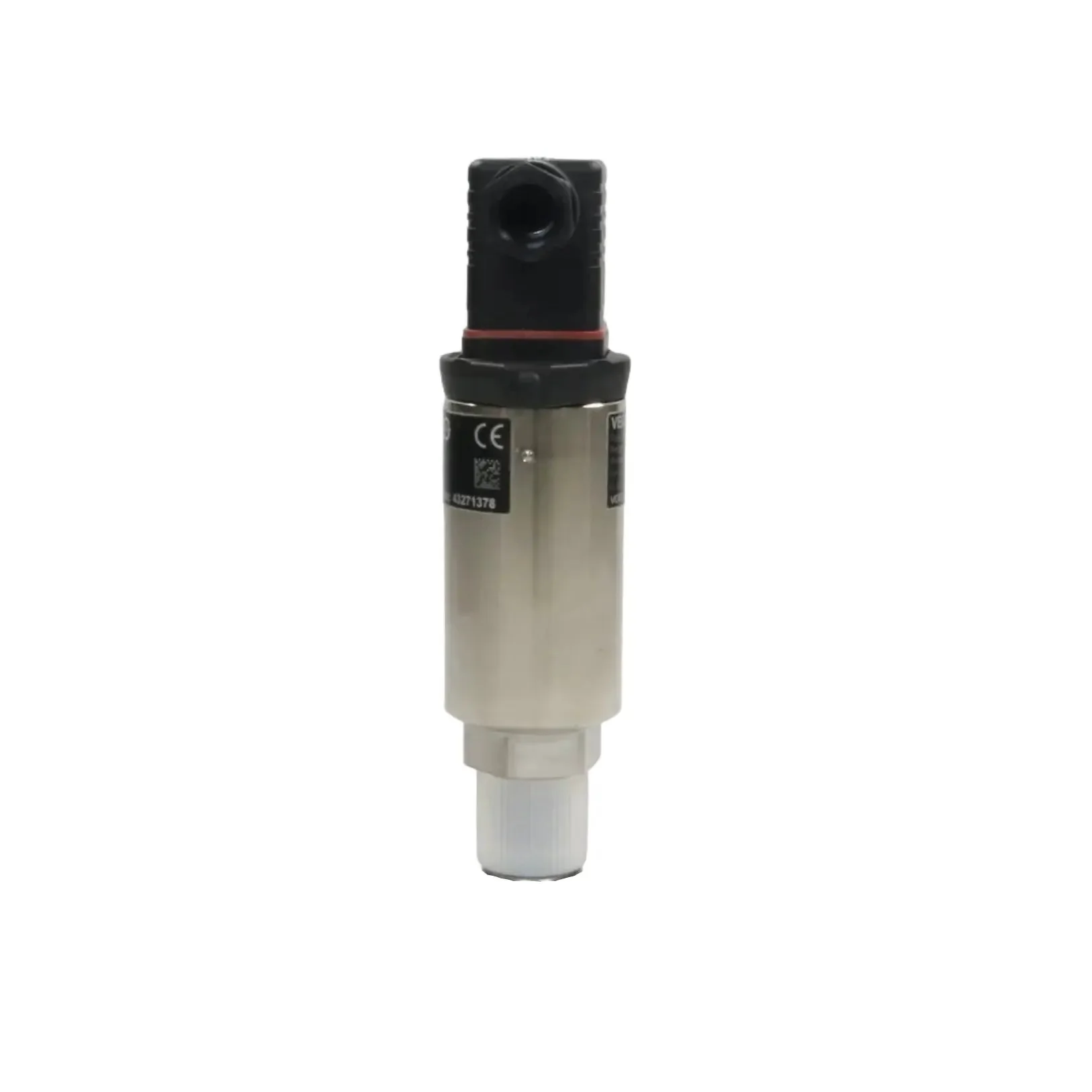

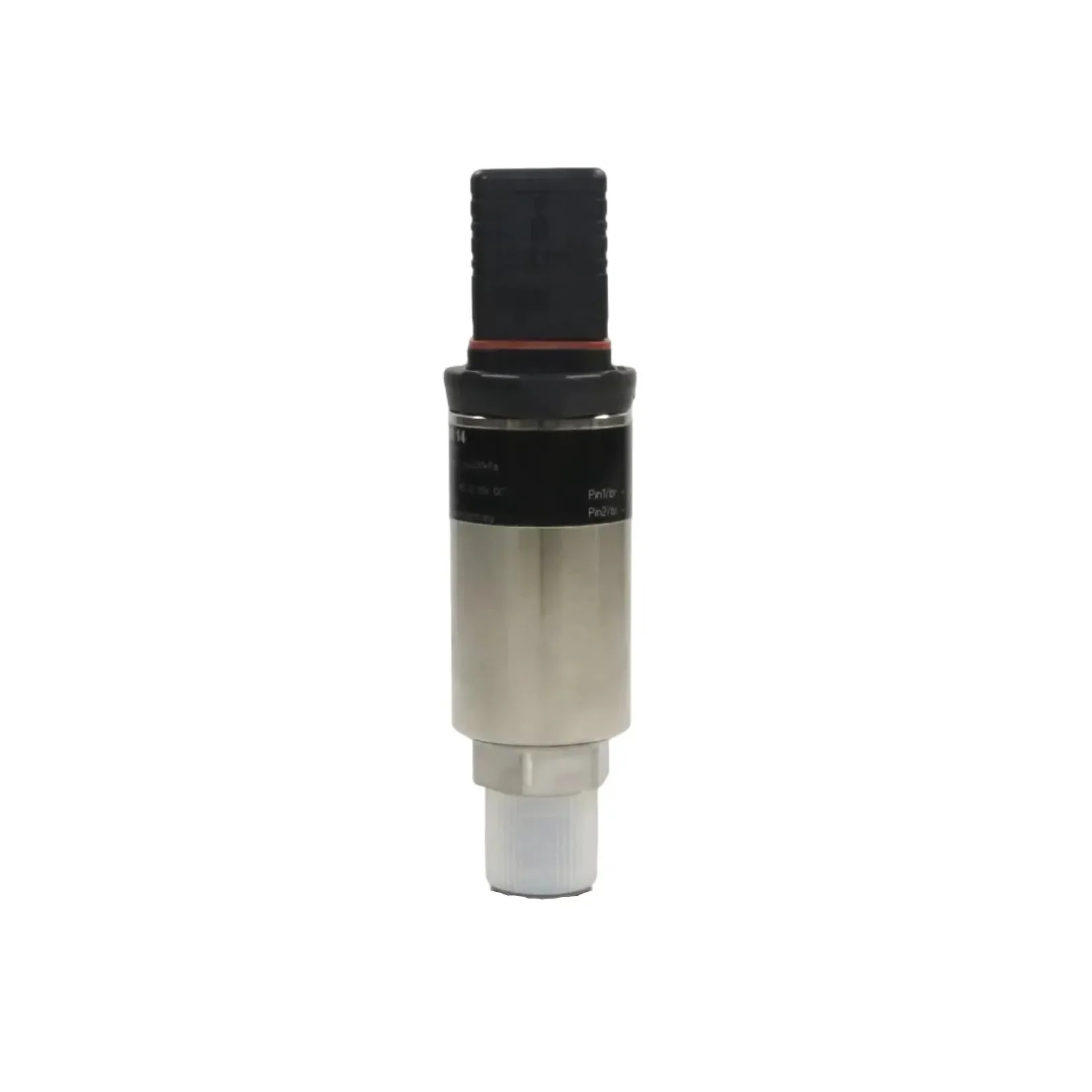

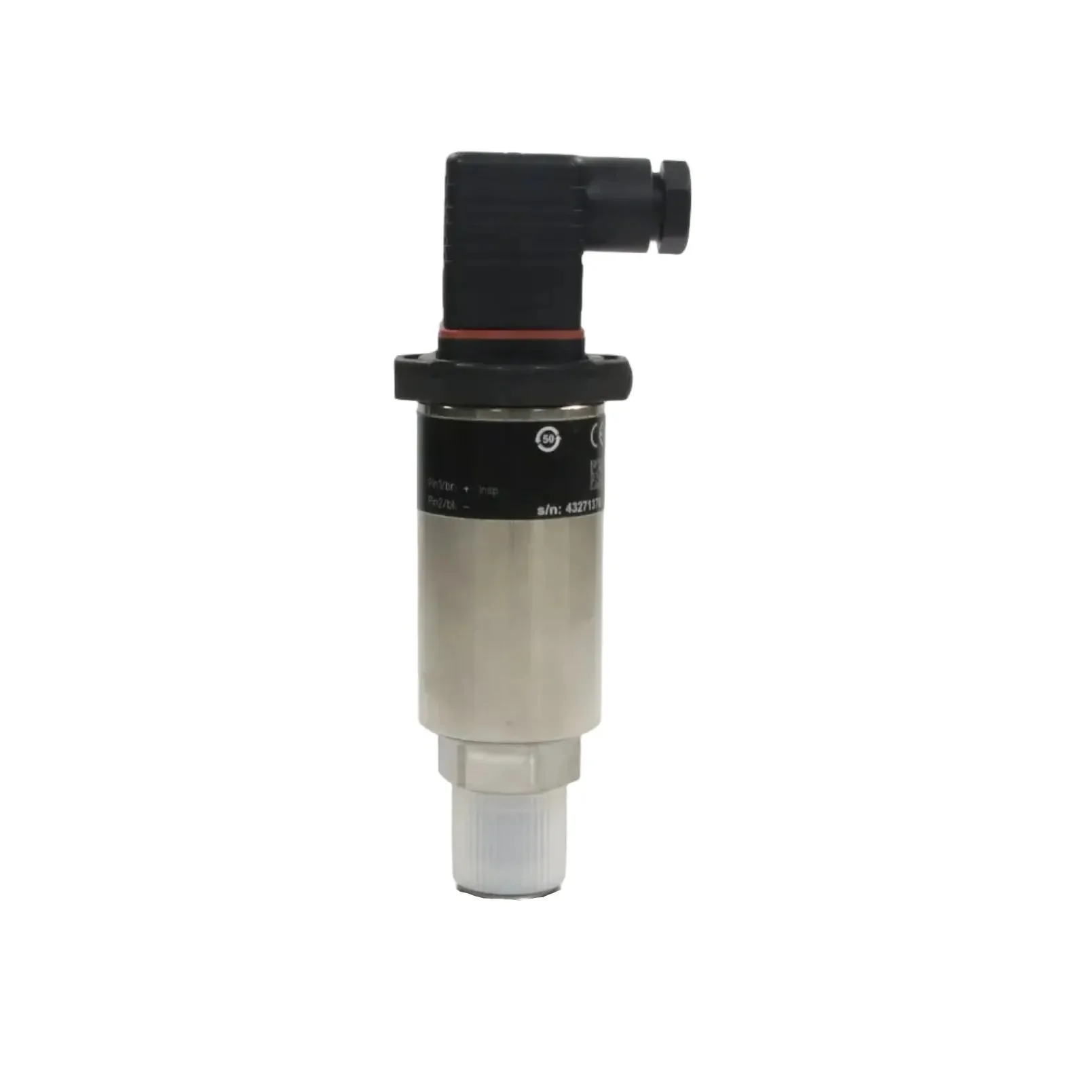

Vega Vegabar 14 Process Pressure Transmitter - BAR14.X1A1GV1

- Brand: VEGA

- Model: VEGABAR 14

- Code: BAR14.X1A1GV1

- Type: Process Pressure Transmitter

All tech specs:
- Measuring principle: Ceramic-capacitive dry measuring cell (CERTEC®)
- Measuring range: 0...+40 bar
- Process temperature: -15 ... +130 °C
- Accuracy: ≤ ±0.3 % of span
- Output signal: 4 ... 20 mA
- Power supply: 12 ... 30 V DC
- Overpressure resistance: High overload capability due to robust ceramic cell
- Process connection: Threaded G½ manometer thread / ISO 228-1
- Electrical connection: 12 B GDM Plug connector
- Sealing: Single sealing concept
- Protection rating: IP65
- Housing: Stainless steel
- Features: Extremely compact design for space-saving installation, high operational reliability, wear-free ceramic cell, no moving parts, suitable for any mounting position, basic self-diagnostics, low temperature influence, easy electrical connection
- Approvals: Standard industrial;
- Part of VEGABAR 14 series: Entry-level, cost-effective pressure transmitter for basic process, HVAC and utility applications

- Discontinued

Dimensions: 170 x 110 x 80 mm

Weight: 560 g

Country of origin: Germany

HS code: 902620
