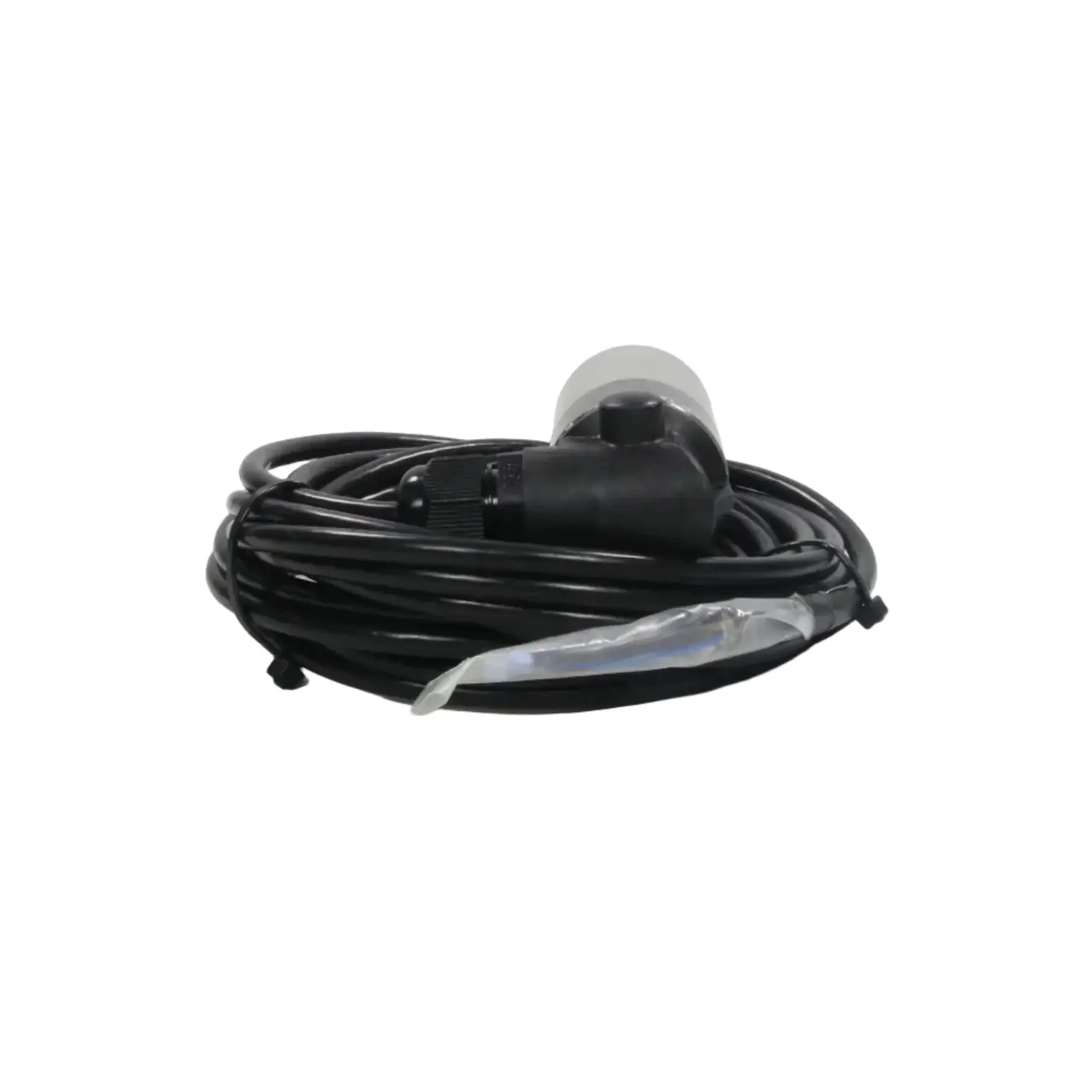

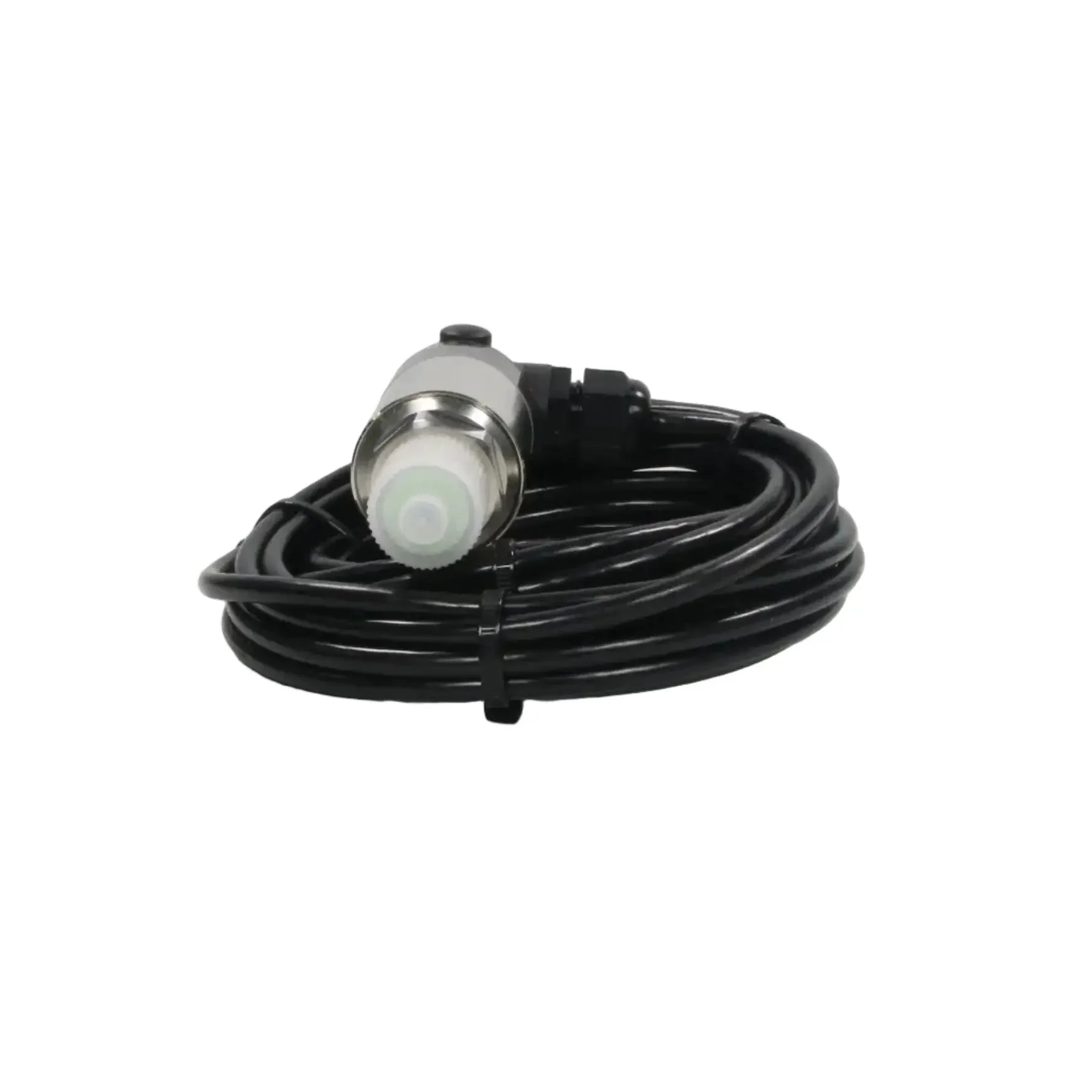

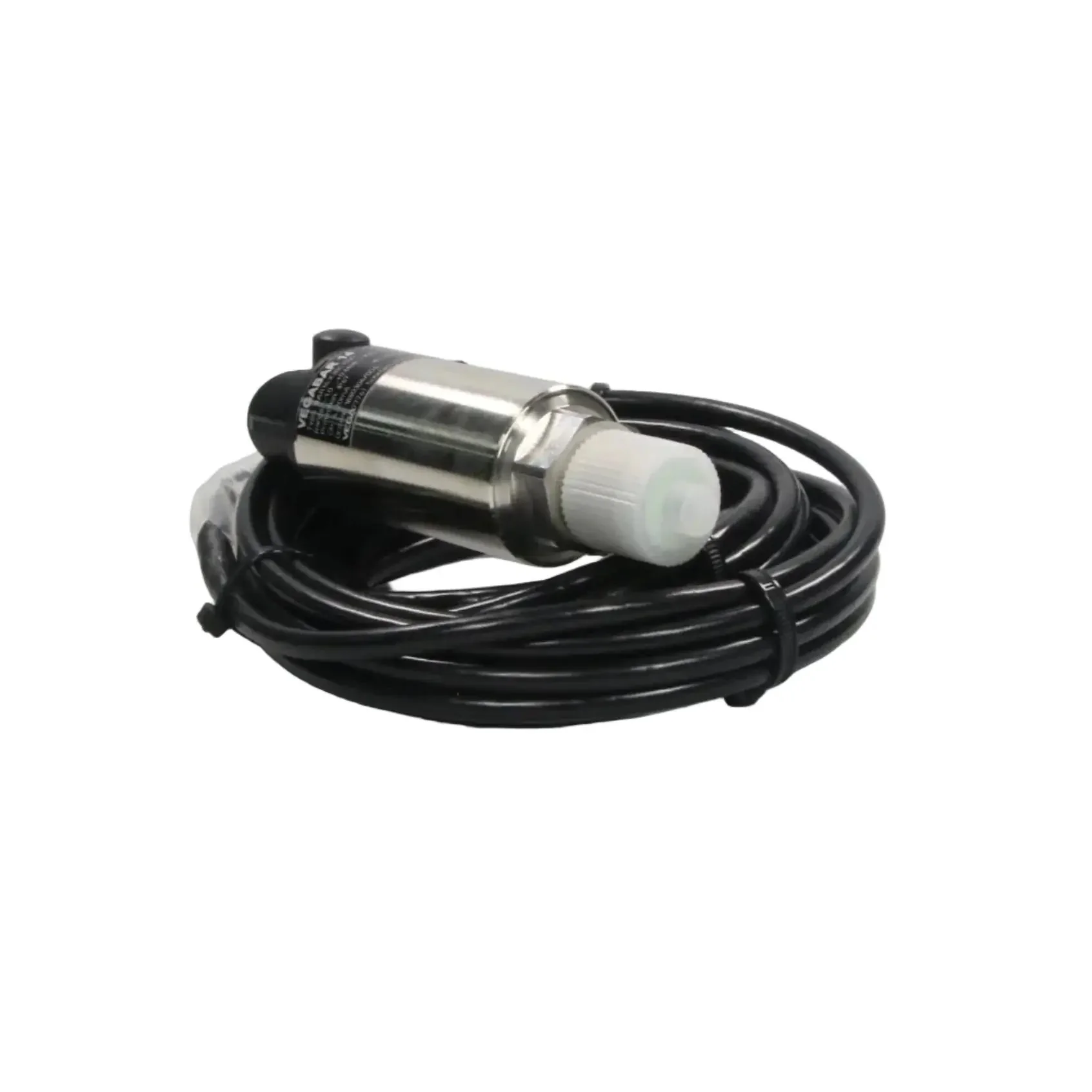

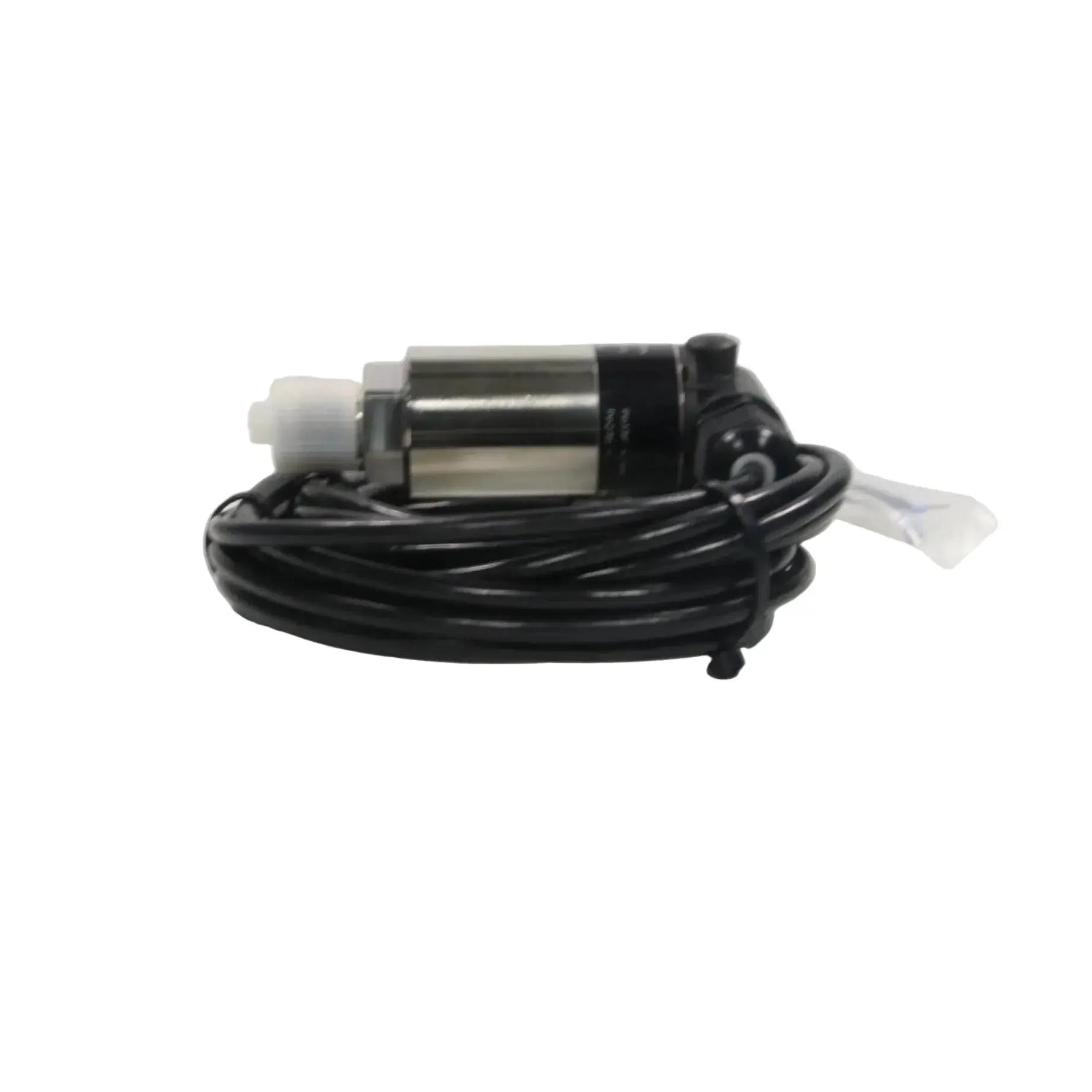

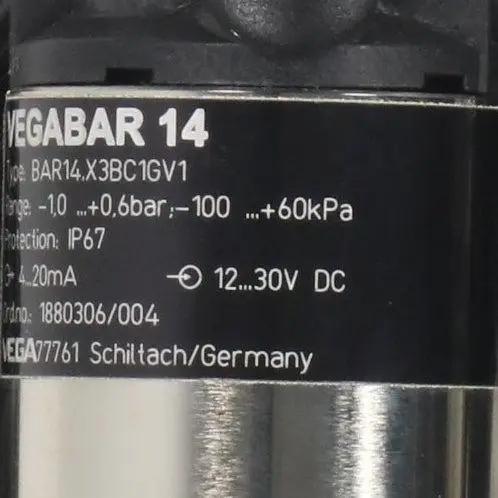

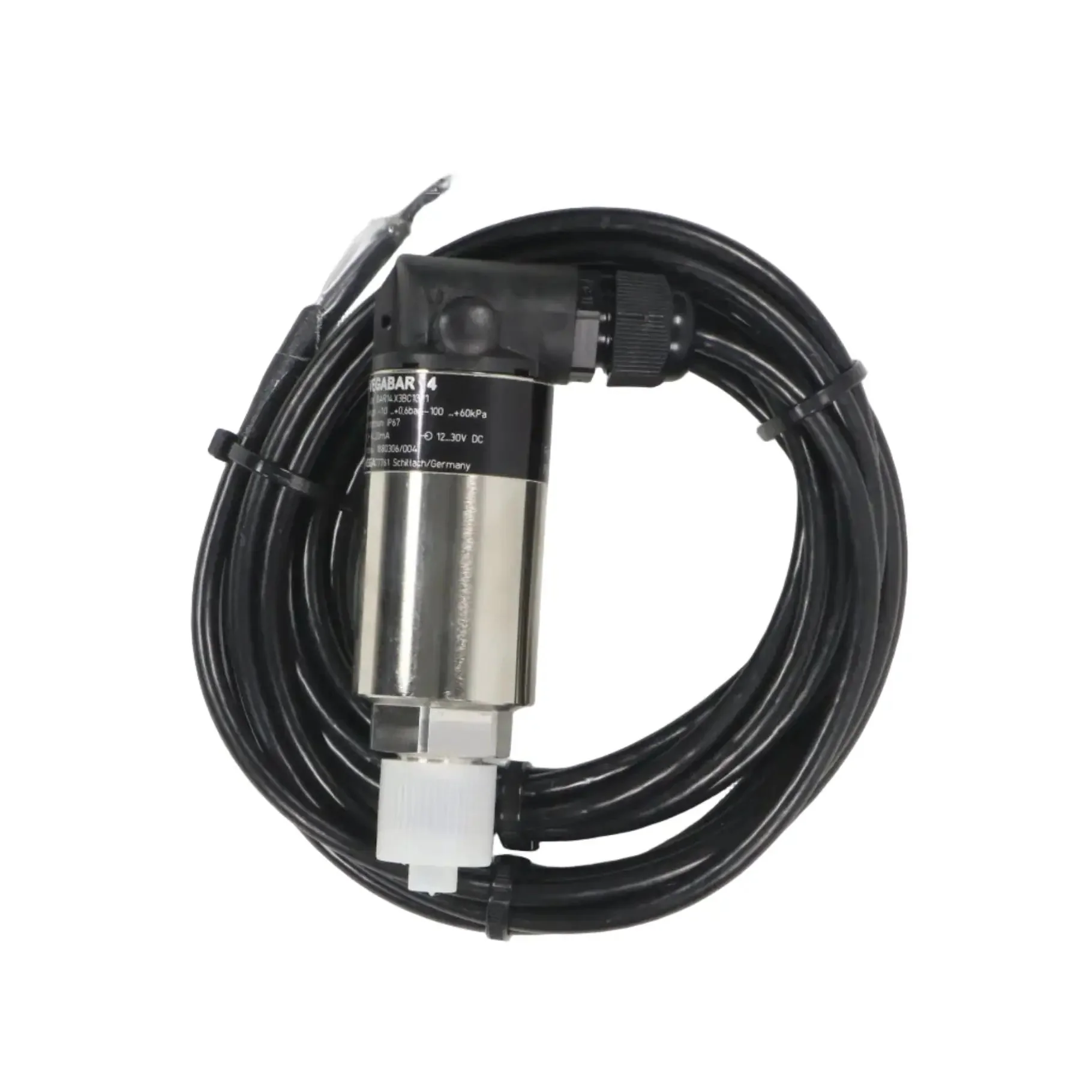

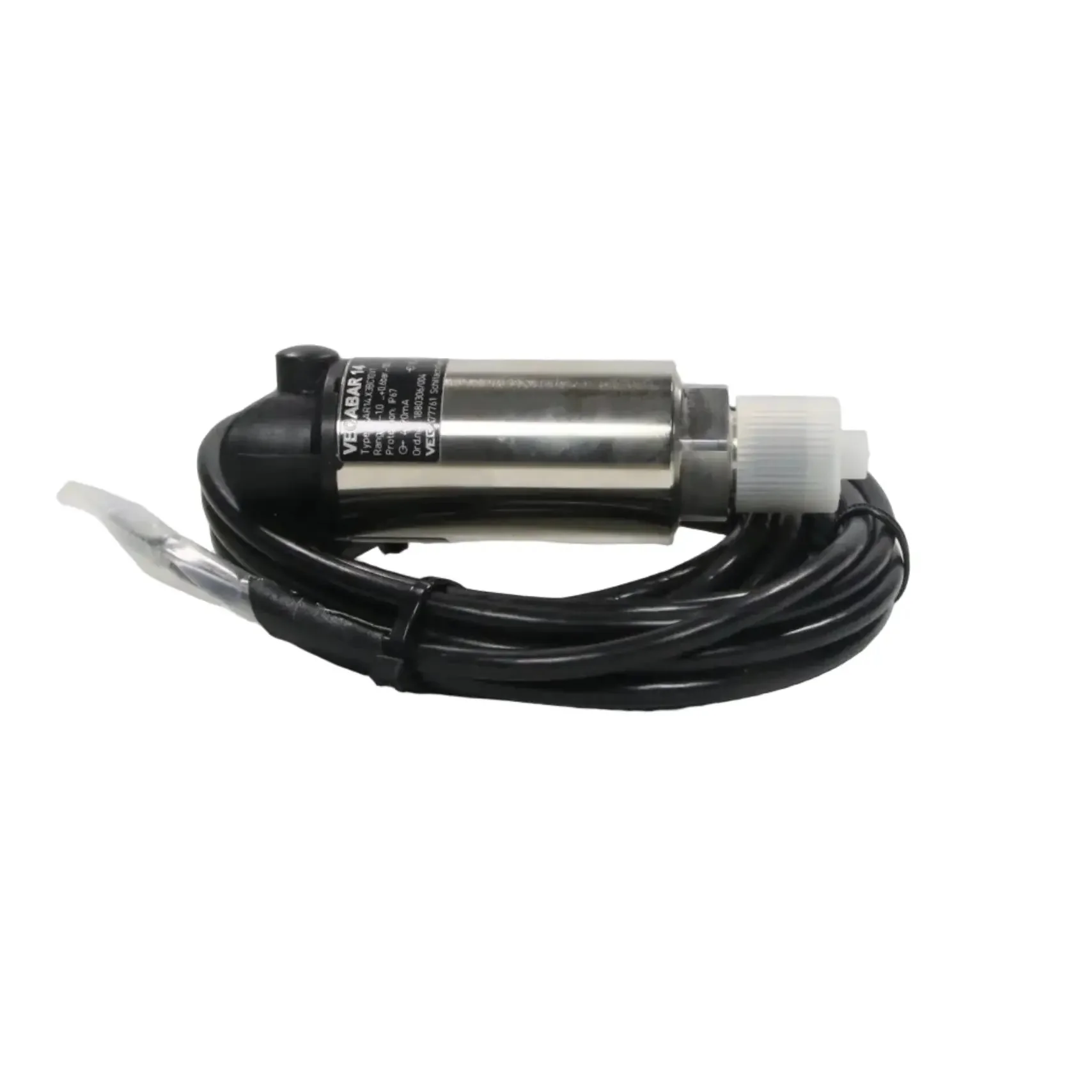

Vega Vegabar 14 Process Pressure Transmitter - BAR14.X3BC1GV1

- Brand: VEGA

- Model: VEGABAR 14

- Code: BAR14.X3BC1GV1

- Type: Process Pressure Transmitter

All tech specs:
- Measuring principle: Ceramic-capacitive dry measuring cell (CERTEC®)
- Measuring range: -1.0....+0.6 bar
- Process temperature: -15 ... +130 °C
- Accuracy: ≤ ±0.3 % of span
- Output signal: 4 ... 20 mA
- Power supply: 12 ... 30 V DC
- Overpressure resistance: High overload capability
- Process connection: Threaded G½ manometer connection
- Electrical connection: 10 m cable
- Sealing: Single sealing concept
- Protection rating: IP65
- Housing: Stainless steel
- Features: Extremely compact dimensions for space-saving installation, high operational reliability, wear-free ceramic cell, no moving parts, suitable for any mounting position, basic self-diagnostics, low temperature influence, easy electrical connection
- Approvals: Standard industrial
- Part of VEGABAR 14 series: Entry-level, economical pressure transmitter for basic process, utility and industrial applications

- Discontinued

Dimensions: 200 x 160 x 110 mm (box)

Weight: 850 g

Country of origin: Germany

HS code: 902620
