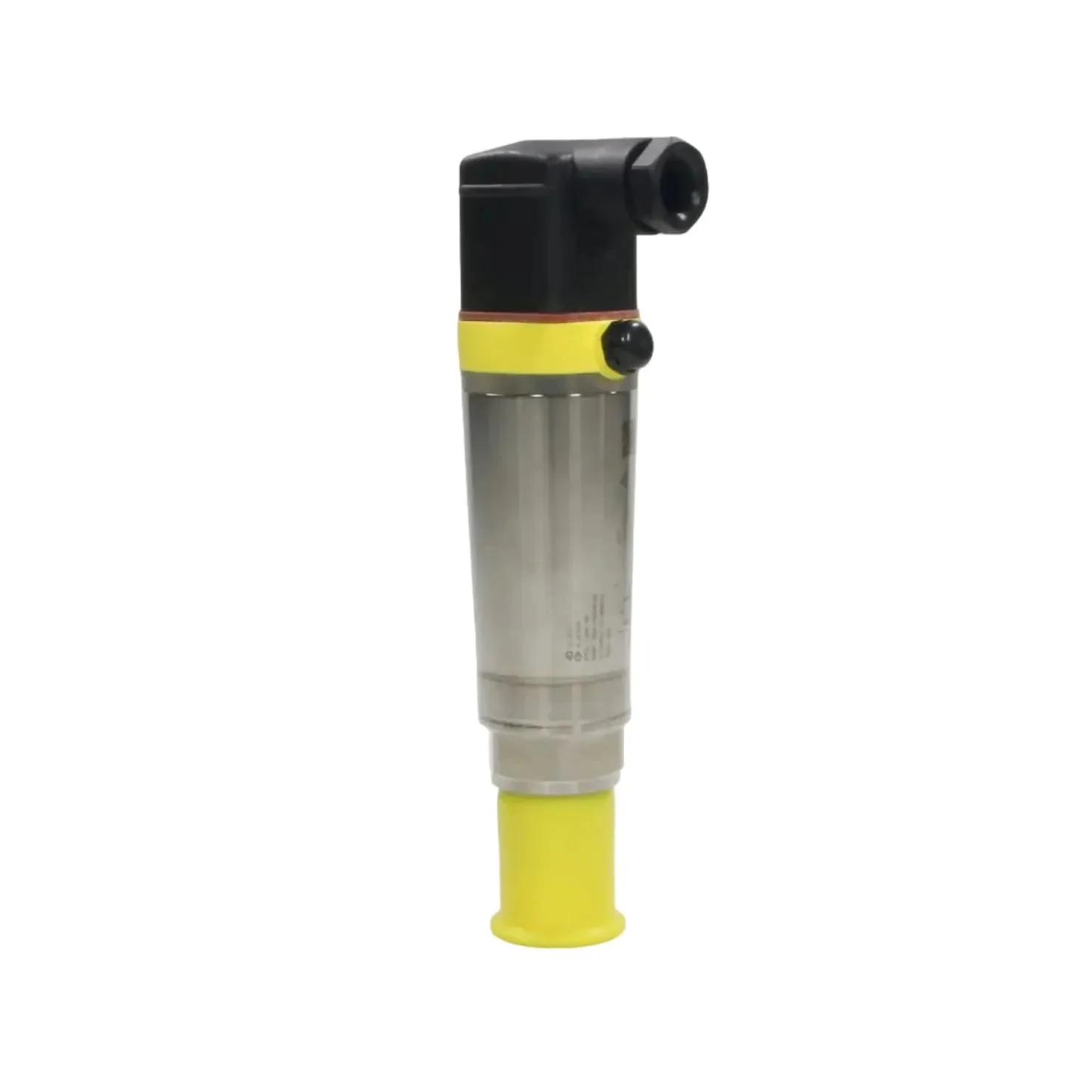

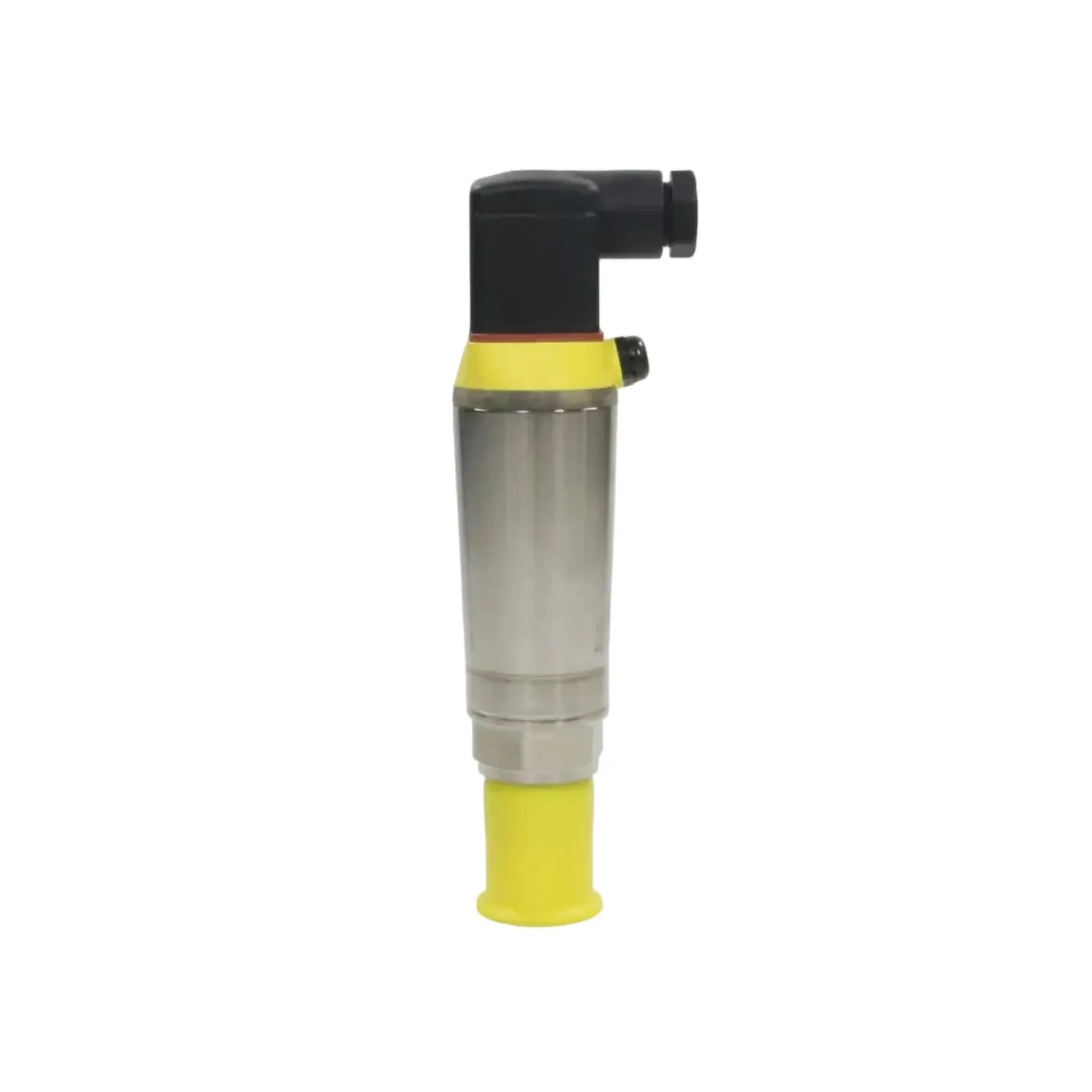

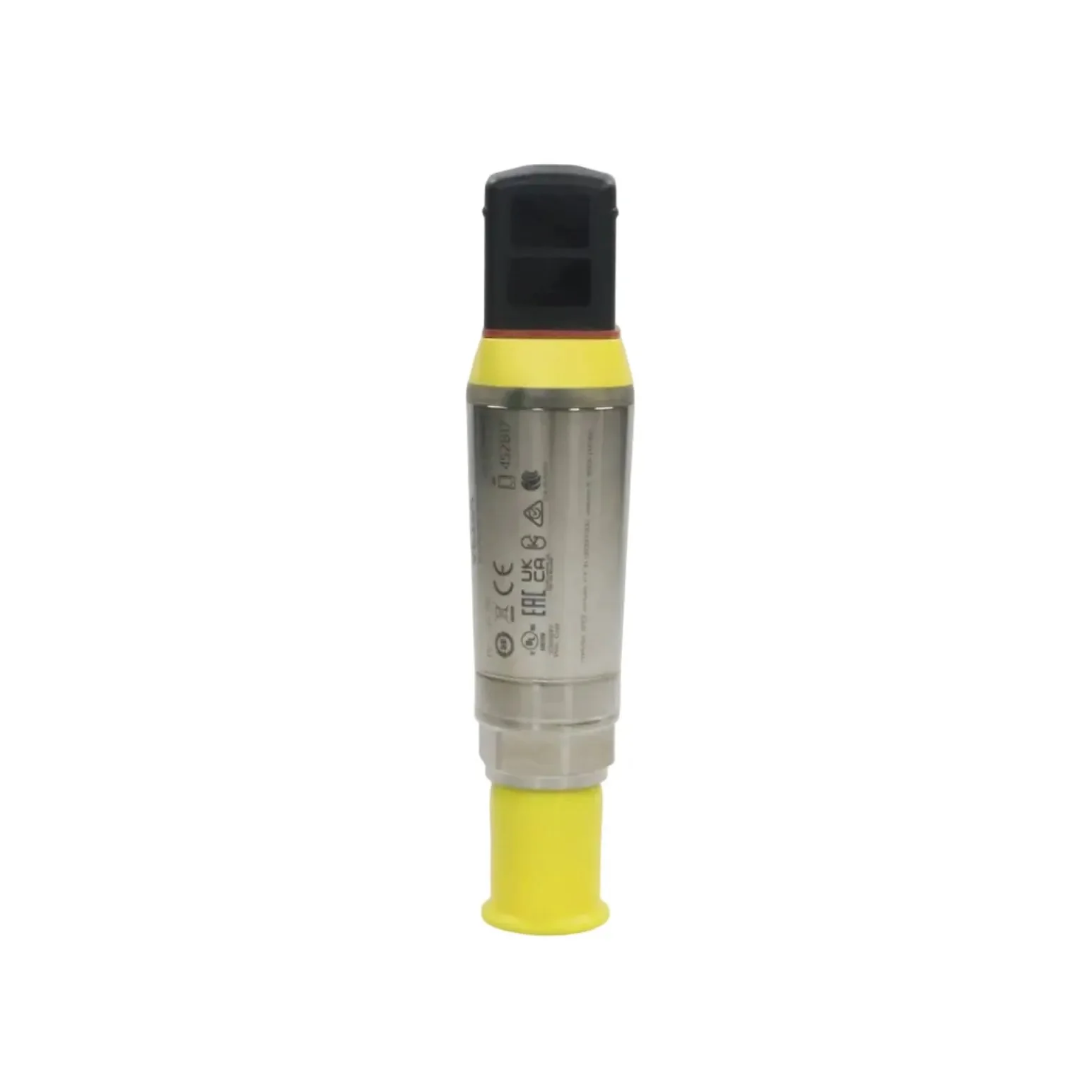

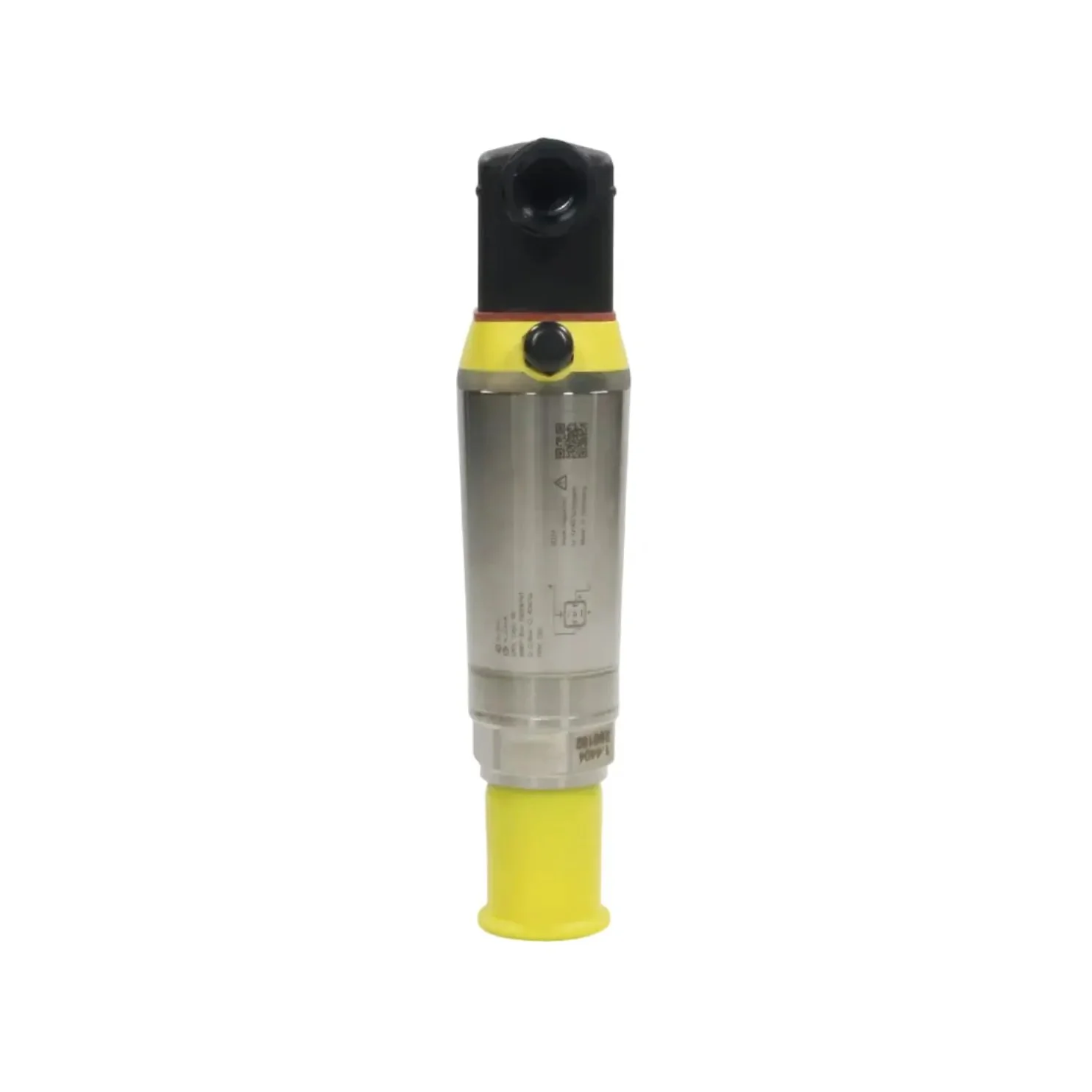

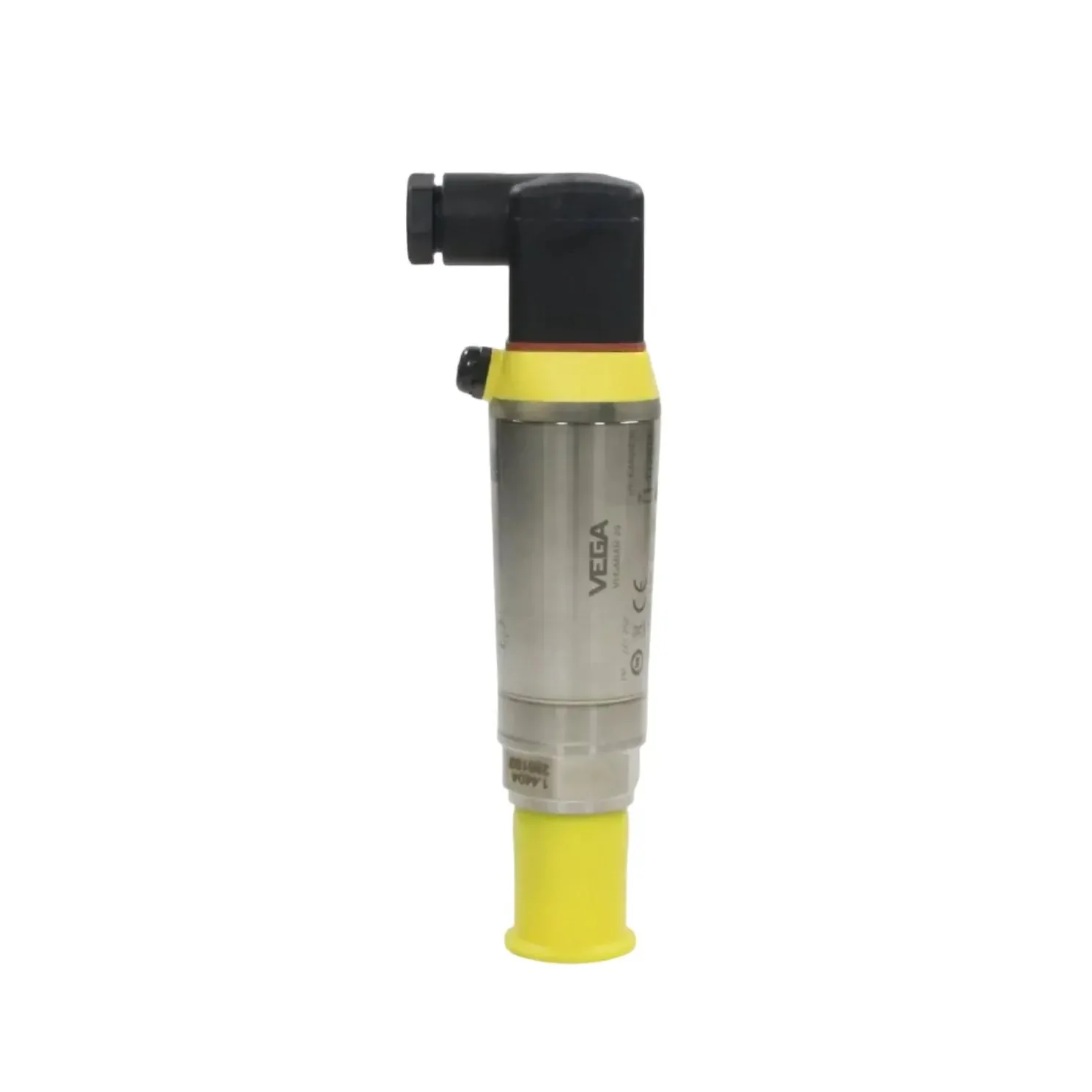

Vega Vegabar 29 Universal Process Pressure Transmitter - PP - 222 2SZ

Brand: VEGA

Model: VEGABAR 29

Code: PP-222-2SZ

Type: Universal Process Pressure Transmitter

All tech specs
- Measuring principle: Piezoresistive metallic measuring cell
- Measuring range: 0...+0.4 bar
- Process temperature: -40 ... +130 °C
- Accuracy: ≤ ±0.3 % of span
- Output signal: Two-wire 4 ... 20 mA
- Overpressure resistance: High overload capability (metallic cell)
- Features: Bluetooth wireless setup via VEGA Tools app (smartphone/tablet), coloured status display, high robustness and hygiene demands, self-diagnostics, wear-free, optional IO-Link for parameterisation and diagnostics
- Process connection: Threaded G ½" manometer connection

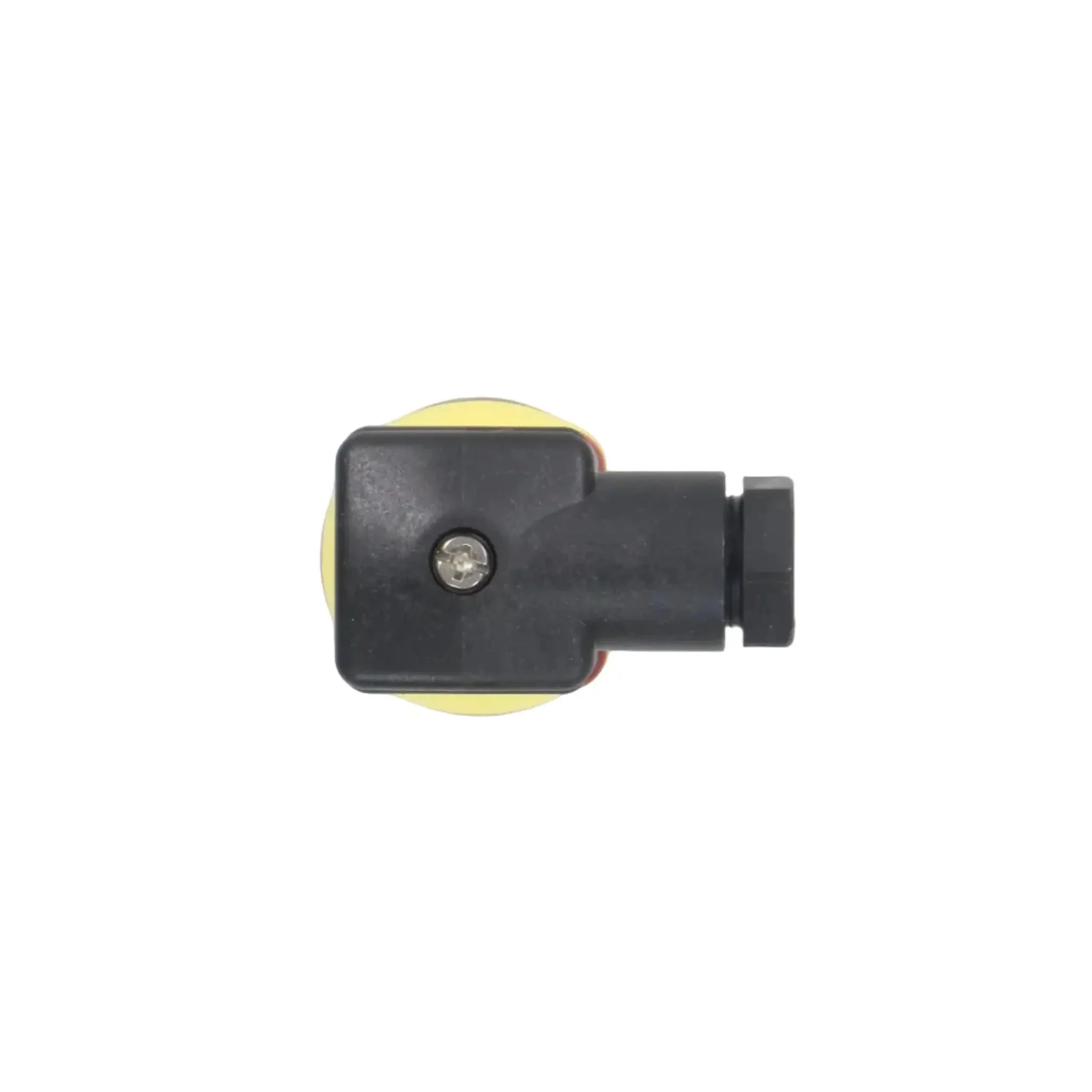

- Electrical connection: Solenoid DIN plug or cable gland
- Power supply: 12 ... 35 V DC
- Protection rating: IP65/IP66
- Housing: Stainless steel
- Approvals: IECEx, SIL capable, hygienic options
- Part of VEGABAR 20/30 series family: Cost-effective, universal transmitter for industrial process control

Dimensions: 240 x 110 x 100 mm

Weight: 550 g

Country of origin: Germany

HS code: 902620
