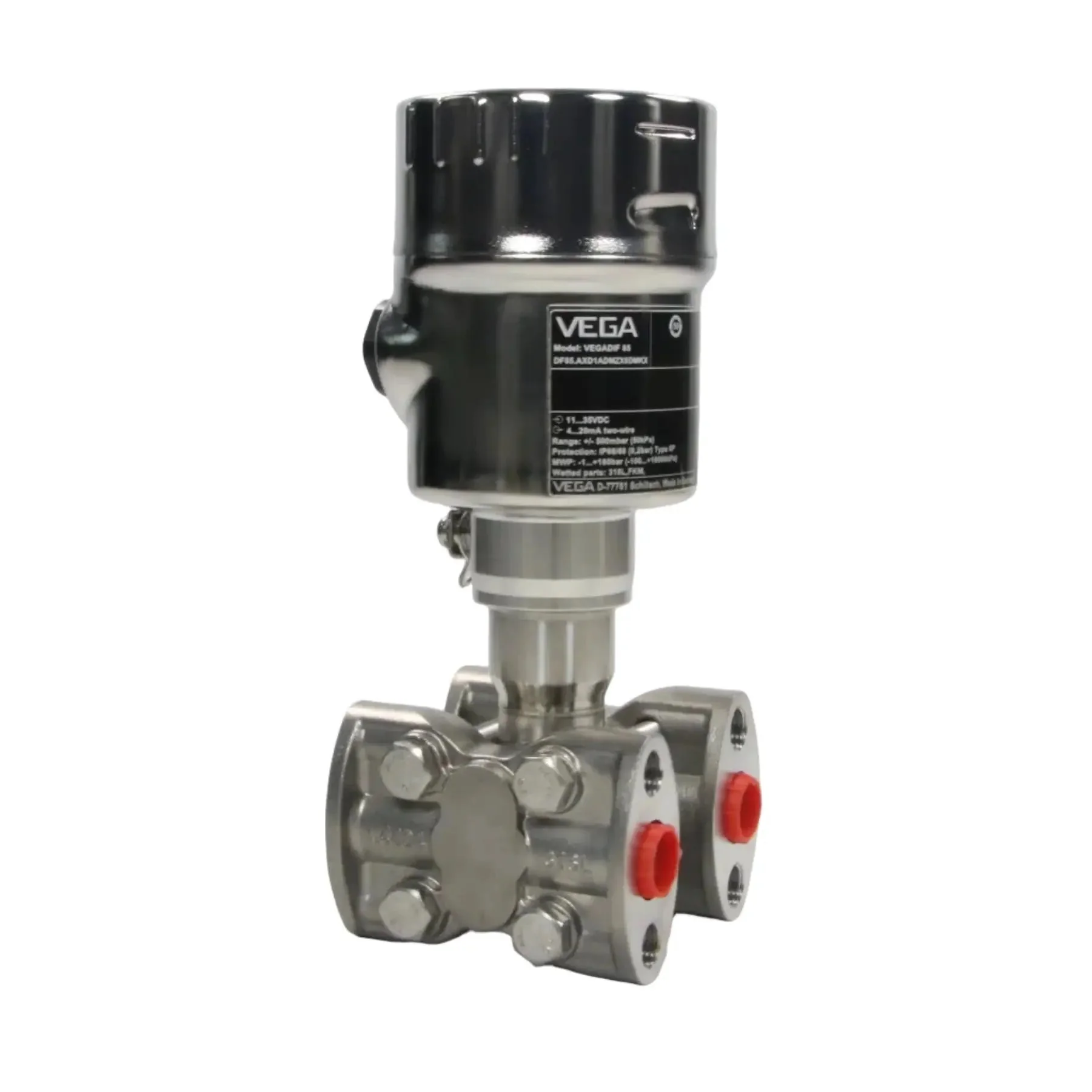

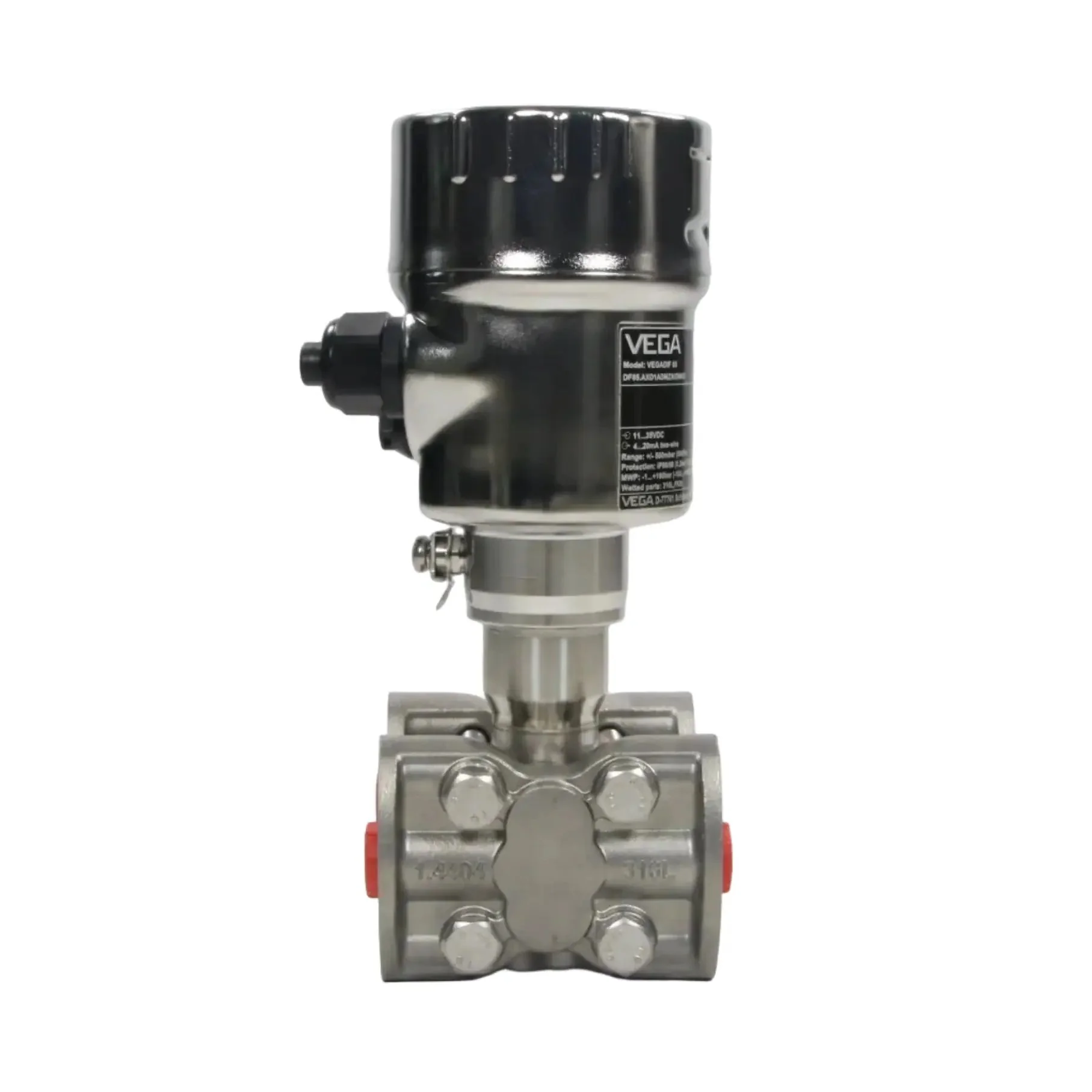

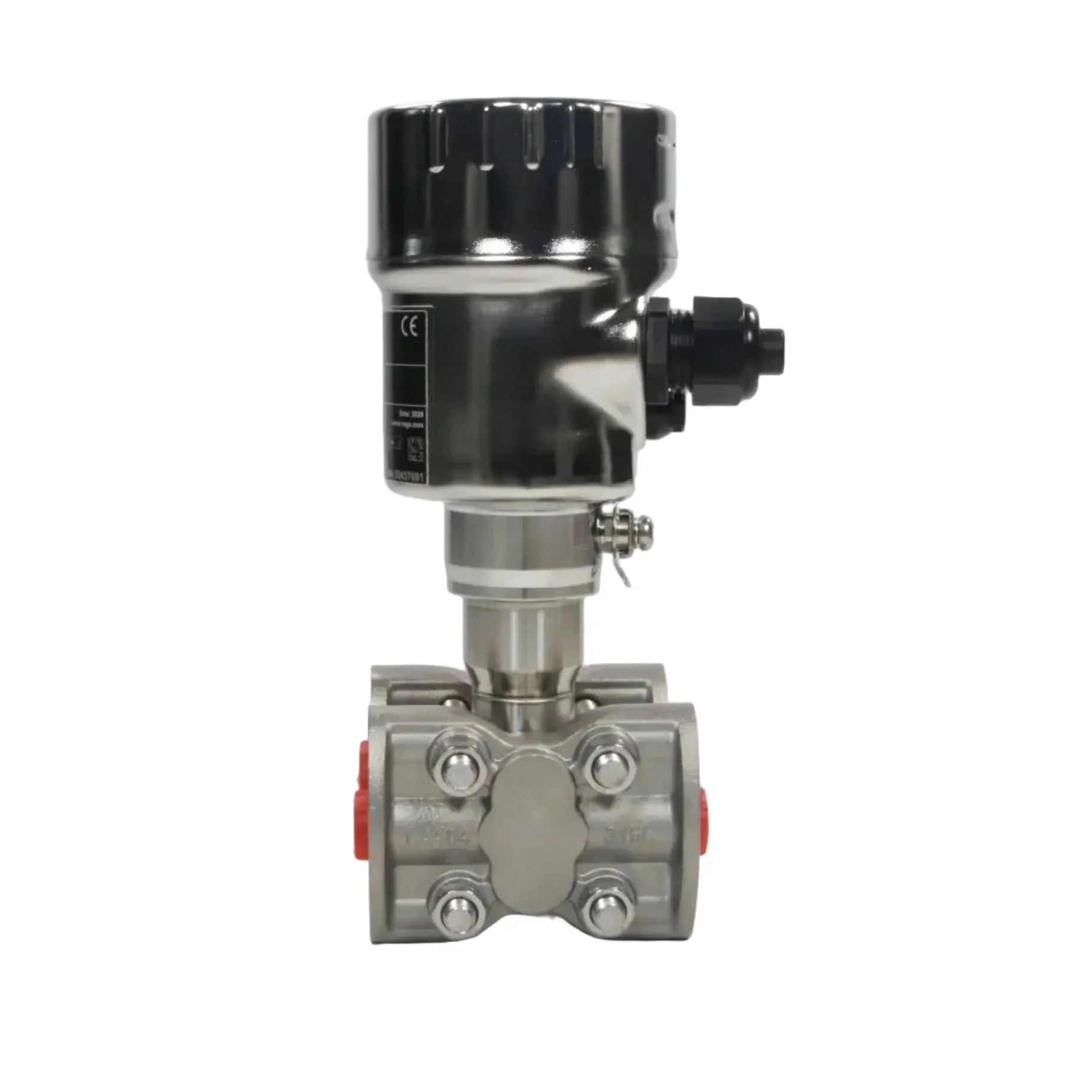

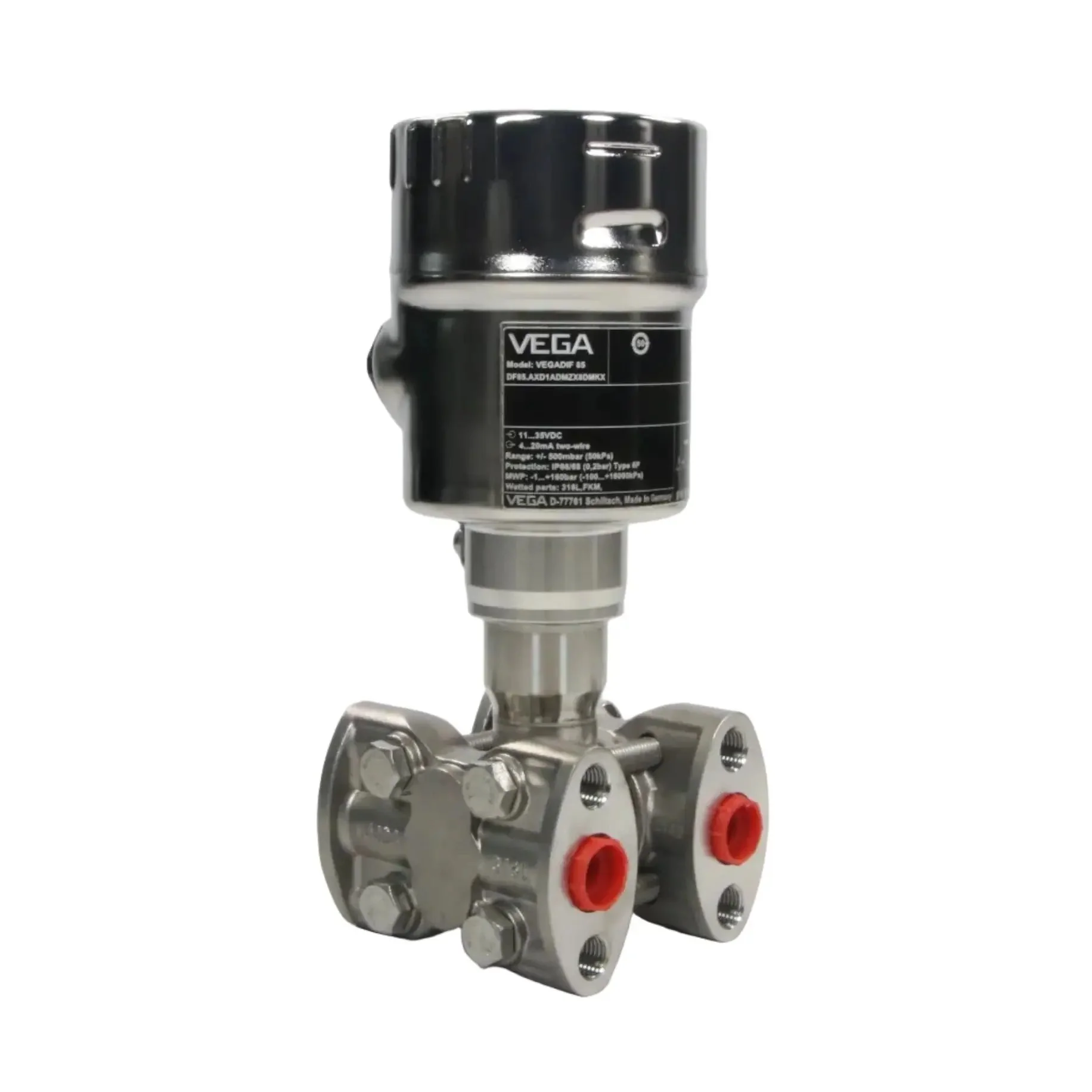

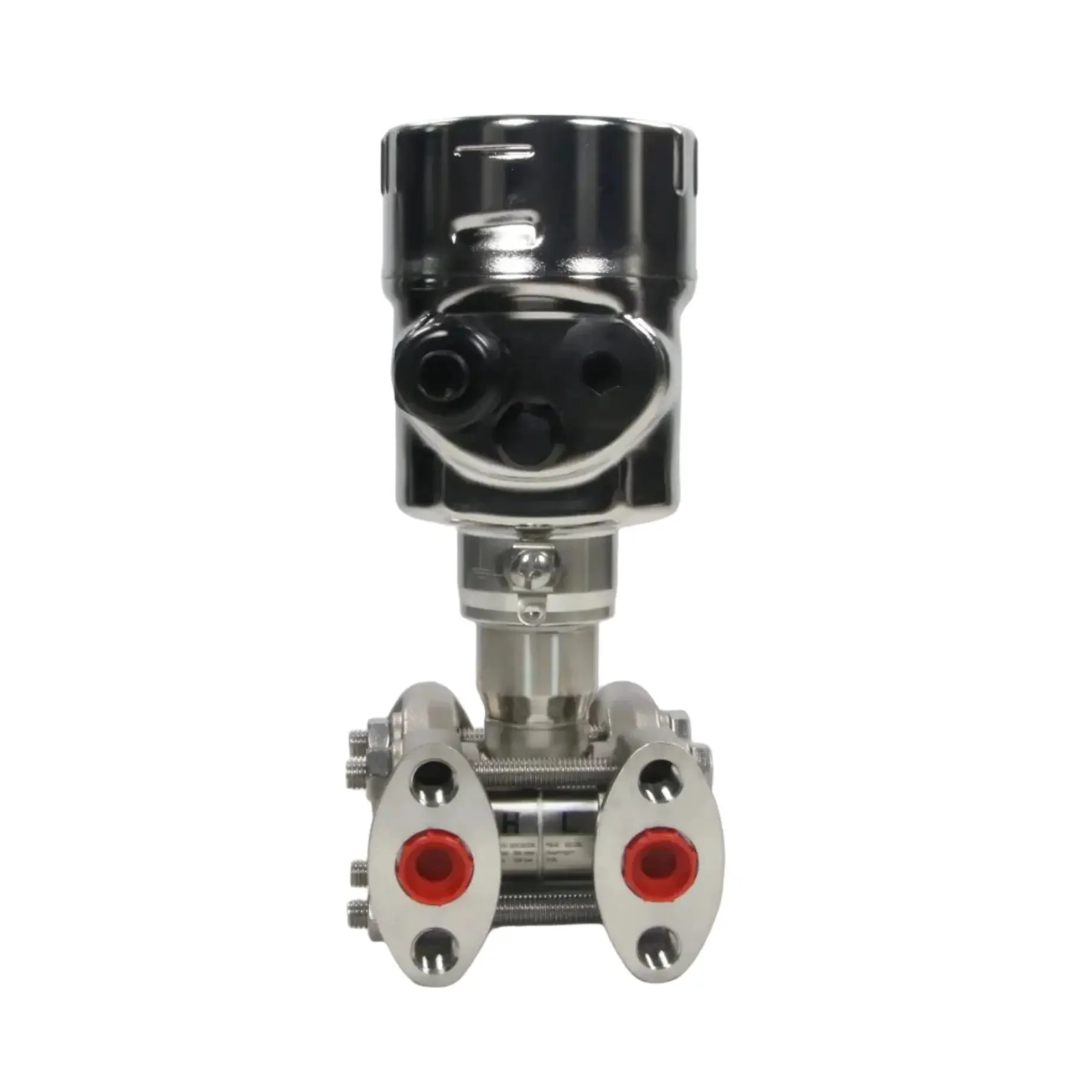

Vega Vegadif 85 Pressure Transmitter - B82.AXD1ADMZX8DMKX

- Brand: VEGA

- Model: VEGADIF 85

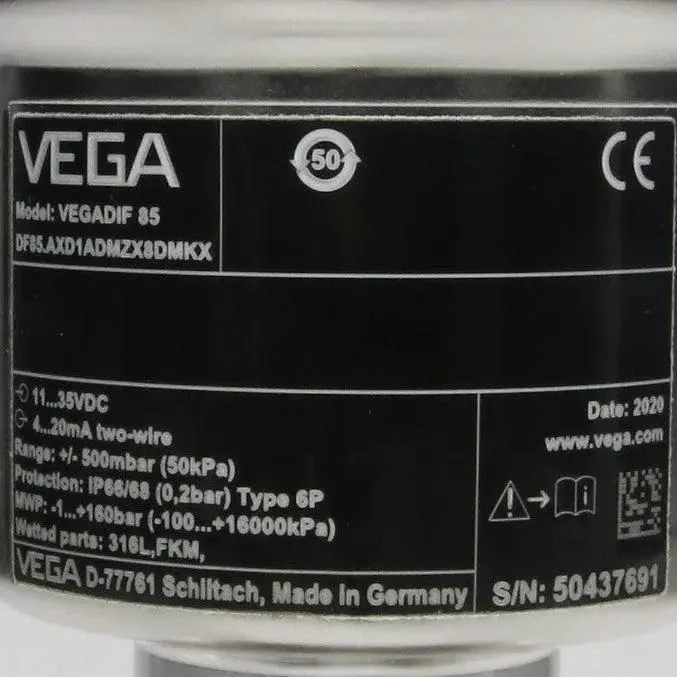

- Code: DF85.AXD1ADMZX8DMKX

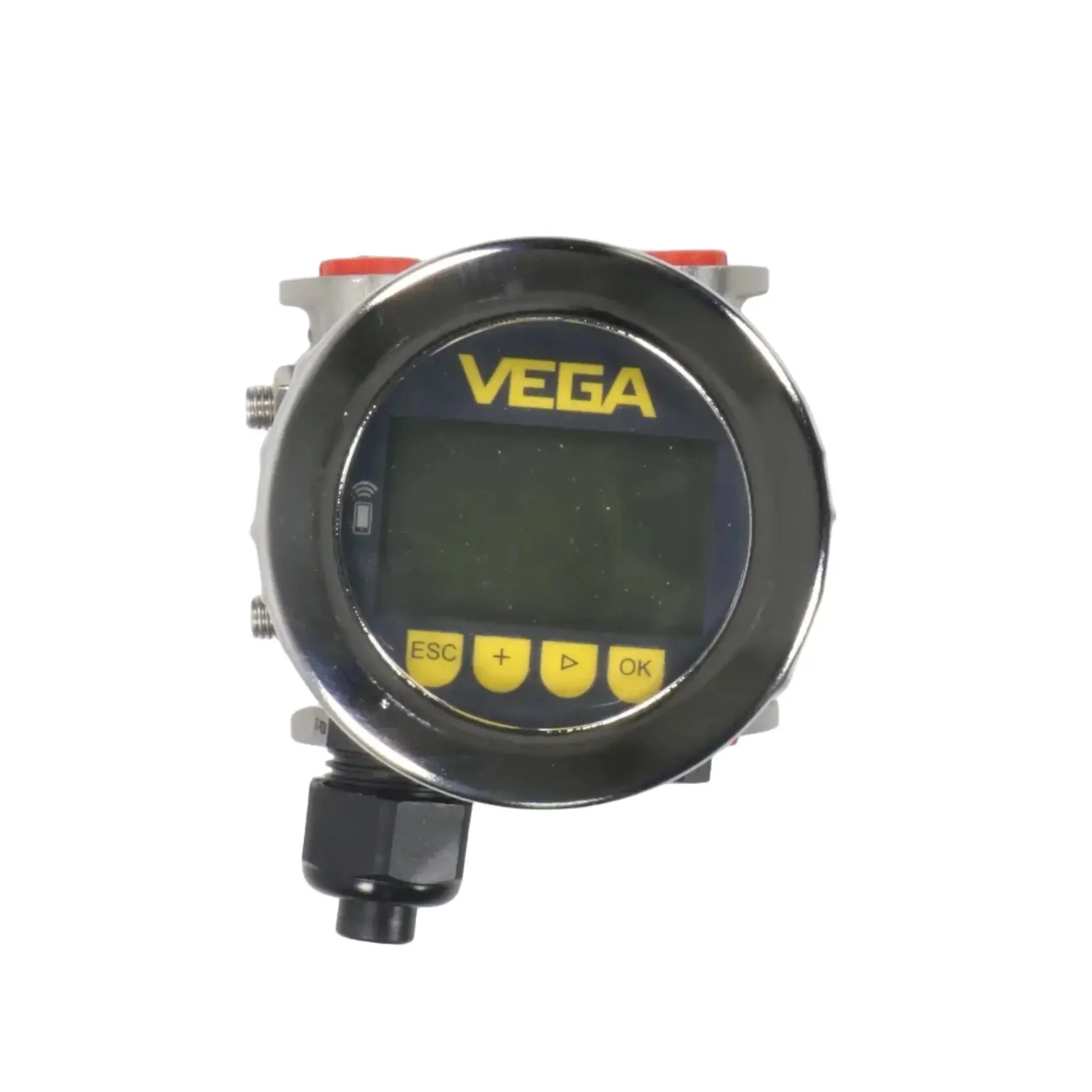

- Type: Differential Pressure Transmitter with Display

All tech specs:
- Measuring principle: Ceramic capacitive dry measuring cell (CERTEC®)
- Range: 0 ... +/- 500 mbar
- Process pressure: -1 ... +160 bar

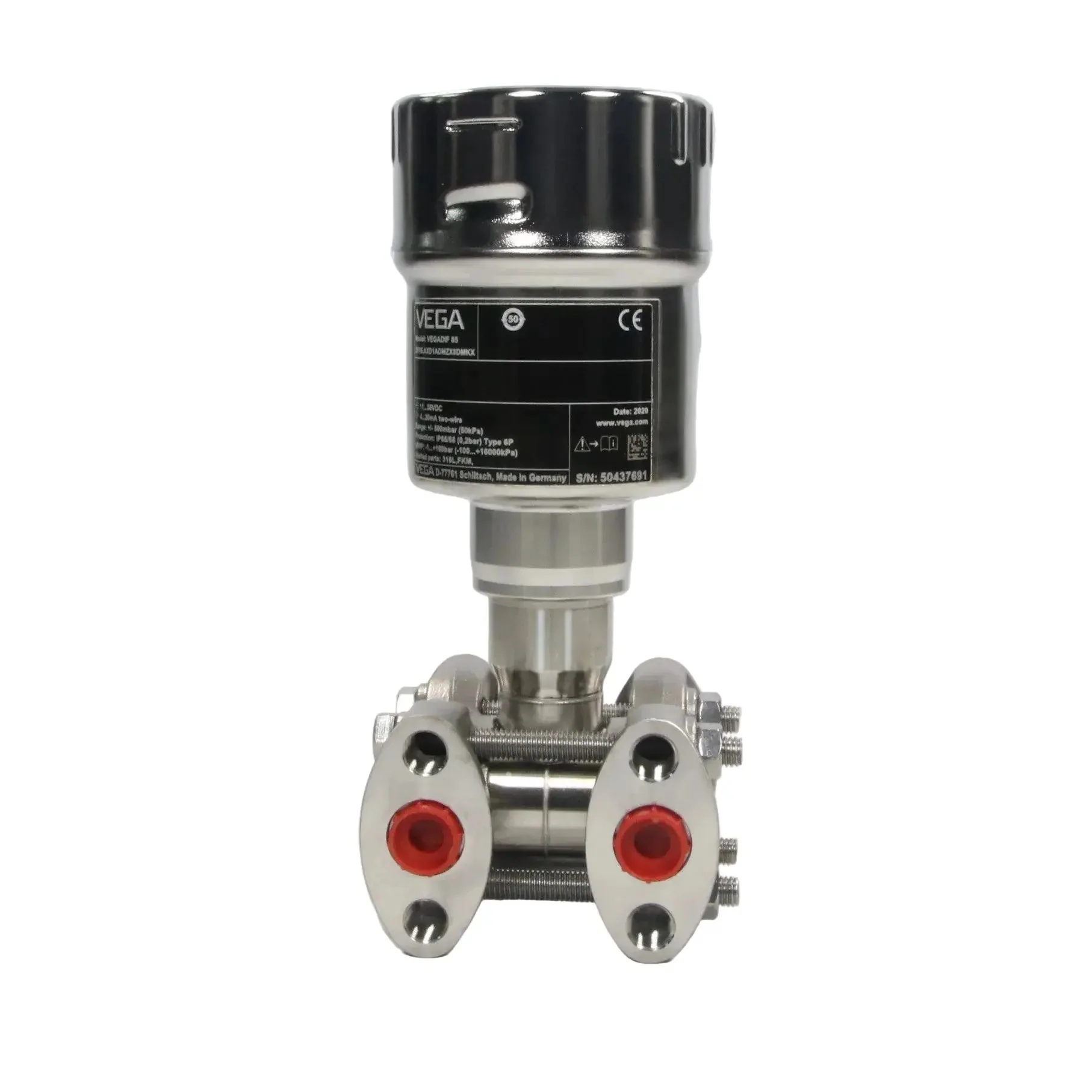

- Process fitting: 1/2" Oval Flange
- Output signal: 4 ... 20 mA/Two wire
- Approvals: IECEx, FM, CSA, SIL2 capable, ship approvals, hygienic approvals
- Temperature range: -40....150 C
- Housing: Stainless steel
- Protection rating: IP66/IP68 (0,2bar) Type 6P
- Power supply: 11 ... 35 V DC
- Wetted parts: 316L, FKM

Dimensions: 200 X 100 X 90 MM

Weight: 2.5 KG

Country of origin: Germany

HS code: 902620
