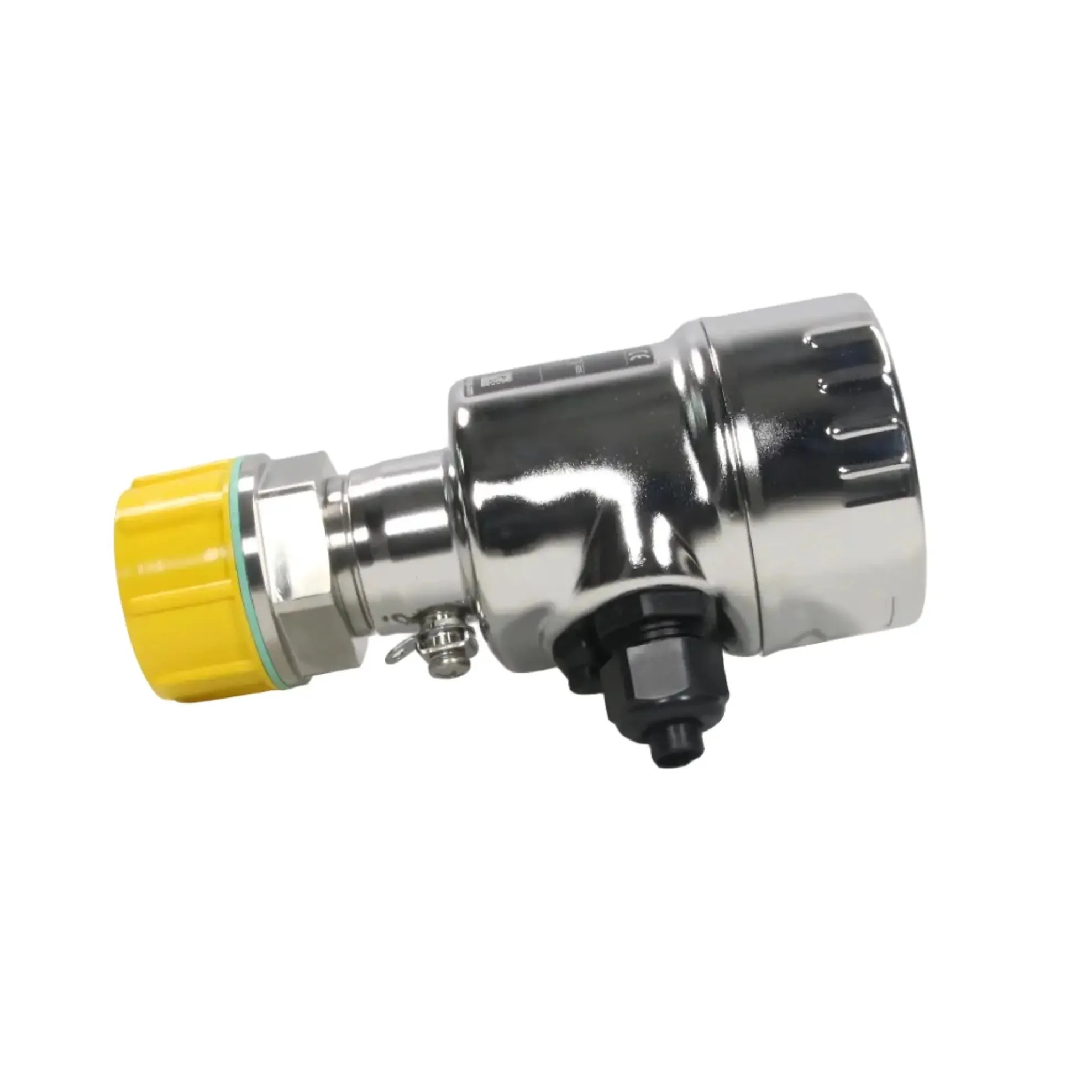

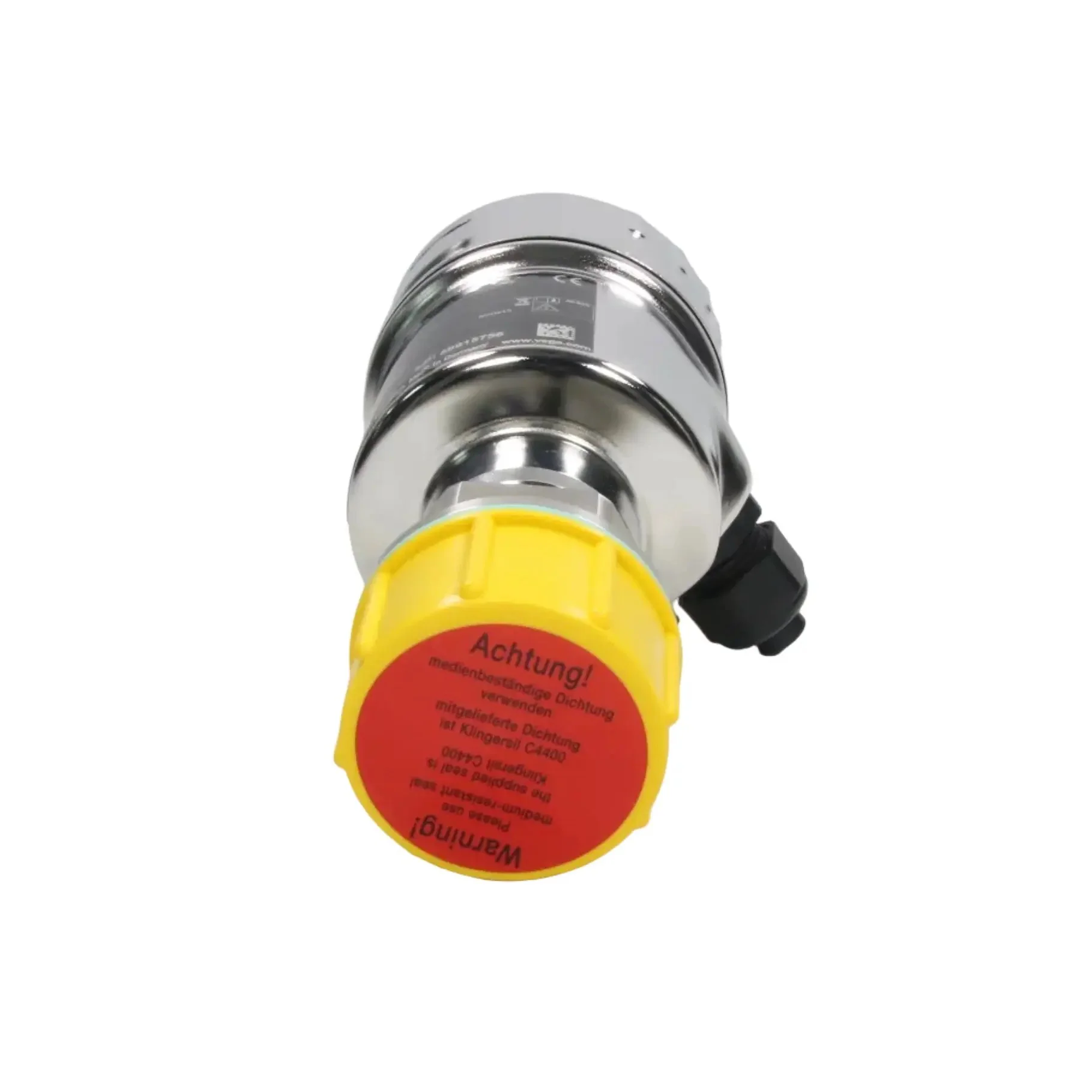

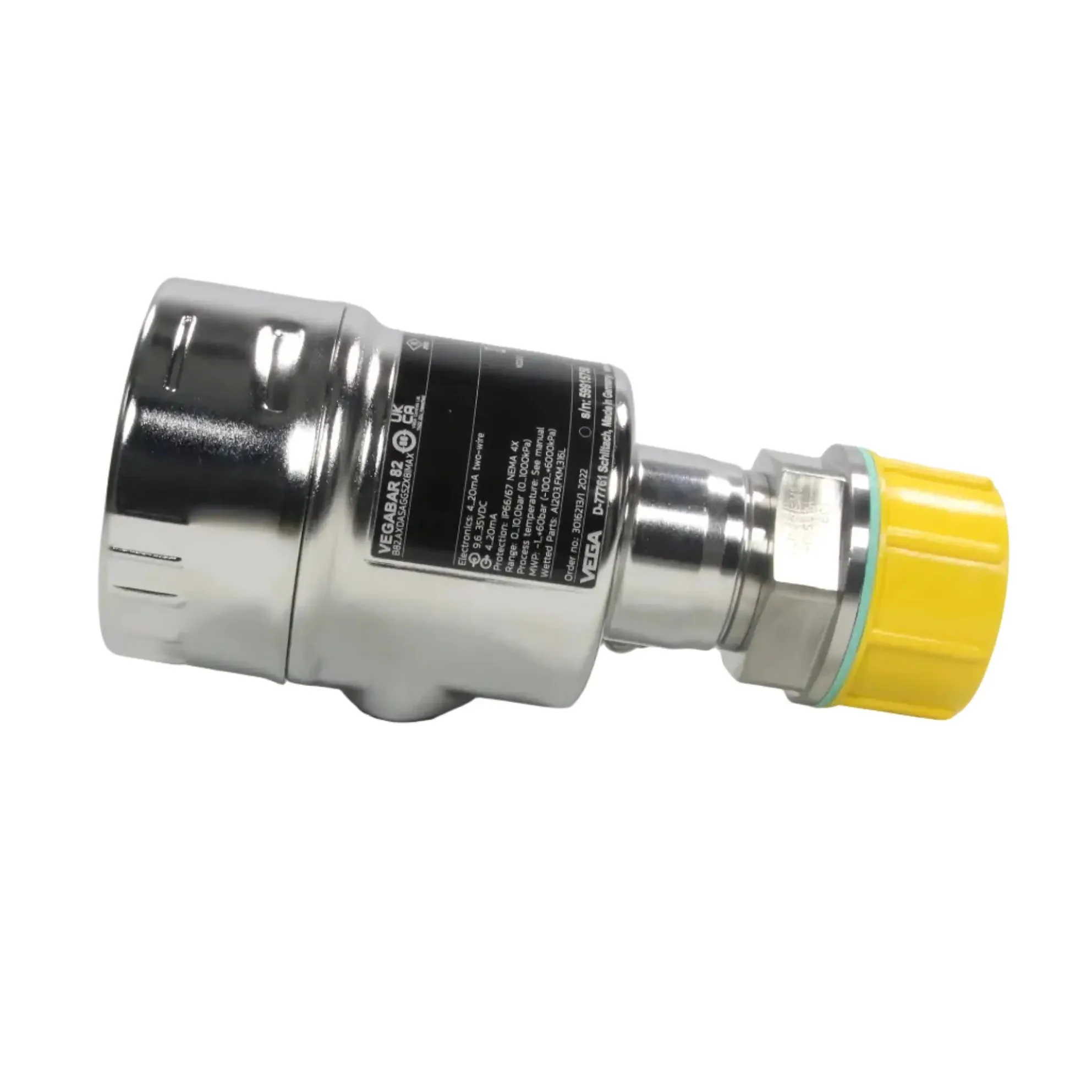

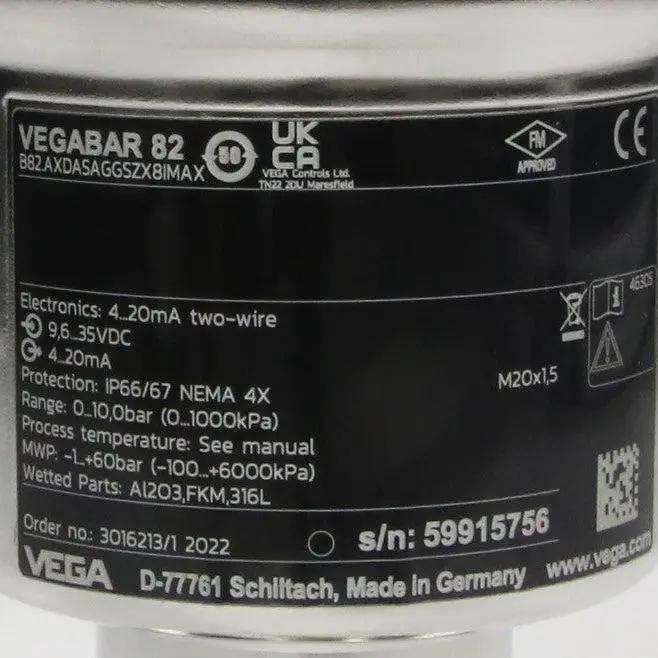

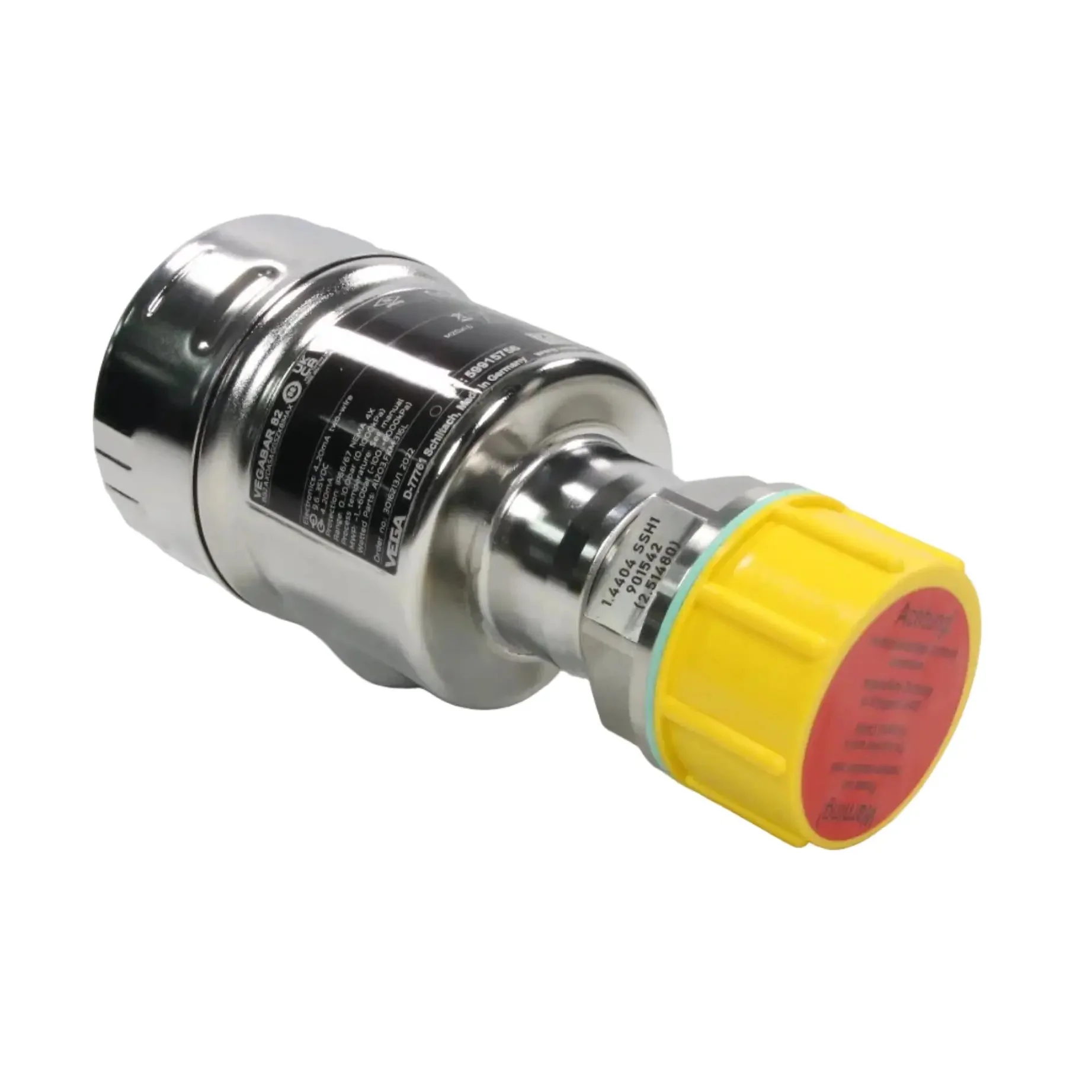

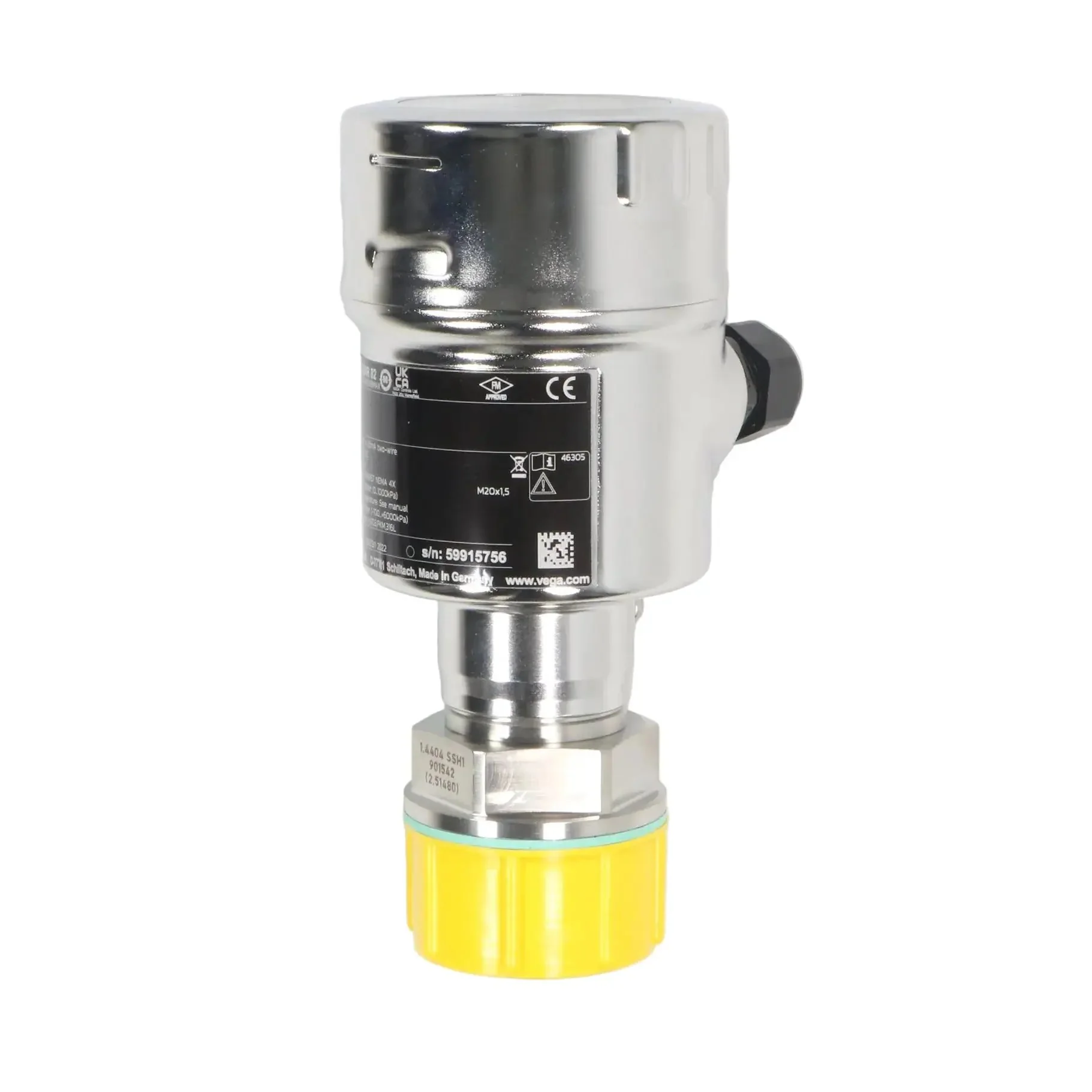

Vega Vegabar 82 Pressure Transmitter - B82.AXDASAGGSZX8IMAX

- Brand: VEGA

- Model: VEGABAR 82

- Code: B82.AXDASAGGSZX8IMAX

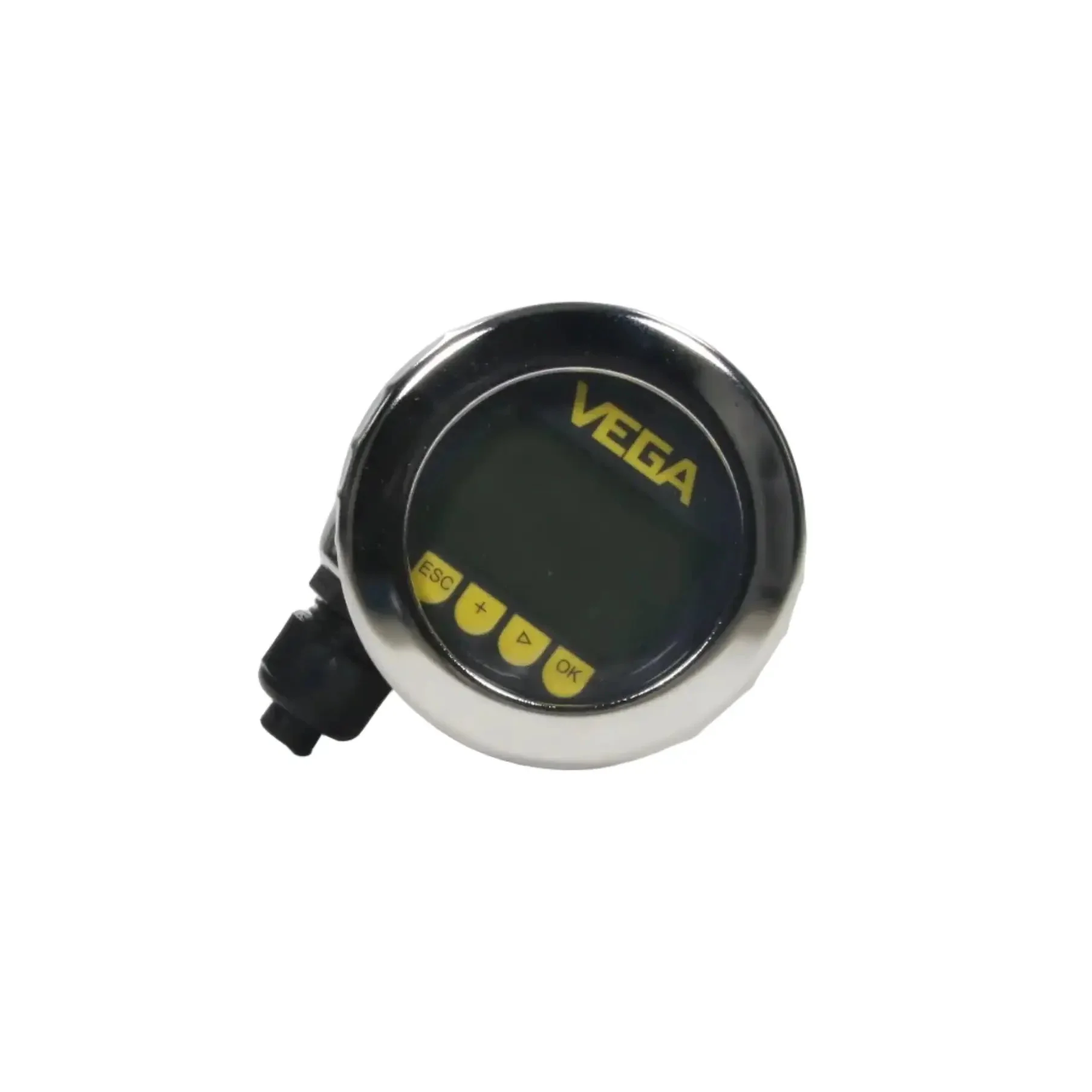

- Type: Pressure Transmitter with Display

All tech specs:
- Measuring principle: Ceramic capacitive dry measuring cell (CERTEC®)
- Range: 0 ... +10 bar
- Process pressure: -1 ... +60 bar

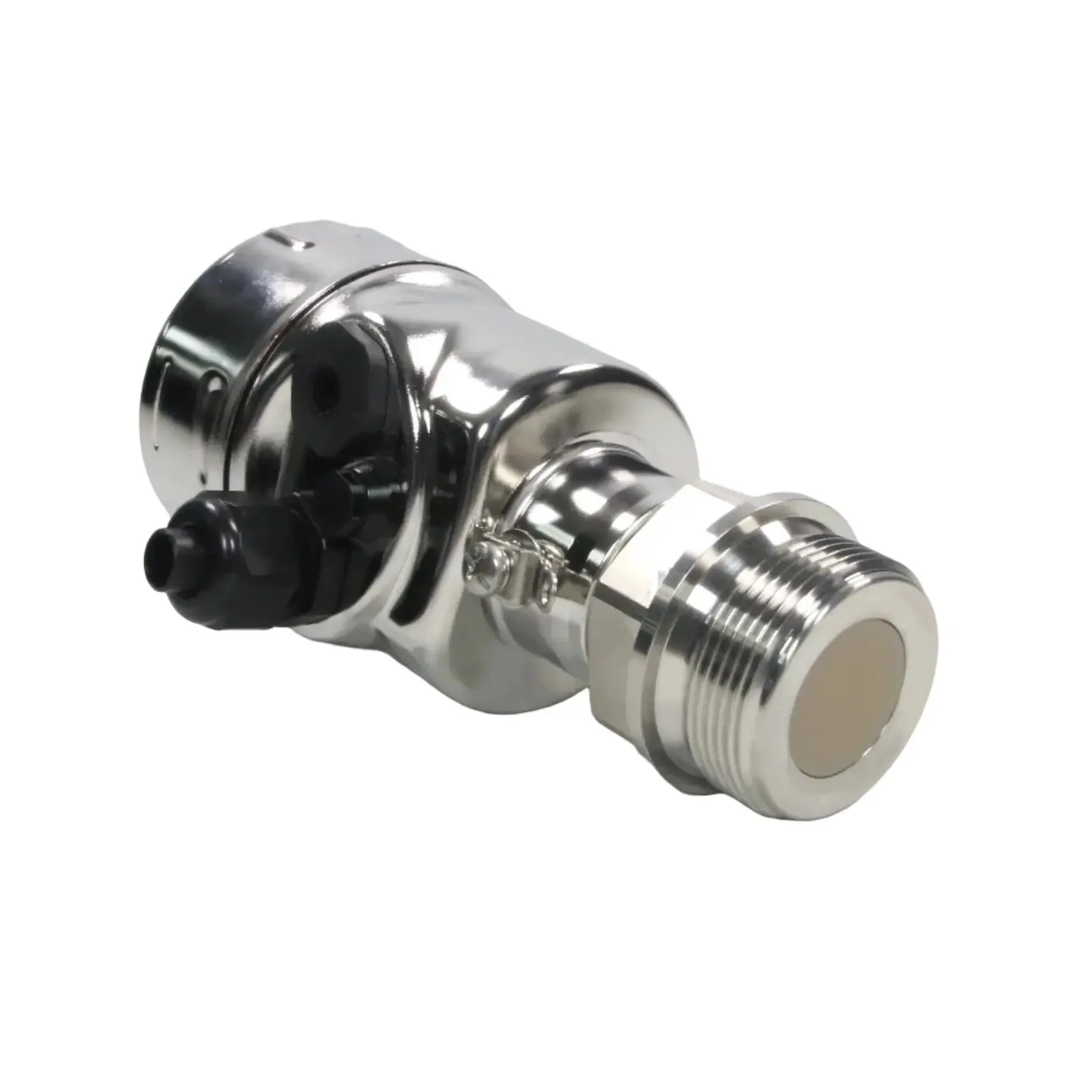

- Process fitting: G 1 1/2.   47.80 mm O.D.
- Output signal: 4 ... 20 mA/Two wire
- Approvals: IECEx, FM, CSA, SIL2 capable, ship approvals, hygienic approvals
- Temperature range: -40....150 C
- Housing: Stainless steel
- Protection rating: IP66/IP67 NEMA
- Power supply: 9.6 ... 35 V DC
- Wetted parts: AI203.FKM.316L

Dimensions: 185 X 100 X 80 MM

Weight: 1.5 KG

Country of origin: Germany

HS code: 902620
