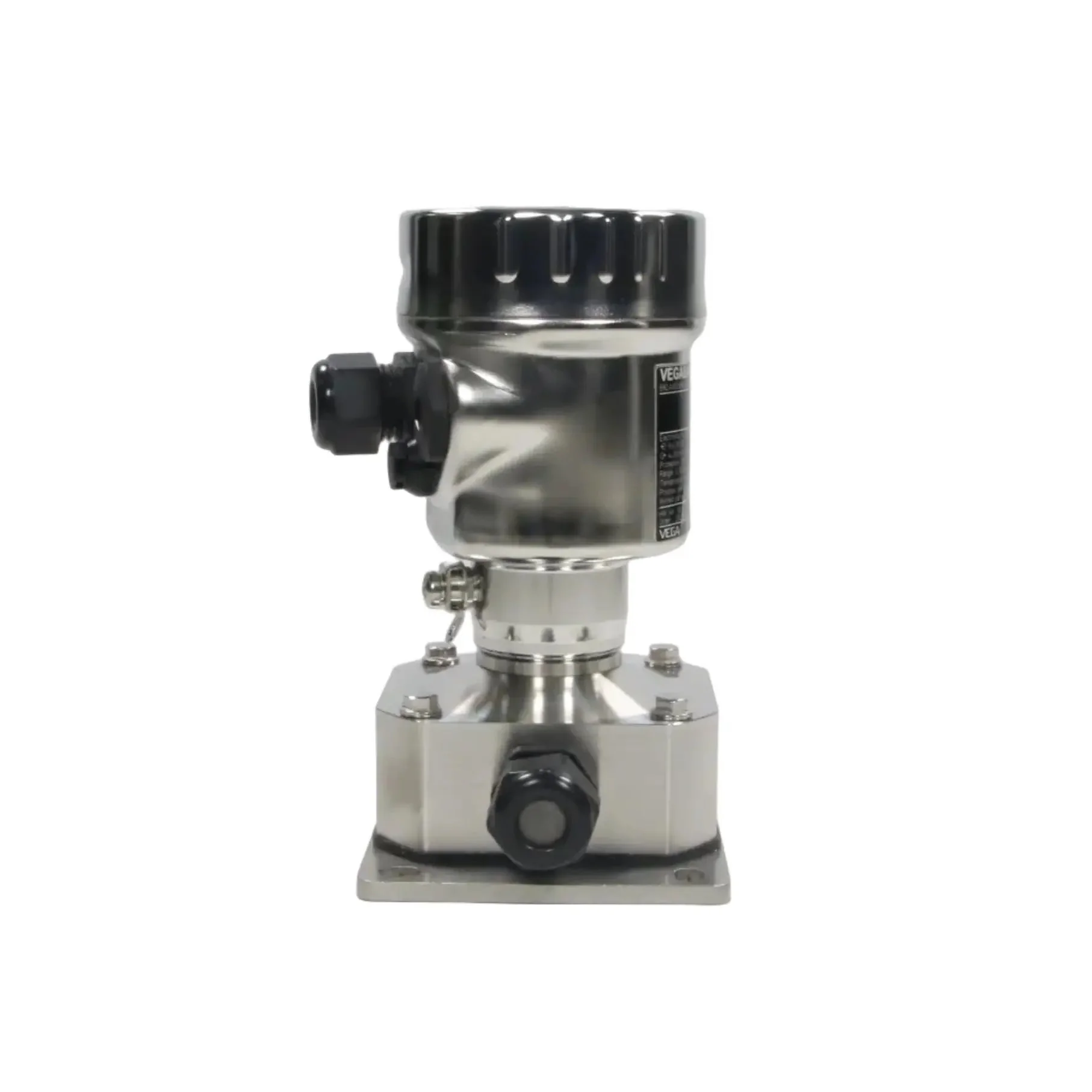

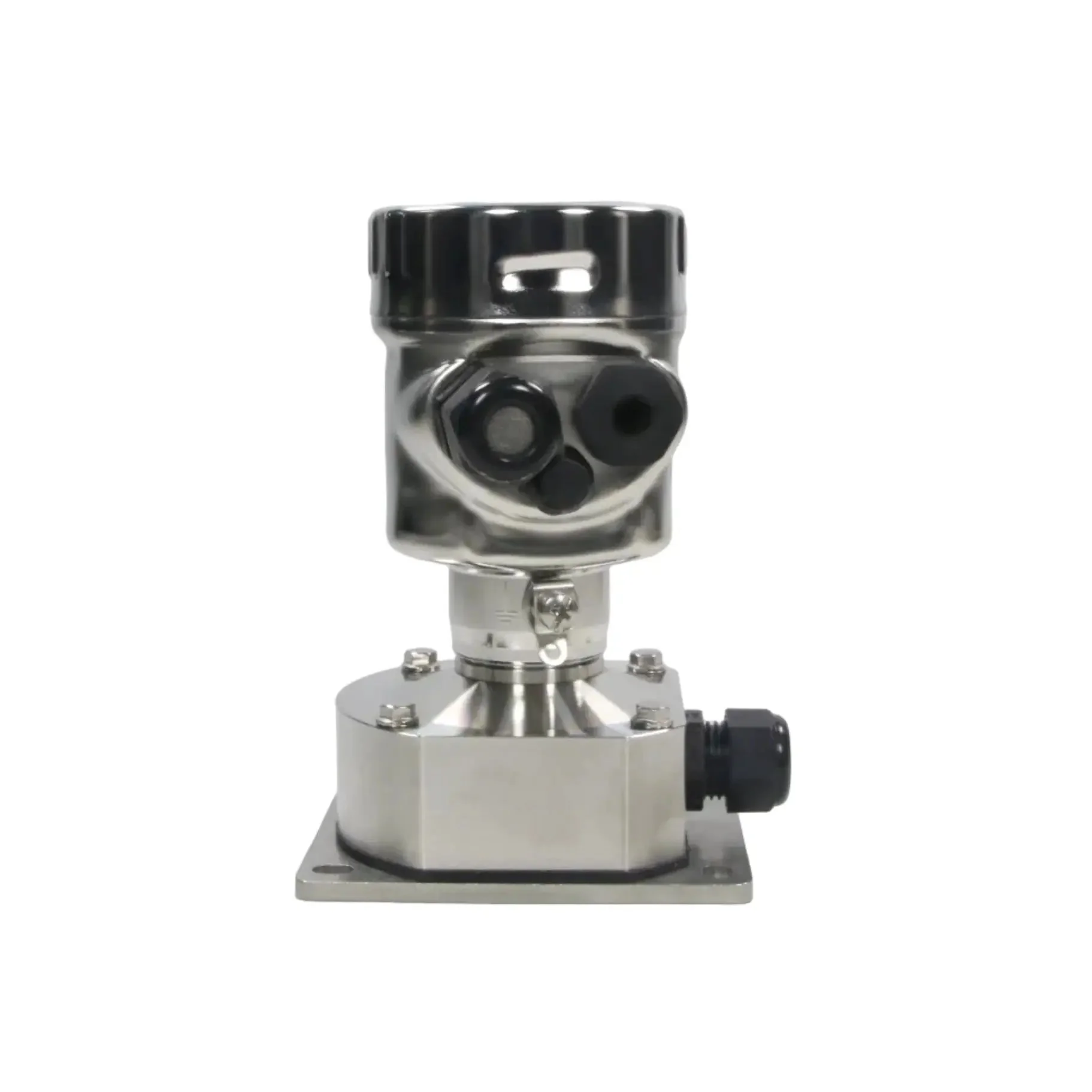

Vega Vegabar 82 Pressure Transmitter - B82.AXDUSHGGSHX8SMXX

- Brand: VEGA

- Model: VEGABAR 82

- Code: B82.AXDUSHGGSHX8SMXX

- Type: Process Pressure Transmitter

- All tech specs:
- Measuring principle: Ceramic capacitive dry measuring cell (CERTEC®)
- Measuring range: 0 ... +10 bar
- Process pressure: -1......+90 bar
- Process temperature: -20 ... +130 °C
- Accuracy/Deviation: Typically 0.2%
- Output signal: 4 ... 20 mA / HART two-wire
- HW Ver.: 1.0.0, SW Ver.: 1.0.0
- Power supply: 9.6.....35 V DC
- Housing: Stainless steel
- Protection rating: IP66/IP67, NEMA 4X
- Wetted parts: AI203, FFKM, 316L
- Approvals: IECEx, FM, CSA, SIL capable, hygienic approvals, ship approvals
- High plant availability due to robust ceramic cell and diagnostics

Dimensions: 120 x 90 x 170 mm

Weight: 2.1 kg

Country of origin: Germany

HS code: 902620
