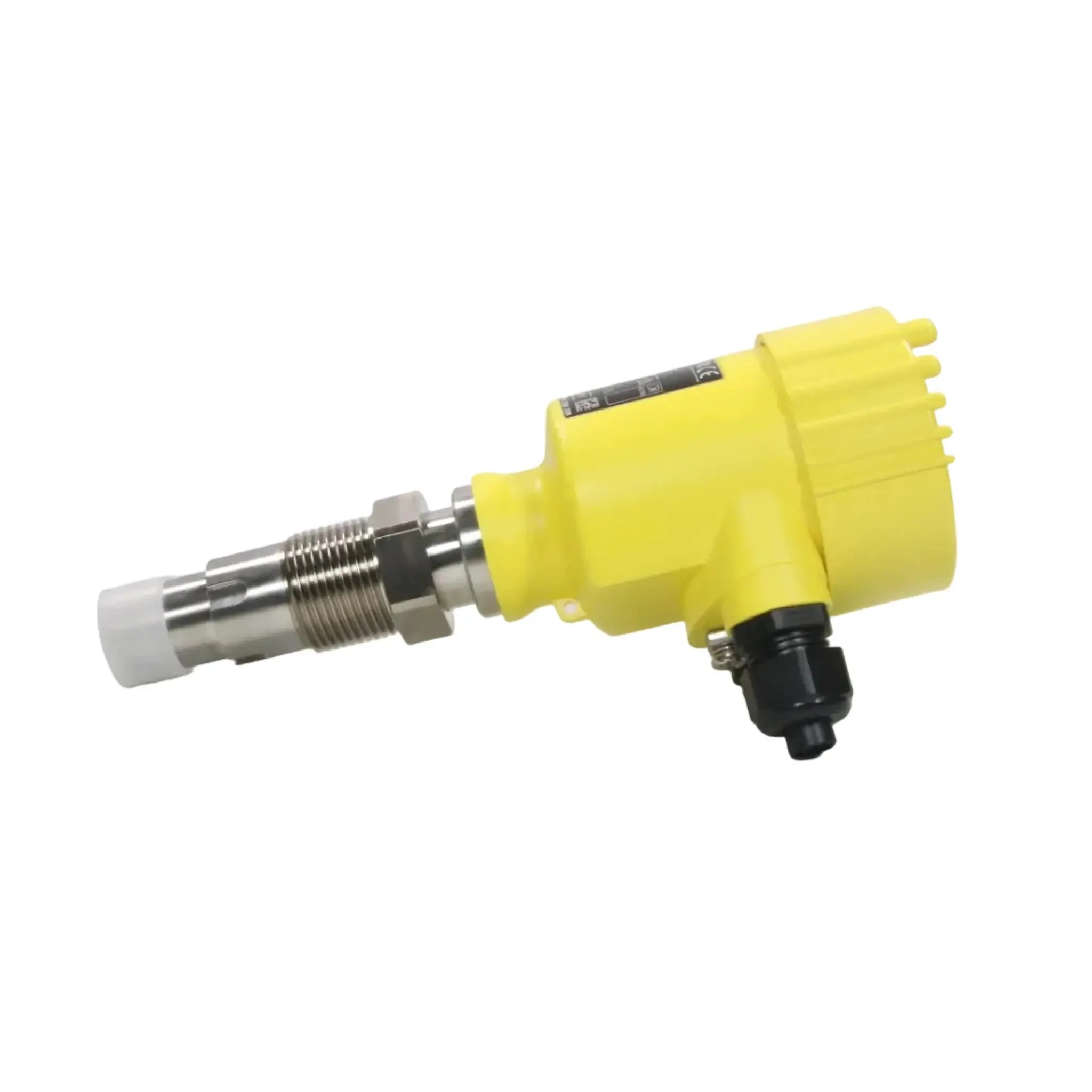

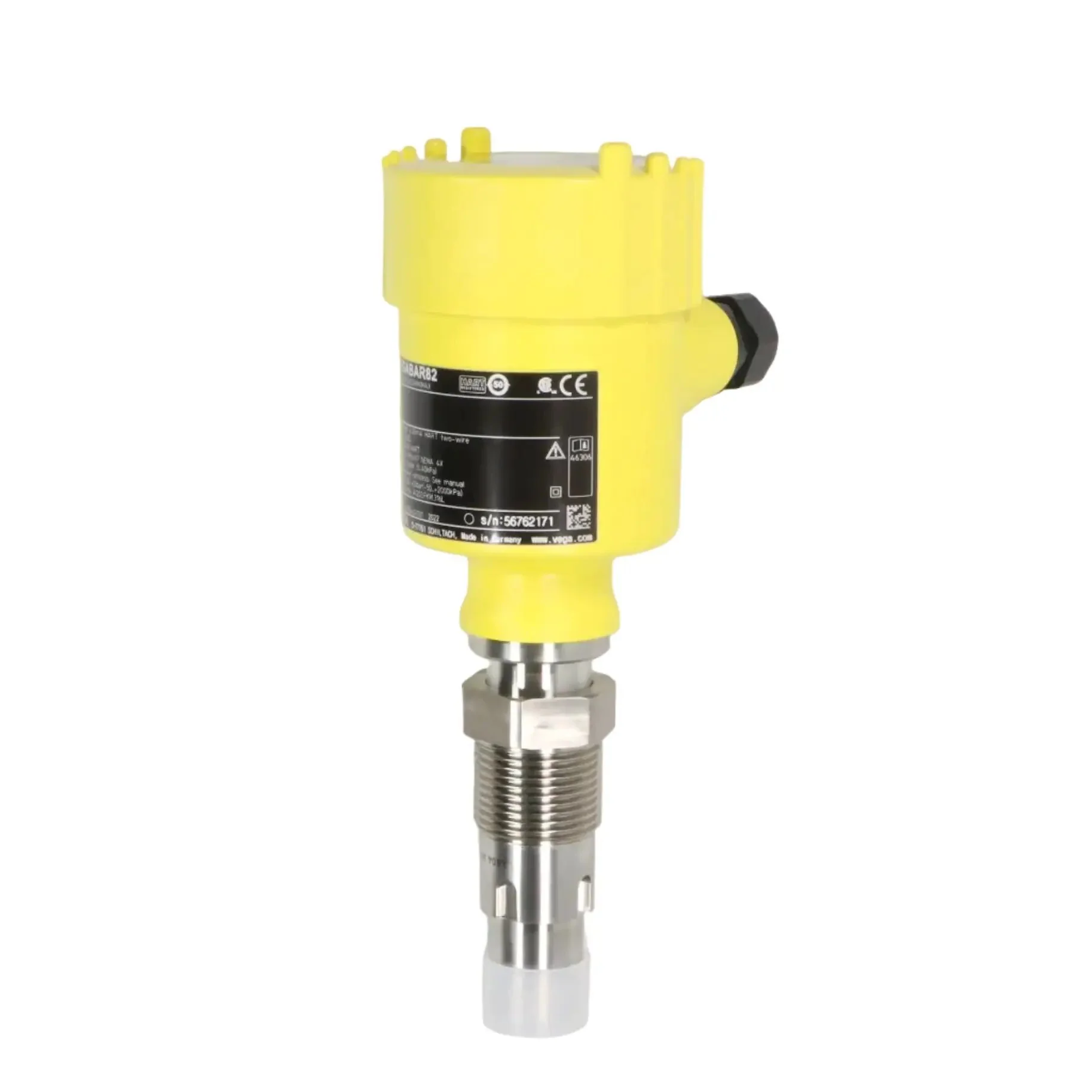

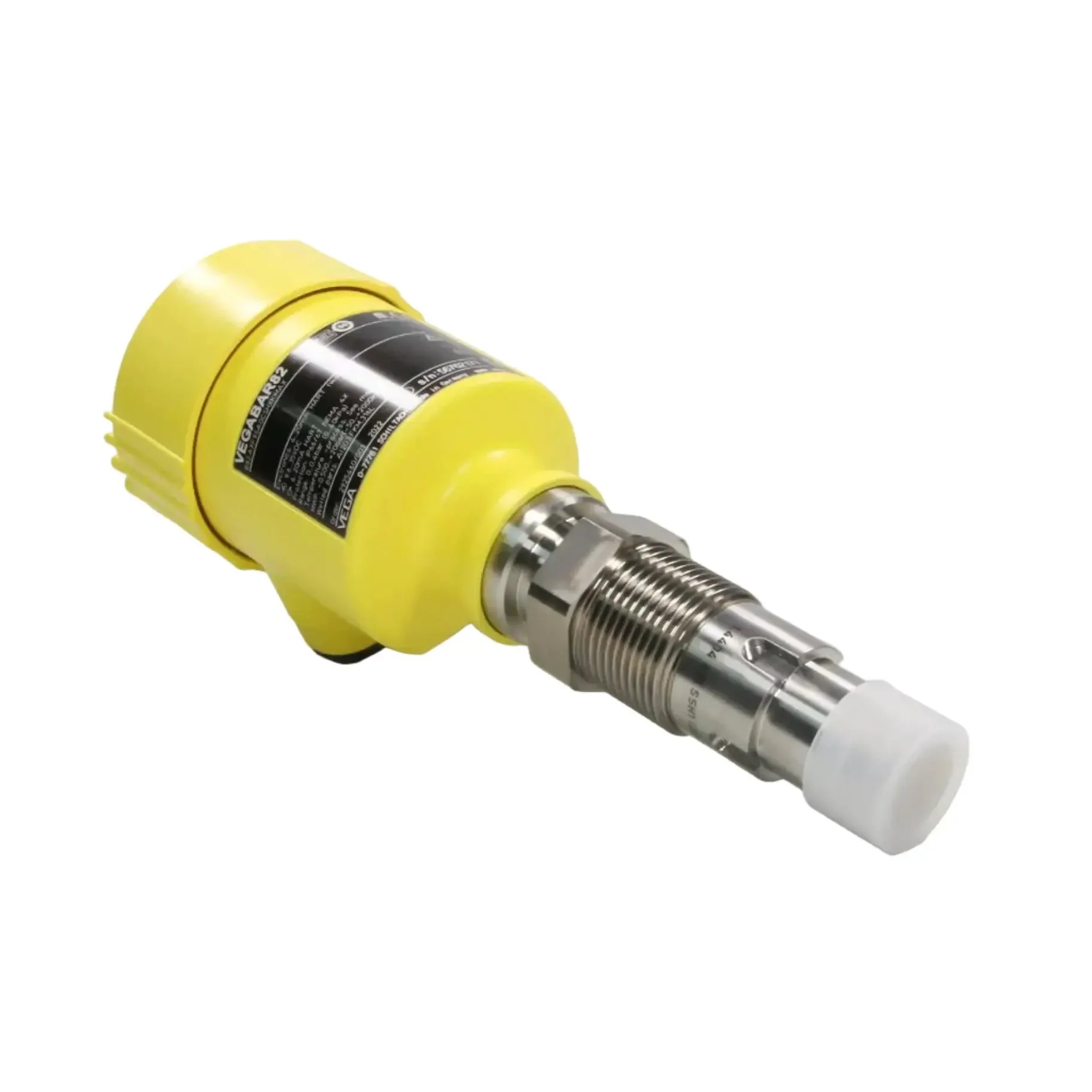

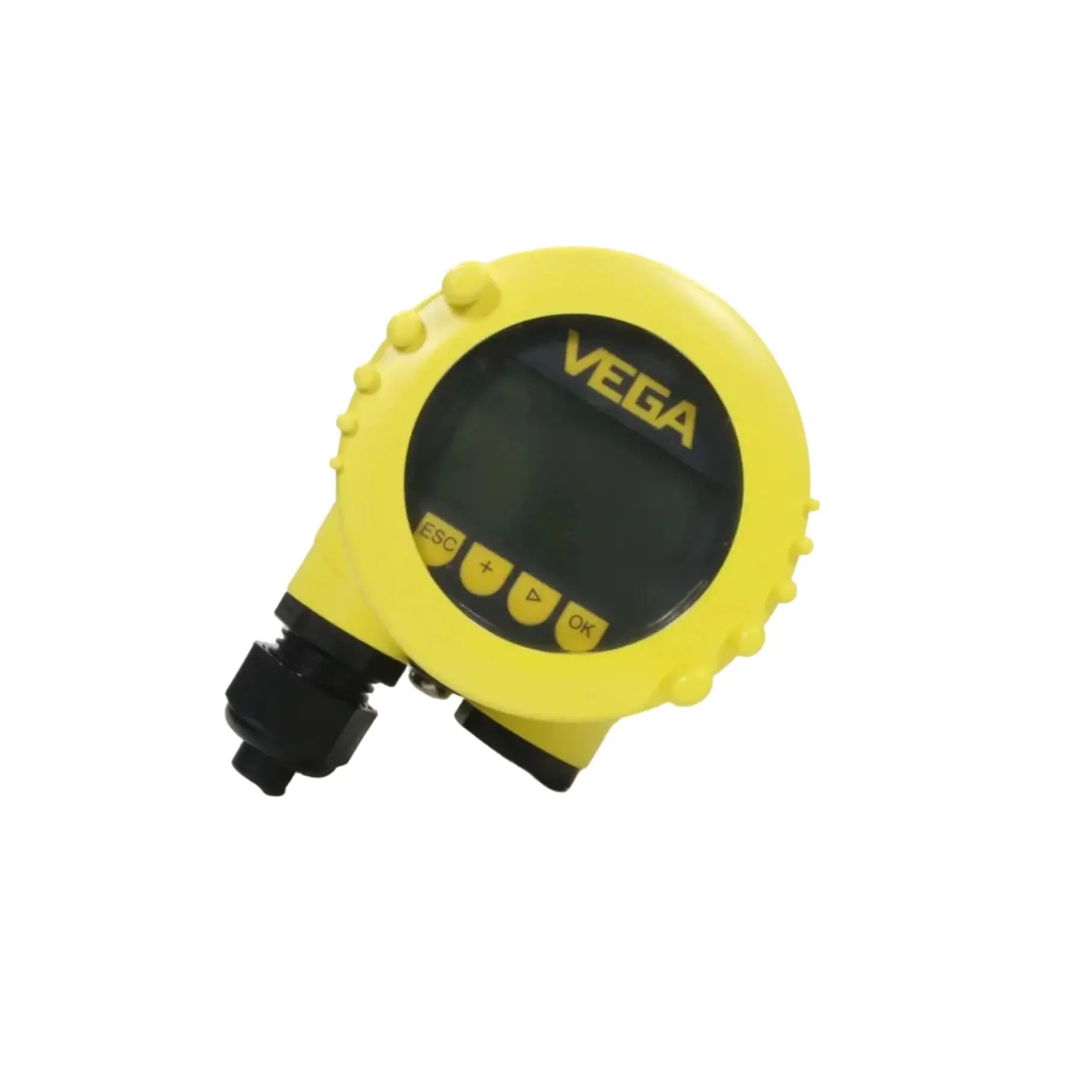

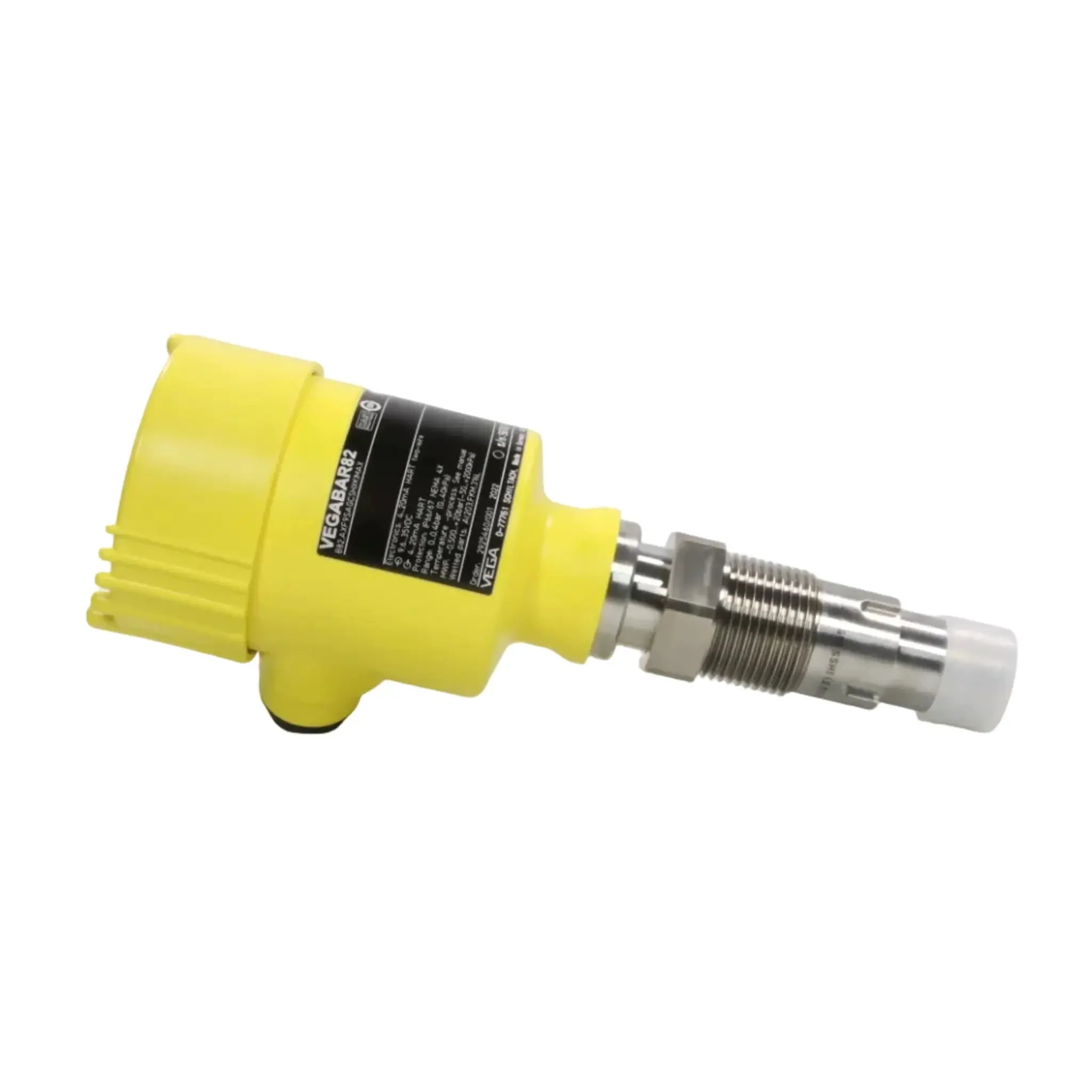

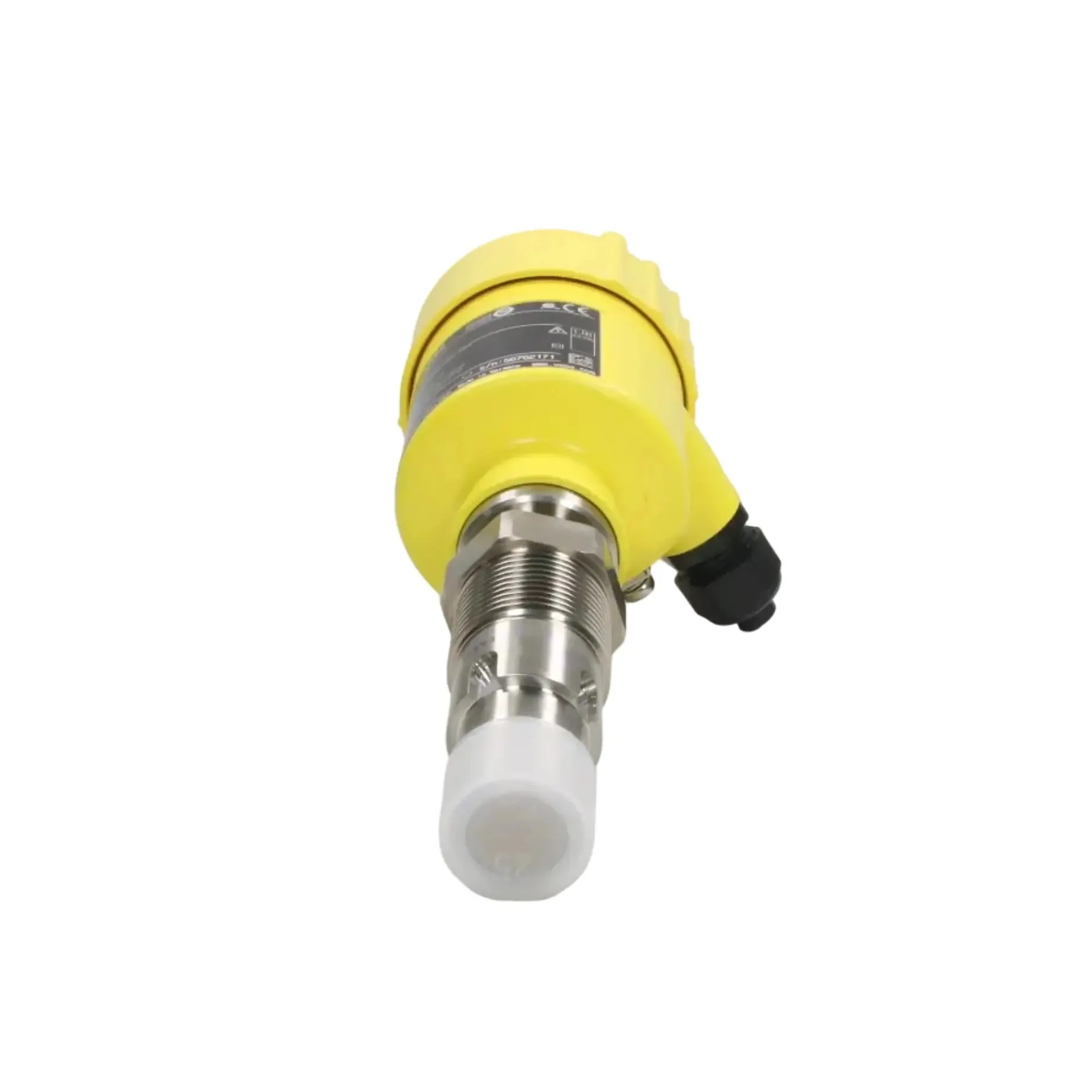

Vega Vegabar 82 Process Pressure Transmitter - B82.AXF95AGCSHXKIMAX

- Brand:VEGA

- Model: VEGABAR 82

- Code: B82.AXF95AGCSHXKIMAX

- Type: Process Pressure Transmitter with Display

- All tech specs:
- Measuring principle: Ceramic-capacitive dry measuring cell (CERTEC®)
- Measuring range: 0....0.4 bar
- Smallest measurable span: From 0.1 bar with high accuracy
- Process temperature: -20 … +130 °C
- Accuracy/Deviation: Typically 0.2 %
- Output signal: 4 … 20 mA / HART
- Overload resistance: High overload and vacuum resistance
- Features: Temperature shock resistant, abrasion-resistant ceramic cell, front-flush, electronic differential pressure capability when combined with another VEGABAR 80 series sensor, self-diagnostics, wear-free operation
- Process connection: G 1" - ISO 228-1 suitable for PASVE/316L
- Housing: Stainless steel
- Protection rating: IP66/IP67 NEMA 4X
- Power supply: 9.6 … 35 V DC
- Approvals: FM, CSA, SIL capable, hygienic approvals, ship approvals
- Wetted parts: AI203, FKM, 316L

Dimensions: 310 x 160 x 160 mm (box)

Weight: 1.1 kg

Country of origin: Germany

HS code: 902620
