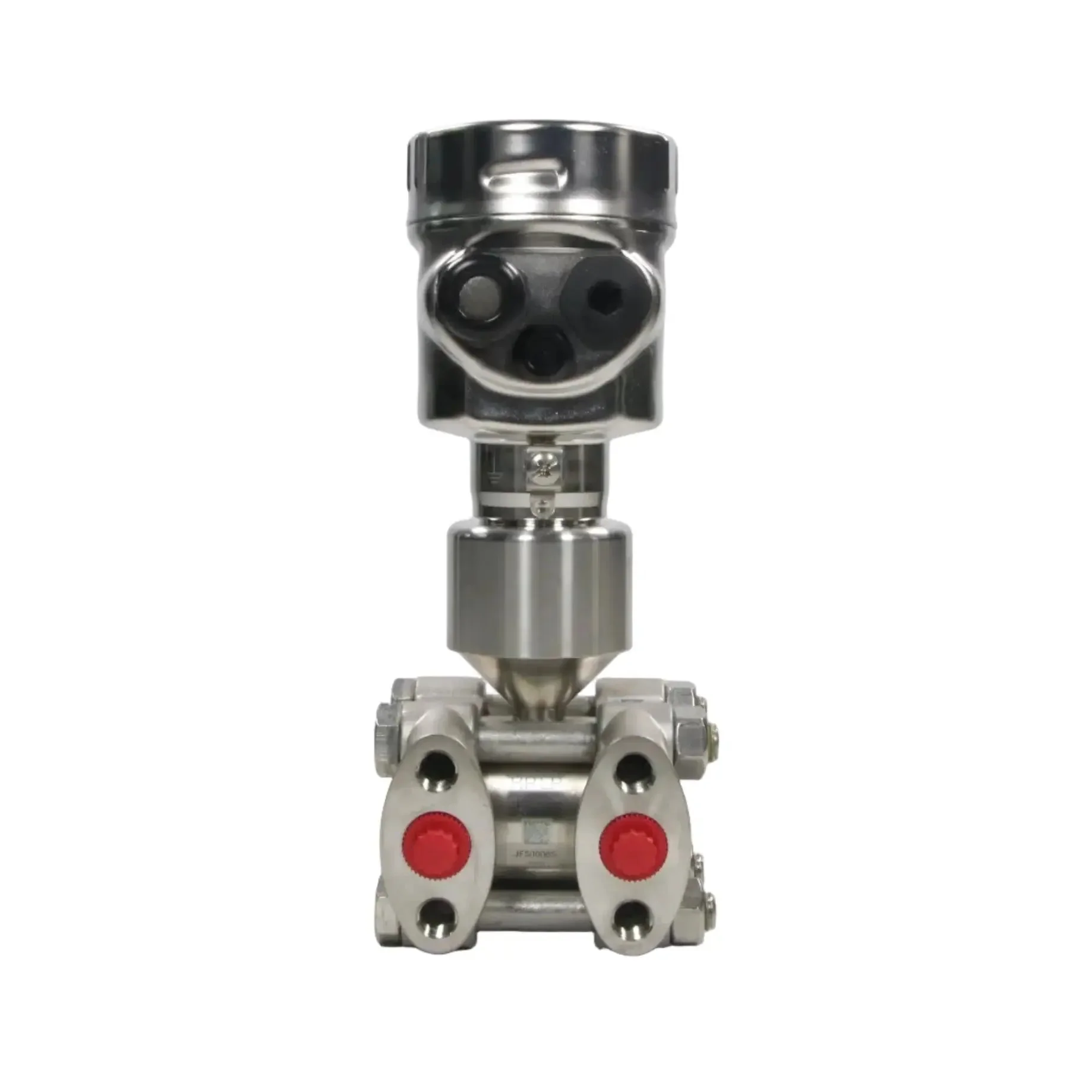

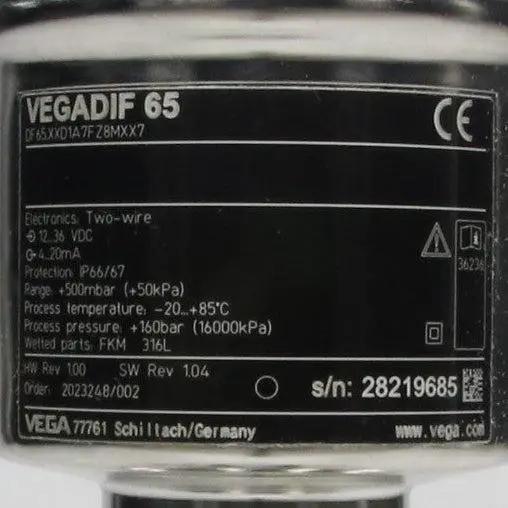

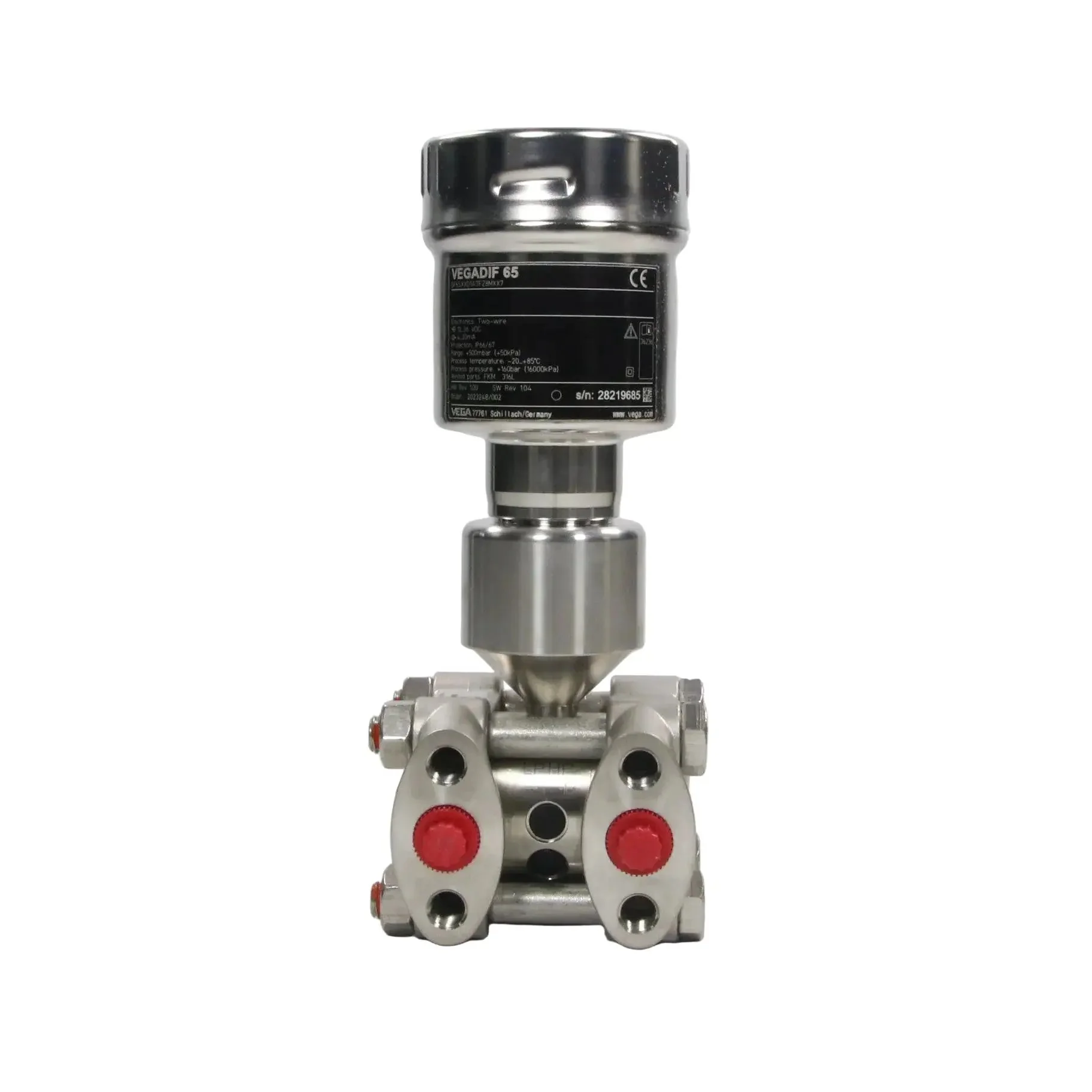

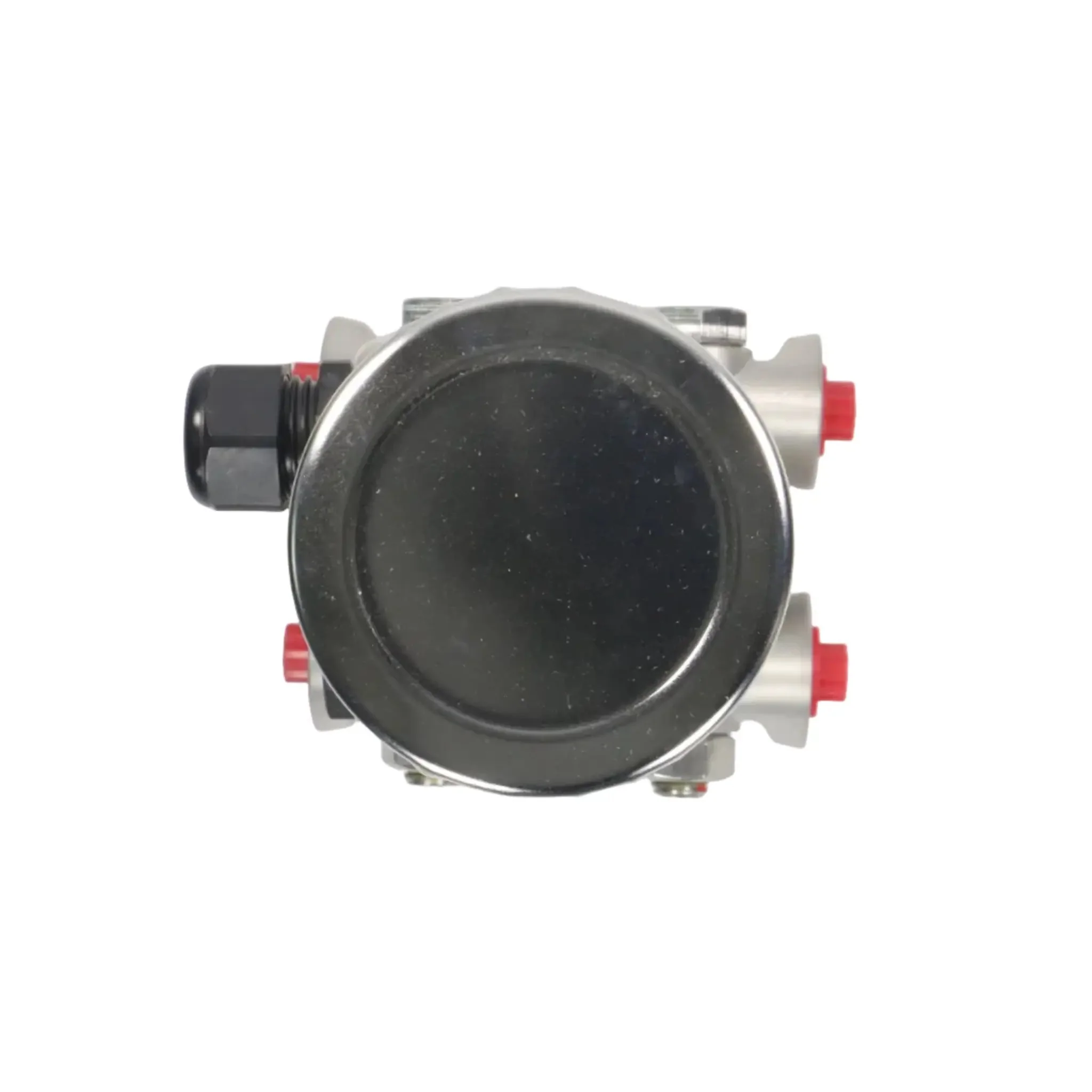

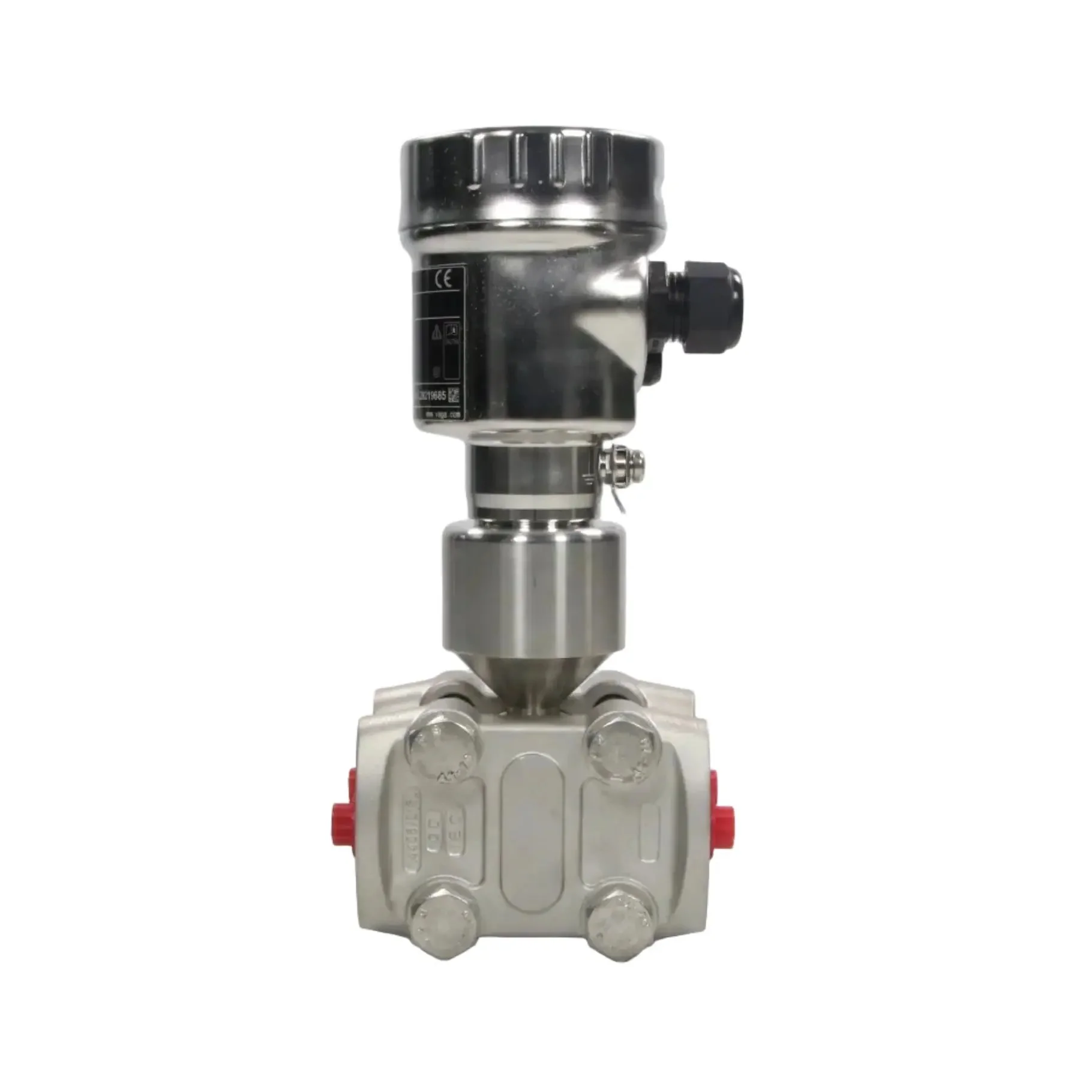

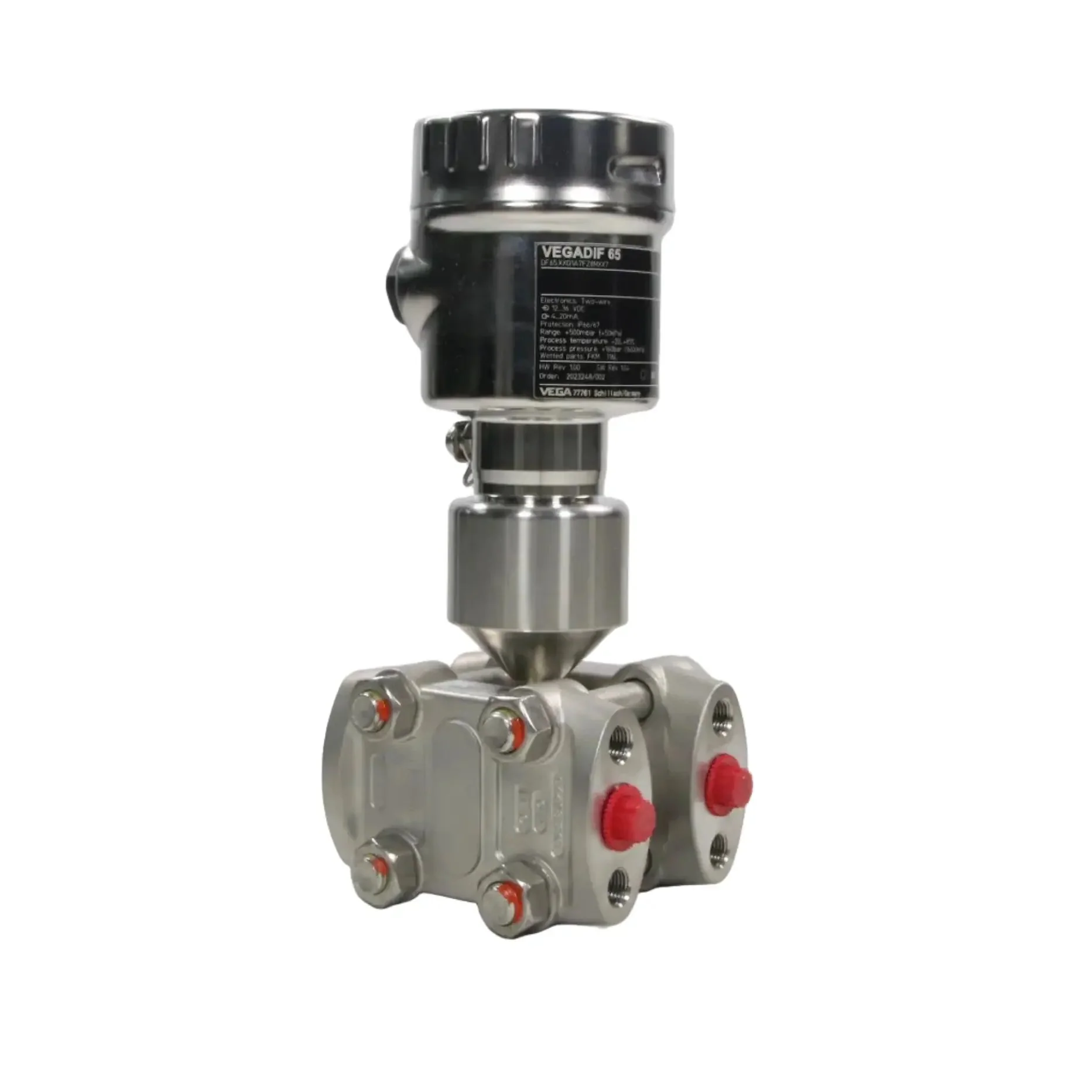

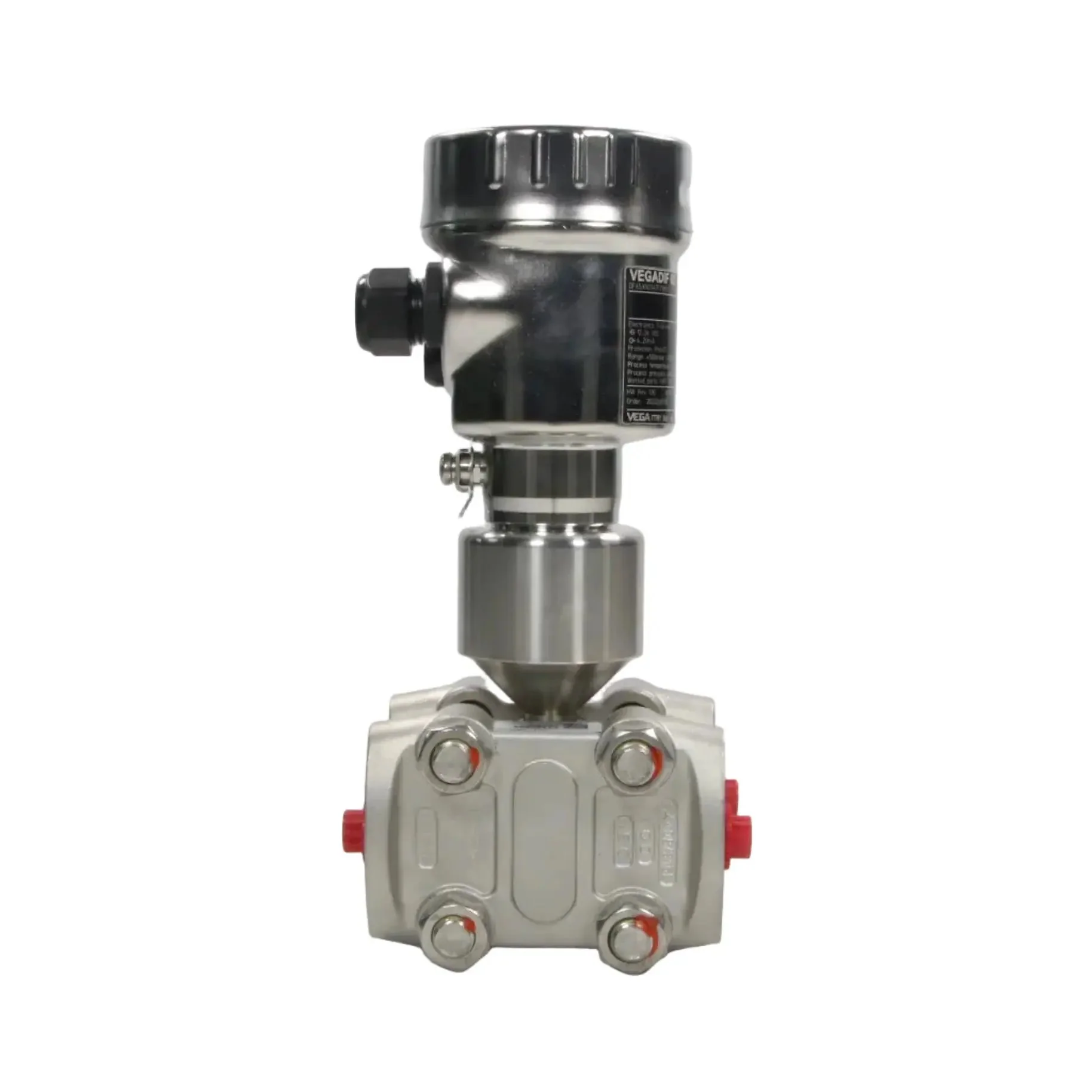

Vega Vegadif 65 Differential Pressure Transmitter - DF65.XXD1A7FZ8MXX7

- Brand: VEGA

- Model: VEGADIF 65

- Code: DF65.XXD1A7FZ8MXX7

- Type: Differential Pressure Transmitter

All tech specs:
- Measuring range: 0....+500 mbar
- Process temperature: -20 °C to +85 °C
- Process pressure: +160 bar
- Output signal: 4 ... 20 mA / two-wire
- Overload resistance: Integrated overload diaphragm for high operational reliability and protection against overpressure
- Features: High-precision data acquisition for low differential pressures, integrated overload protection, wide selection of process fittings, suitable for harsh process conditions, self-diagnostics, wear-free operation, optional chemical seals for aggressive media
- Process connection: Dual-sided; flanges 1/4-18 NPT
- Electrical connection: M20x1.5 cable gland
- Power supply: 12 ... 36 V DC
- Protection rating: IP66/IP67
- Housing: Stainless steel
- Approvals: FM, CSA, SIL capable, hygienic options
- Wetted parts: FKM, 316L

- Discontinued

Dimensions: 380 x 160 x 200 mm (box)

Weight: 4.5 kg

Country of origin: Germany

HS code: 902620
