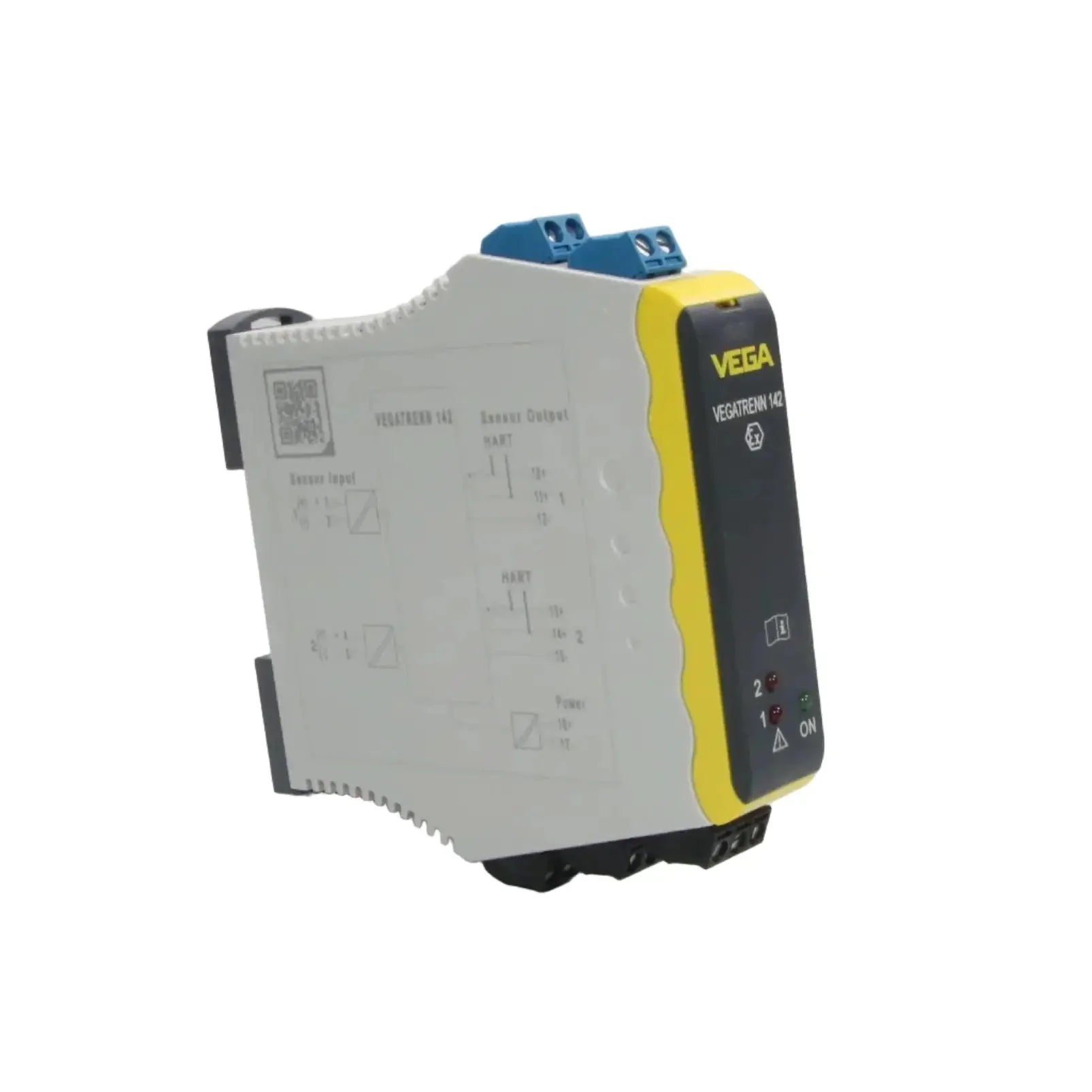

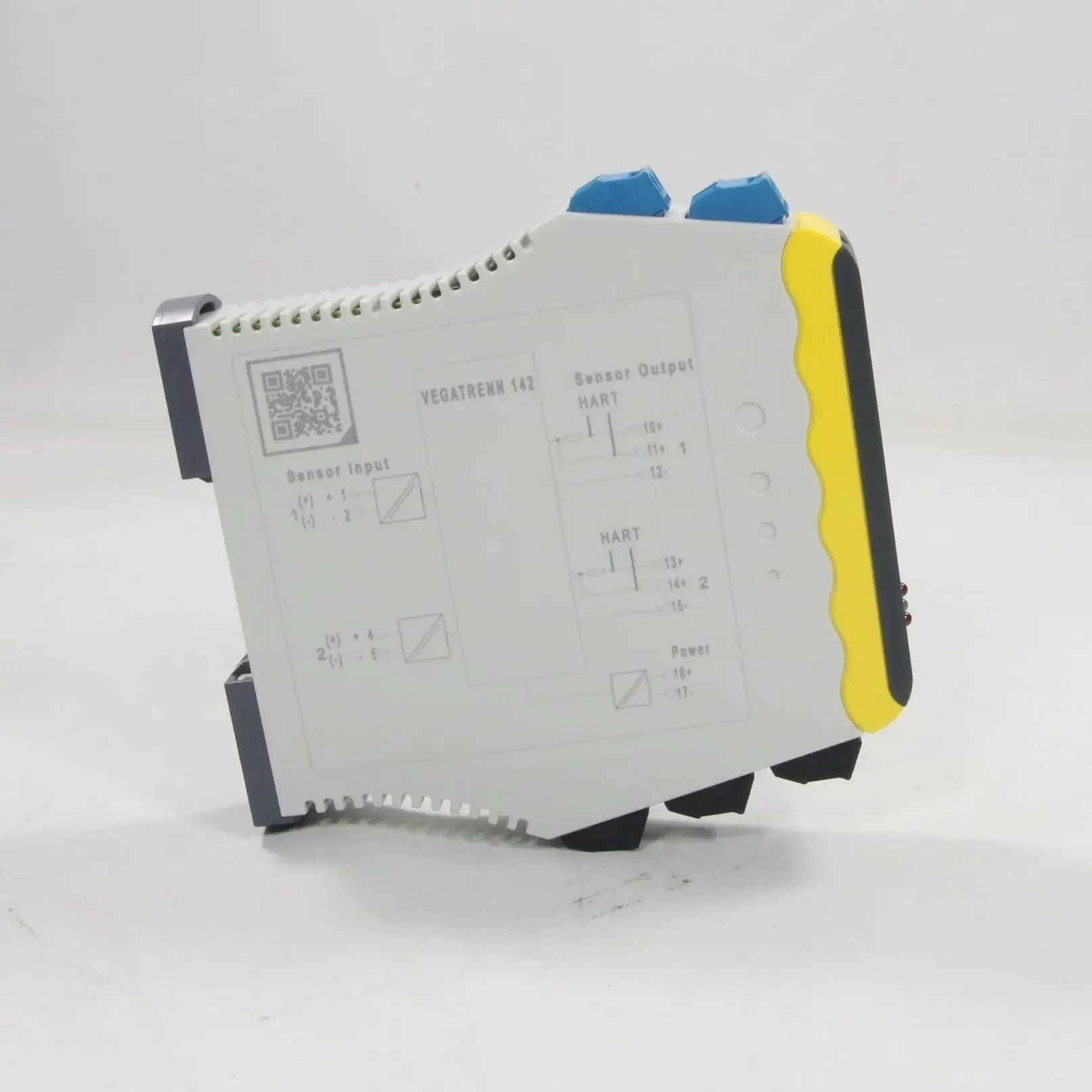

Vega Vegatrenn 142 Signal Separator - TRENN14.ACXXKBX

- Brand: Vega
- Model: Vegatrenn 142
- Type: Galvanic Isolator / Signal Separator
- Code: TRENN142.ACXXKBX

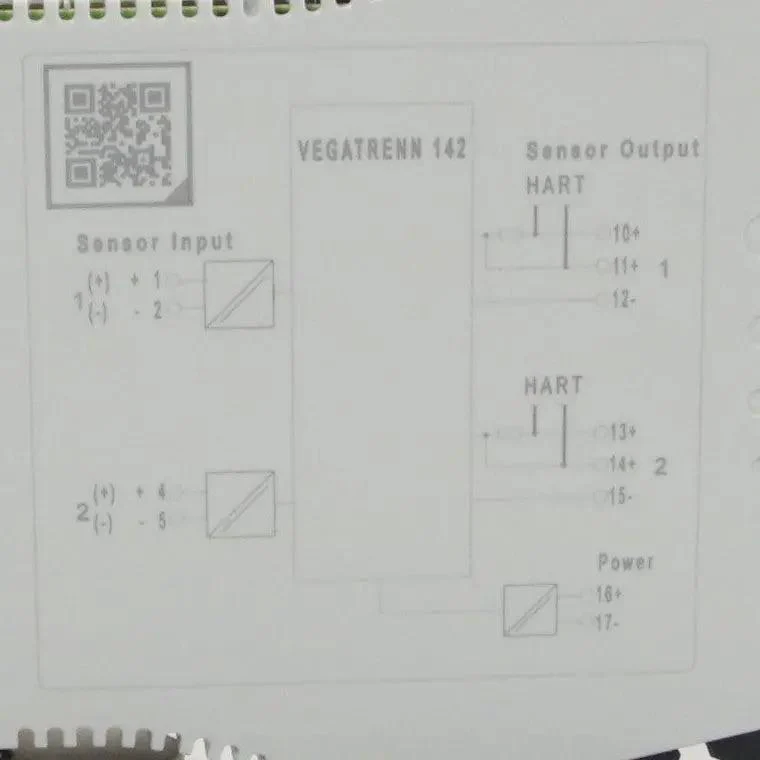

  - Function: 2-channel galvanic isolator for separation and transmission of 4...20 mA signals from hazardous to non-hazardous areas
  - Input: 4 × 4...20 mA
  - Output: 4 × 4...20 mA
  - Transmission Accuracy: ≤ ±0.1 % of span
  - Temperature Drift: ≤ ±0.01 % / K
  - Supply Voltage: 24...31 V DC
  - Power Consumption: Max. 5 W
  - Isolation: 1.5 kV AC between channels, input/output and power supply

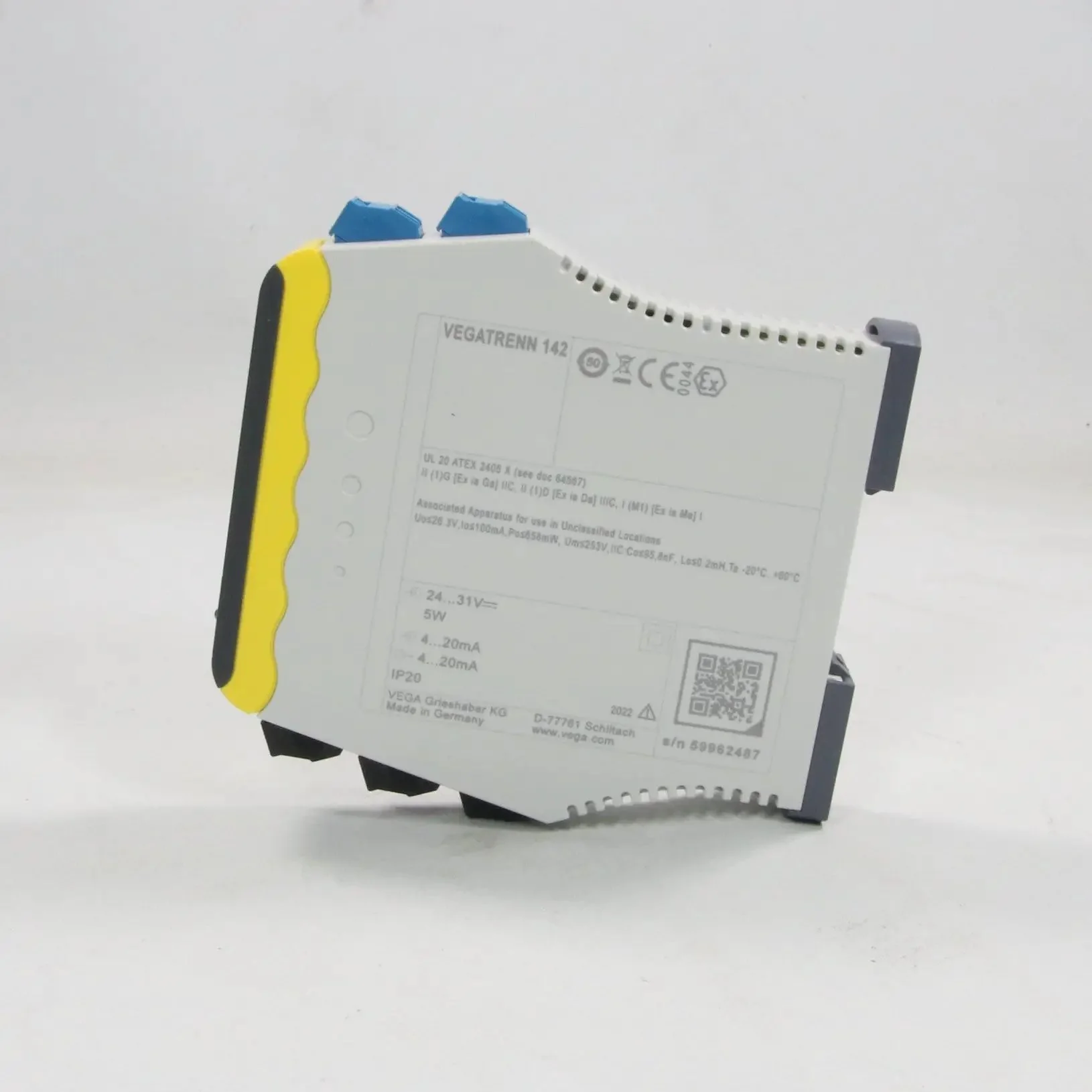

  - Intrinsic Safety: Ex ia IIC (input side), for connection to intrinsically safe circuits in Zone 0/1
  - Ambient Temperature: -20 °C to +60 °C
  - Protection Rating: IP20
  - Housing Material: Polycarbonate

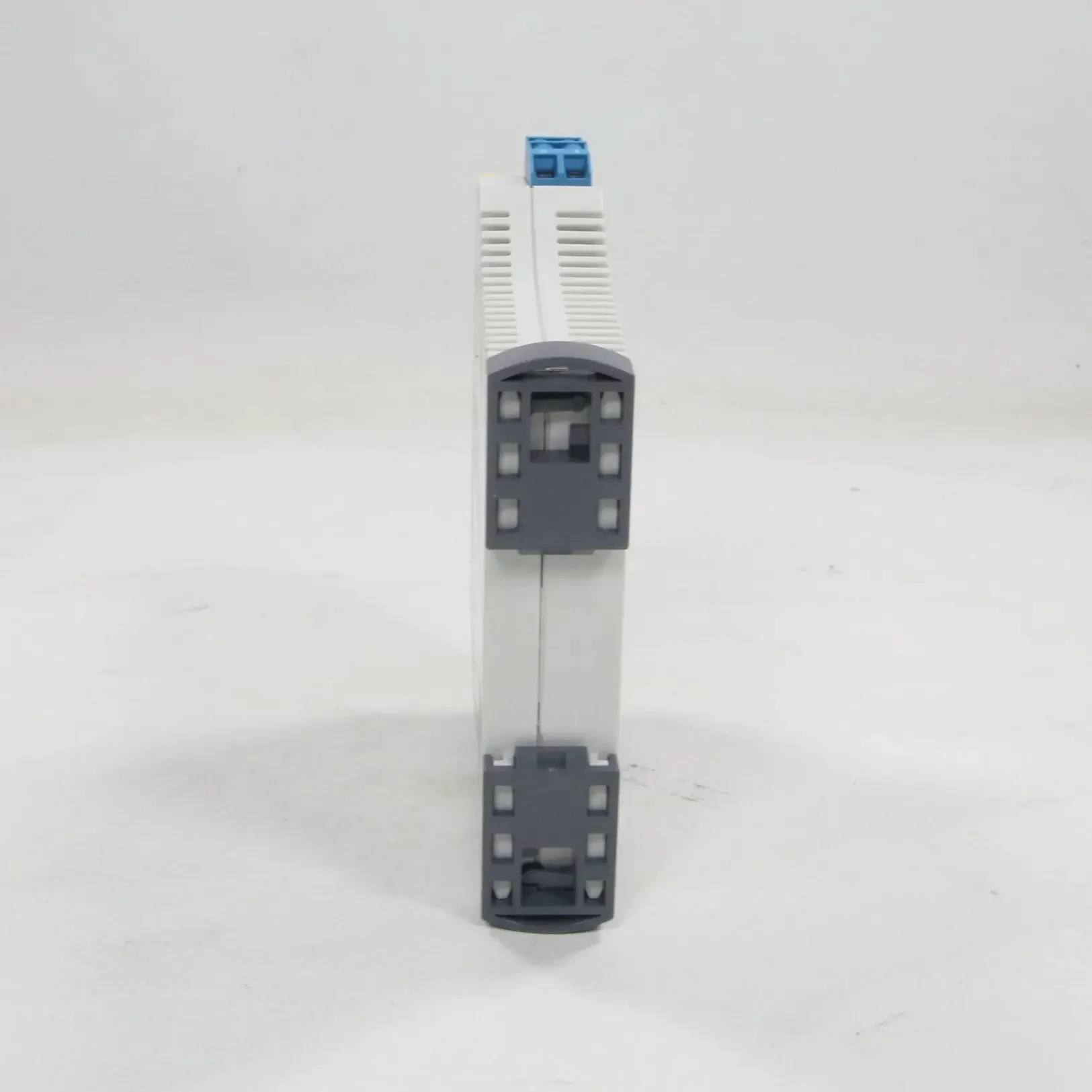

  - Mounting: DIN rail (35 mm TS)
  - Electrical Connection: Screw terminals (0.2...2.5 mm²)

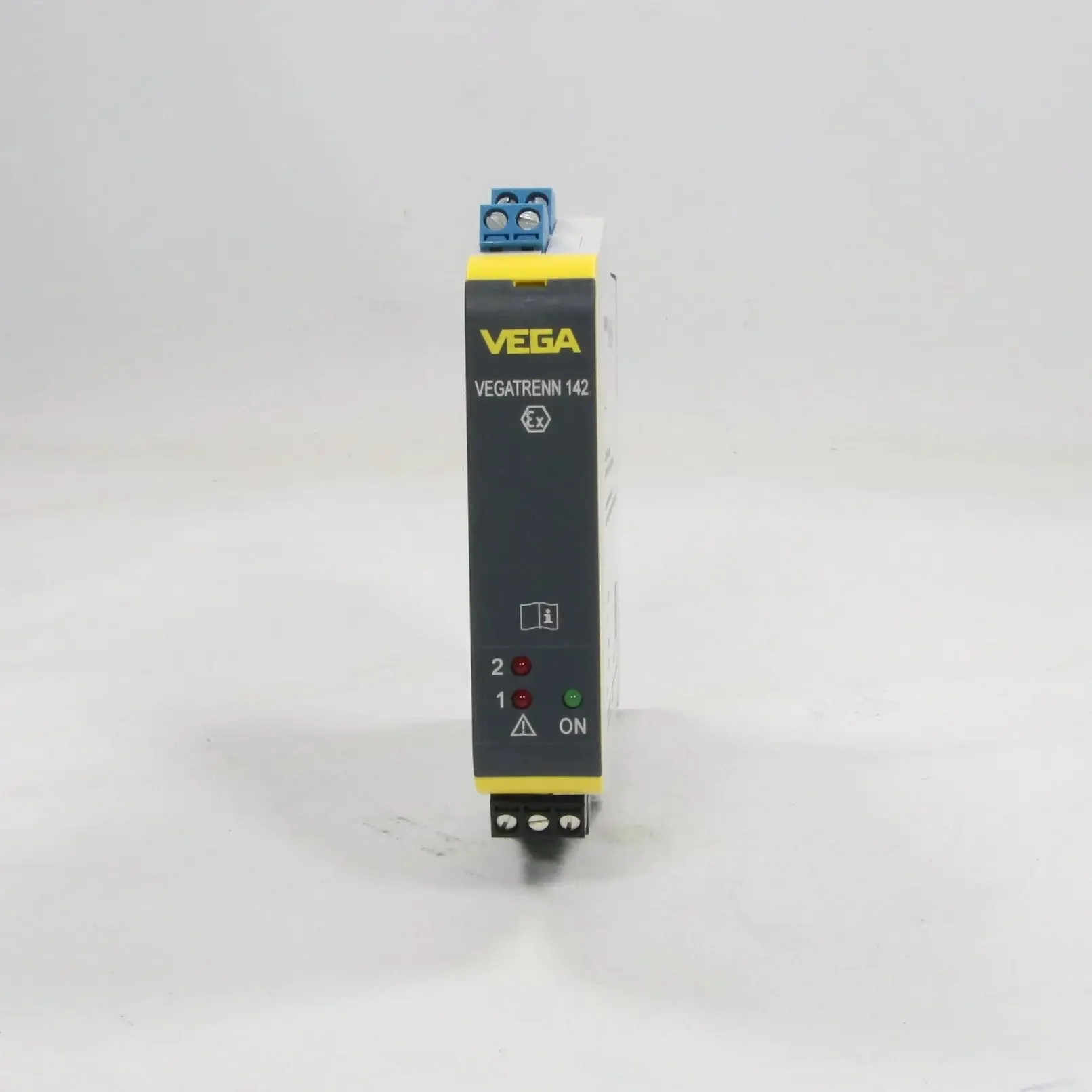

  - Features: 2 independent channels, bidirectional HART transparency, LED status indication per channel, fault relay output, low power consumption, high EMC immunity
- Dimensions: 120 x 20 x 110 mm
- Weight: 200 g
- Country of origin: Germany
- HS code: 853890
