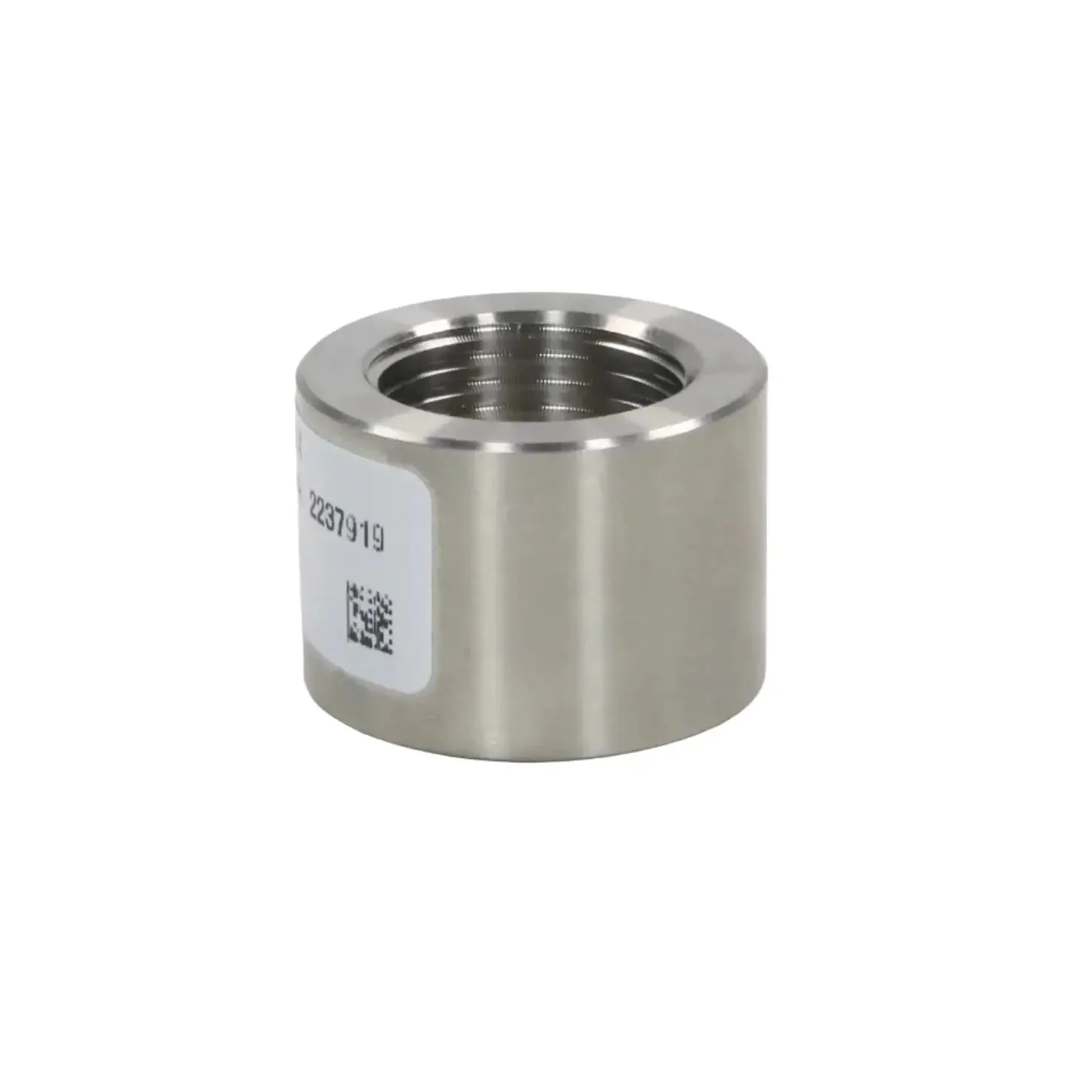

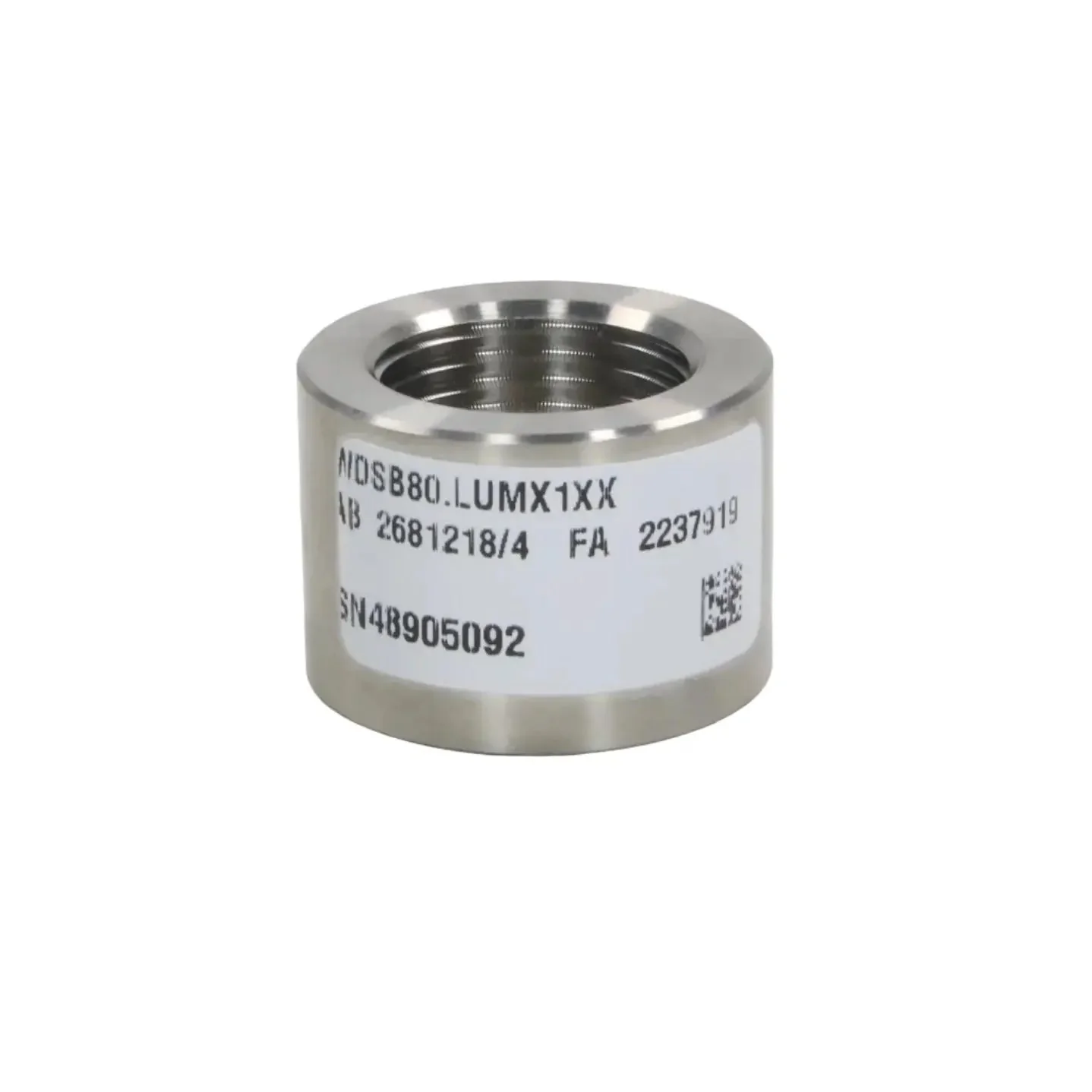

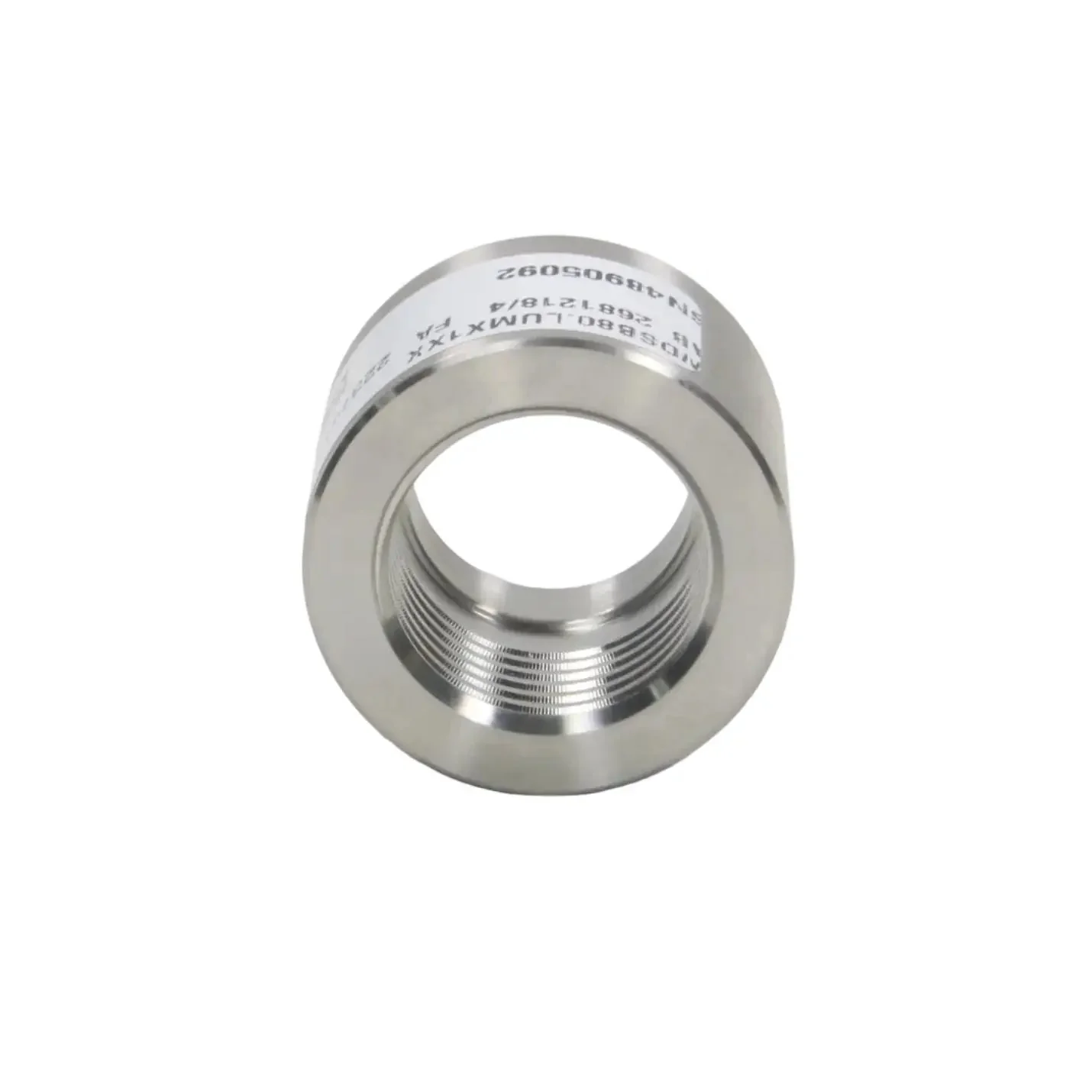

Vega Weld On Socket - WDSB80.LUMX1XX

- Brand: VEGA

- Model: WDSB80.LUMX1XX

- Type: Welded Socket / Weld-On Socket - Threaded Welded Adapter for VEGA Sensors

- All tech specs:
- Thread size: G½ - ISO228-1, flush mounted with O-ring

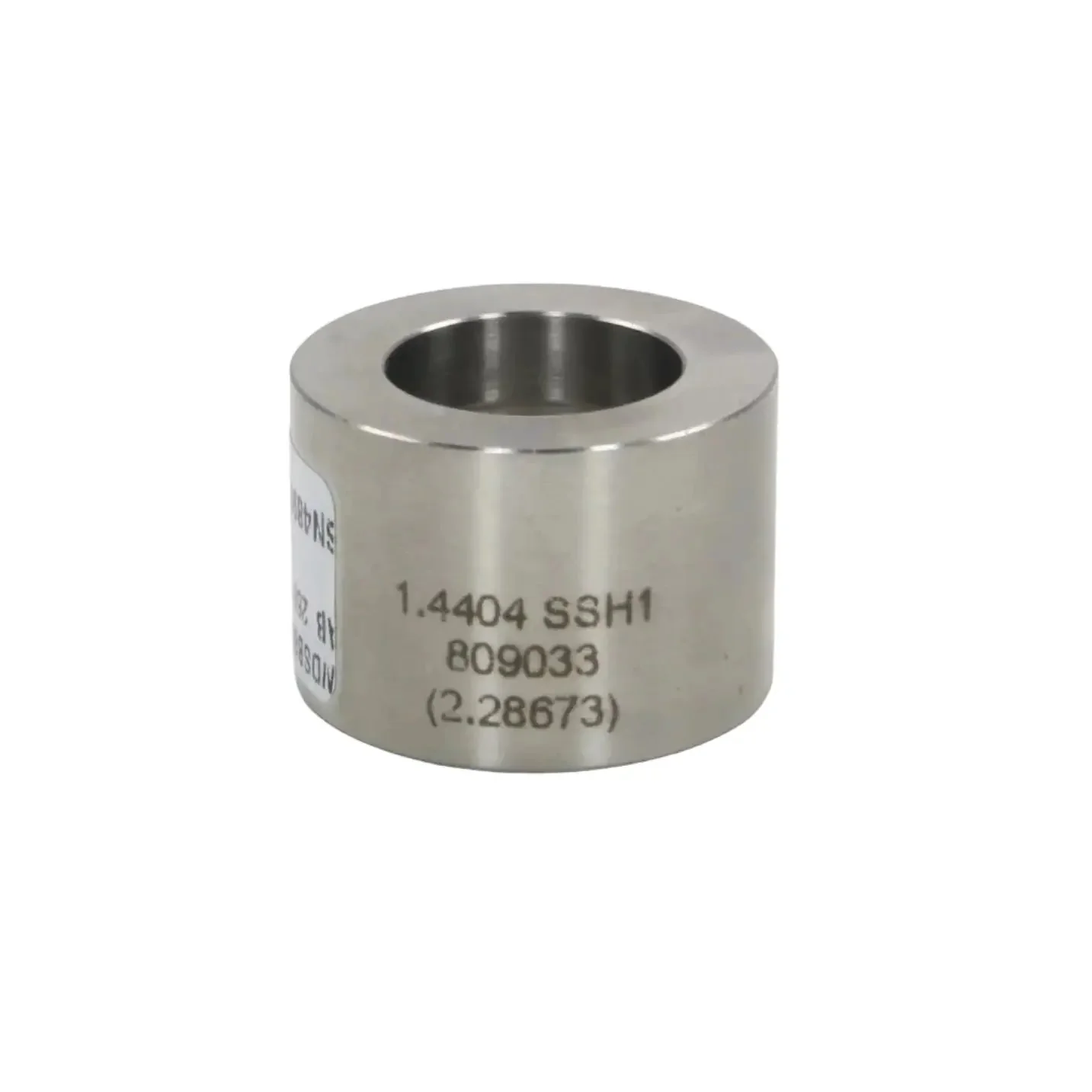

- Material: Stainless steel 316L (1.4404)
- Welding dummy / blind plug: Brass or 316L blind plug for protection during welding - not included
- Function: Provides secure, leak-proof process connection; front-flush or recessed design options for cleanability and reduced dead space
- Compatibility: Suitable for VEGA pressure, level, and point level sensors with G½ threaded fittings, from 2.5 bar
- Standard: Conforms to ISO 228-1 for manometer connections
- Features: High corrosion resistance (316L), suitable for welding (TIG/MIG recommended), hygienic design potential, overload/vacuum resistant when paired with sensor
- Mounting: Weld directly to process vessel or pipe
- Protection: Maintains sensor IP rating when properly installed
- Part of VEGA accessory range: Welded sockets for reliable sensor integration in process engineering

Dimensions:

O.D. ø 30 mm  - Thread length: Standard G½ - 12 mm

110 x 110 x 80 mm (box)

Weight: 150 g

Country of origin: Germany

HS code: 730729
