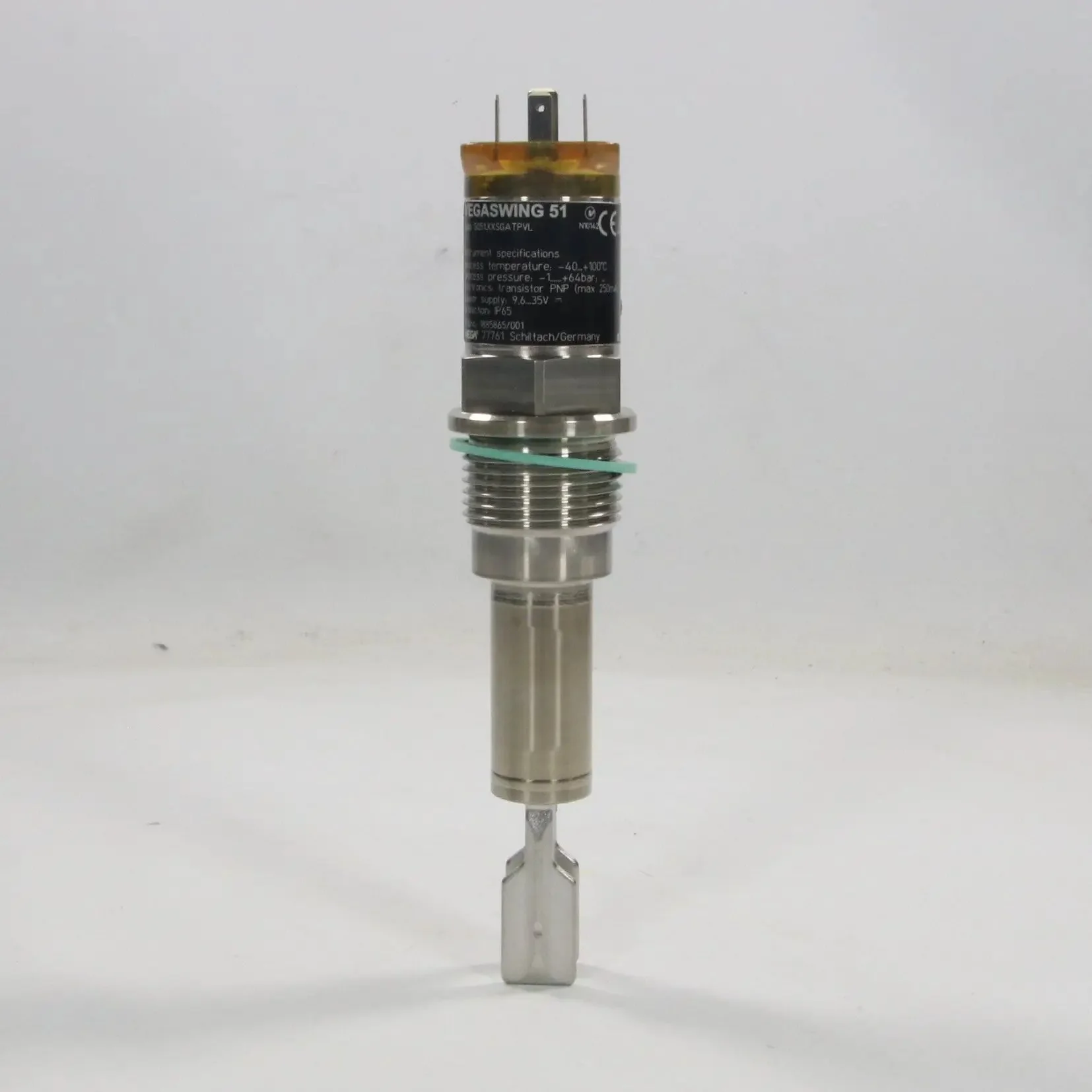

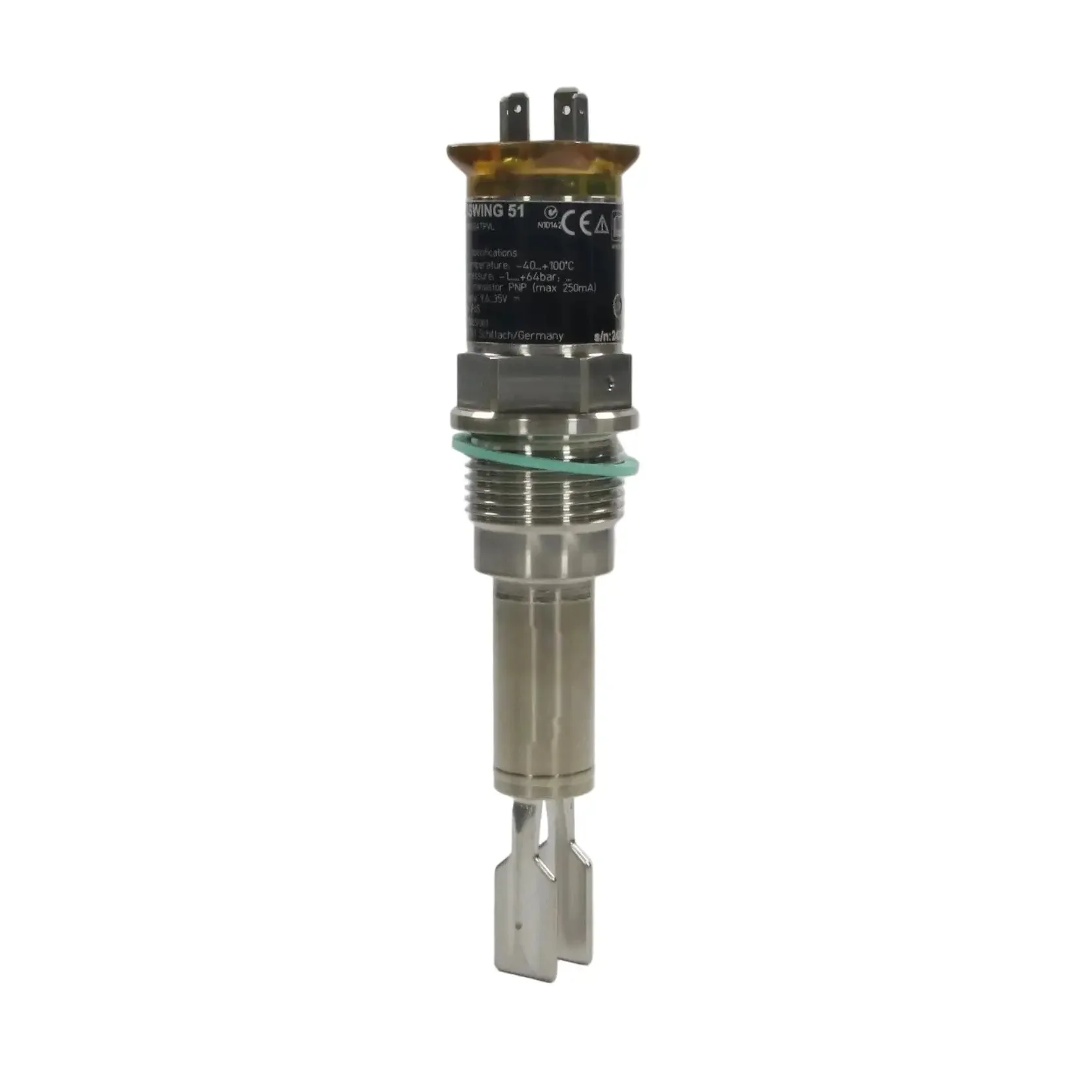

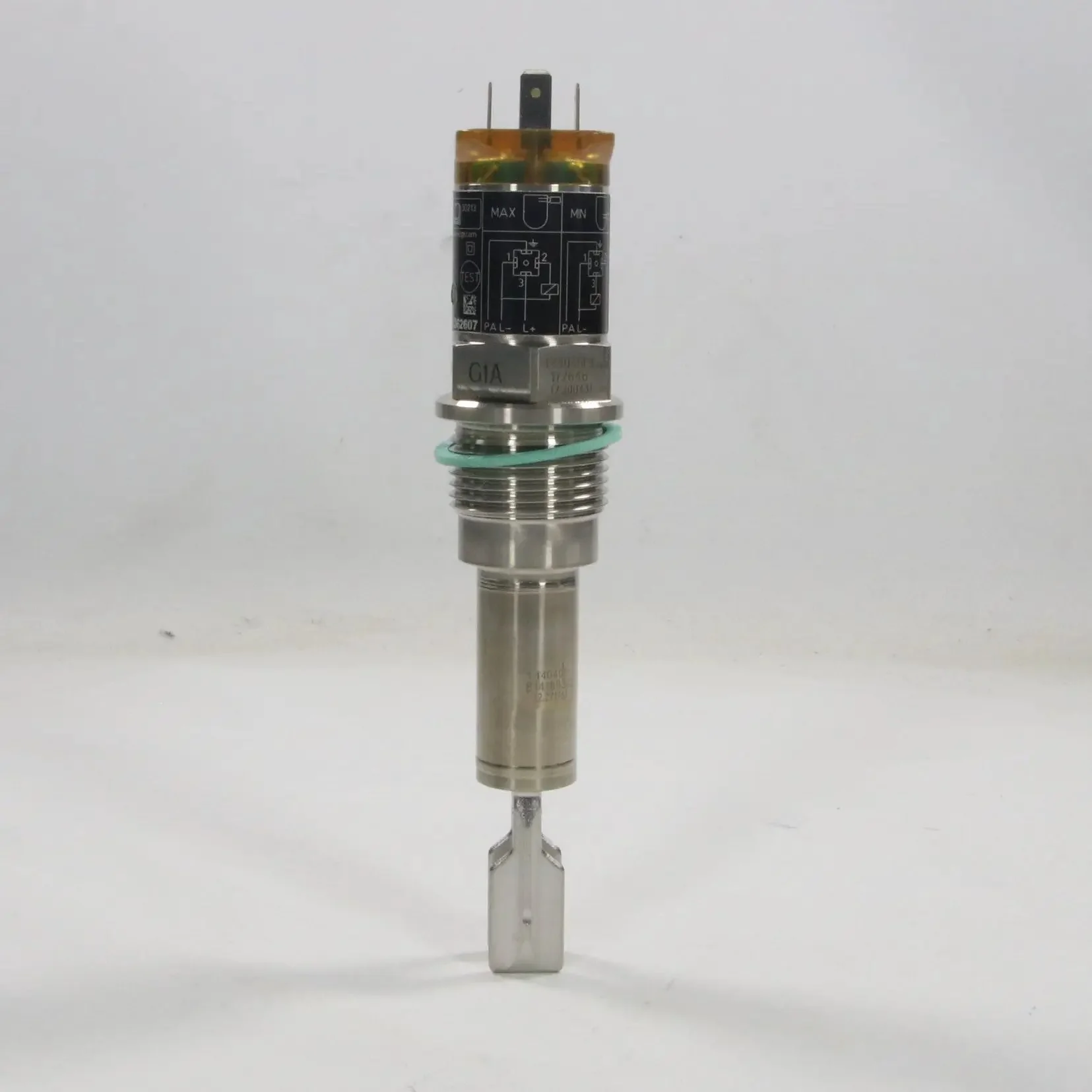

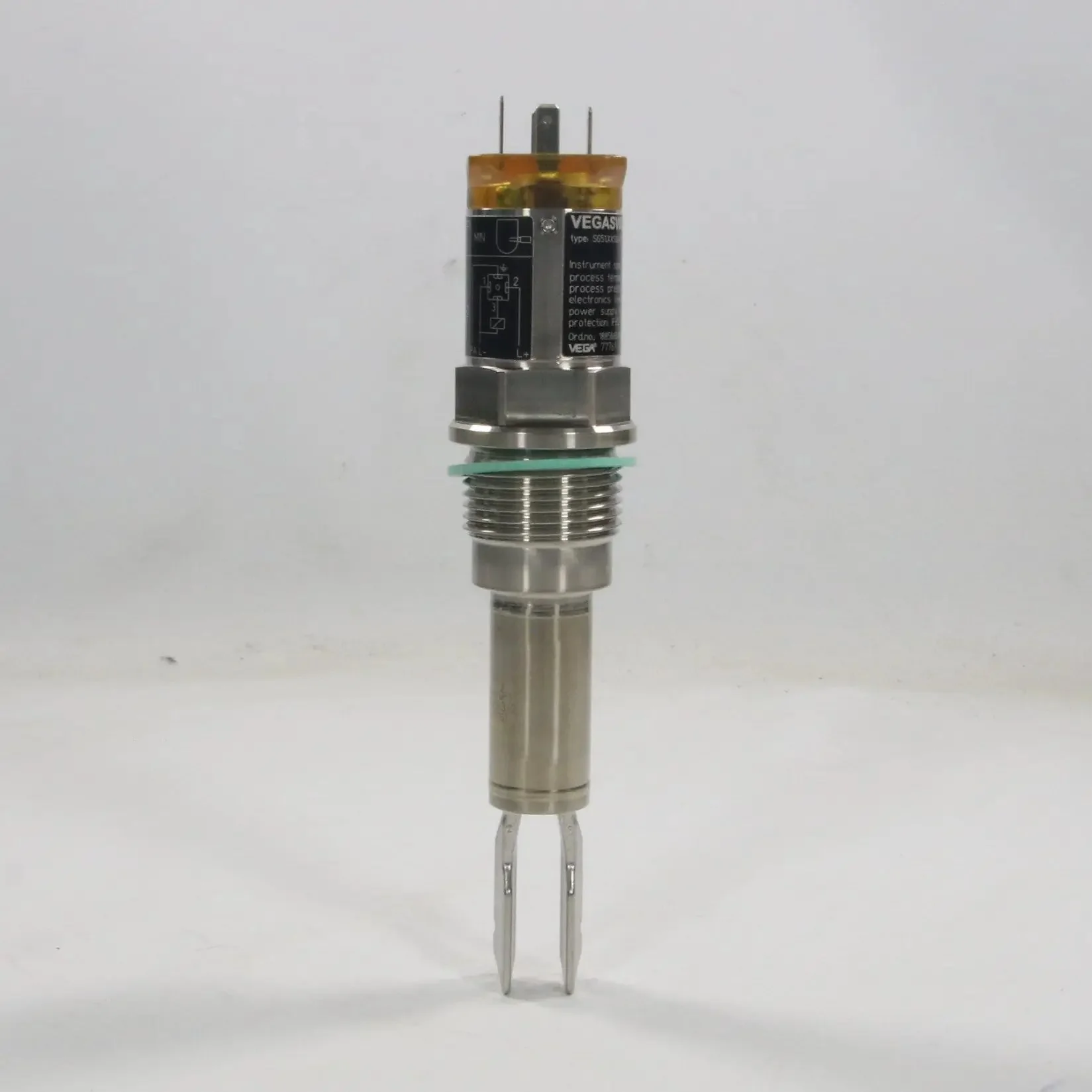

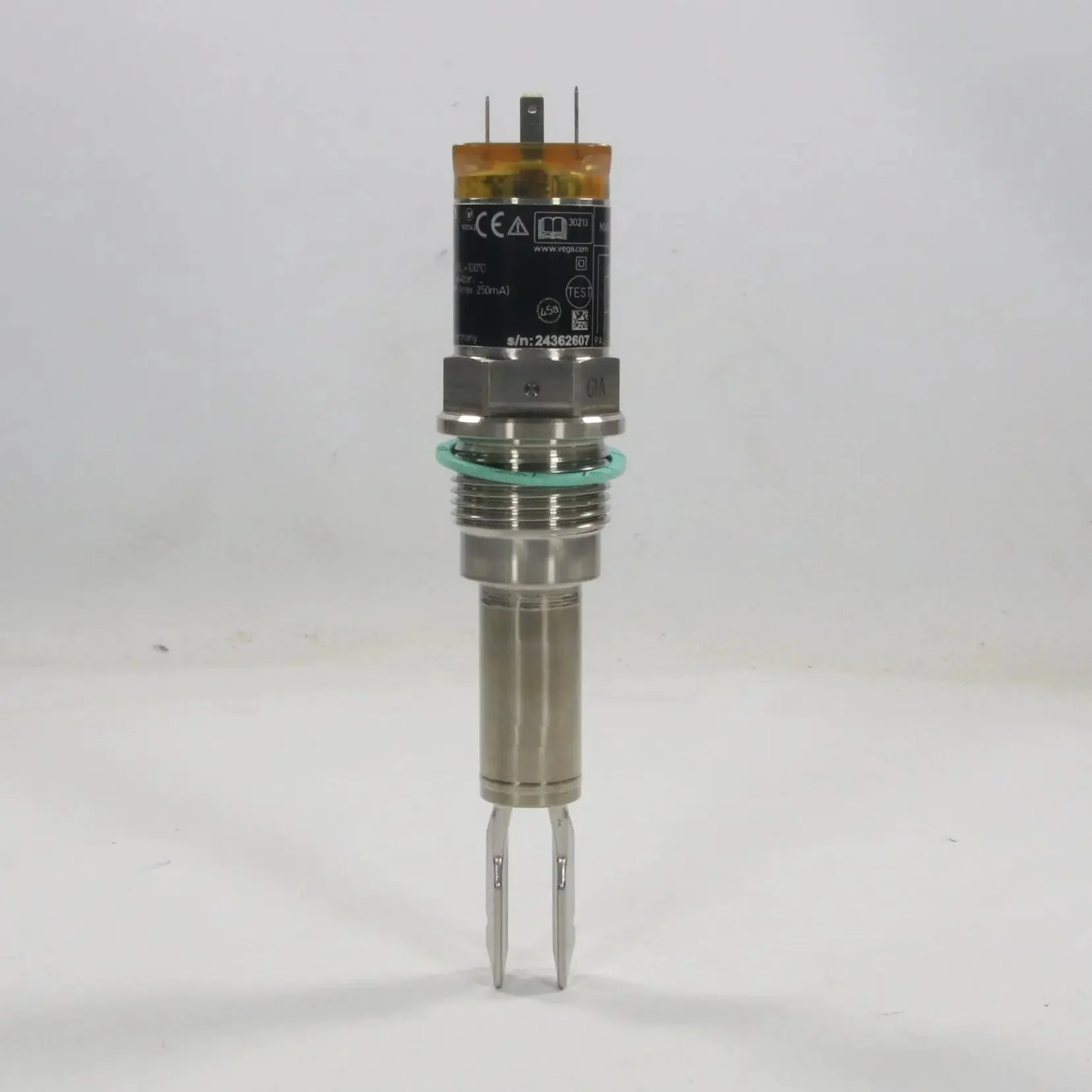

Vega Vegaswing 51 Vibration Level Switch - SG51.XXSGATPVL

- Brand: VEGA Grieshaber KG

- Model: VEGASWING 51

- Type: Vibration Level Switch

- Part number: SG51.XXSGATPVL

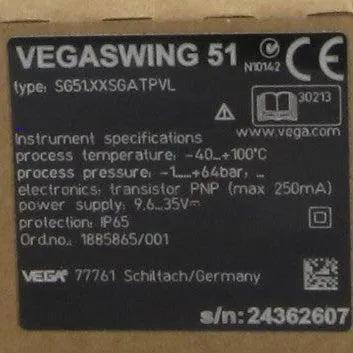

Technical specifications:
- Measuring principle: Vibration
- Output: PNP transistor output
- Supply voltage: 9.6–35 V DC
- Switching capacity: Max. 250 mA
- Process connection: G1A"
- Fork material: Stainless steel 1.4404
- Process temperature: -40°C to +100°C
- Process pressure: Vacuum to 64 bar
- Density range: ≥0.5 g/cm³
- Viscosity: Up to 10,000 mPa·s
- Protection class: IP65
- Housing: Stainless steel
- Additional features: Self-monitoring; no calibration required; insensitive to foam, turbulence, bubbles, or product build-up; fast response (<1 s); hygienic approvals; suitable for CIP/SIP processes; compact and robust for tight spaces
- Standards: Compliant with IEC/EN 61010, 61326; CE marked

Weight: 400 g

Dimensions: 320 x 320 x 50 mm

Country of origin: Germany

HS code: 9031.80
