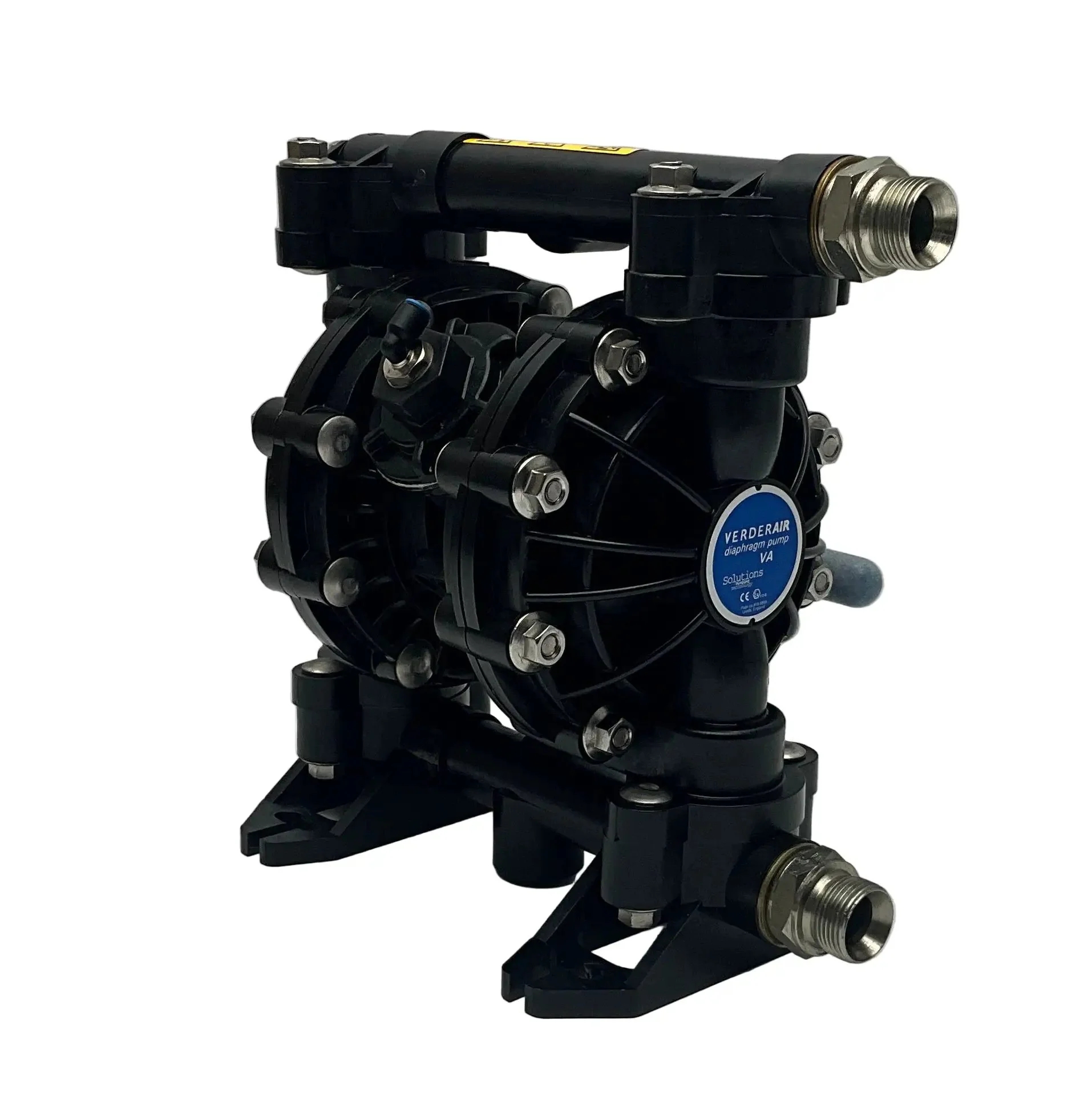

Verderair VA 810.6771 Air Operated Double Diaphragm Pump

Brand: Verderair
Model: VA
Type: Air Operated Double Diaphragm Pump
Part Number: 810.6771

Technical Specs:
- Pump Type: Air-operated double diaphragm pump for industrial applications
- Air Inlet: 1/4" NPT female
- Fluid Inlet: 1/2" NPT female
- Maximum Air Inlet Pressure: 7 bar
- Flow Rate: 57 L/min
- Solids Handling: 2.5 mm
- Suction Lift: 4.5 m wc
- Discharge Head: 80 m
- Maximum Material Temperature: 82°C
- Wetted Parts: Polypropylene body, PTFE diaphragms, Santoprene balls and seats
- Air Consumption: 150 SCFM at 6.9 bar
- Additional Features:
  - Bolted construction for safe operation and easy maintenance
  - Self-priming and dry-running capable
  - ATEX compliant for hazardous environments
- Certifications: ATEX (II 2/2 GD c IIB T4 X)

Dimension: 400 x 300 x 220 mm

Weight: 4.5 kg

Country of Origin: Netherlands

HS Code: 8413.60
