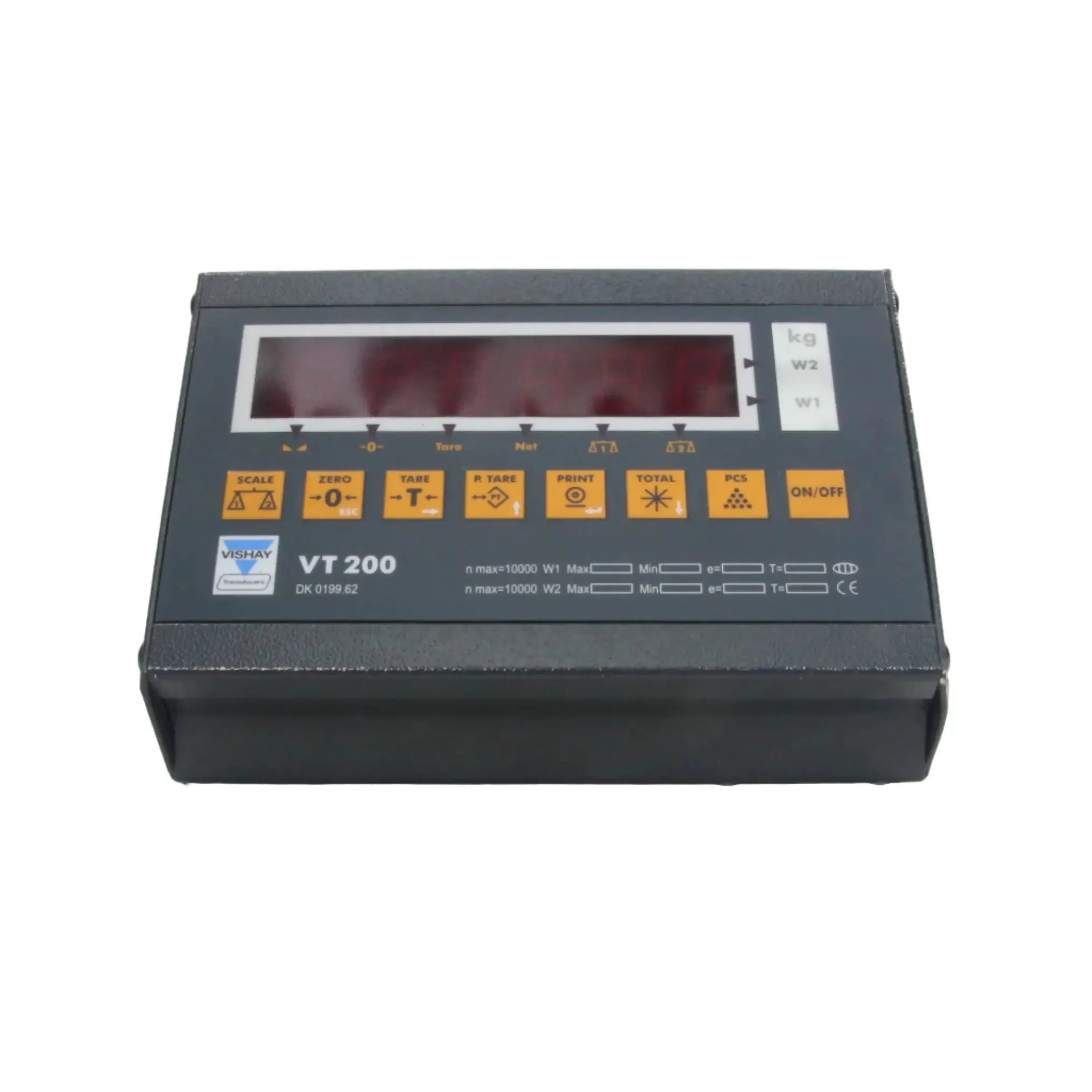

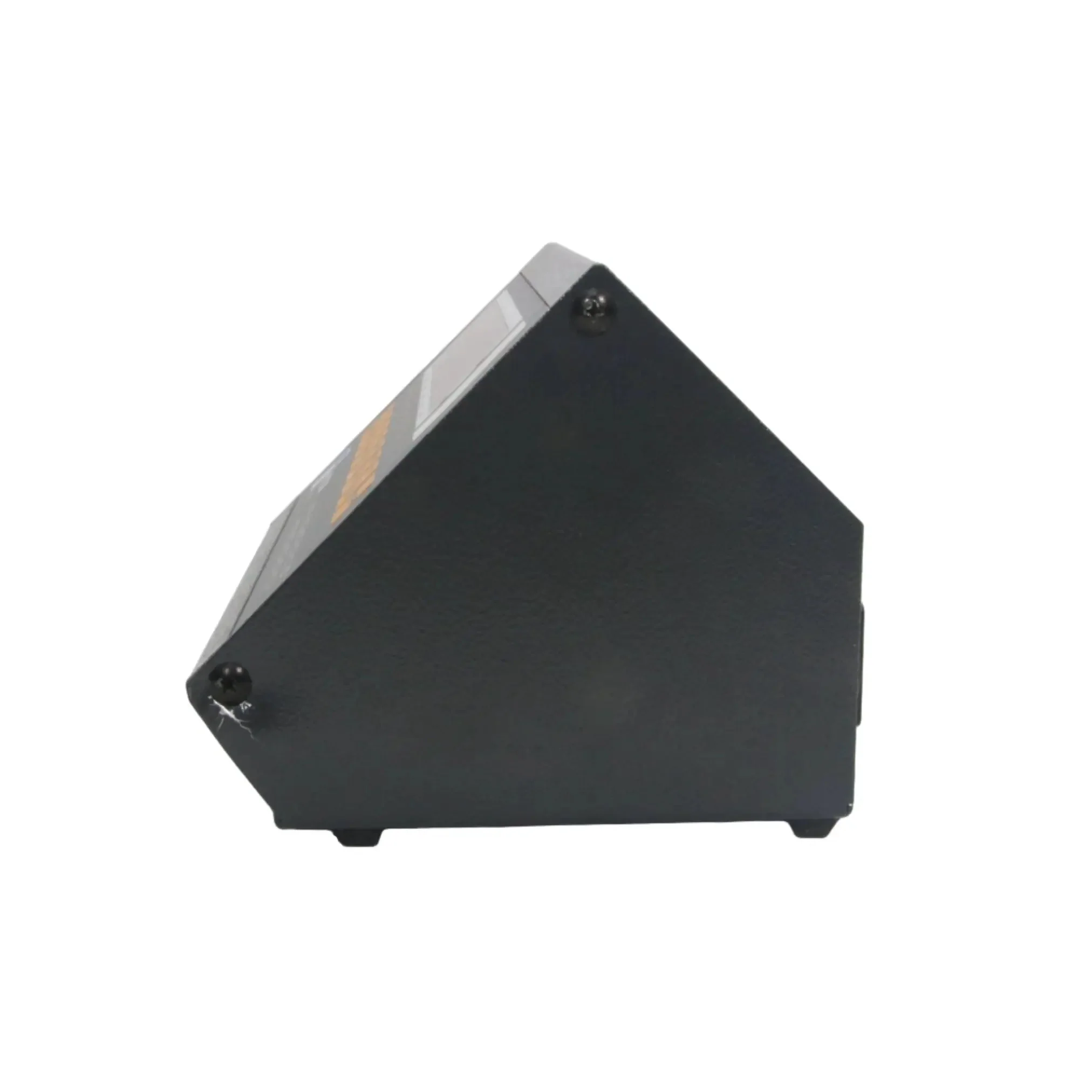

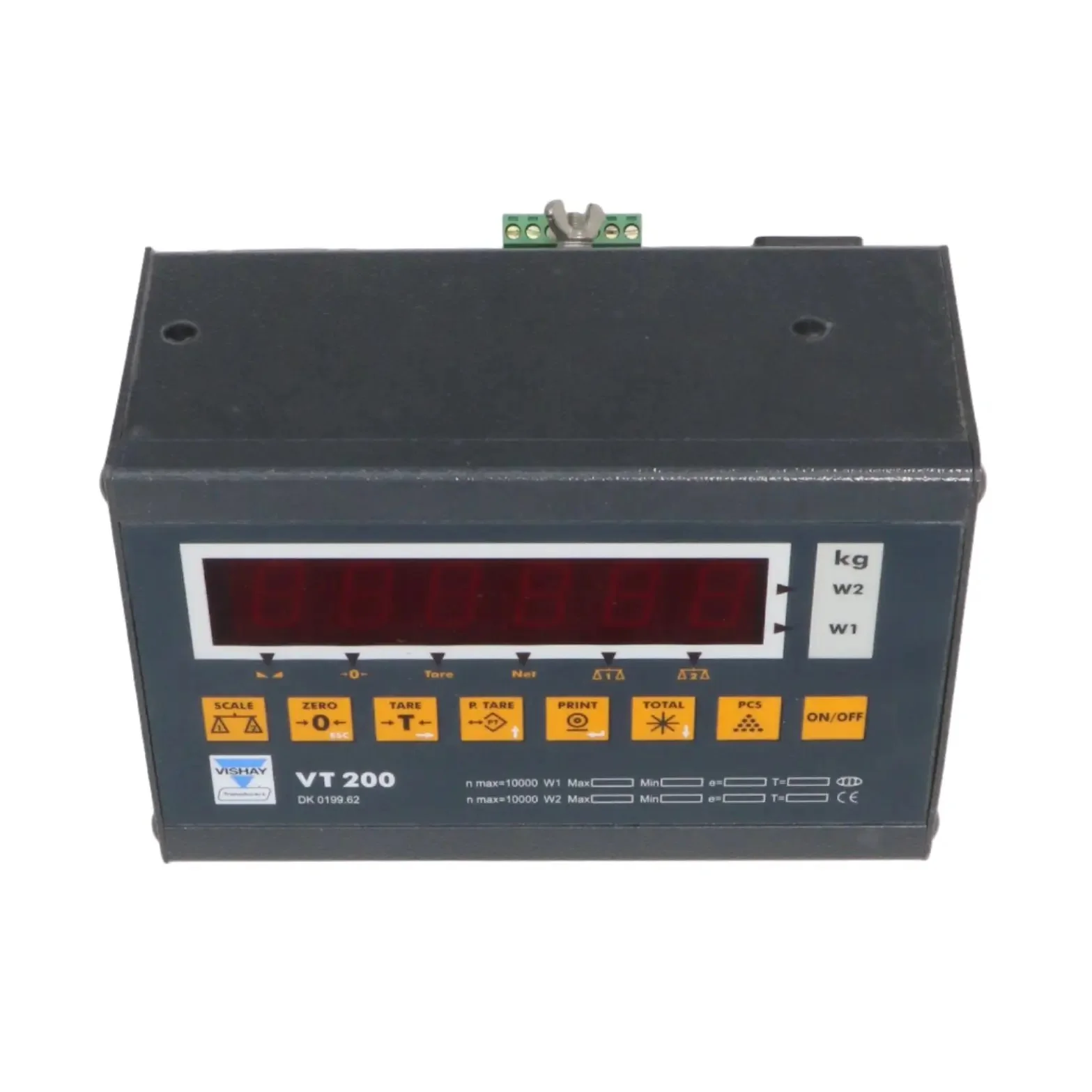

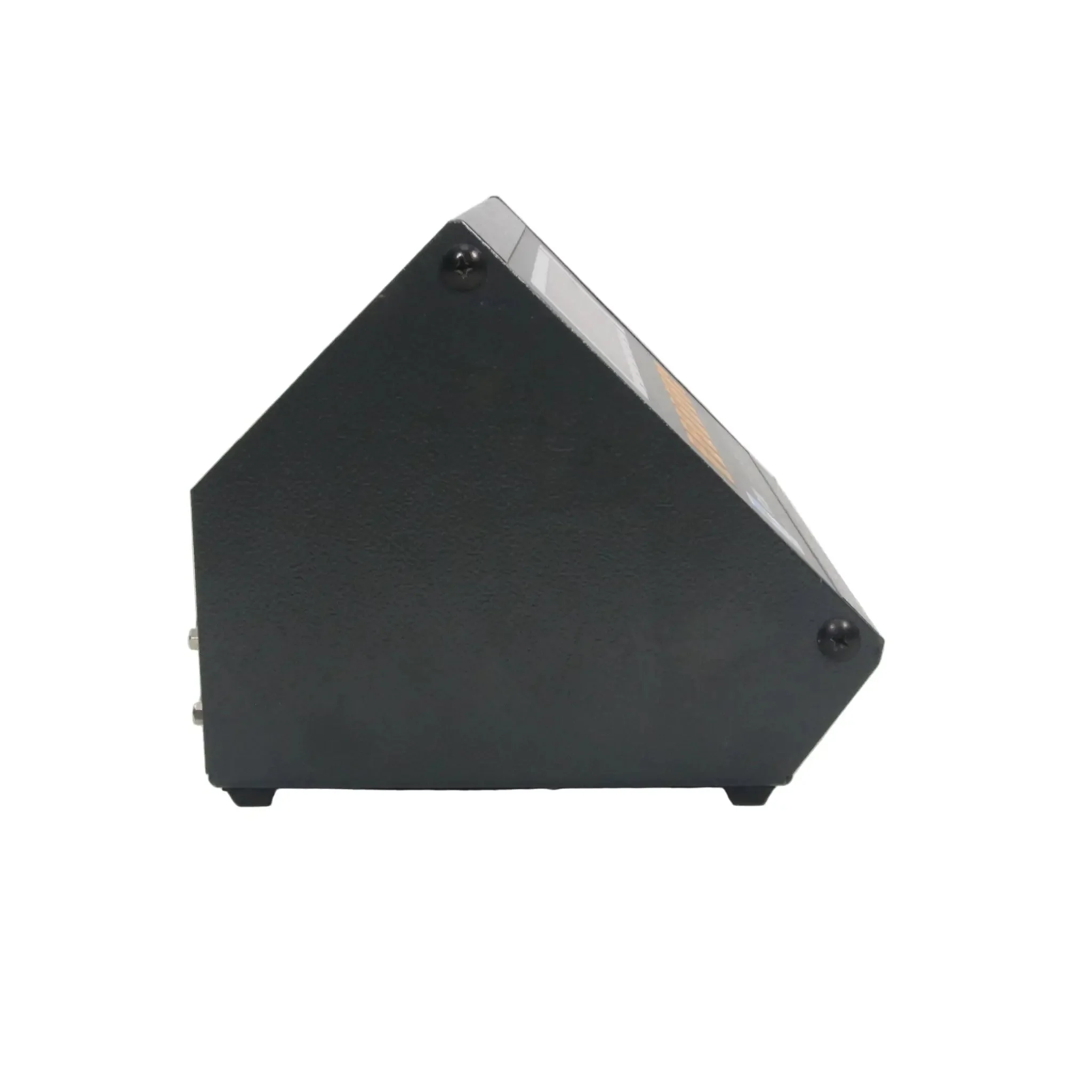

Vishay Transducers VT 200 Weight Indicator
- Brand: Vishay Transducers (now part of VPG Transducers)
- Model: VT 200 (DK 0199.62)
- Type: Weight Indicator
- Technical Specifications:
- Function: Digital weight indicator for strain-gauge load cells, suitable for weighing, batching, and process control
- Display: 6-digit, 20 mm high, red LED
- Input: 4–20 mA , load cell inputs (350 Ω each, up to 10 x 350 Ω)
- Accuracy: ±0.01% of full scale
- Power Supply: 230 V AC 20W

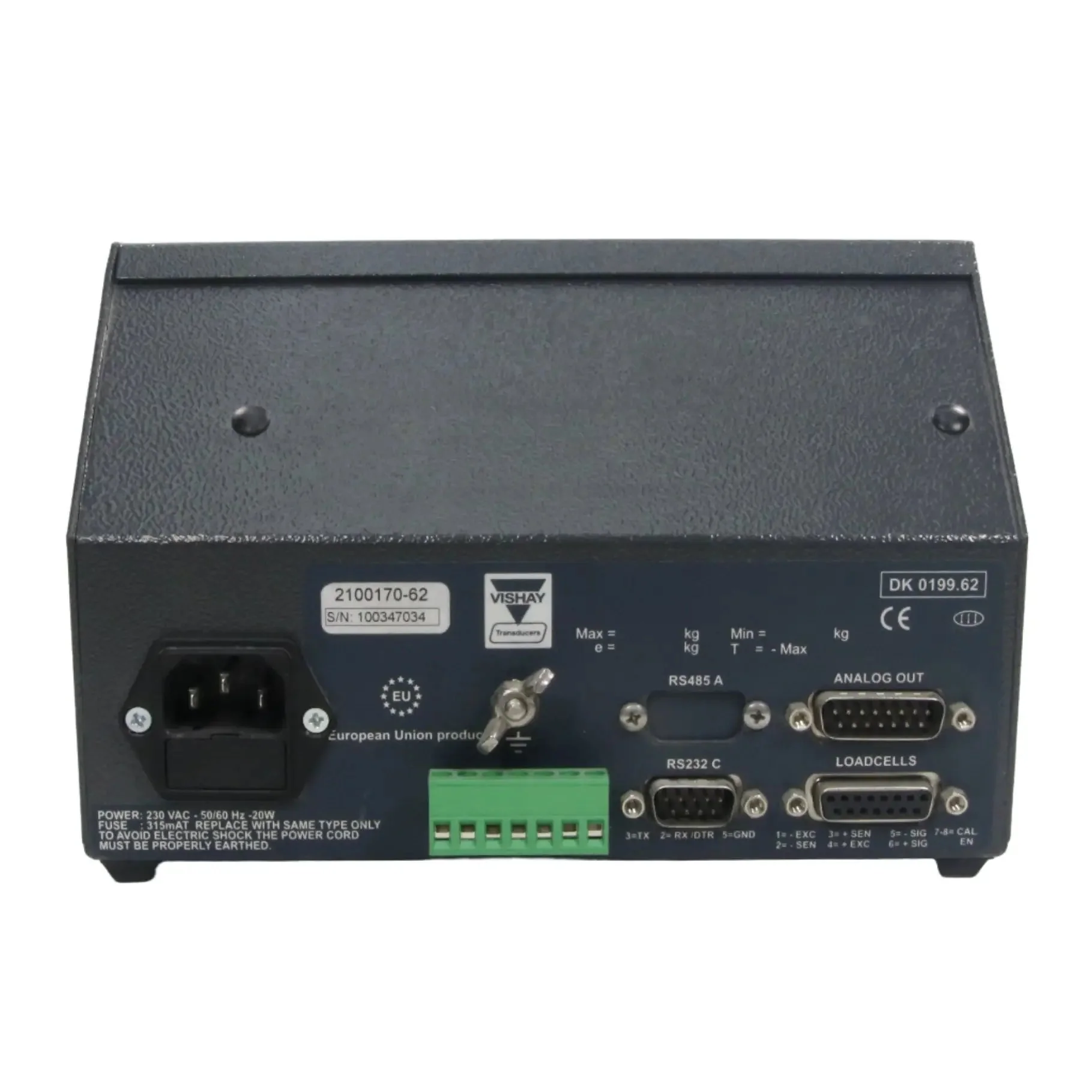

- Interfaces: RS232 C, 16 pin male (Analog out) & 6 pin female ( Loadcells)
- Calibration: With weights
- Resolution: up to 990000 dd
- Protection Rating: IP65 front panel
- Operating Temperature: -10°C to +50°C
- Features: Alibi memory, ticket printing, setpoint control, totalizing, peak-hold, multi-range
- Dimensions: 200 x 160 x 130 mm
- Weight: 1.0 kg
- Country of Origin: United Kingdom
- HS Code: 903180
Original: $282.21
-70%$282.21
$84.66
Description
- Brand: Vishay Transducers (now part of VPG Transducers)
- Model: VT 200 (DK 0199.62)
- Type: Weight Indicator
- Technical Specifications:
- Function: Digital weight indicator for strain-gauge load cells, suitable for weighing, batching, and process control
- Display: 6-digit, 20 mm high, red LED
- Input: 4–20 mA , load cell inputs (350 Ω each, up to 10 x 350 Ω)
- Accuracy: ±0.01% of full scale
- Power Supply: 230 V AC 20W
- Interfaces: RS232 C, 16 pin male (Analog out) & 6 pin female ( Loadcells)
- Calibration: With weights
- Resolution: up to 990000 dd
- Protection Rating: IP65 front panel
- Operating Temperature: -10°C to +50°C
- Features: Alibi memory, ticket printing, setpoint control, totalizing, peak-hold, multi-range
- Dimensions: 200 x 160 x 130 mm
- Weight: 1.0 kg
- Country of Origin: United Kingdom
- HS Code: 903180
