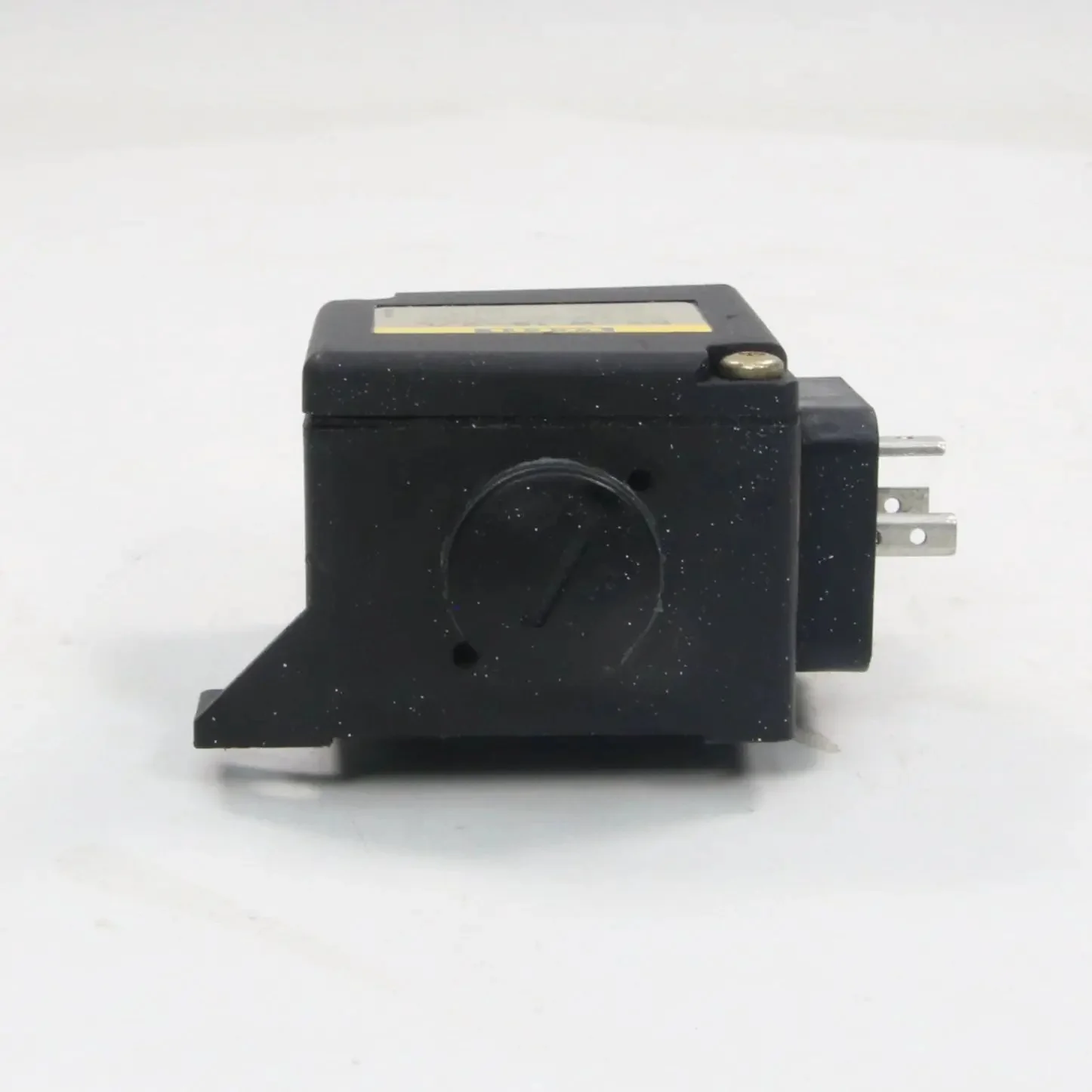

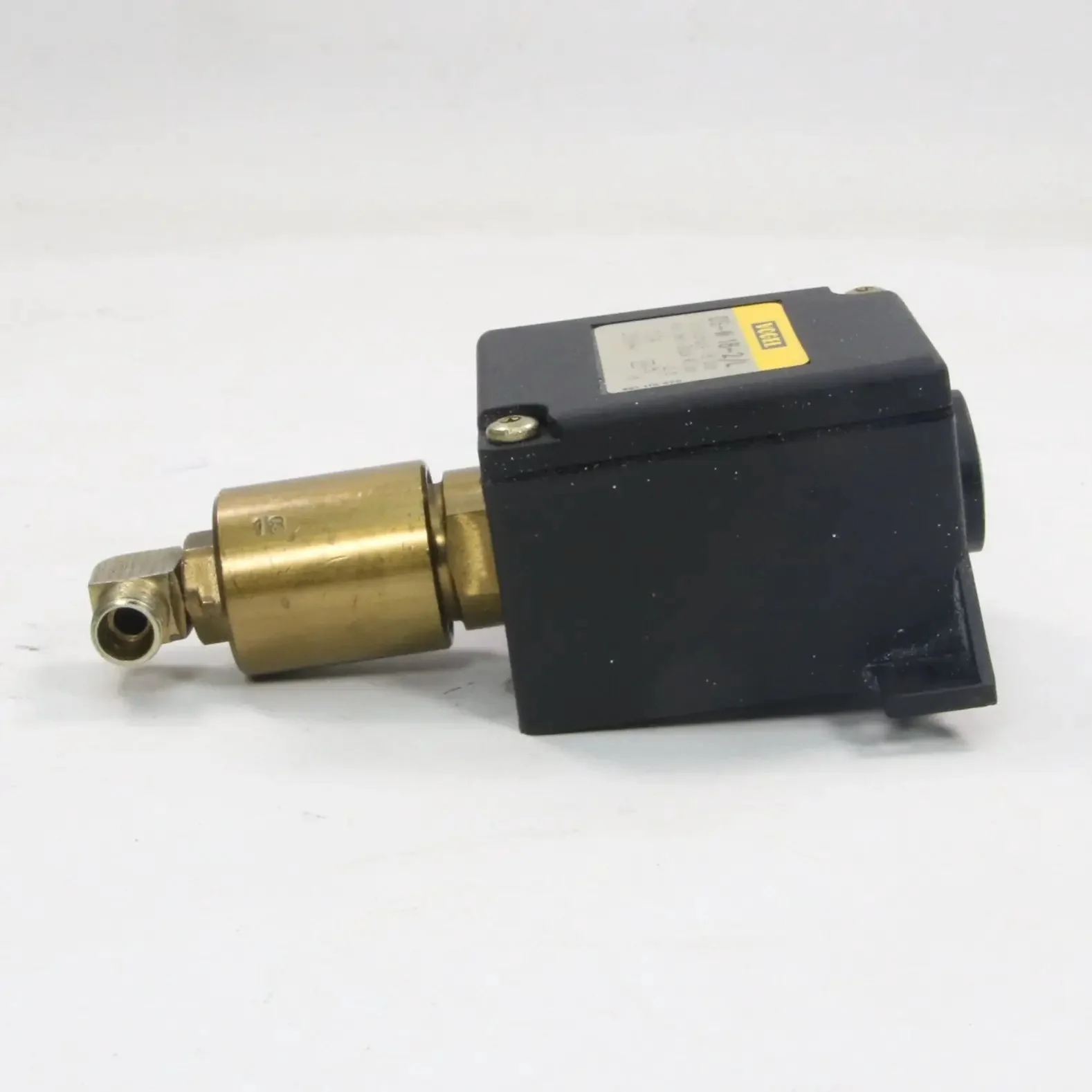

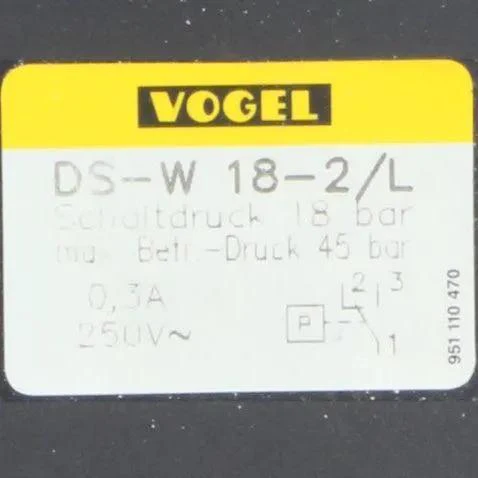

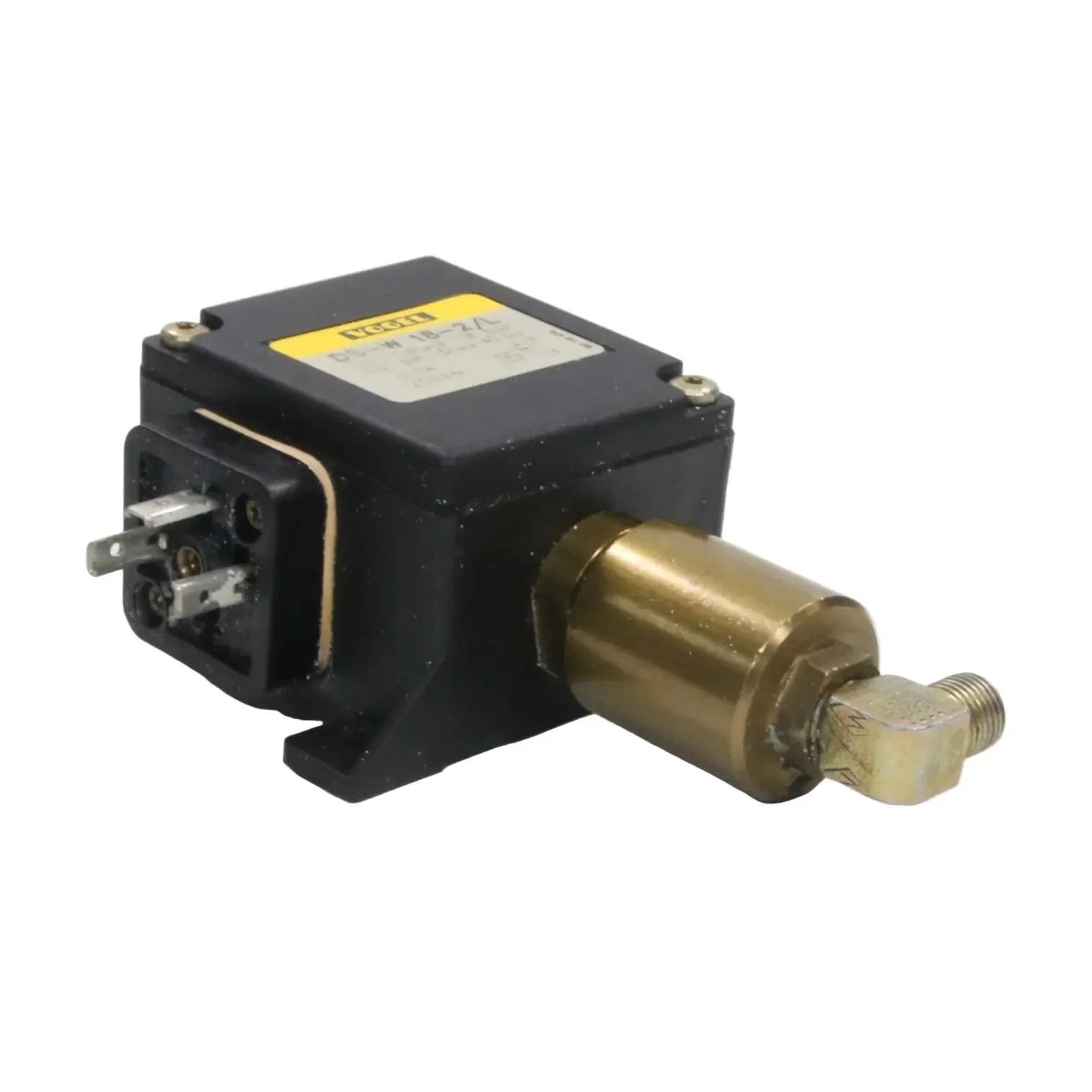

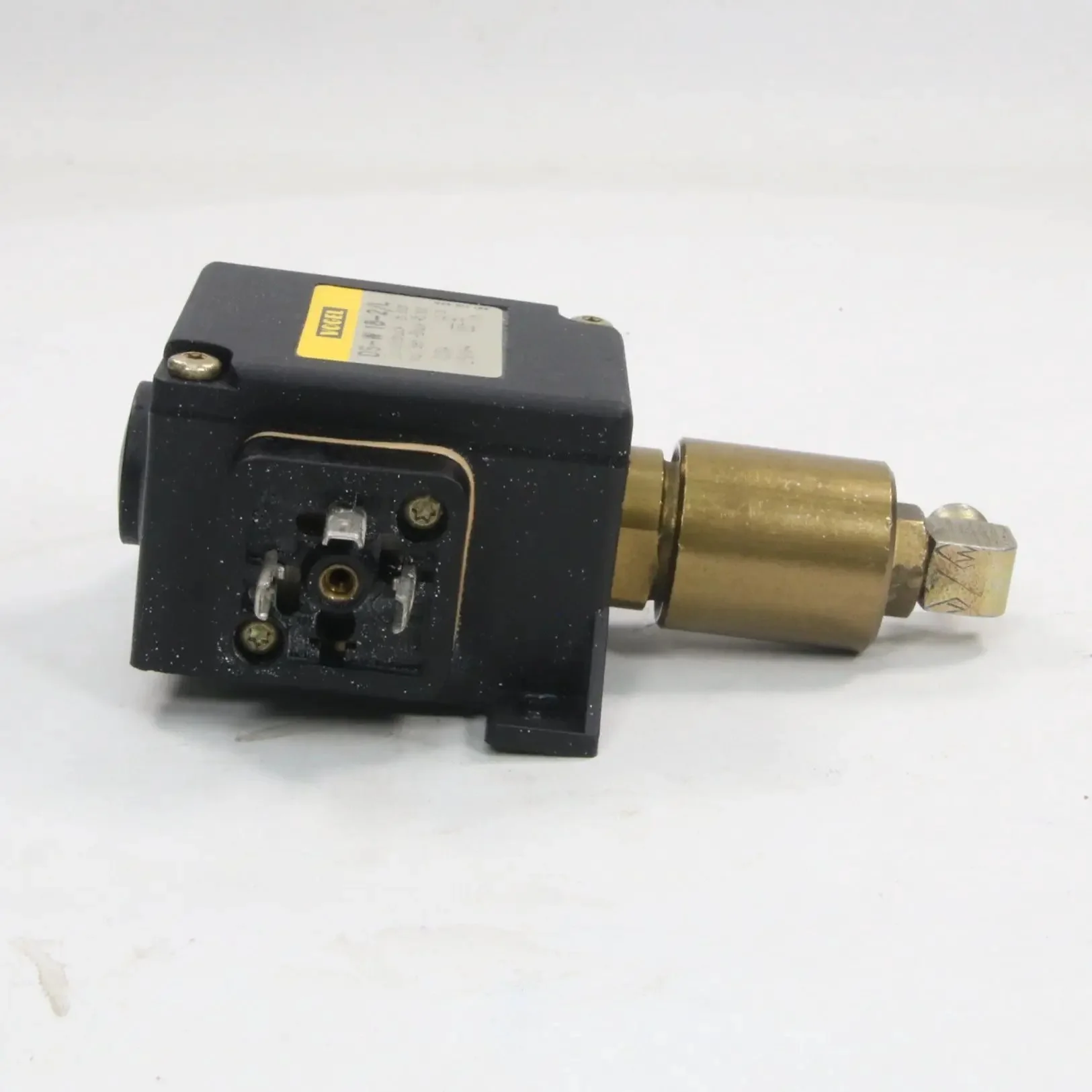

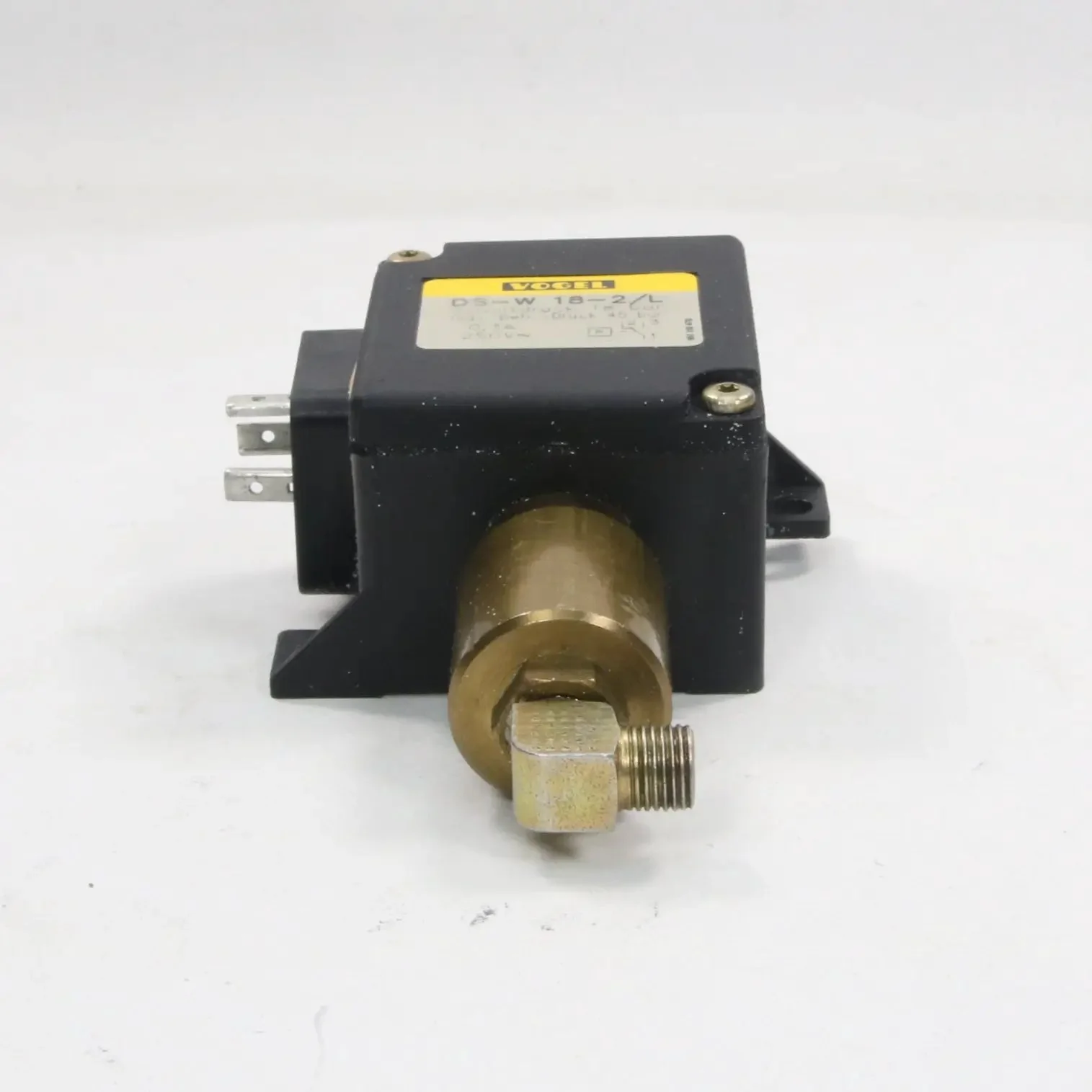

Vogel DS-W 18-2/L Pressure Switch
- Brand: Vogel
- Model: DS-W 18-2/L
- Type: Pressure Switch
- Technical Specifications:
- Function: Monitors pressure in central lubrication systems, single-line systems, for industrial applications like machine tools, compressors, wind turbines
- Switching Pressure: 18 bar
- Max Operating Pressure: 45 bar
- Switching Voltage: Max 250 V AC
- Switching Current: 0.3 A
- Contact Type: Changeover contact
- Switching Rate: 30 cycles/min
- Mechanical Service Life: 5 x 10^6 switching cycles
- Operating Temperature: 0 to +60°C
- Connection: Ports for ø 6 mm (ID) tube, optional cable sockets (DIN EN 175301-803)
- Protection: IP65
- Features: Compatible with predecessors, suitable for mineral oils, fluid greases, oiled compressed air; used for pressure relief monitoring in MonoFlex systems
- Dimensions: 120 x 90 x 40 mm
- Weight: 250 g
- Country of Origin: Germany
- HS Code: 9032.20
Original: $97.91
-70%$97.91
$29.37
Description
- Brand: Vogel
- Model: DS-W 18-2/L
- Type: Pressure Switch
- Technical Specifications:
- Function: Monitors pressure in central lubrication systems, single-line systems, for industrial applications like machine tools, compressors, wind turbines
- Switching Pressure: 18 bar
- Max Operating Pressure: 45 bar
- Switching Voltage: Max 250 V AC
- Switching Current: 0.3 A
- Contact Type: Changeover contact
- Switching Rate: 30 cycles/min
- Mechanical Service Life: 5 x 10^6 switching cycles
- Operating Temperature: 0 to +60°C
- Connection: Ports for ø 6 mm (ID) tube, optional cable sockets (DIN EN 175301-803)
- Protection: IP65
- Features: Compatible with predecessors, suitable for mineral oils, fluid greases, oiled compressed air; used for pressure relief monitoring in MonoFlex systems
- Dimensions: 120 x 90 x 40 mm
- Weight: 250 g
- Country of Origin: Germany
- HS Code: 9032.20
