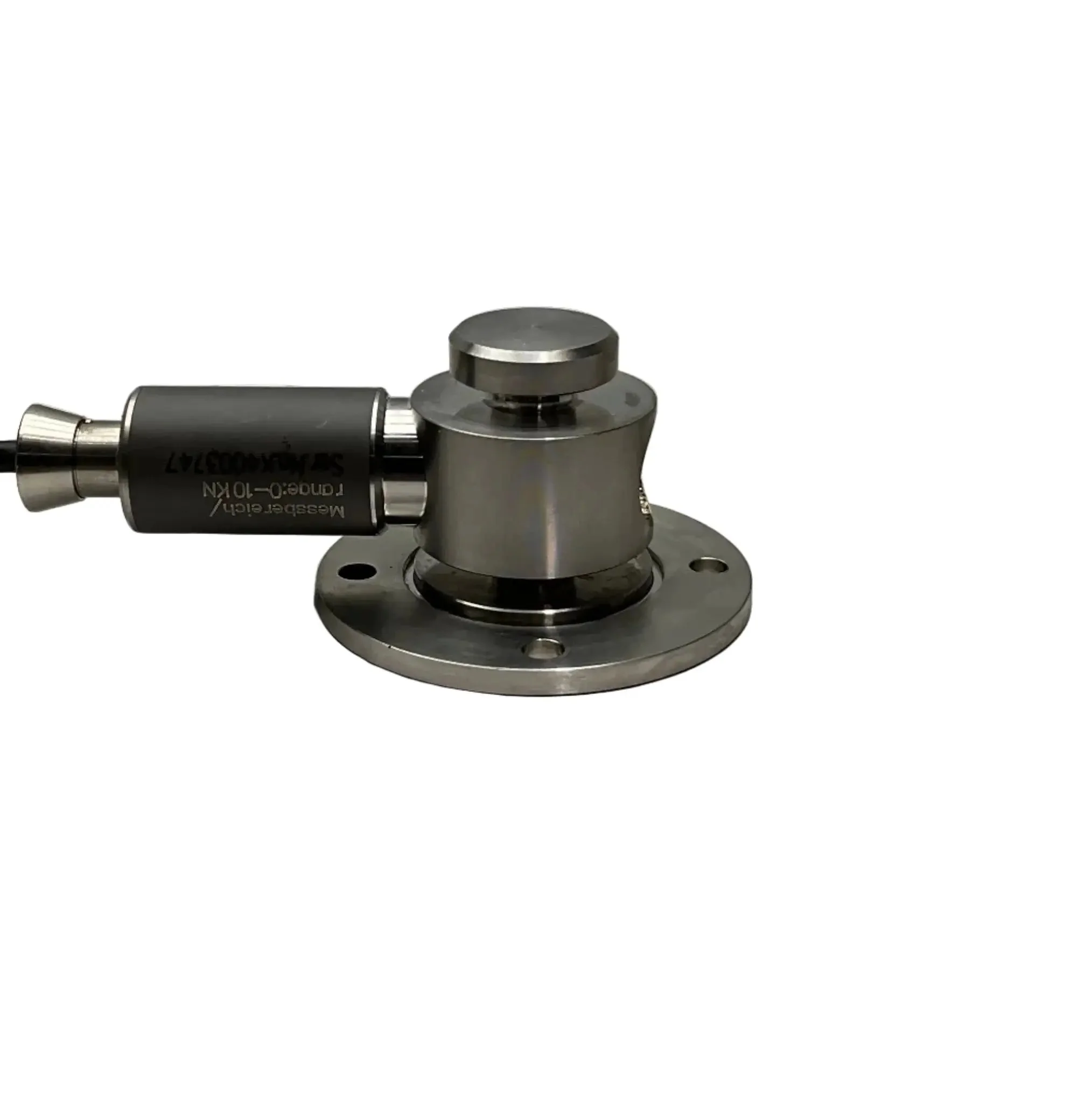

Voith F13011420010 Force Sensor / Load Cell

- Brand: Voith
- Model: 10kN
- Type: Load Cell (Force Sensor / Compression Sensor)

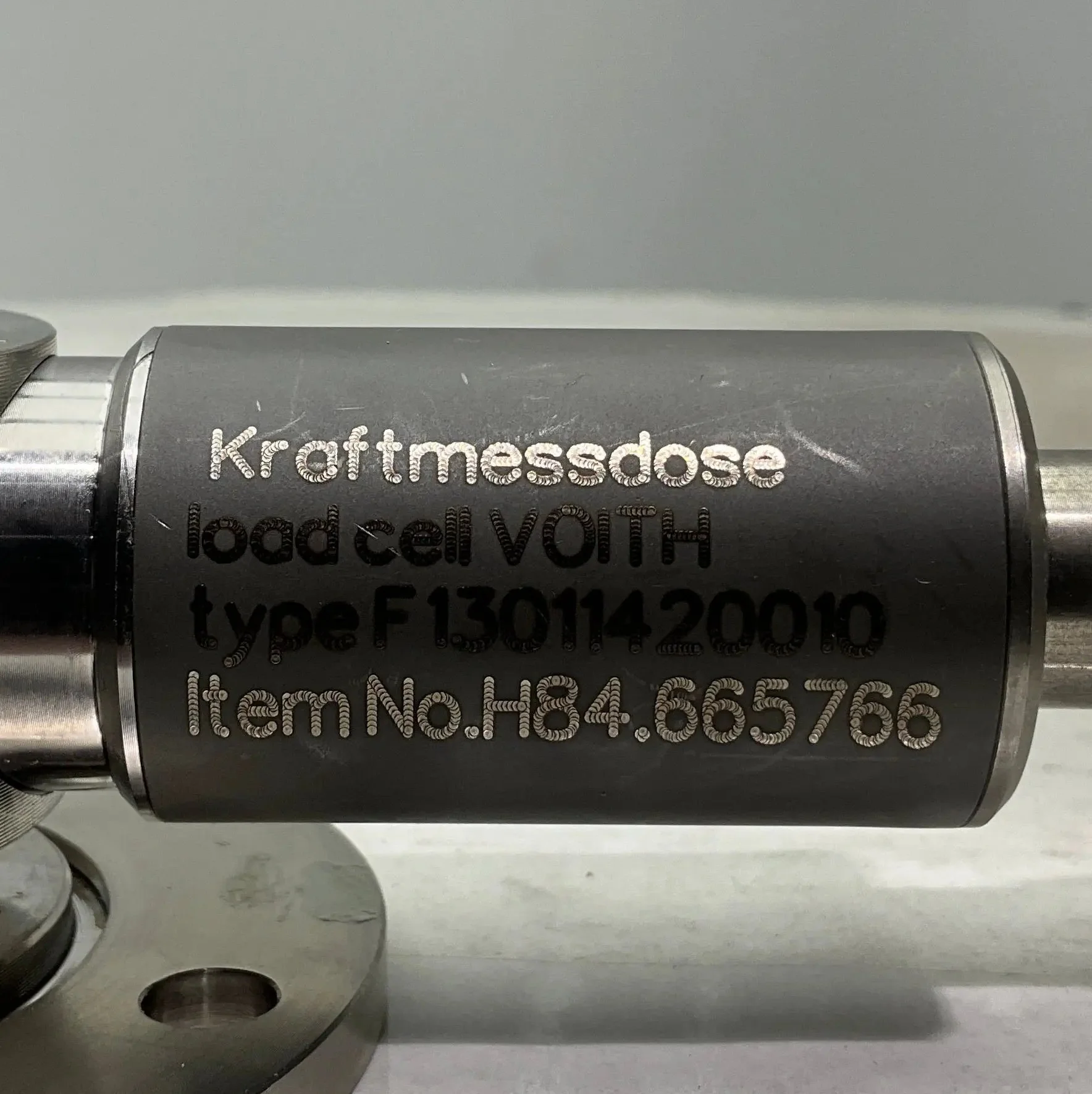

- Part Number: F13011420010

- Technical Specs:
- Measuring Principle: Strain gauge based load cell
- Rated Capacity: 0….10kN
- Accuracy Class: Typically 0.5%
- Output Signal: mV/V
- Supply Voltage: 5–12 V DC
- Bridge Resistance: 350 Ω
- Overload Capacity: 150–200% of rated capacity
- Ultimate Load: 300–500% of rated capacity
- Material: Stainless steel
- Protection Class: IP67
- Temperature Range: -20 °C to +80
- Cable: 10 m (PVC)
- Additional Features:
  - Robust design for harsh industrial environments
  - High repeatability and long-term stability
  - Compatible with Voith control systems or standard amplifiers

Dimensions: 350 x 350 x 60 mm

Weight: 1.7 kg

Country of Origin: Germany

HS Code: 9031.80
