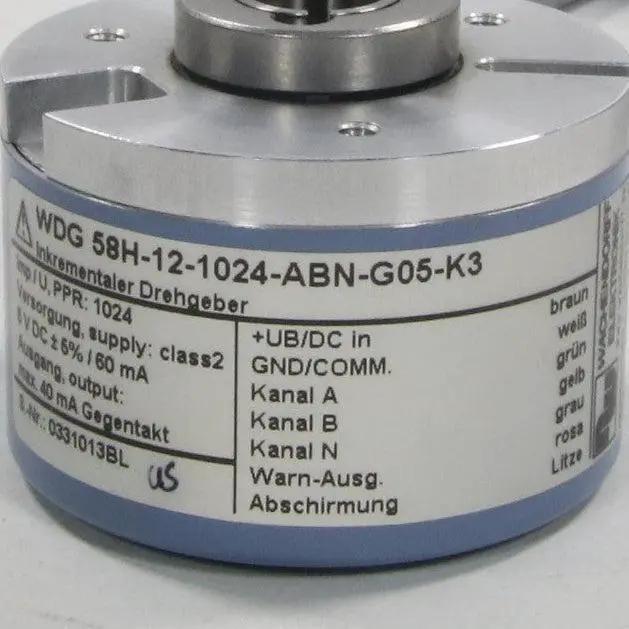

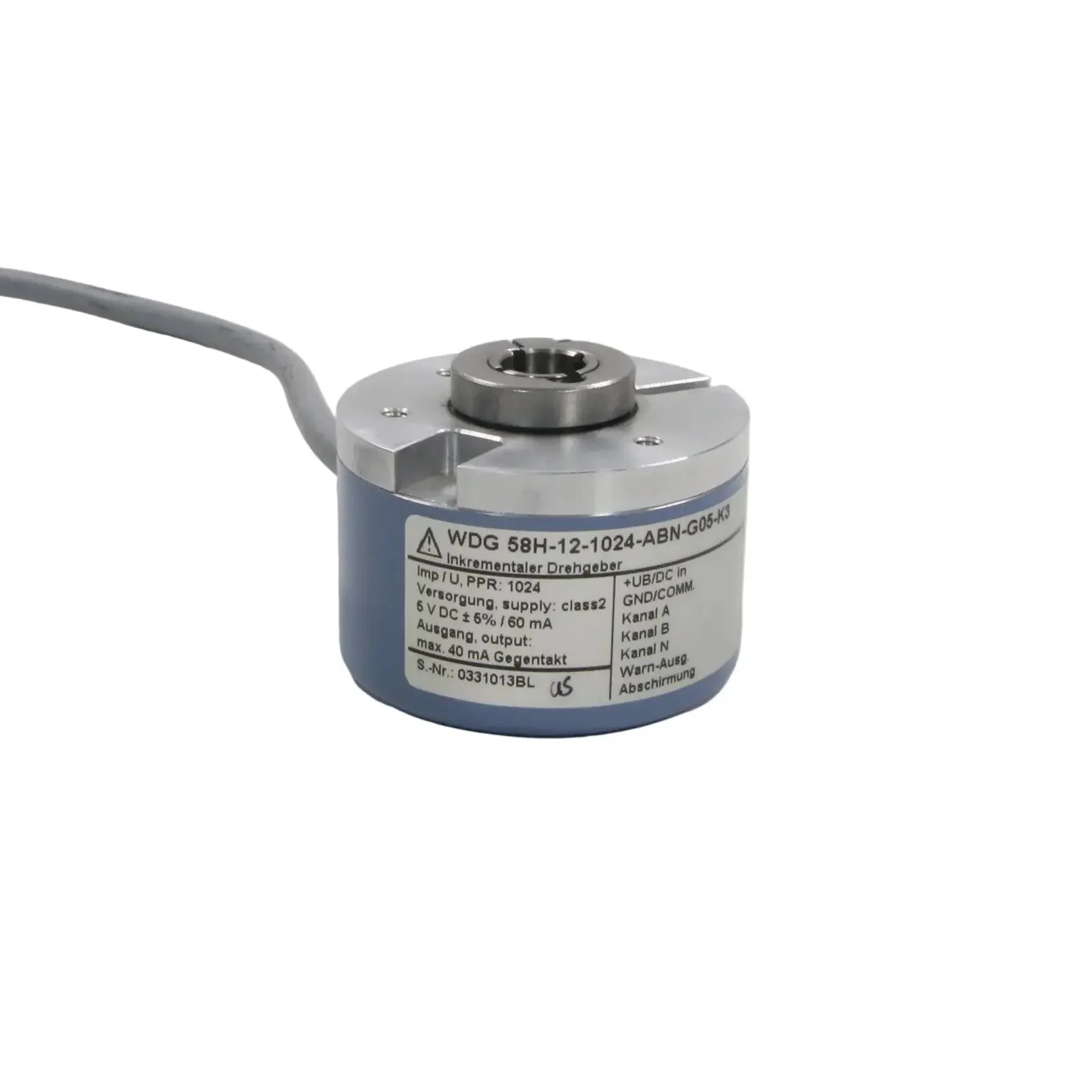

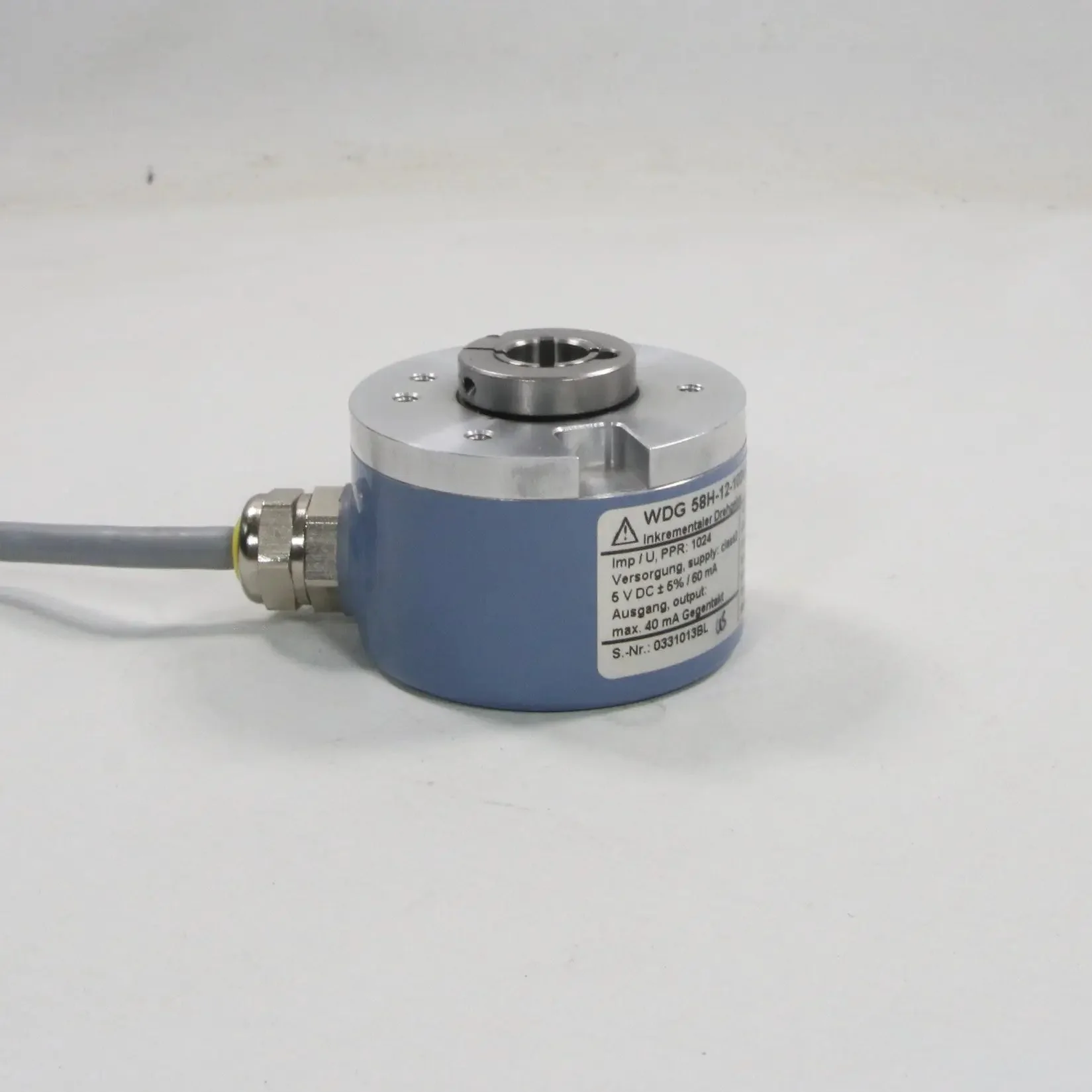

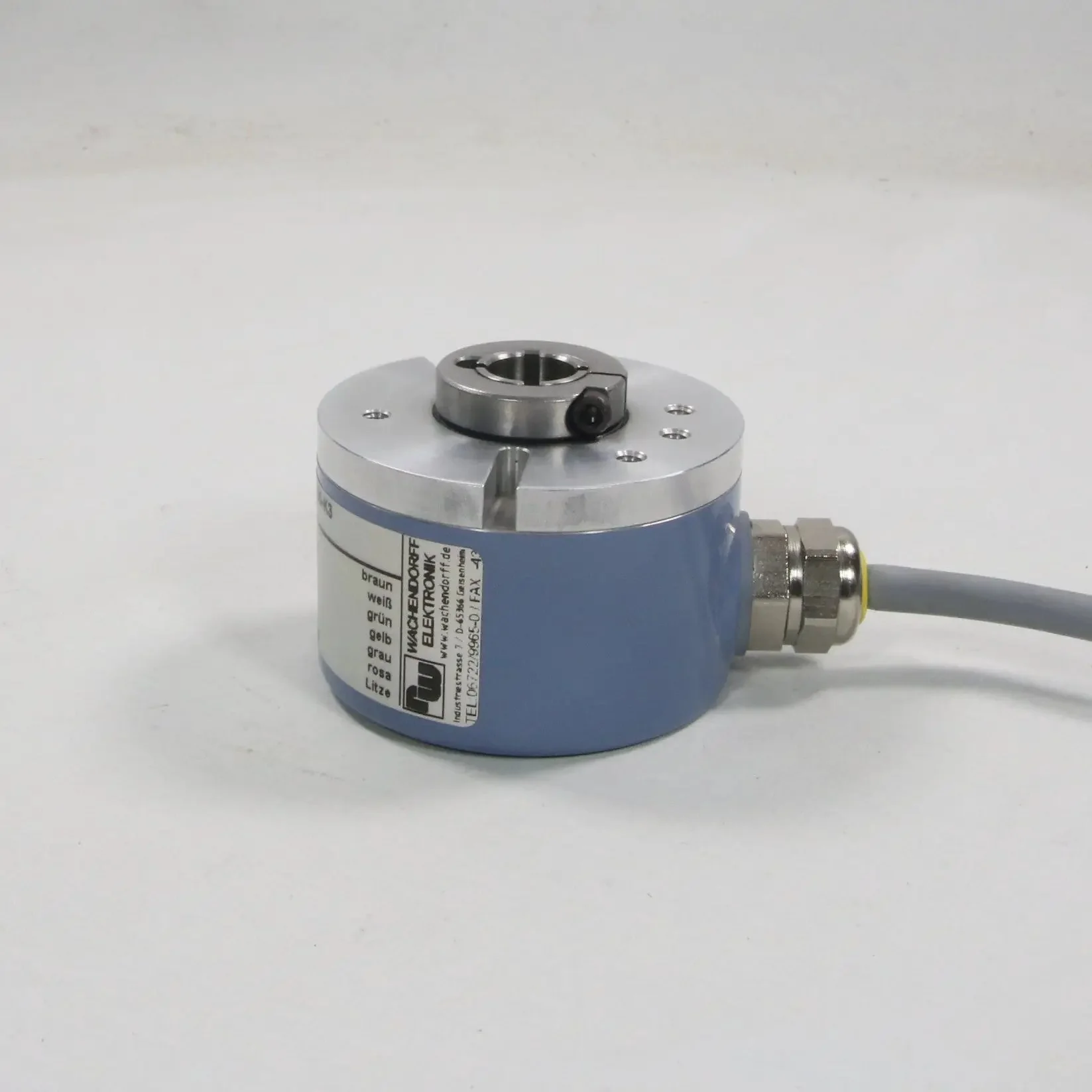

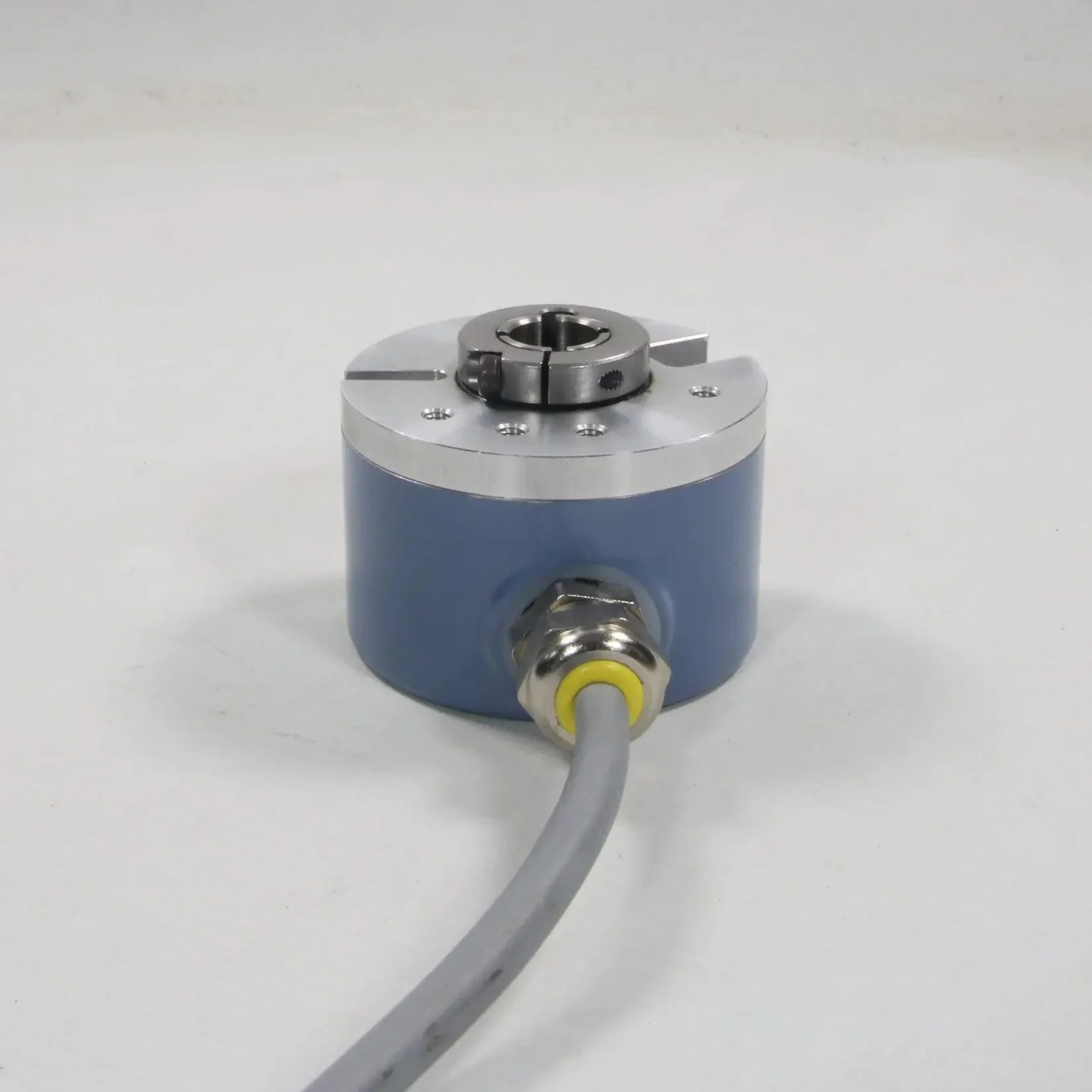

Wachendorff Elektronik WDG 58H-12-1024-ABN-G05-K3 Rotary Pulse Encoder

Brand: Wachendorff Elektronik

Model: WDG 58H-12-1024-ABN-G05-K3

Type: Rotary Pulse Encoder / Incremental Encoder

Part number: WDG 58H-12-1024-ABN-G05-K3

Technical specifications:
- Resolution: 1024 PPR
- Channels: A, B, N
- Output circuit: TTL, HTL..
- Supply voltage: 5 V DC ±5 %
- Output type: Push-pull / line driver (TTL level)
- Hollow shaft diameter: 12 mm
- Protection class: IP65
- Maximum speed: 6000 rpm

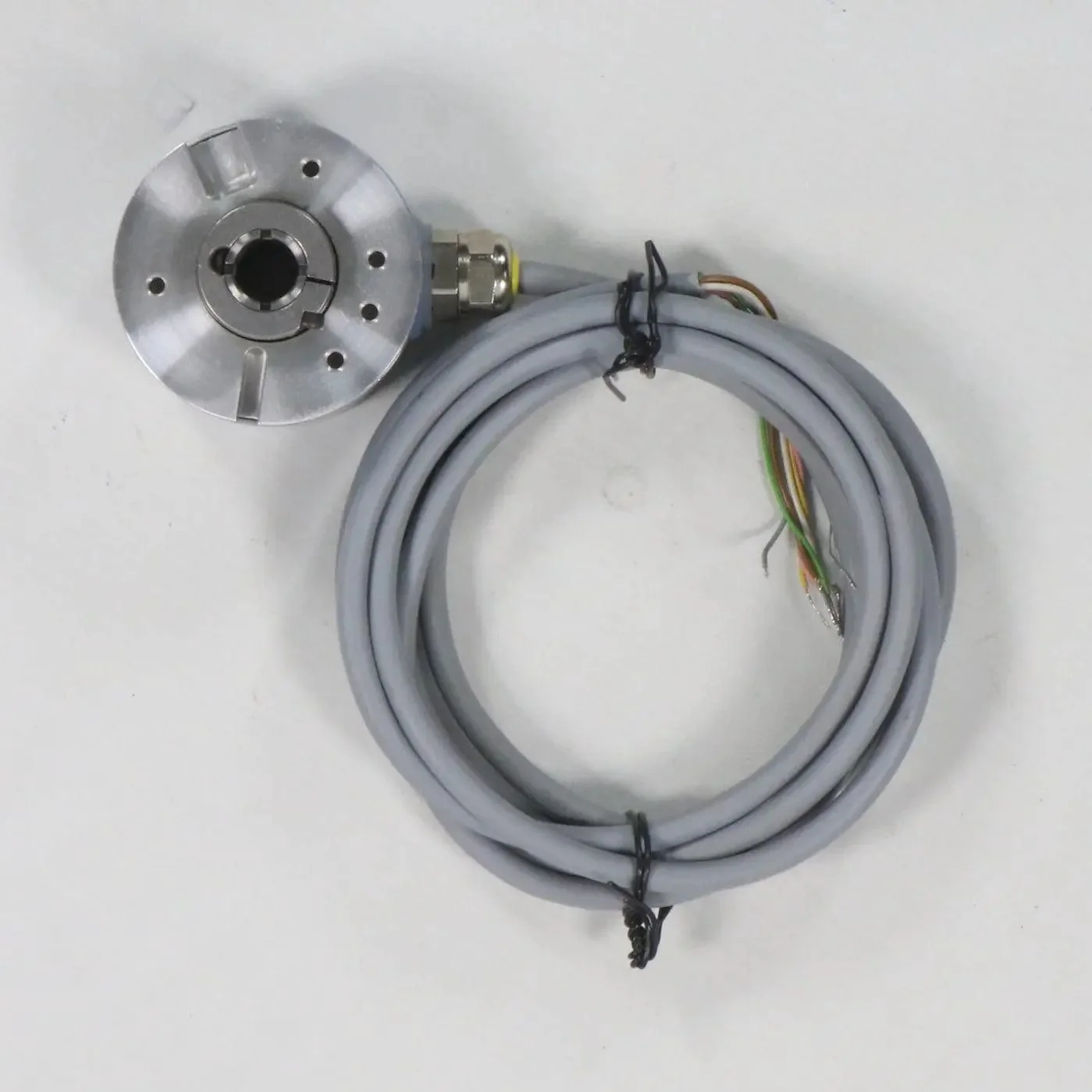

- Connection: Cable
- Additional features: Rugged aluminium housing with powder coating; precision ball bearings; high shock and vibration resistance; suitable for industrial environments
- Standards: Compliant with relevant IEC/EN standards for encoders; CE marked

Weight: 325 g

Dimensions: 60 x 45 x 75 mm (+ Cable)

Country of origin: Germany

HS code: 9031.80
