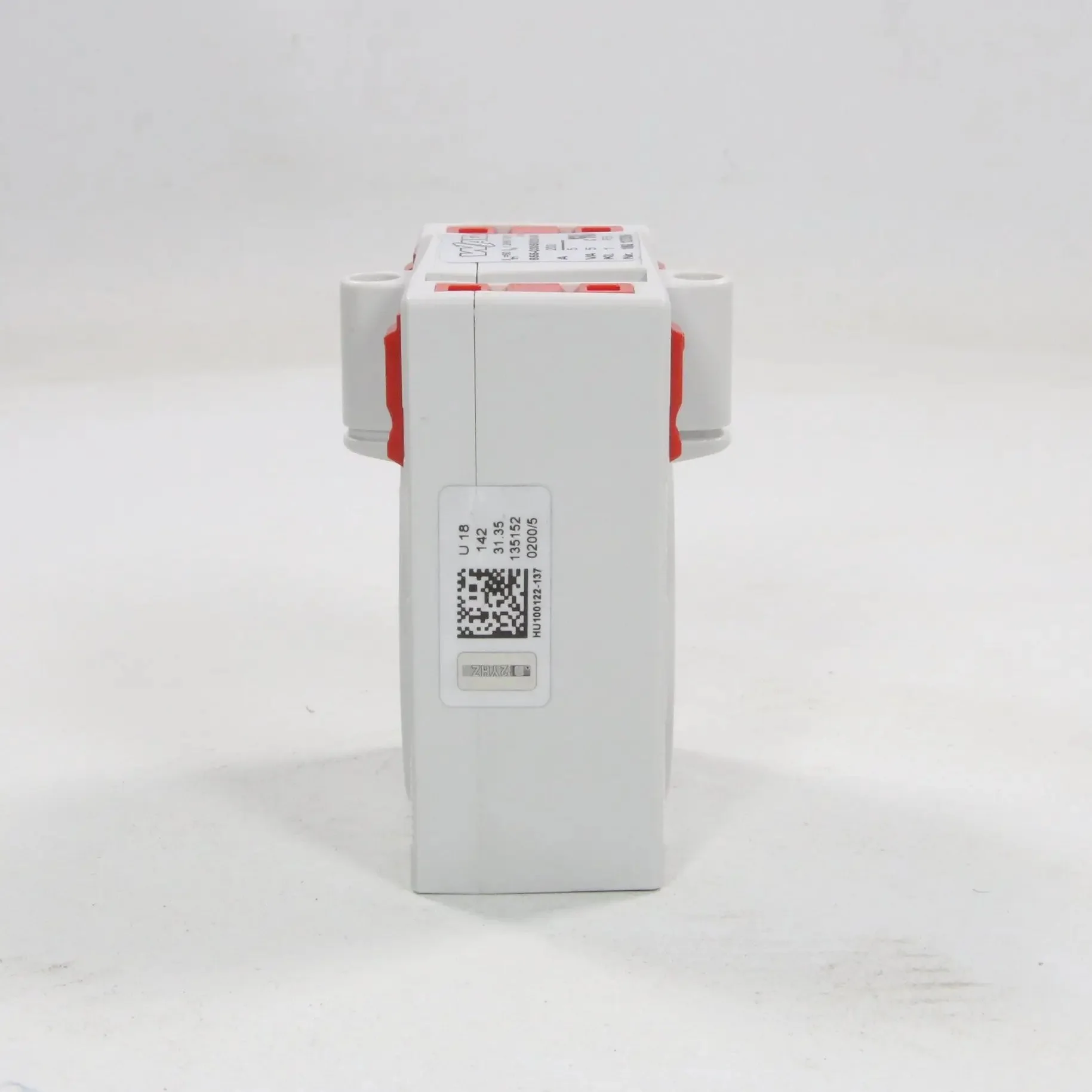

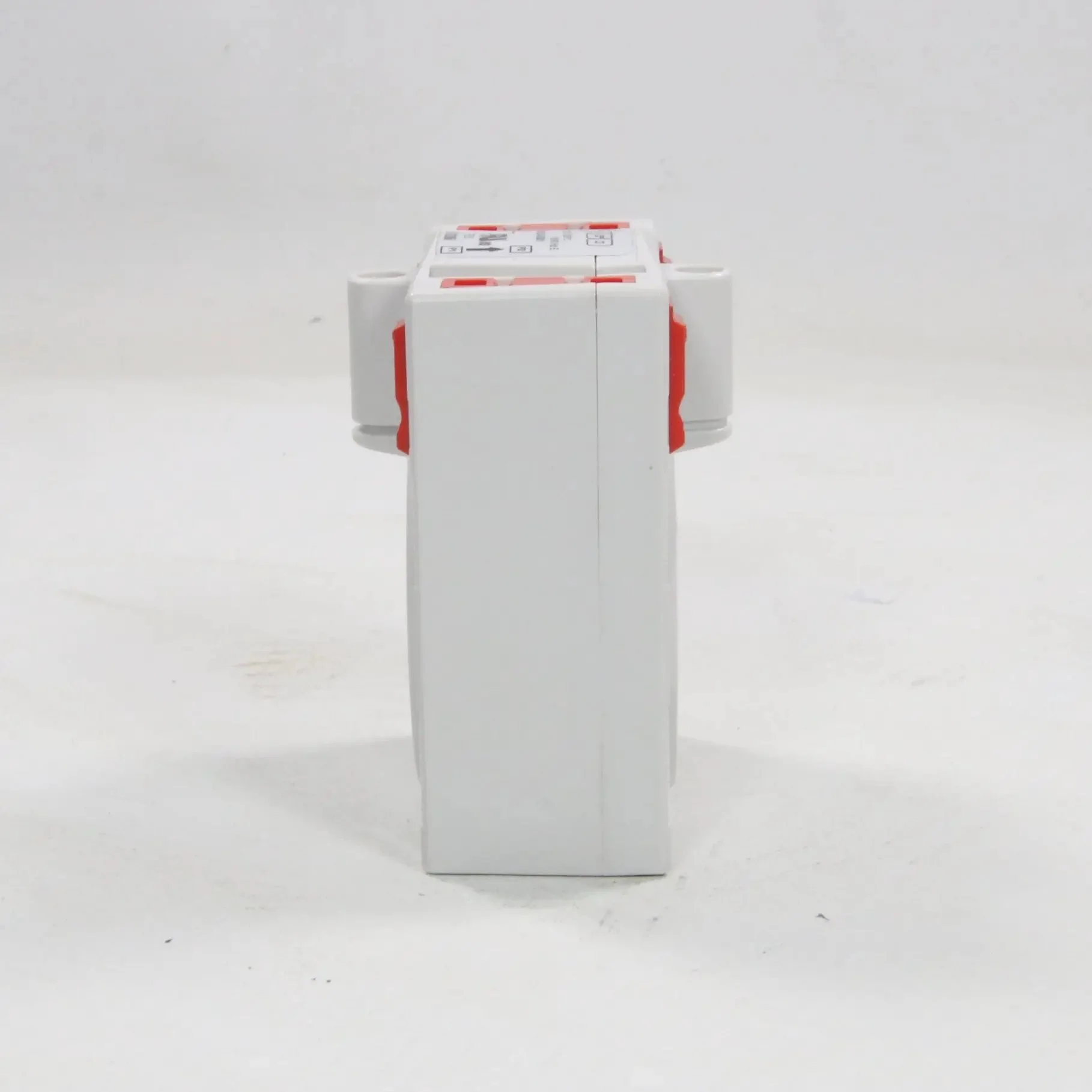

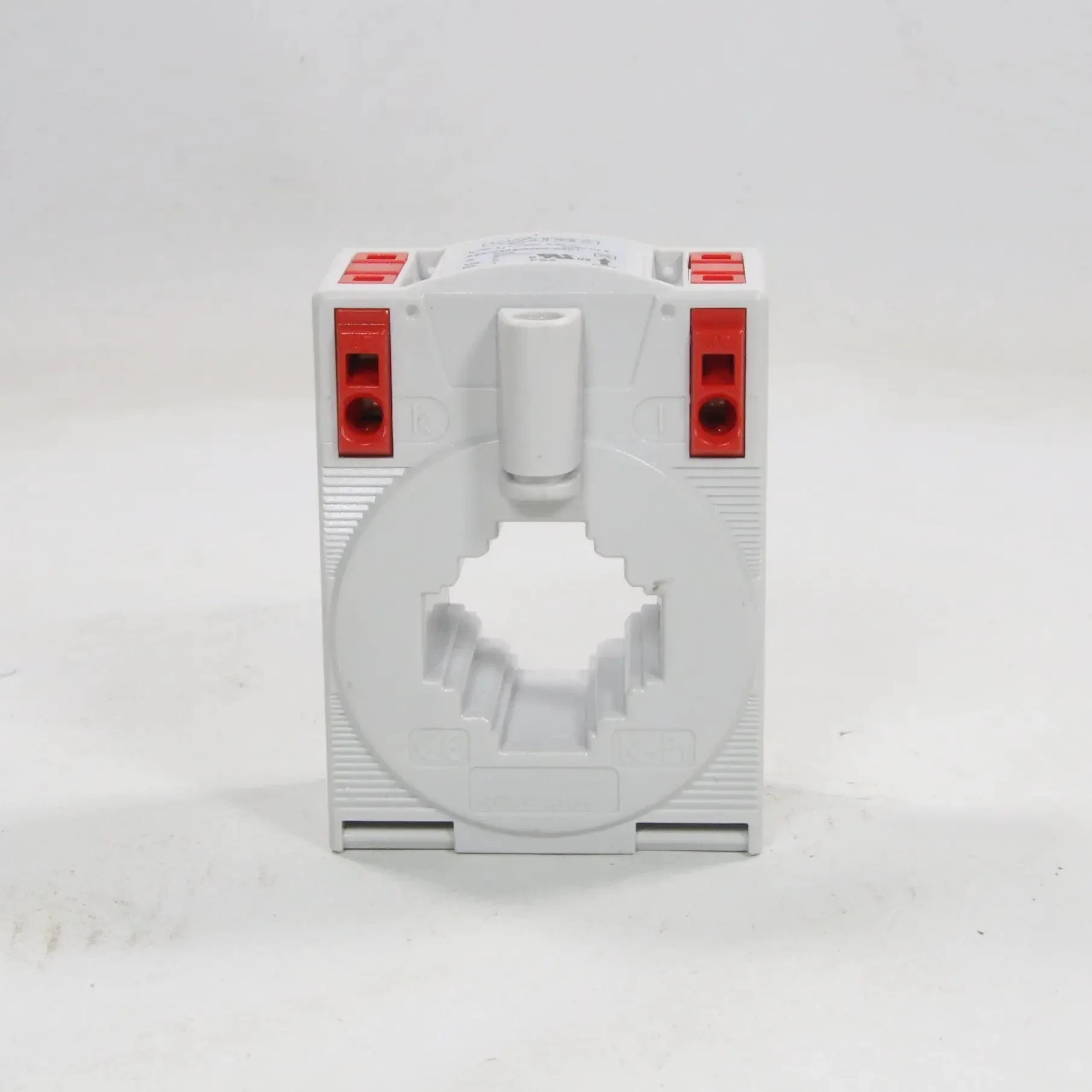

Wago 855-030/0200-0501 Plug-in Current Transformer
- Brand: WAGO
- Model: 855-030/0200-0501
- Type: Plug-in Current Transformer
- Part number: 855-030/0200-0501
- Technical specifications:
- Primary rated current: 200 A
- Secondary rated current: 5 A
- Rated power / burden: 5 VA
- Accuracy class: 1
- Frequency: 50/60 Hz
- Operating voltage: Up to 690 V AC
- Through-hole / inner diameter: 26 mm
- Connection: Screwless CAGE CLAMP® spring connections
- Mounting options: DIN-rail (with adapter), surface, cable, or plug-in on busbars
- Additional features: UL recognized components; suitable for combination with WAGO energy meters; high current-carrying capacity; several mounting options; inductive measurement principle for accurate AC current transformation
- Standards: IEC/EN compliant for current transformers; suitable for energy measurement in industrial/power distribution applications
Weight: 400 g
Dimensions: 40 x 60 x 80 mm
Country of origin: Germany
HS code: 8504.31
Description
- Brand: WAGO
- Model: 855-030/0200-0501
- Type: Plug-in Current Transformer
- Part number: 855-030/0200-0501
- Technical specifications:
- Primary rated current: 200 A
- Secondary rated current: 5 A
- Rated power / burden: 5 VA
- Accuracy class: 1
- Frequency: 50/60 Hz
- Operating voltage: Up to 690 V AC
- Through-hole / inner diameter: 26 mm
- Connection: Screwless CAGE CLAMP® spring connections
- Mounting options: DIN-rail (with adapter), surface, cable, or plug-in on busbars
- Additional features: UL recognized components; suitable for combination with WAGO energy meters; high current-carrying capacity; several mounting options; inductive measurement principle for accurate AC current transformation
- Standards: IEC/EN compliant for current transformers; suitable for energy measurement in industrial/power distribution applications
Weight: 400 g
Dimensions: 40 x 60 x 80 mm
Country of origin: Germany
HS code: 8504.31
