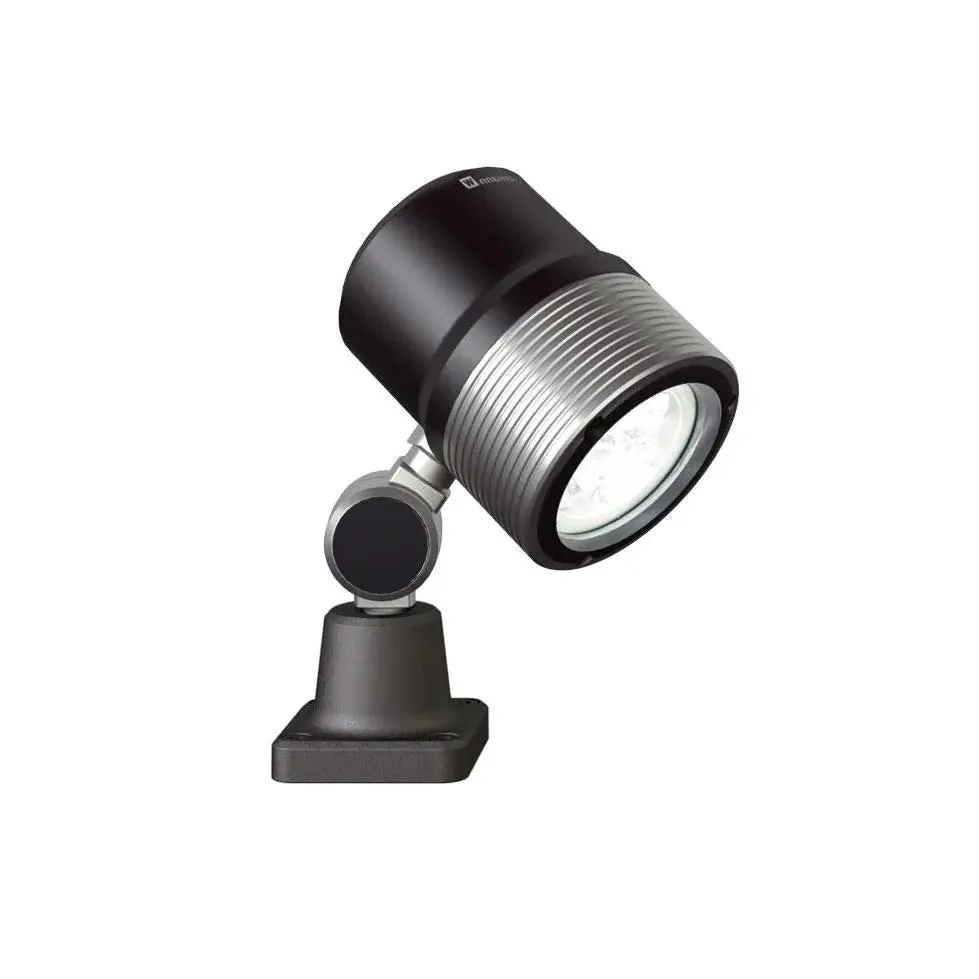

Waldmann RFJ 600/850/S LED Machine Lamp

- Brand: Waldmann

- Model: RFJ 600/850/S

- Part Number: 00680293

- Type: Machine Tool Working Light / LED Machine Lamp

- All tech specs:
- Light source: LED
- Power consumption: 8.5 W
- Colour temperature: 5000 K
- Beam angle: 40
- Operating voltage: 12 - 28 V AC / 12 - 40 V DC
- Protection class: IP67
- Impact resistance: IK08
- Luminous flux: 550 lm
- Mounting: Base mounting
- Adjustment: Fully adjustable via spring-loaded joint
- Features: On/off switch integrated on luminaire head or base, low heat emission, maintenance-free, Energy class A++, flicker-free light, ESD-safe variants available, suitable for direct mounting on CNC machines, lathes, milling machines
- Operating temperature: -10 °C to +50 °C
- Service life: >60,000 hours (LED L70)
- Cable: 3 m oil-resistant cable (PUR sheathed, flexible)
- Standards: CE, RoHS, UL listed
- Part of Waldmann RF series: Heavy-duty machine luminaires for demanding industrial environments

Dimensions: 410 x 210 x 130 mm

Weight: 2.1 kg

Country of origin: Germany

HS code: 940549
