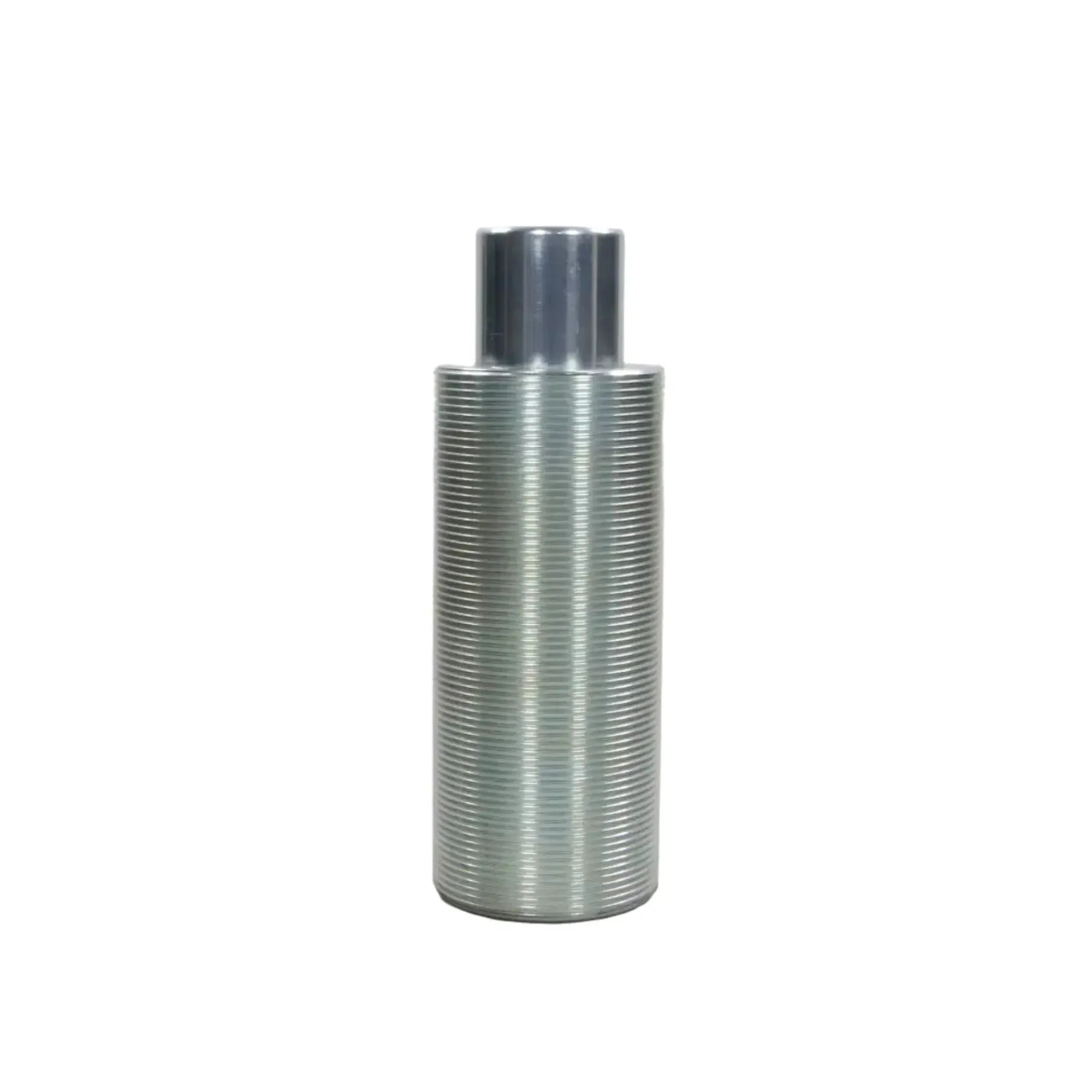

Weforma WES-1-60 Elasto Fluid Shock Absorber

- Brand: Weforma (Weforma Deceleration Technology GmbH)

- Model: WES-1-60

- Type: Elasto Fluid Shock Absorber / Viscoelastic Damper

- Part number: WES-1-60

Technical specifications:
- Thread / Mounting: M6
- Stroke: 35 mm
- Energy absorption per stroke: 1,500 Nm (max.)
- Energy absorption per hour: 37,500 Nm (max.)
- Return force: 175 N
- Force at end of stroke: 28,800 N
- Effective mass: 28,000 kg
- Operating principle: Hydrostatic compression of visco-elastic high-viscosity elastomer fluid
- Temperature range: Typically -20°C to +80°C
- Protection: High resistance to leakage/contamination; no seals subject to dynamic wear in some designs
- Additional features: Extremely compact for high energy absorption; maintenance-free; suitable for heavy-duty industrial use
- Standards: Compliant with relevant industrial deceleration norms; RoHS compliant

Weight: 2.8 kg

Dimensions: 60 diam. x 180 mm

Country of origin: Germany

HS code: 8479.89
