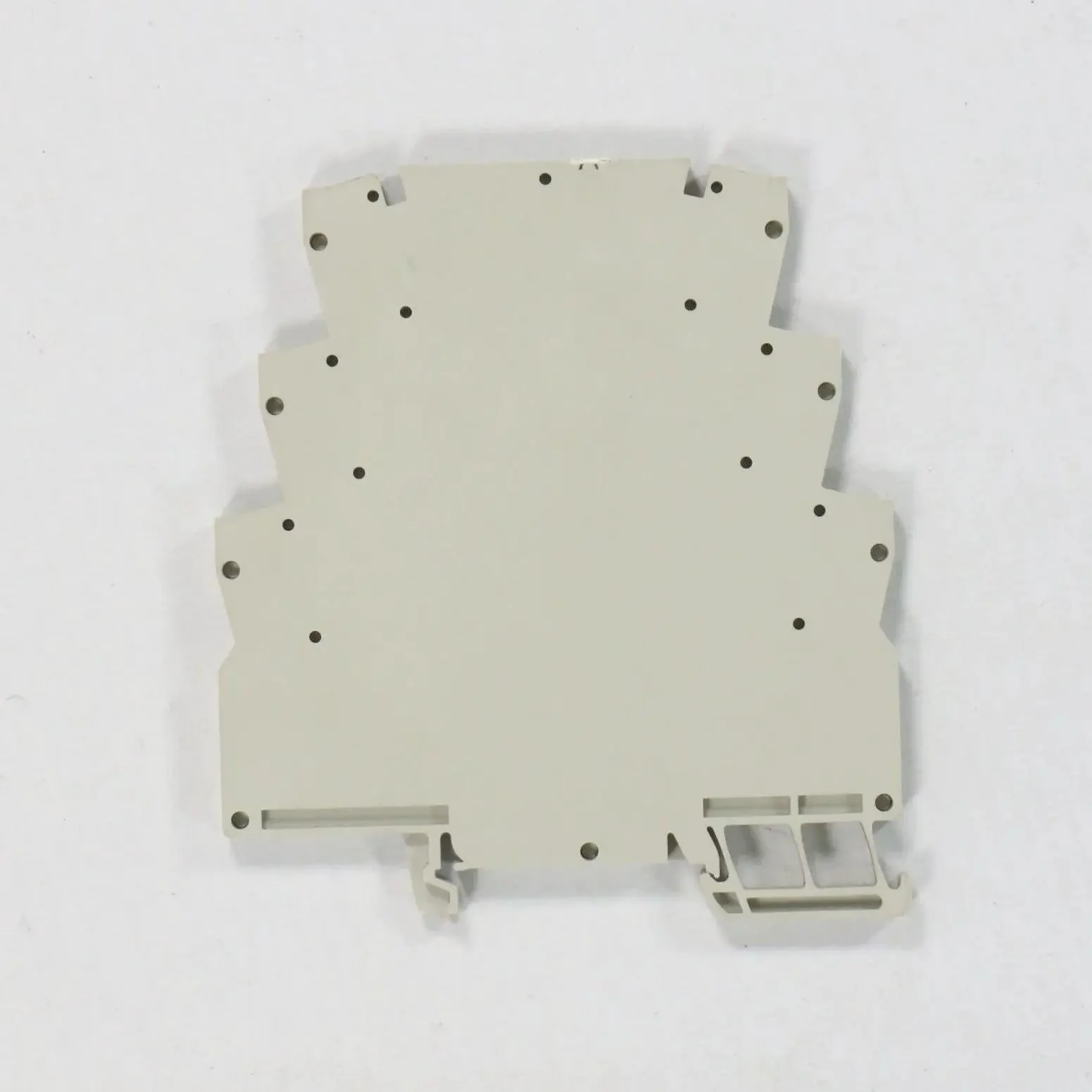

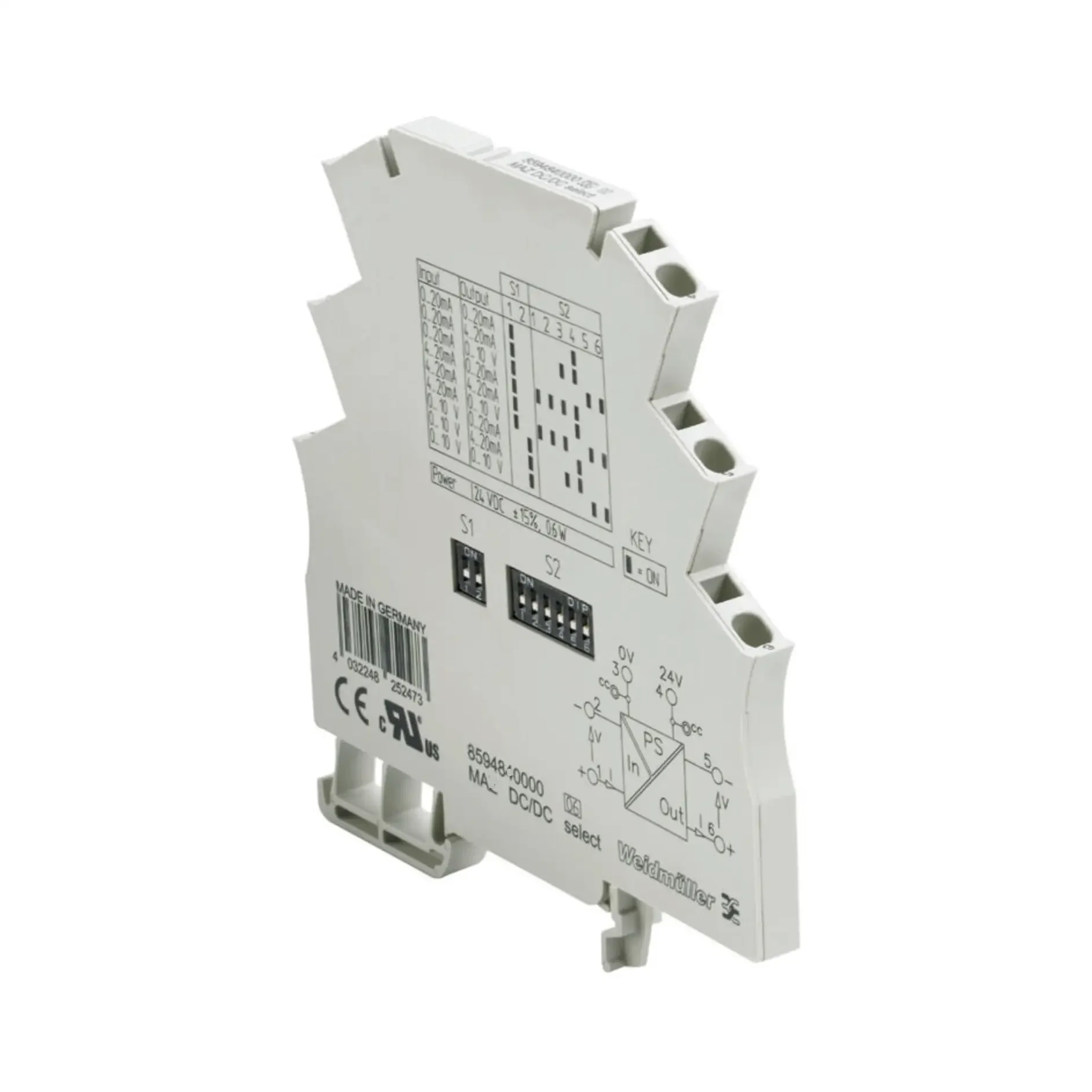

Weidmuller MAS DC/DC Select Signal Converter - 8594810000

- Brand: Weidmüller

- Model: MAS DC/DC SELECT (MICROSERIES signal converter/insulator)

- Type: DC/DC Signal Converter

- Part number: 8594810000

- Technical specifications:
- Input: Configurable 0…10 V, 0…20 mA or 4…20 mA
- Output: Configurable 0…10 V or 0…20 mA / 4…20 mA
- Supply voltage: 24 V DC ±15 % (power consumption ca. 0.6 W)
- Galvanic isolation: 3-way isolator (input/output/supply) with 500 V eff / 1 s insulation voltage
- Temperature coefficient: ≤150 ppm/K of final value
- Connection: Screw connection
- Mounting: DIN rail
- Housing width: 6.1 mm

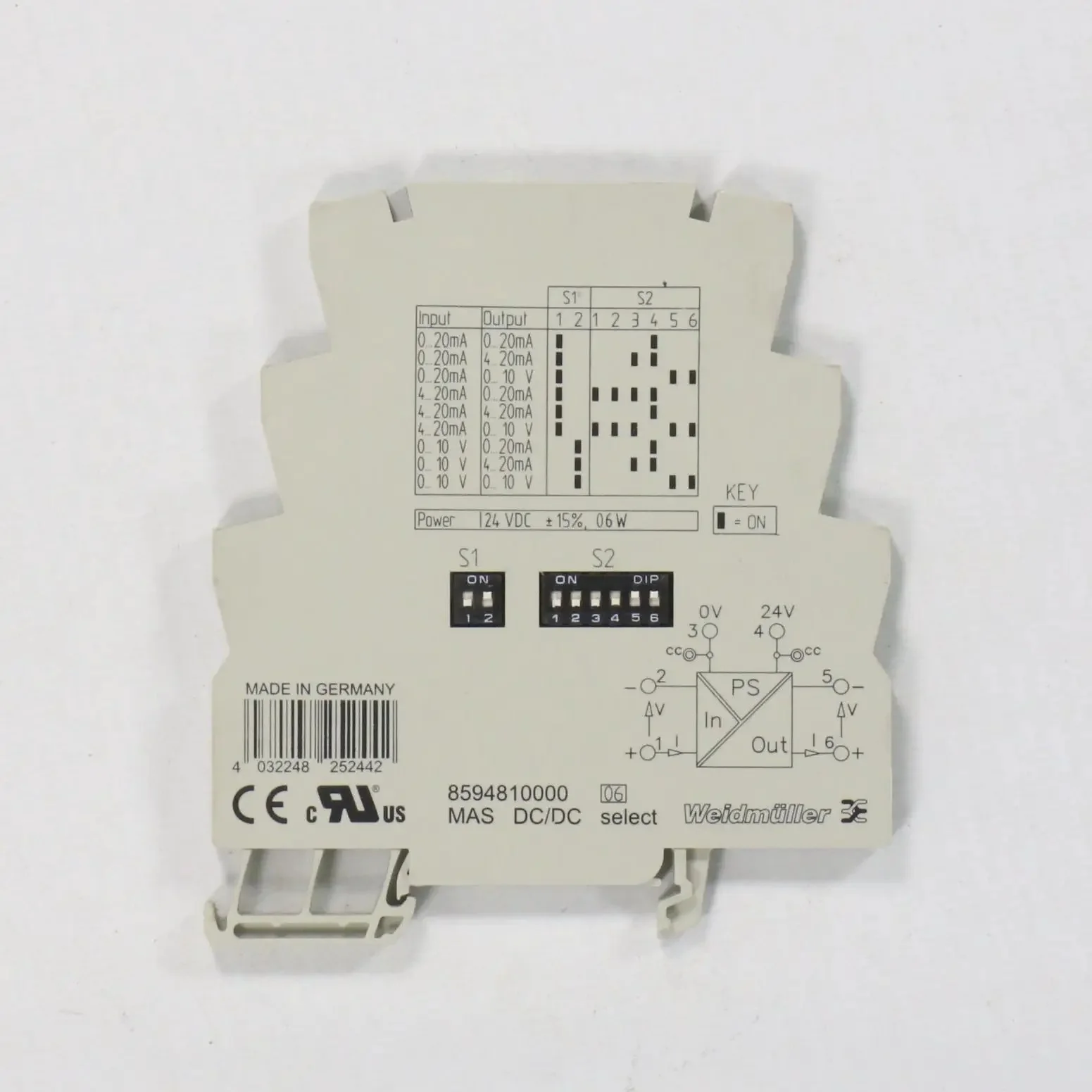

- Additional features: DIP-switch configurable input/output parameters; plug-in cross-connector compatible; suitable for worldwide use with international approvals
- Standards: Compliant with DIN EN 61326, DIN EN 61010, DIN EN 60079; cULus, RoHS compliant

Weight: 50 g

Dimensions: 98 x 88 x 6.1 mm

Country of origin: Germany

HS code: 8543.70
