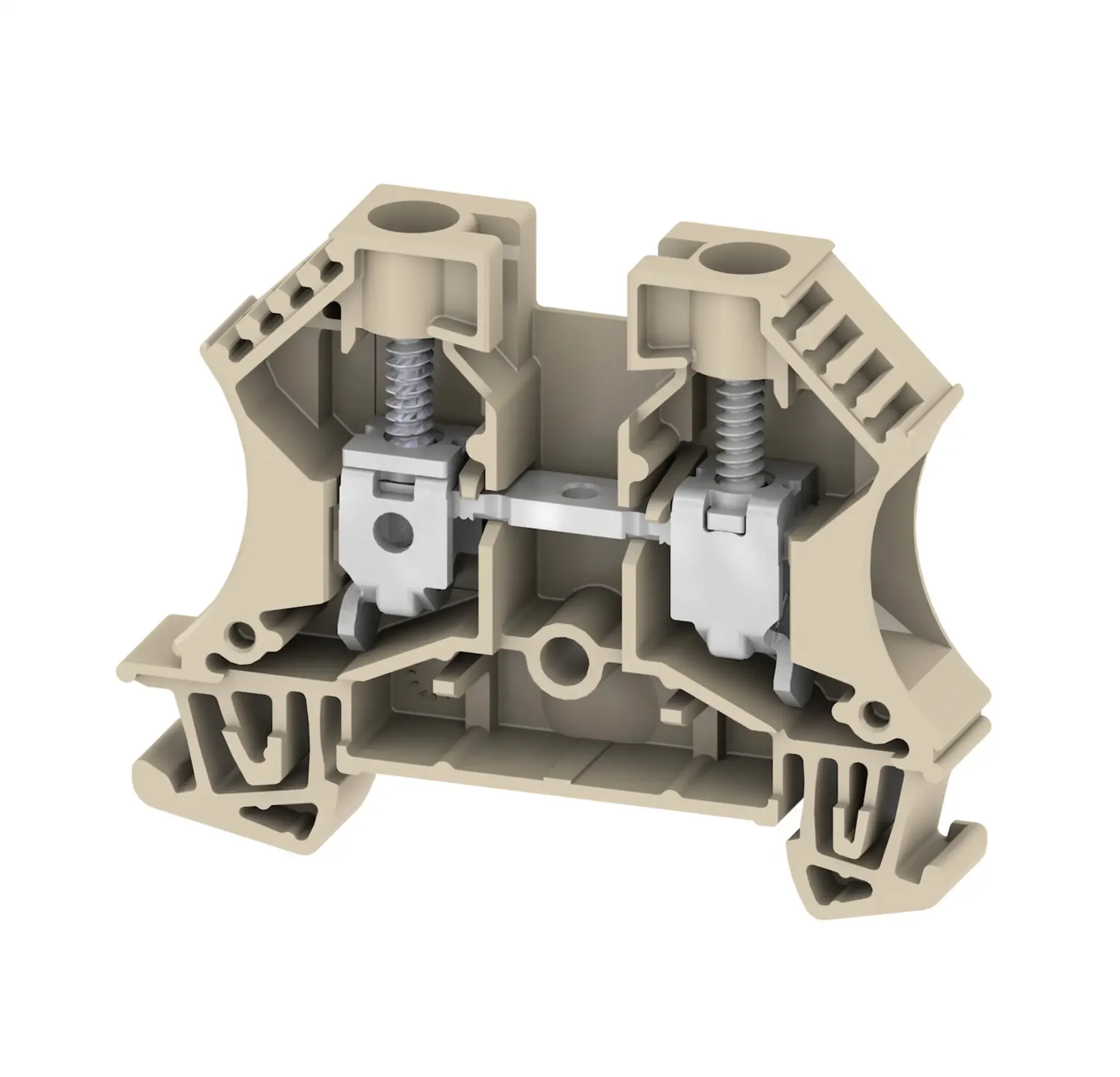

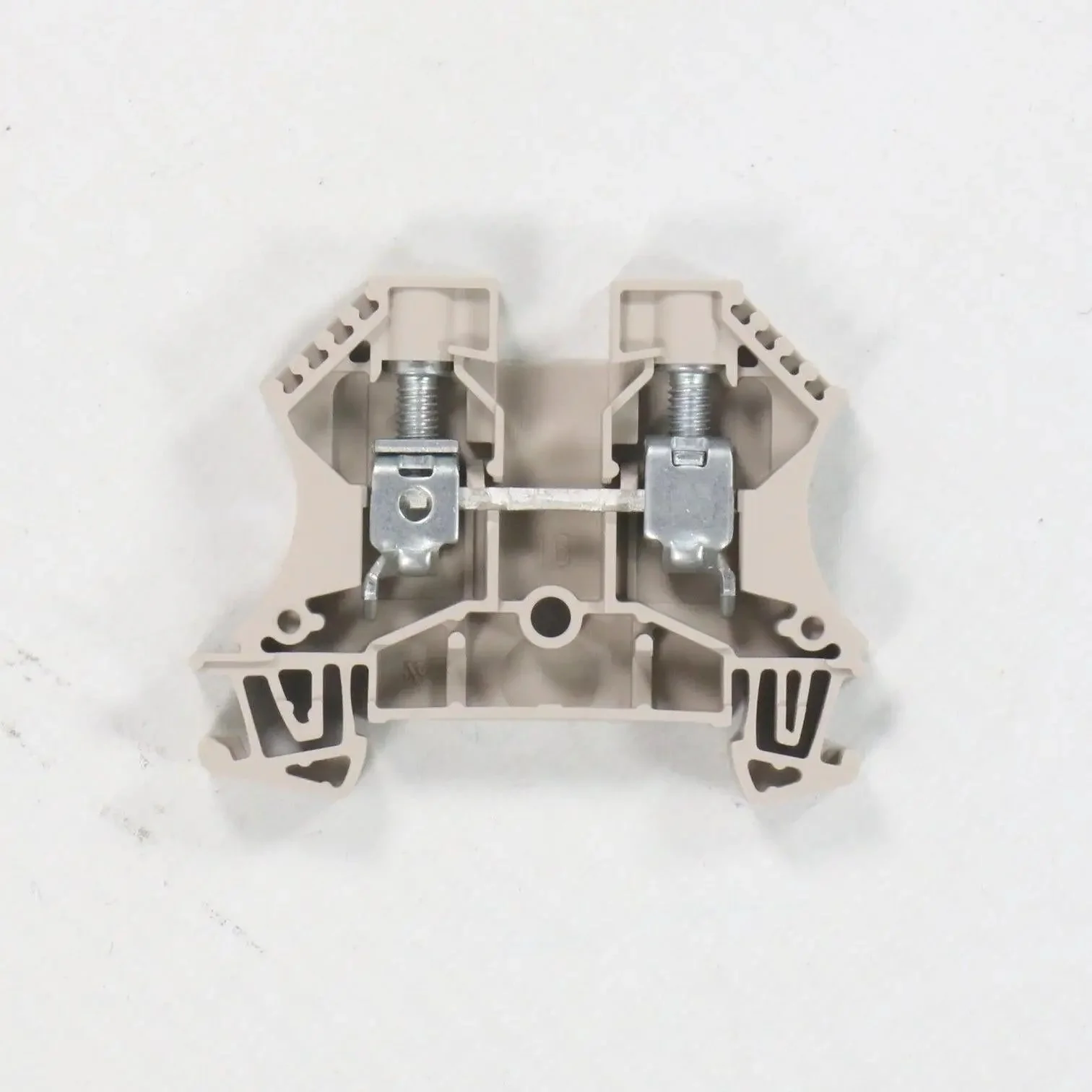

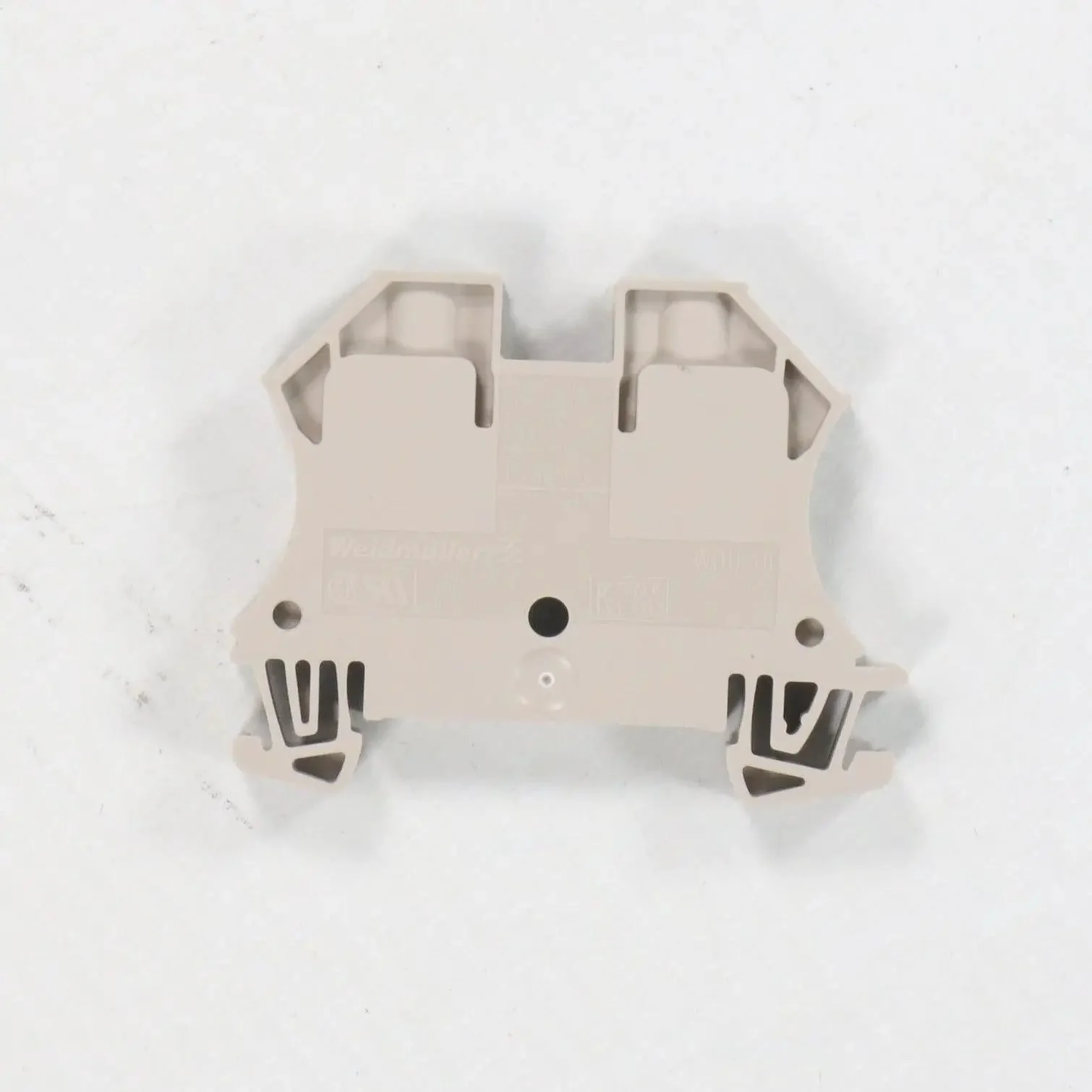

Weidmuller WDU 10 Feed-Through Terminal Block (x44pcs)

- Brand: Weidmüller

- Model: WDU 10
- Type: Feed-Through Terminal Block x 44pcs
- Part number: 1020300000
  - Function: Feed-through terminal for connecting and distributing wires in control cabinets and switchgear
  - Rated Cross Section: 10 mm²
  - AWG Range: 18 – 6
  - Rated Voltage: 600 V (IEC/EN), 600 V (UL)
  - Rated Current: 65 A (IEC/EN), 65 A (UL)
  - Pollution Degree: 3
  - Overvoltage Category: III
  - Stripping Length: 12 mm
  - Tightening Torque: 1.2 – 1.5 Nm
  - Connection Type: Screw connection
  - Mounting: DIN rail TS 35
  - Width: 9.9 mm
  - Spacing: 10 mm
  - Housing Material: Polyamide (PA)
  - Flammability Class: V0 (UL 94)
  - Colour: Dark beige (standard)
  - Clamping Yoke Material: Steel, zinc-plated
  - Features: Vibration-proof, maintenance-free,
  - Standards: IEC/EN 60947-7-1, UL 1059, CSA C22.2 No. 158
  - Applications: Power distribution, control cabinet wiring, machine building, industrial automation

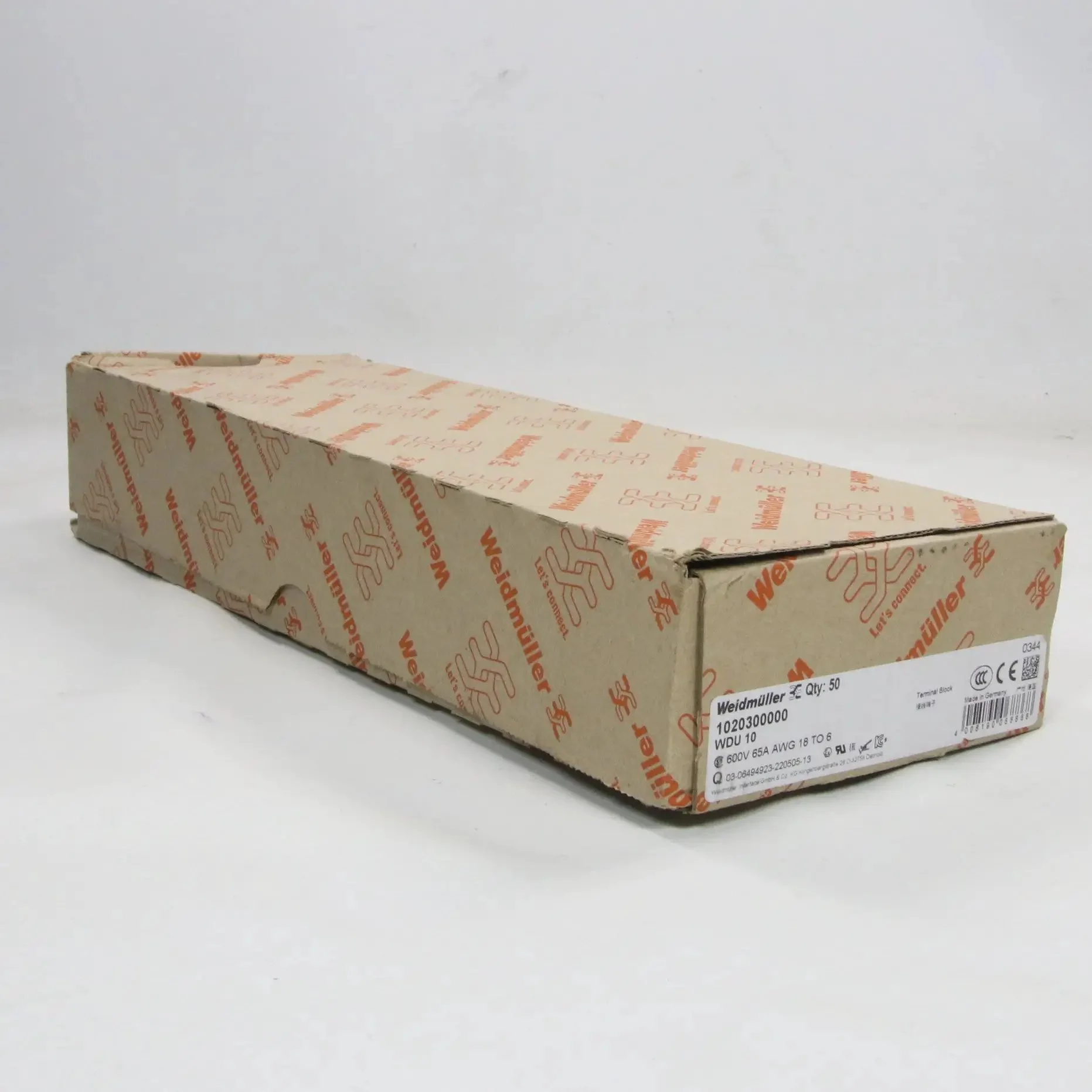

- Dimensions: 9.9 × 60 × 46.5 mm, 320 x 110 x 50 mm (box)
- Weight: 850 g (box)
- Country of origin: Romania
- HS code: 853690
