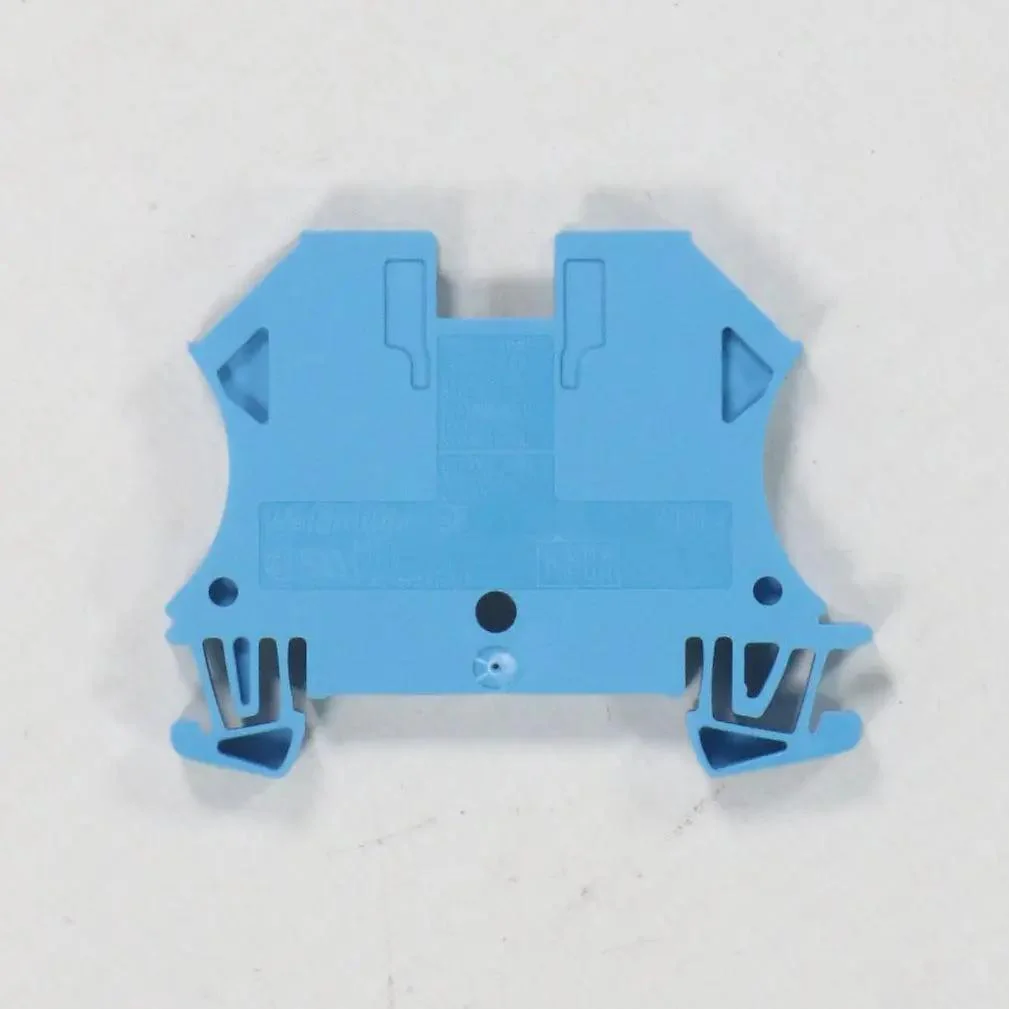

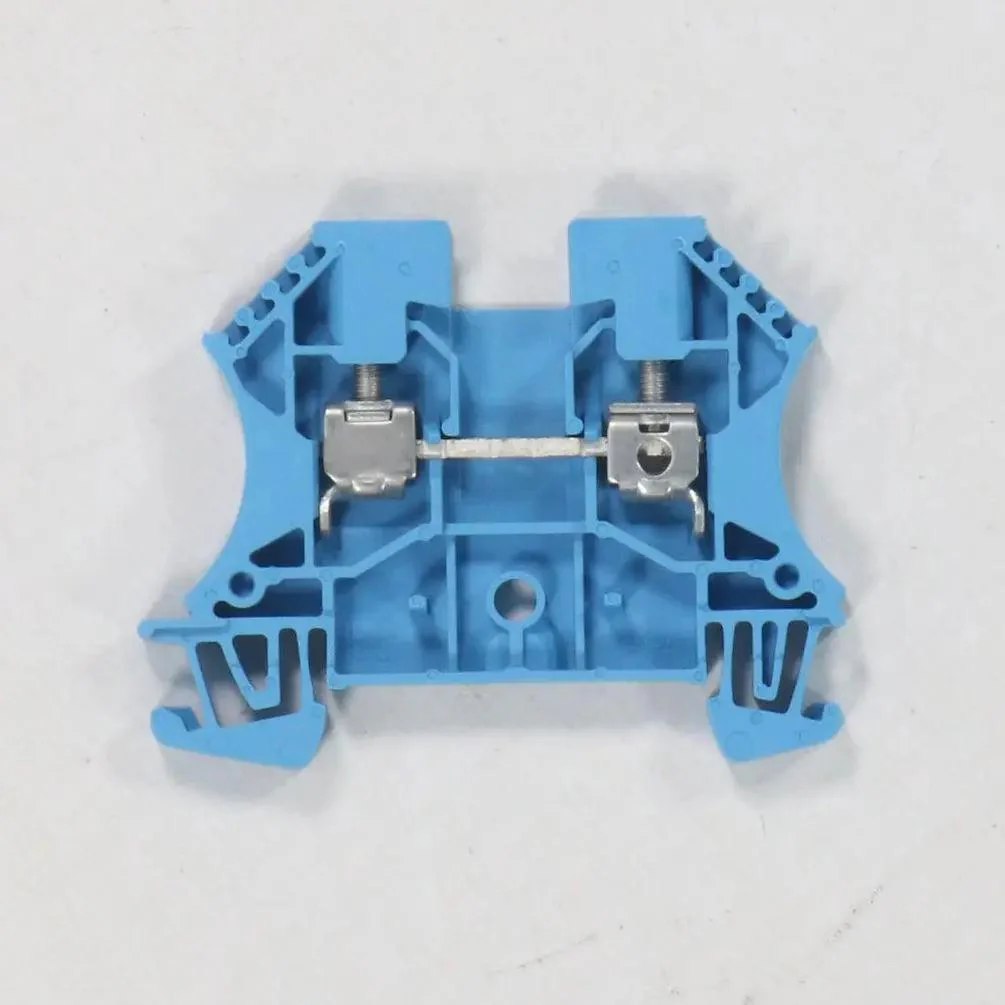

Weidmuller WDU 4 BL Feed-through Terminal Block (x98)

- Brand: Weidmüller

- Model: WDU 4 BL

- Type: Feed-through Terminal Block (x98 pcs)

- Part number: 1020180000

- Technical specifications:
- Nominal cross-section: 4 mm²
- Rated current: 35 A
- Rated voltage: 600 V
- Connection technology: Screw connection
- AWG range: 26 to 10
- Number of poles: 1
- Mounting: TS 35 DIN rail
- Material: Wemid (Polyamide)
- Colour: Blue
- Additional features: Compact design, high vibration resistance; easy bridging with WQV cross-connectors; finger-proof screw terminals; clear marking possibilities; suitable for control cabinets, switchgear, and machine building
- Standards: IEC 60947-7-1 / EN 60947-7-1, UL 1059, CSA, RoHS, REACH

Weight: 1.0 kg

Dimensions: 6.1 x 60 x 55 mm, 310 x 130 x 50 mm (box)

Country of origin: Germany

HS code: 8536.90
