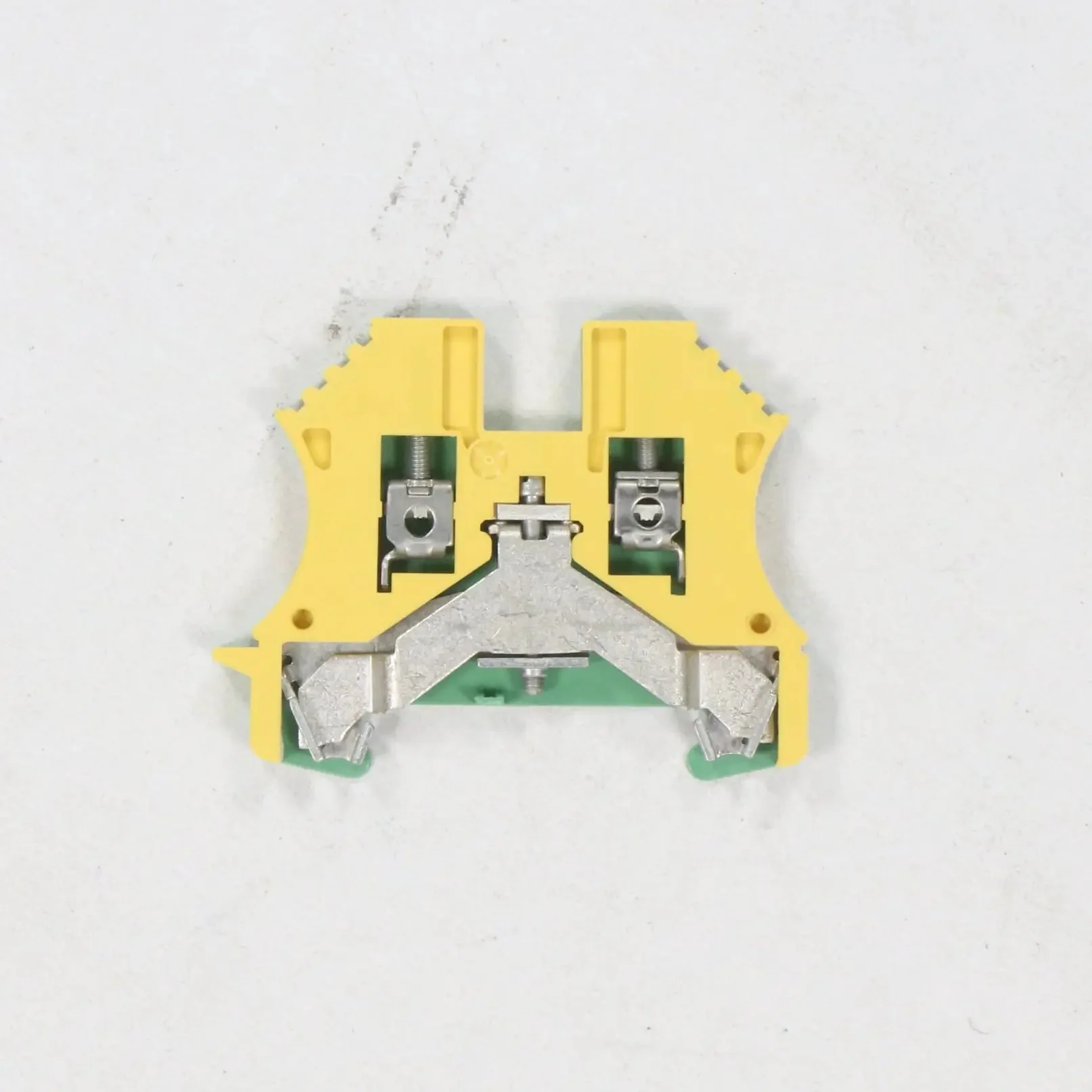

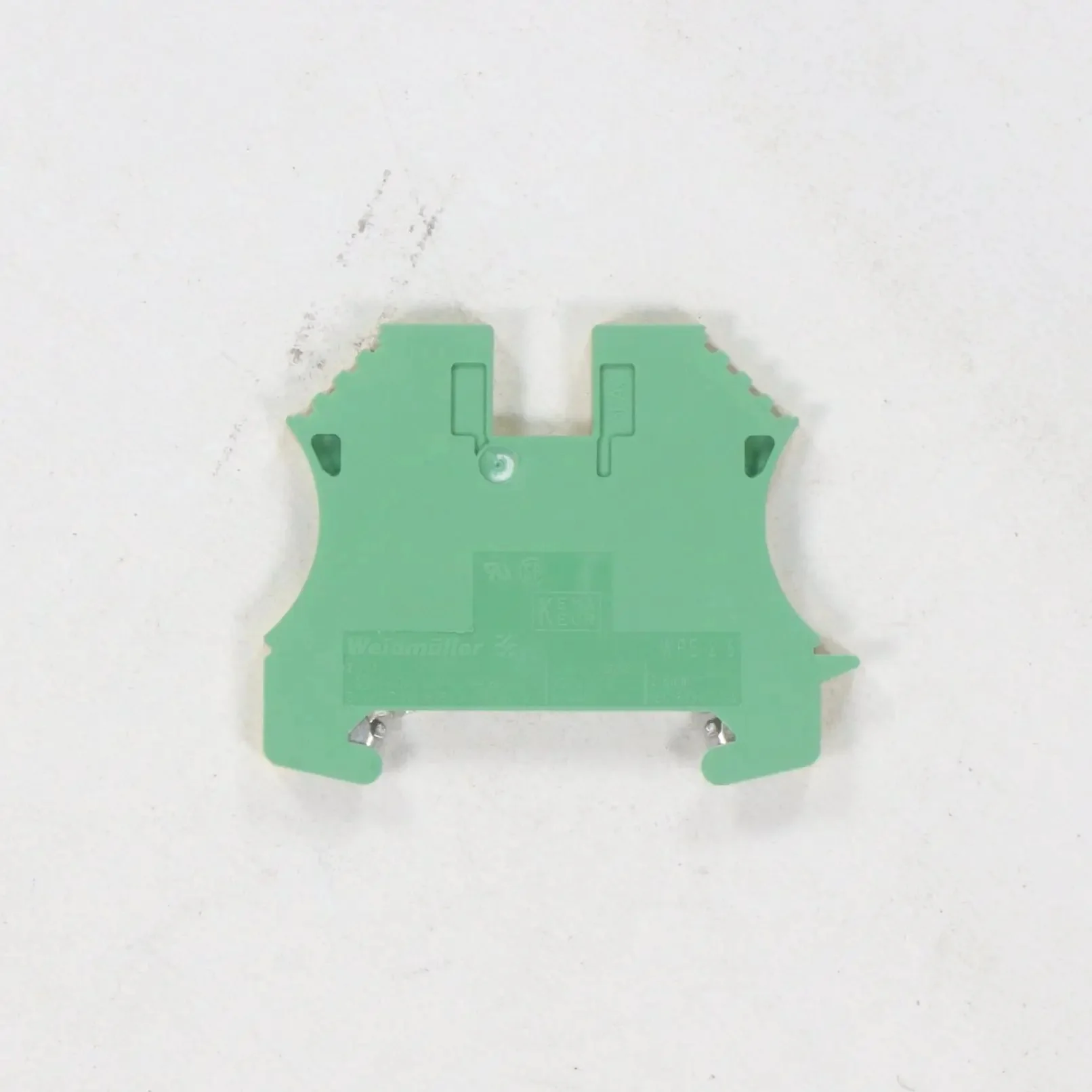

Weidmuller WPE 2.5 PE Terminal Block (x100pcs)

- Brand: Weidmüller
- Model: WPE 2.5

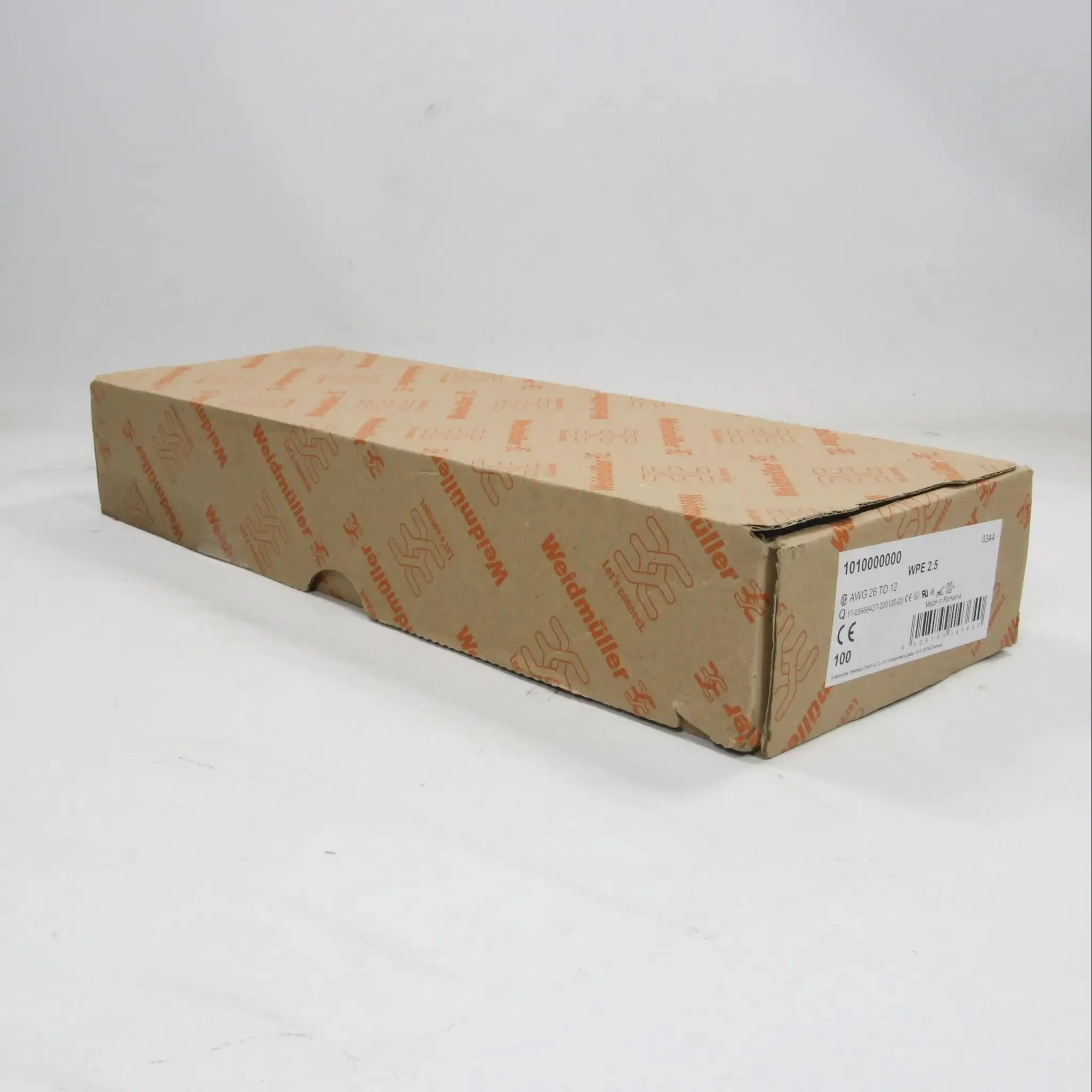

- Type: PE Terminal Block x 100pcs
- Part number: 1010000000
  - Function: Protective conductor terminal for connecting protective earth wires in control cabinets and electrical installations
  - Connection Type: Screw connection (clamping yoke)
  - Rated Cross Section: 2.5 mm²
  - AWG Range: 26 – 12
  - Rated Voltage: 800 V (IEC/EN)
  - Rated Current: 24 A (IEC/EN)
  - Rated Impulse Withstand Voltage: 8 kV
  - Pollution Degree: 3
  - Overvoltage Category: III
  - Stripping Length: 10 mm
  - Tightening Torque: 0.5 – 0.6 Nm
  - Mounting: DIN rail TS 35
  - Width: 5.1 mm
  - Housing Material: Polyamide (PA)
  - Flammability Class: V0 (UL 94)
  - Colour: Green/Yellow (standard PE marking)
  - Clamping Yoke Material: Steel, zinc-plated
  - Features: Double clamping yoke for two conductors per side, vibration-proof, maintenance-free, W-type
  - Standards: IEC/EN 60947-7-2, UL 1059, CSA C22.2 No. 158

- Dimensions: 5.1 × 60.5 × 47 mm, 320 x 110 x 60 mm (box)
- Weight: 1.7 kg (box)
- Country of origin: Romania
- HS code: 853690
