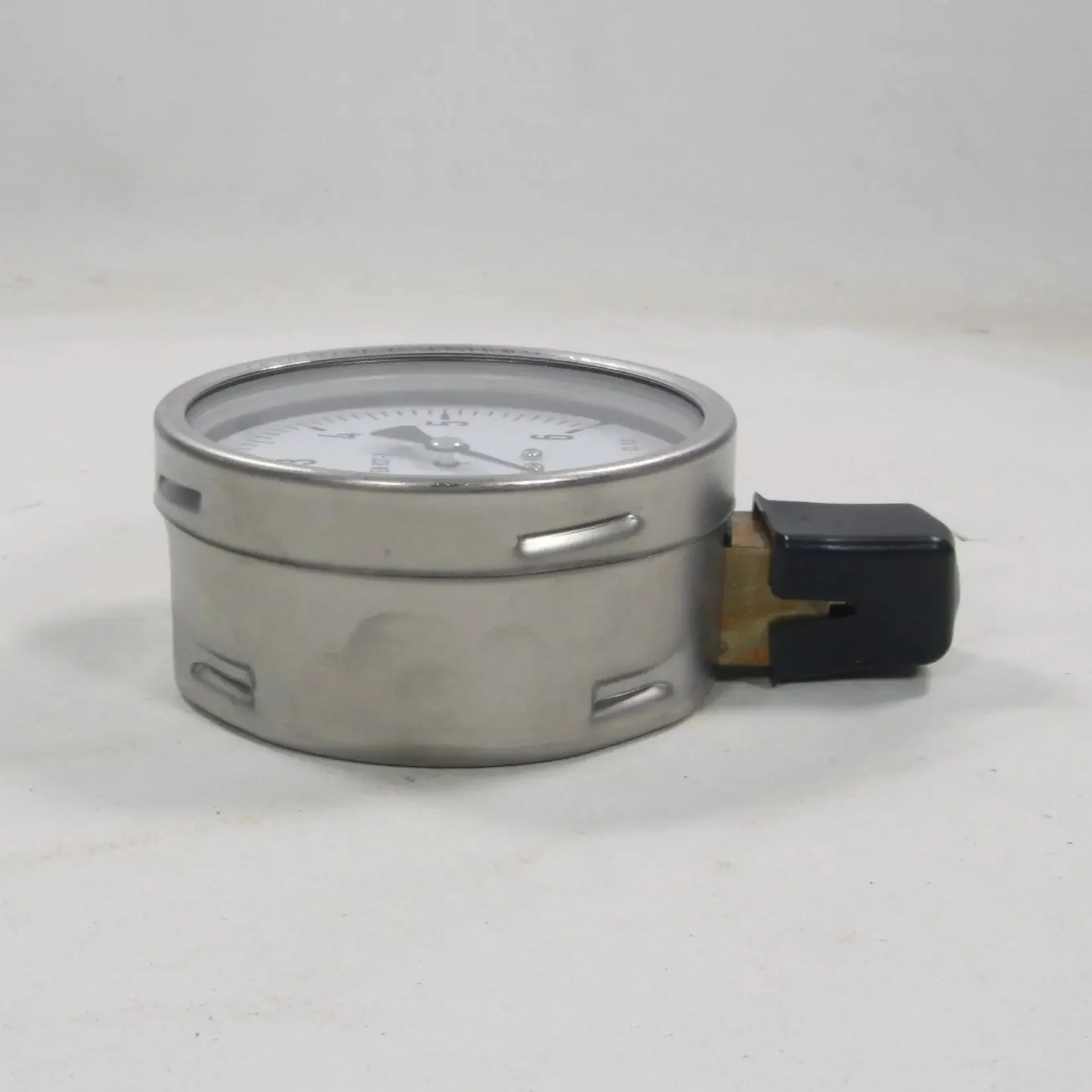

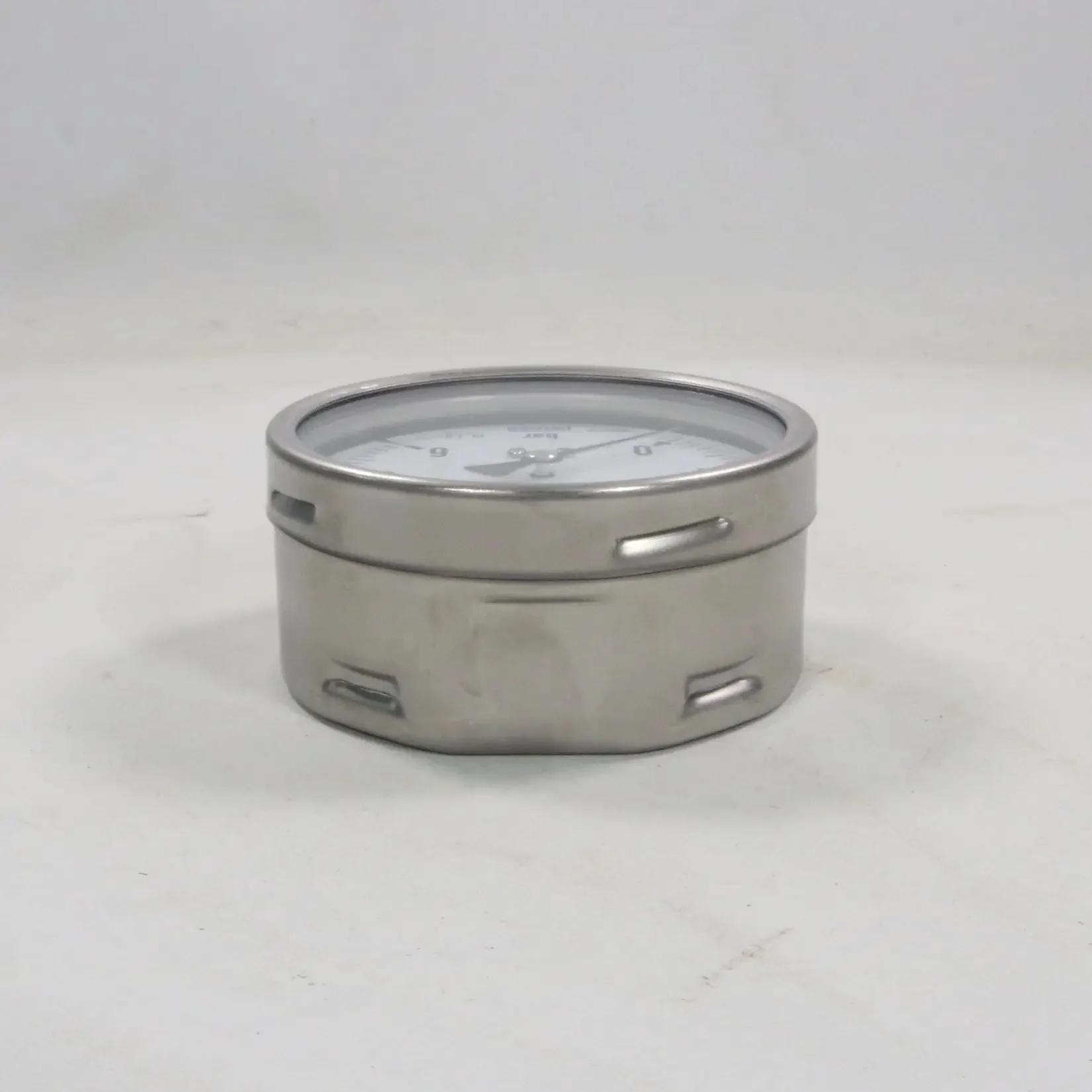

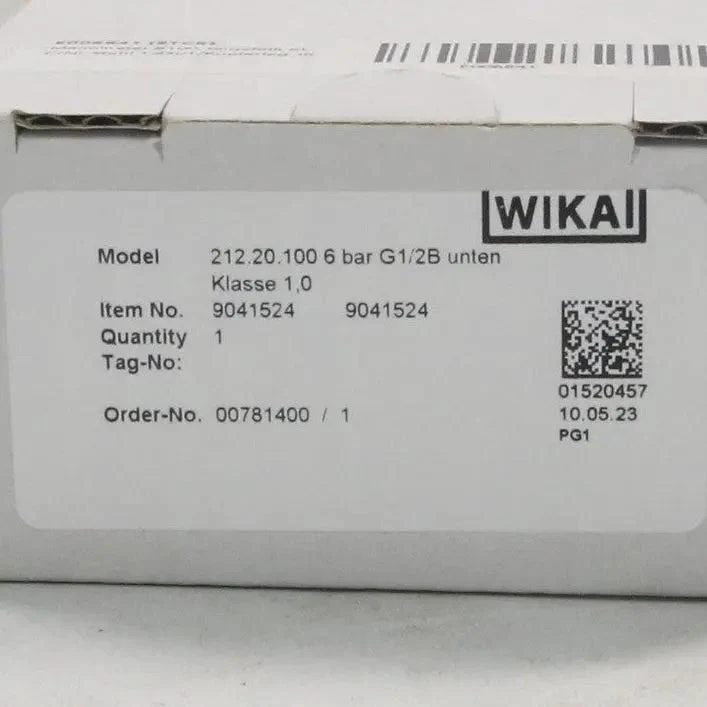

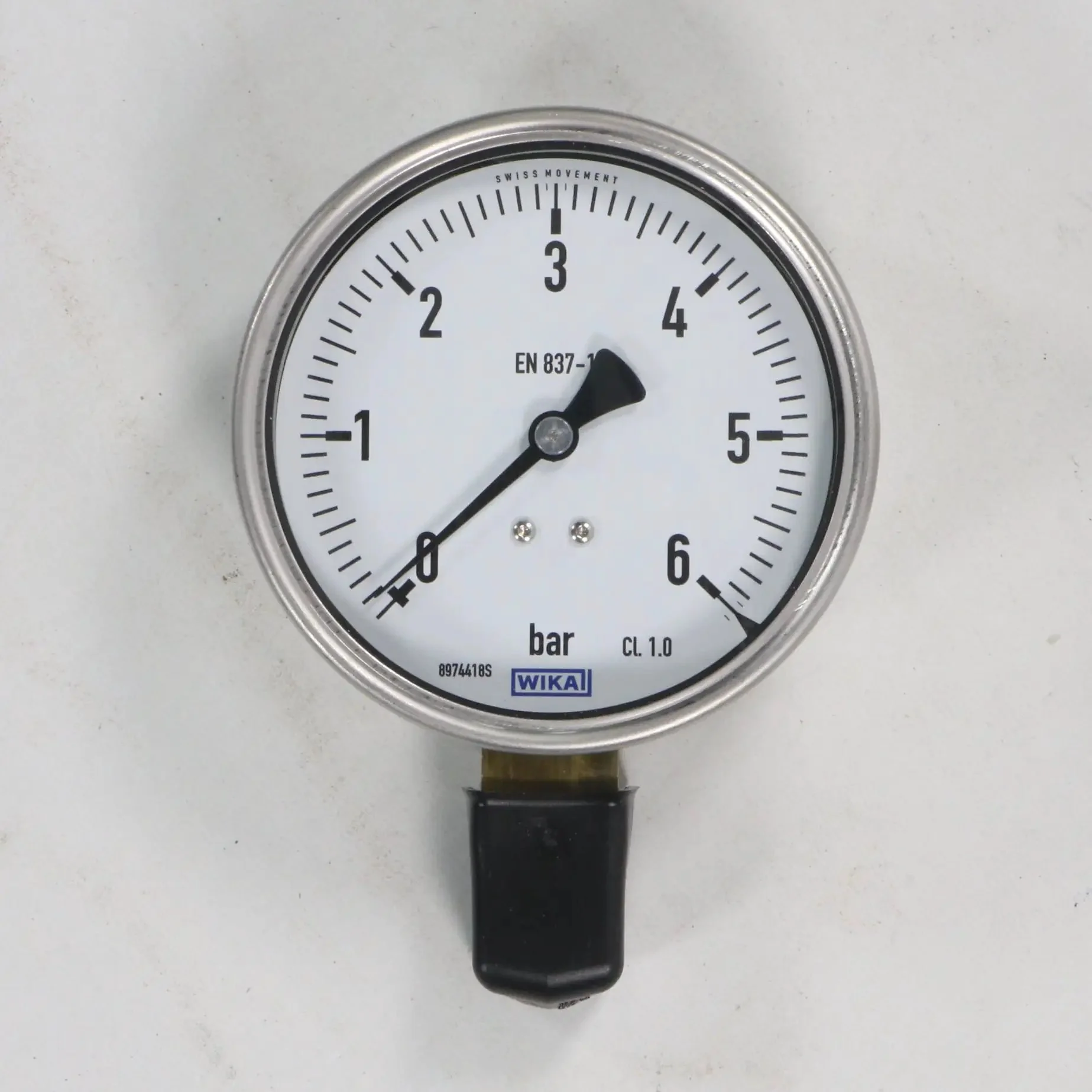

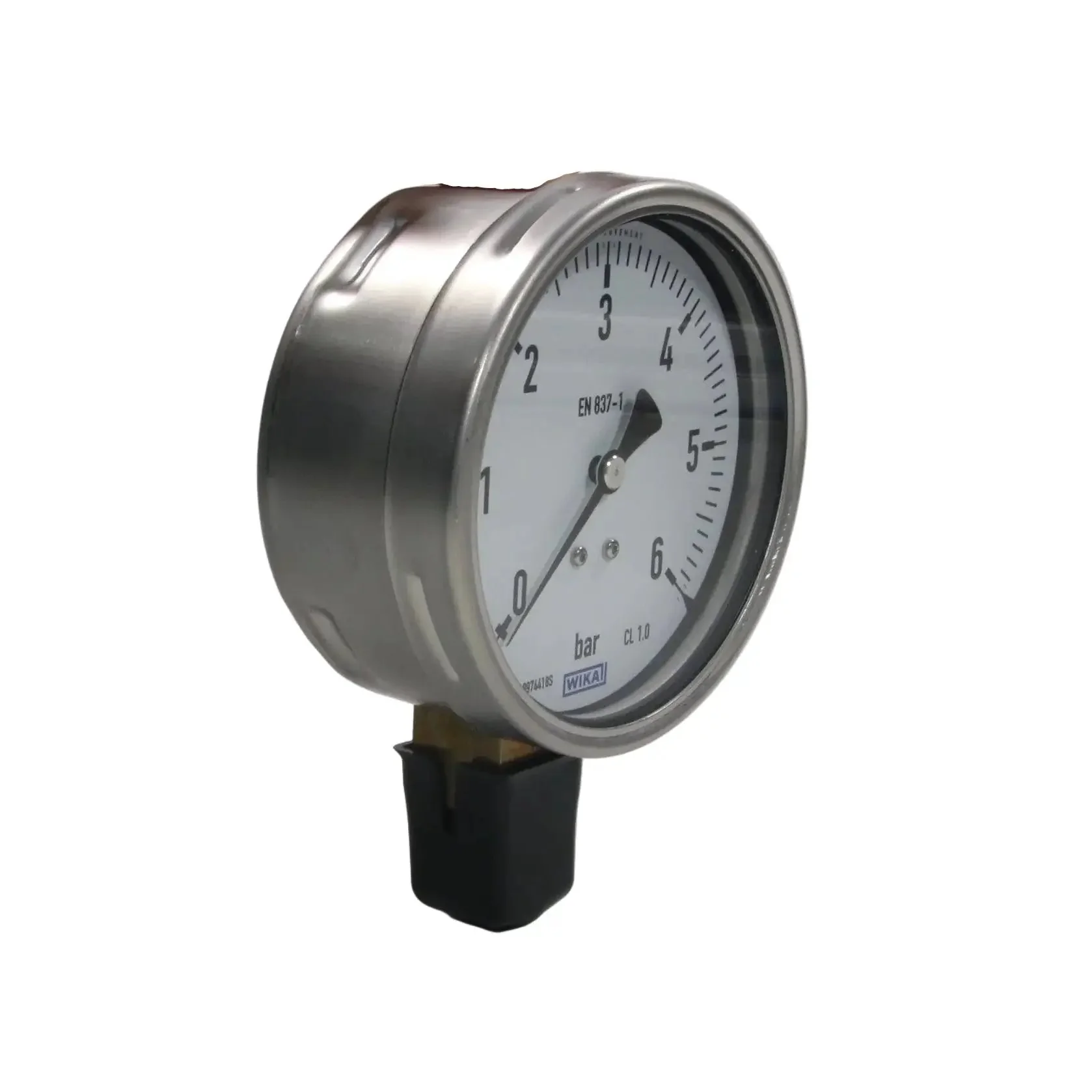

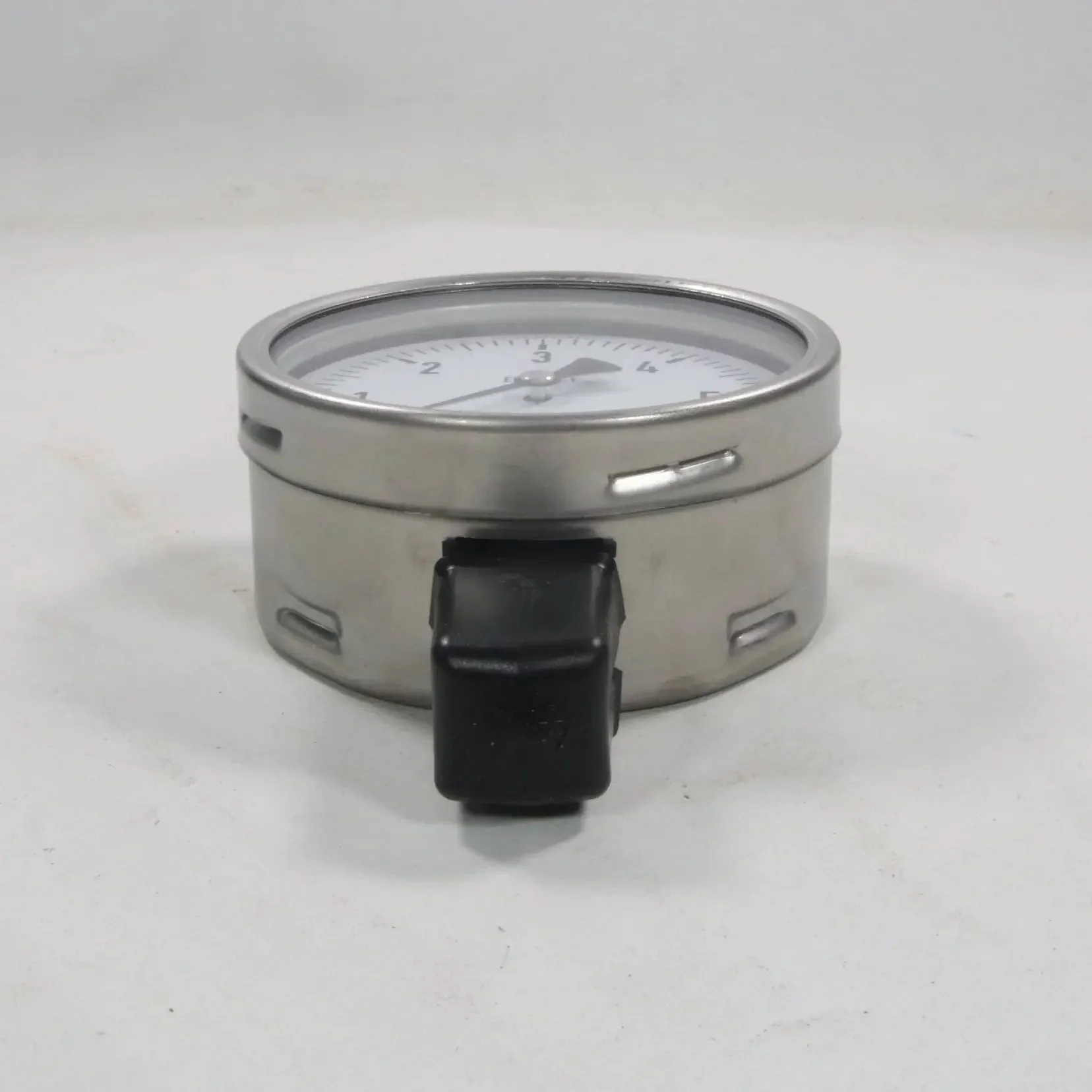

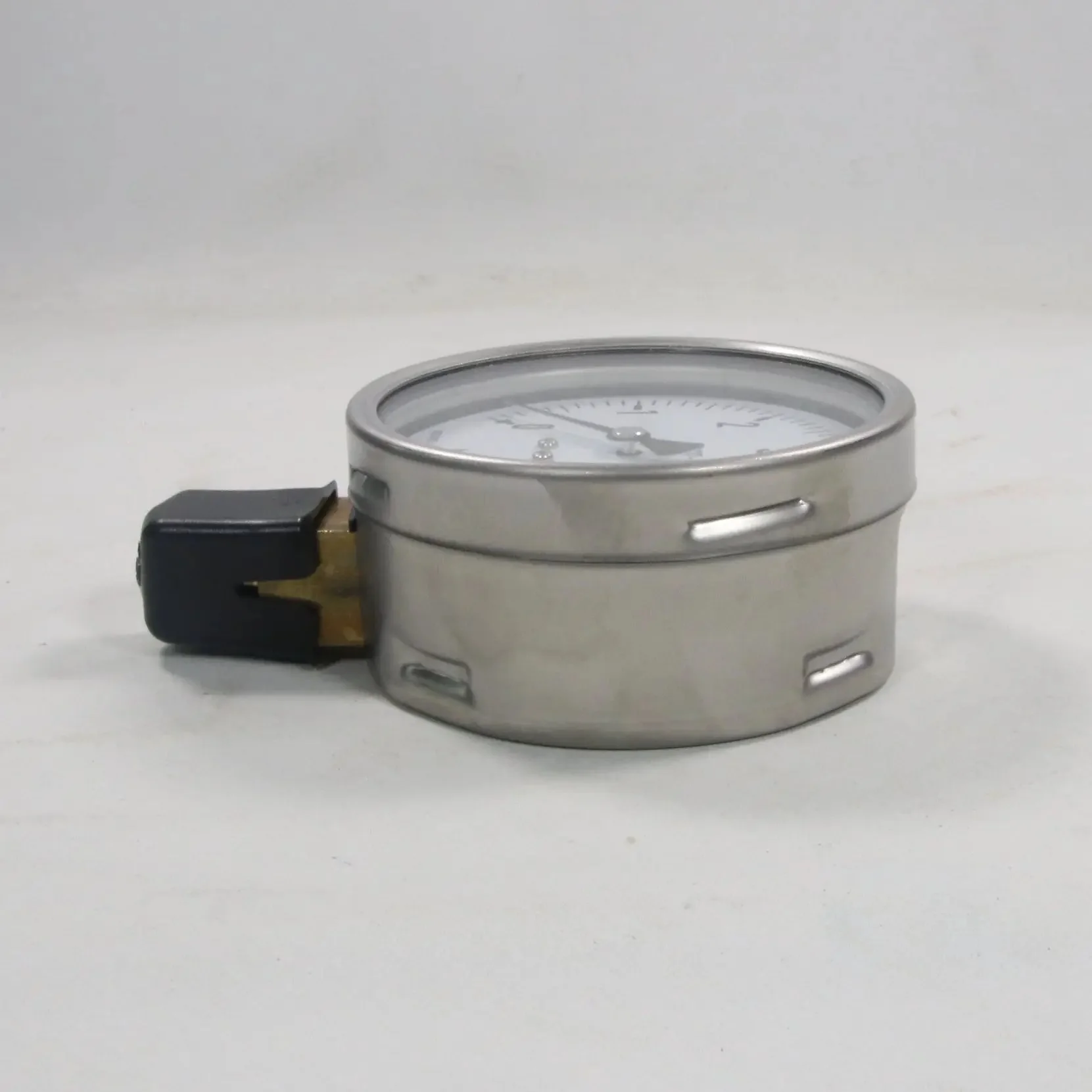

Wika 212.20.100 Analog Pressure Gauge

- Brand: WIKA

- Model: 212.20 (Bourdon tube pressure gauge with dry case)

- Type: Analog Pressure Gauge

- Part number: 9041524

- Technical specifications:
- Nominal size: 100 mm
- Measuring range: -1 to +6 bar
- Accuracy class: 1.6
- Bourdon tube: C-type
- Case: Stainless steel
- Window: Instrument glass
- Movement: Copper alloy
- Process connection: G1/2" BSP bottom
- Wetted parts: Copper alloy
- Overpressure safety: Up to 4x full scale (typical)
- Temperature range: Ambient -40°C to +60°C
- Protection class: IP54
- Standards: Compliant with EN 837-1 (pressure gauges); DIN 16005 (safety); CE marked

Weight: 600 g

Dimensions: 145 x 115 x 55 mm

Country of origin: Germany

HS code: 9026.20
