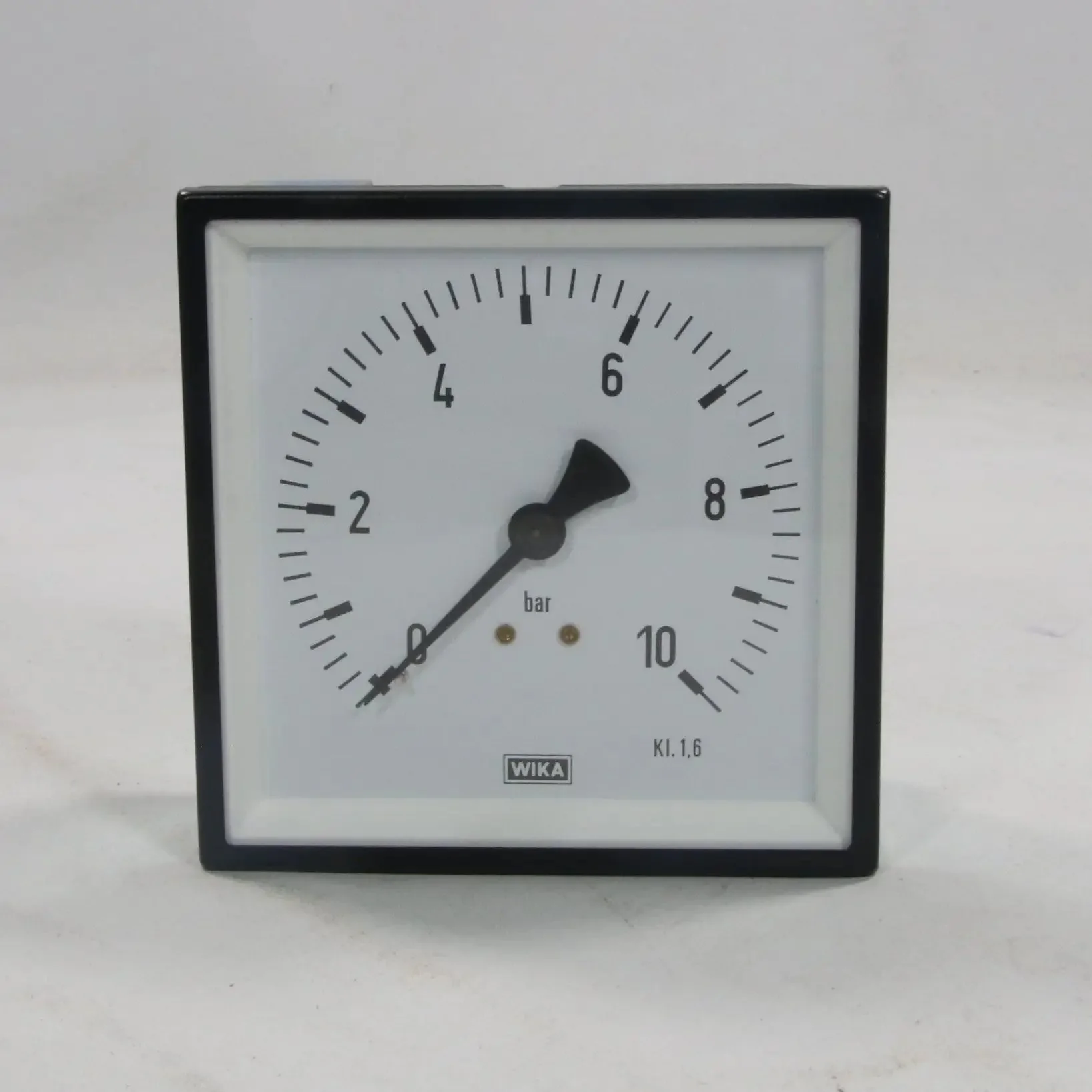

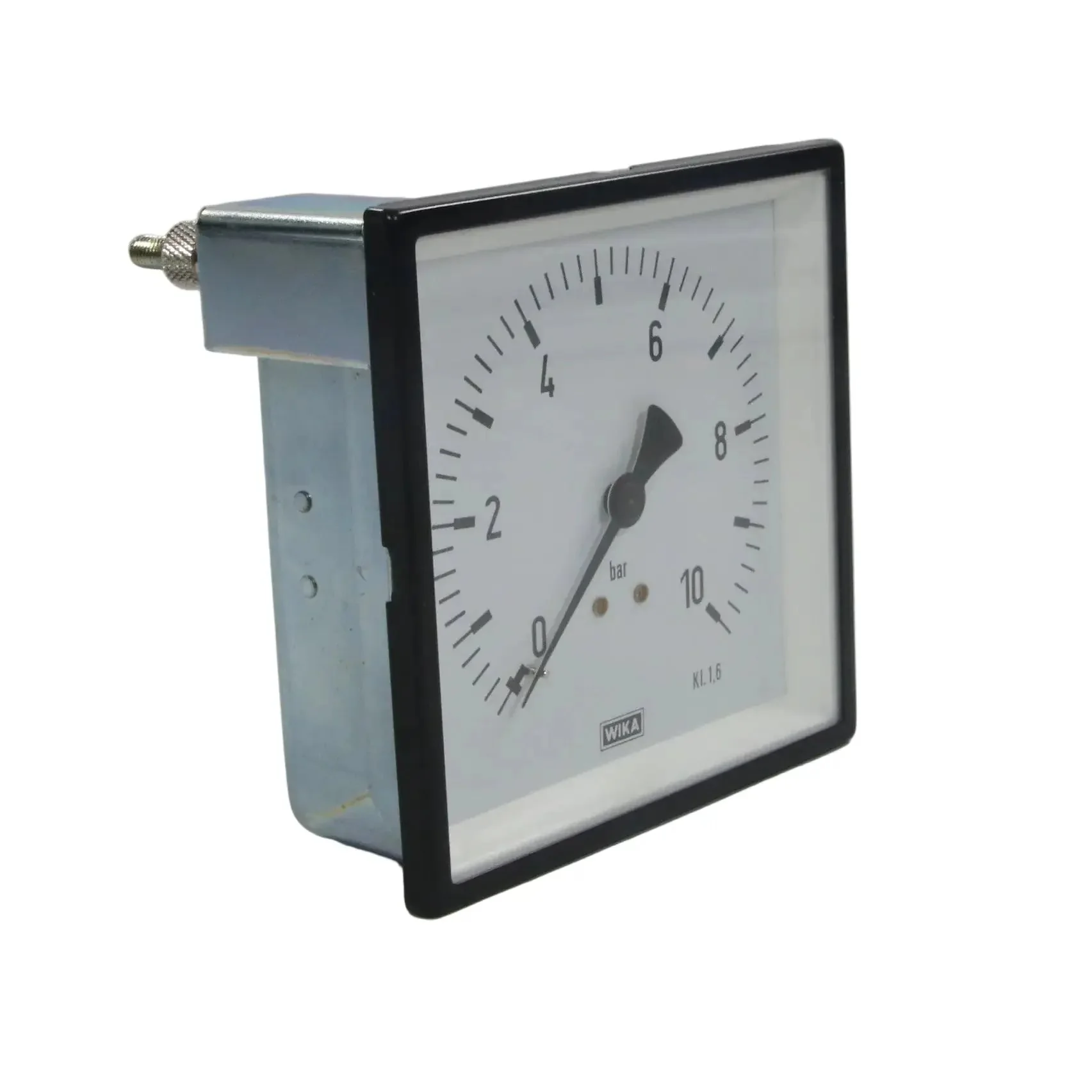

Wika 214.96x96 Precision Pressure Gauge

- Brand: WIKA

- Model: 214.96X96

- Type: Precision Pressure Gauge

- Part number: 9032754

- Technical specifications:
- Nominal size: 96 mm x 96 mm
- Measuring range: Typically -1 to +10 bar
- Accuracy class: 0.6
- Bourdon tube: C-type
- Case: Galvanised
- Window: Safety glass
- Movement: Stainless steel

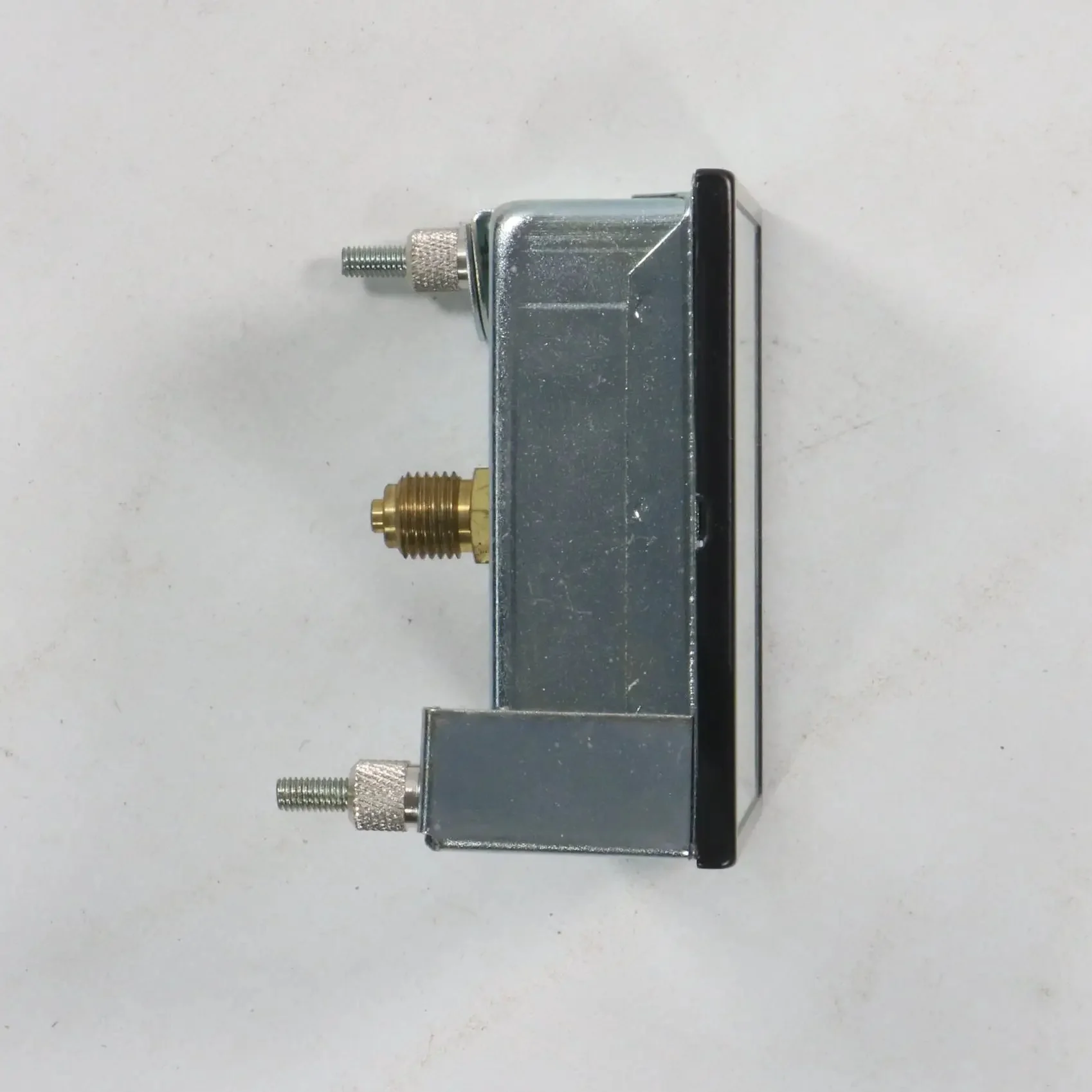

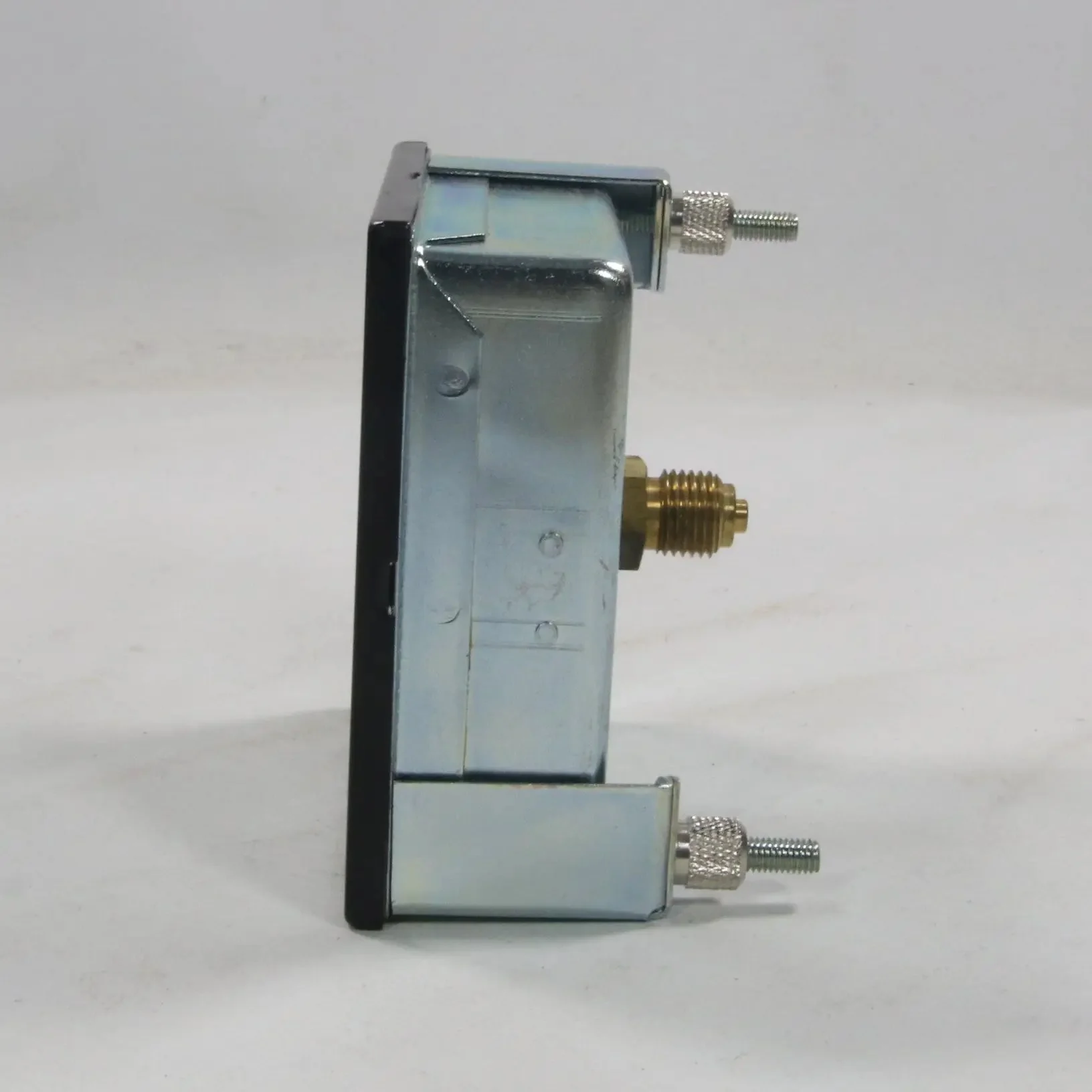

- Process connection: G 1/4B R.  back
- Wetted parts: Stainless steel 1.4571
- Overpressure safety: Up to 4x full scale
- Temperature range: Ambient -20°C to +60°C
- Protection class: IP65
- Additional features: Square case for panel/flush mounting
- Standards: Compliant with EN 837-1 (pressure gauges); DIN 16005 (safety); CE marked

Weight: 450 g

Dimensions: 105 x 100 x 75 mm (box)

Country of origin: Germany

HS code: 9026.20
