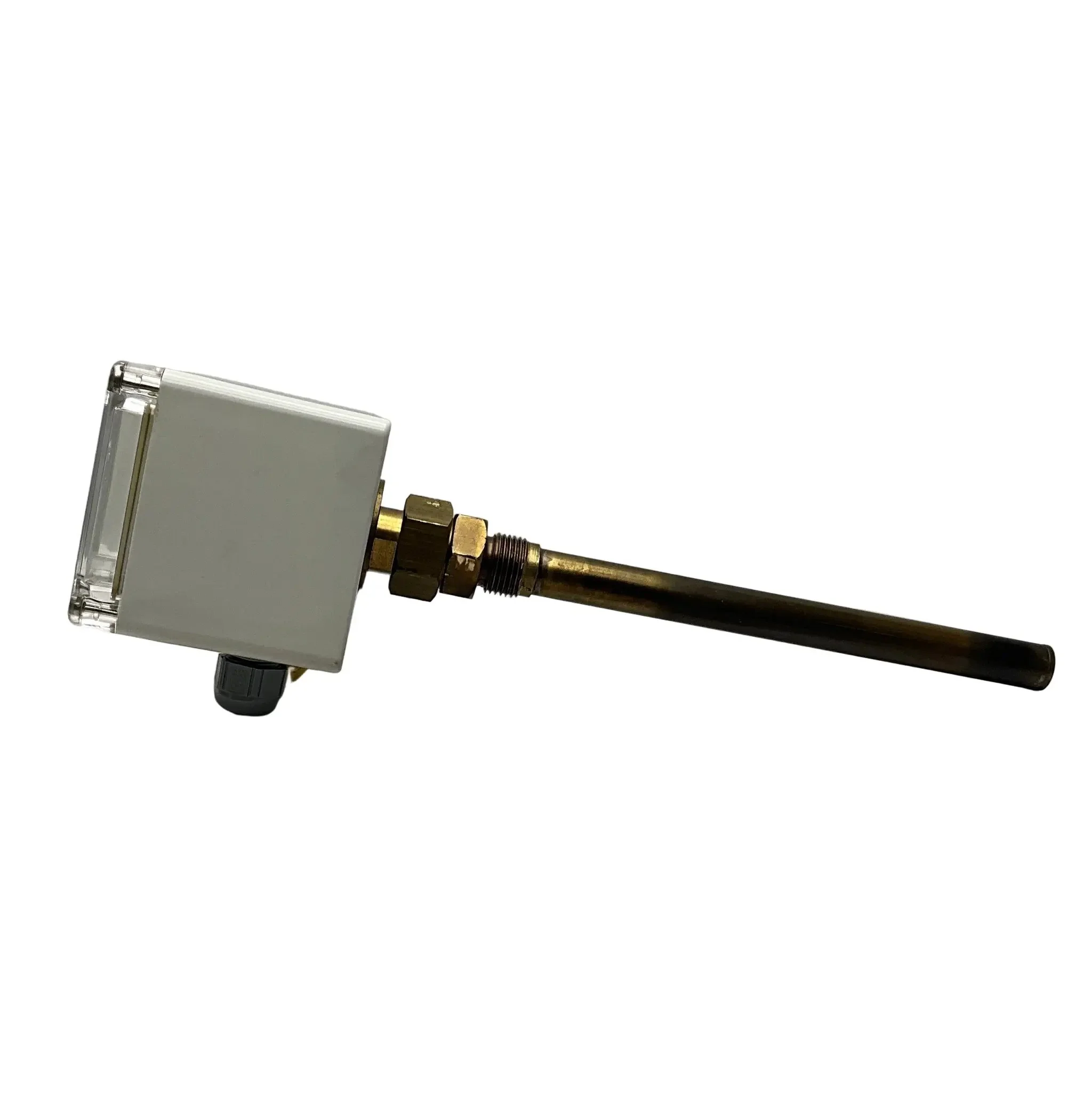

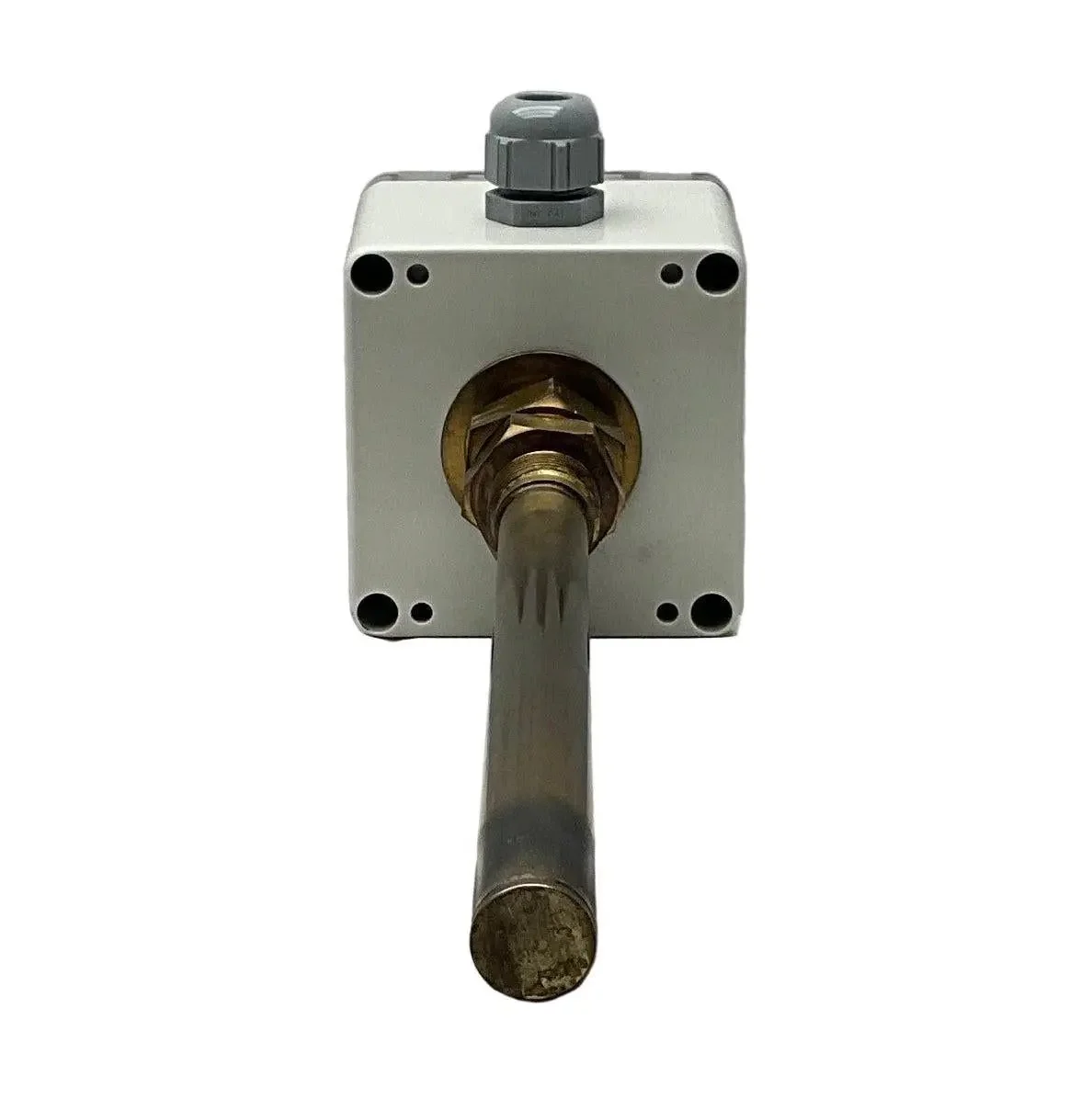

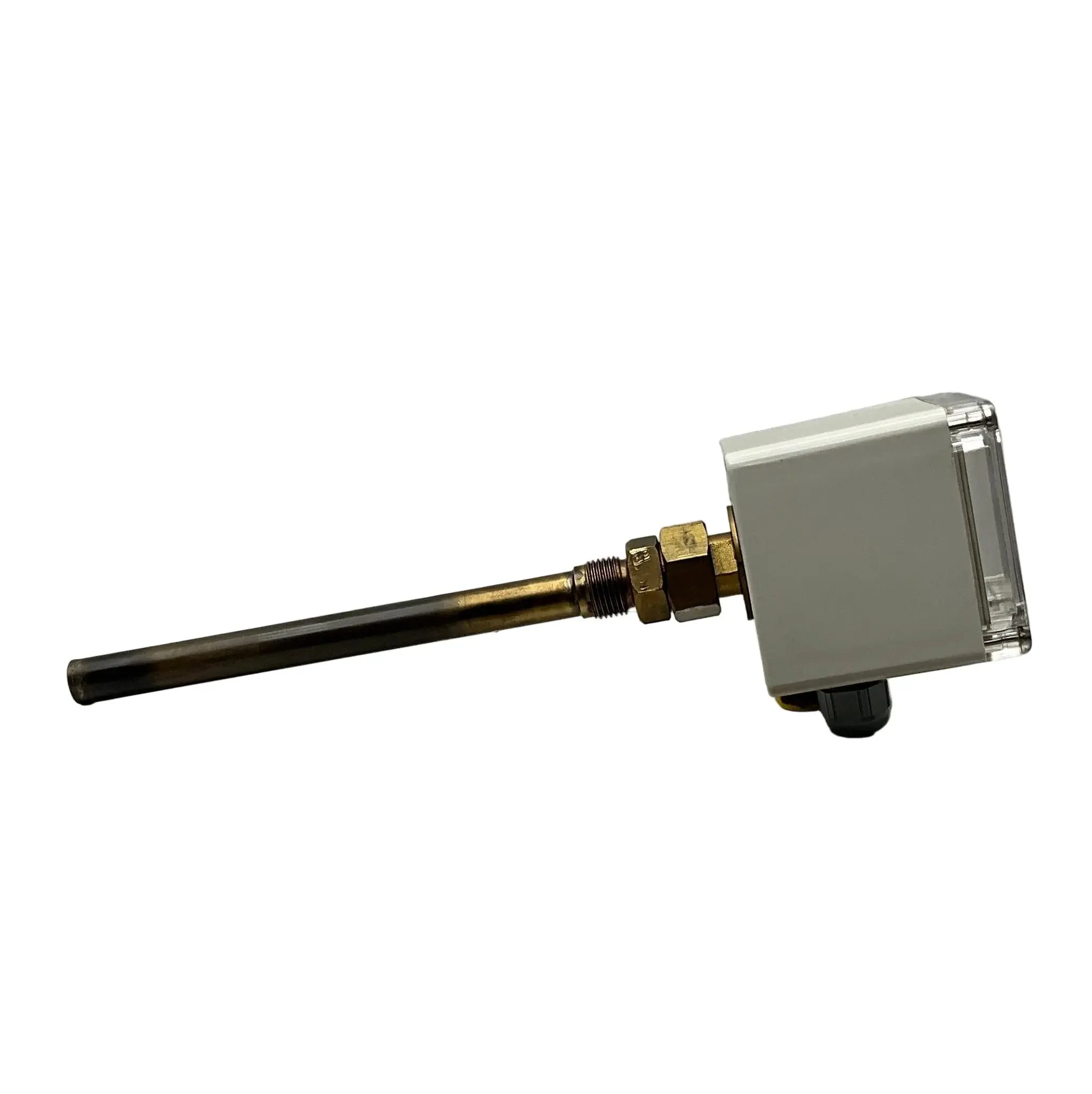

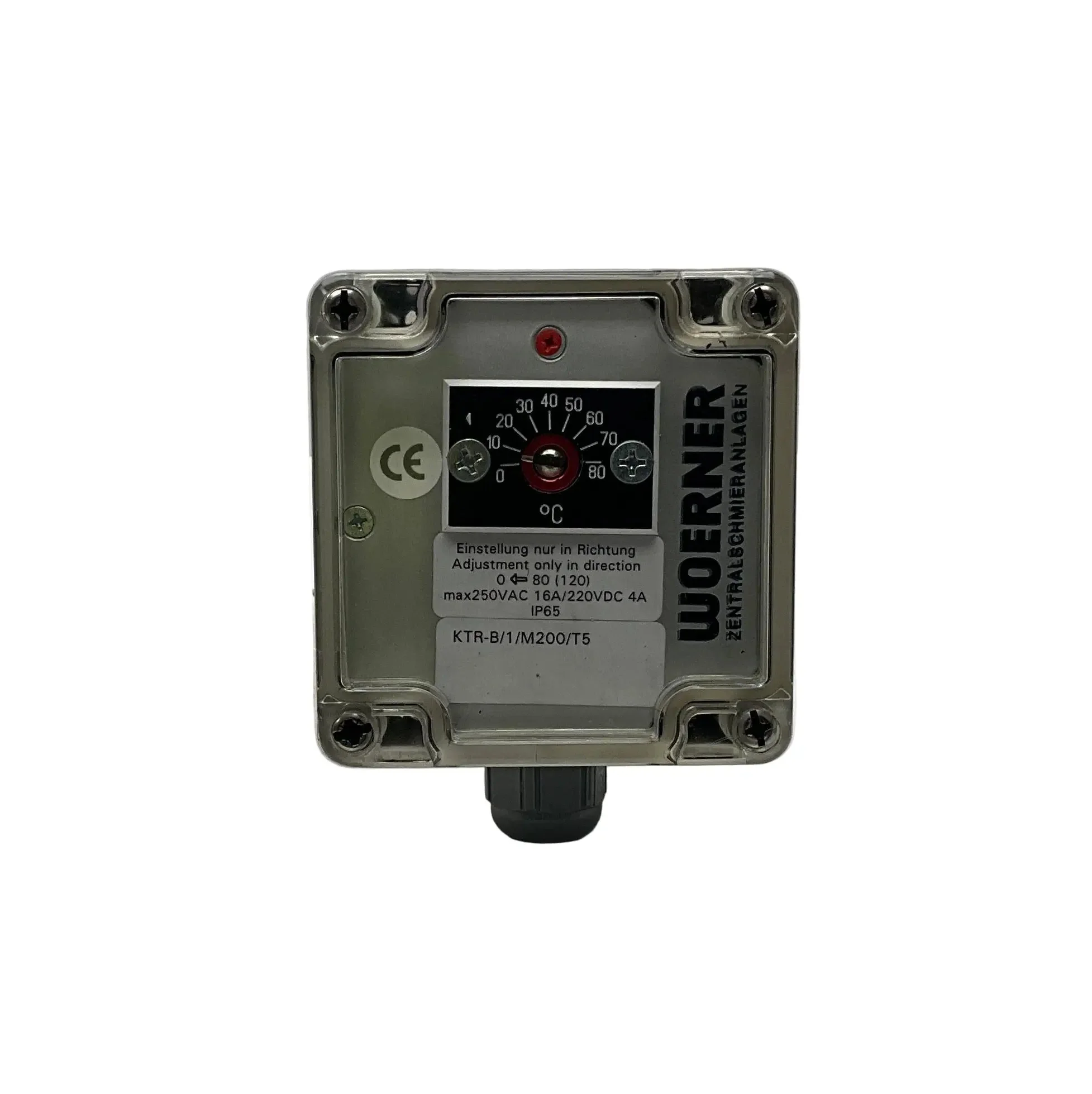

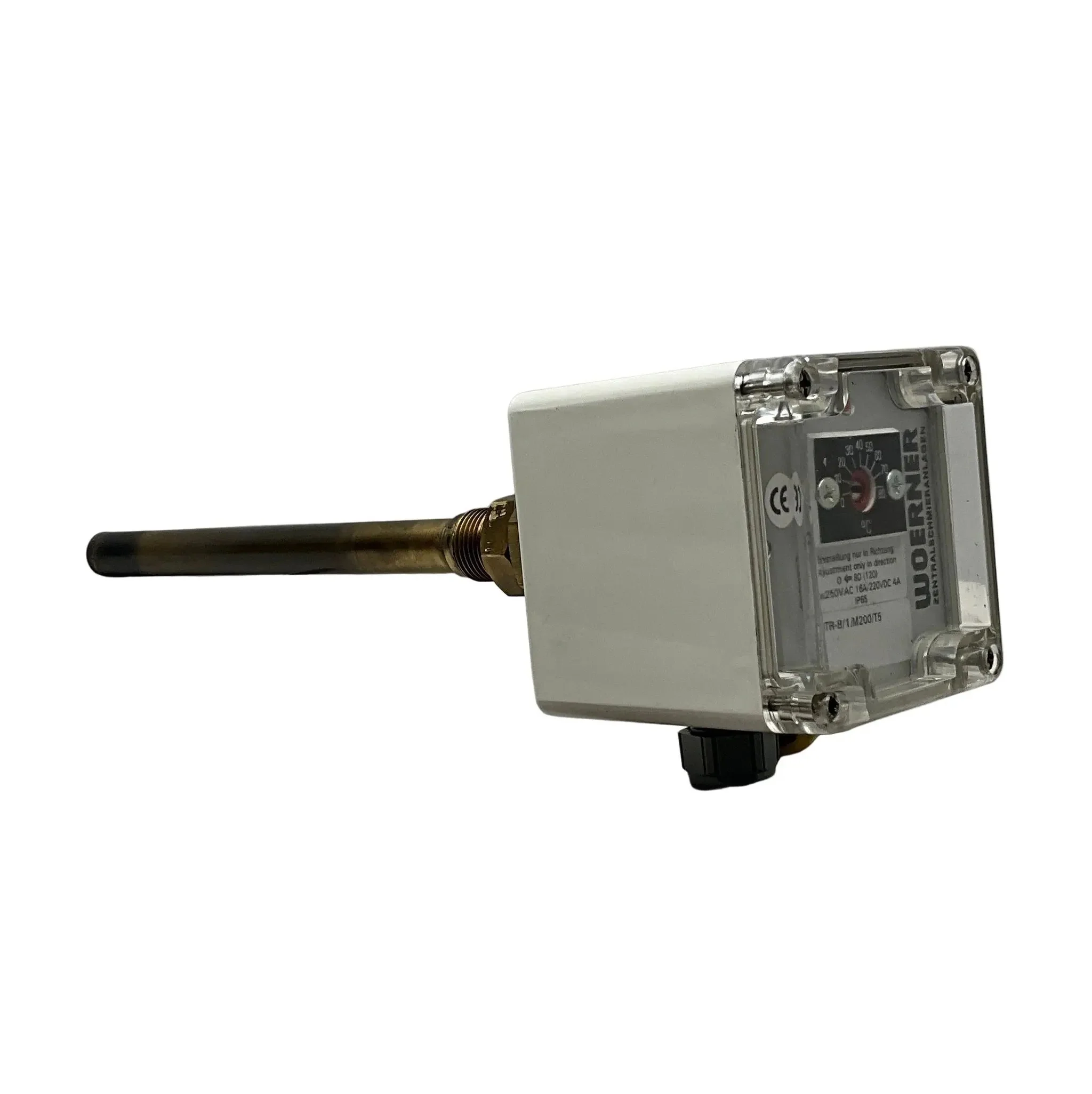

Woerner KTR-B/1/M200/T5 Level and Temperature Switch

Brand: Woerner
Model: KTR-B/1/M200/T5
Type: Level and Temperature Switch
Part Number: KTR-B/1/M200/T5

Technical Specs:
- Function: Combined level and temperature monitoring switch for hydraulic and lubrication systems
- Level Detection: Float-operated, adjustable switching point for low/high level alarm
- Temperature Range: 0 to 80 °C
- Hysteresis: 5 °C (9 °F)

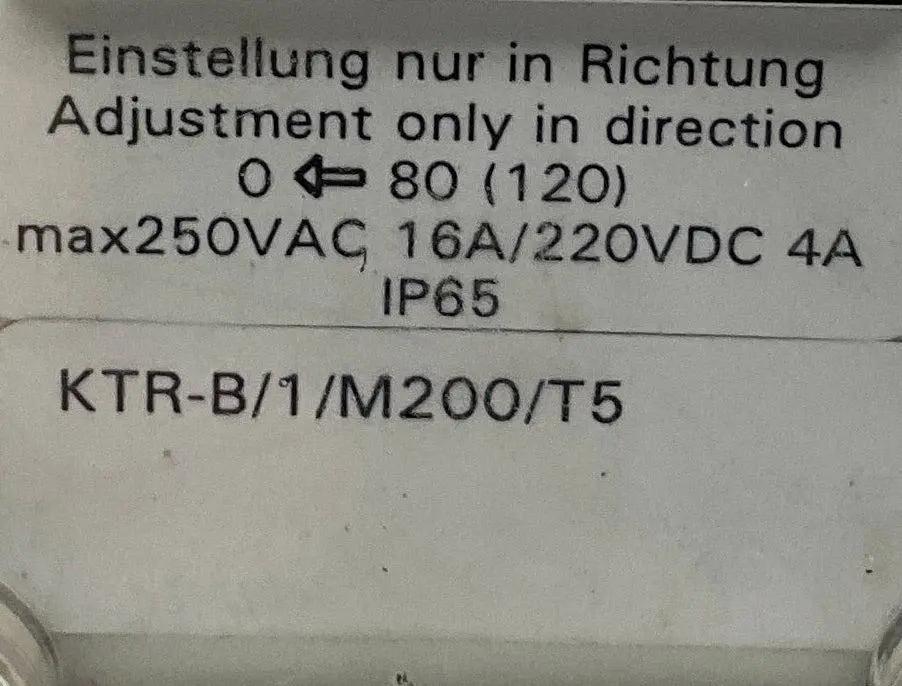

- Switching Voltage: Max 250 V AC / 220 V DC
- Switching Current: Max 16 A AC / 4 A DC
- Contact Material: Silver
- Max Operating Pressure: 16 bar
- Probe Length: 200 mm
- Electric Connection: Cable
- Probe Material: Brass
- Protection Class: IP65
- Additional Features:
  - Thermostat with contact for temperature control
  - Immersion pipe design for reliable sensing in fluids
  - Adjustable hysteresis for precise control
- Certifications: CE compliant

Dimensions: 325 x 110 x 80 mm
- Probe Length: 200 mm

Weight: 700 g

Country of Origin: Germany

HS Code: 9032.89
