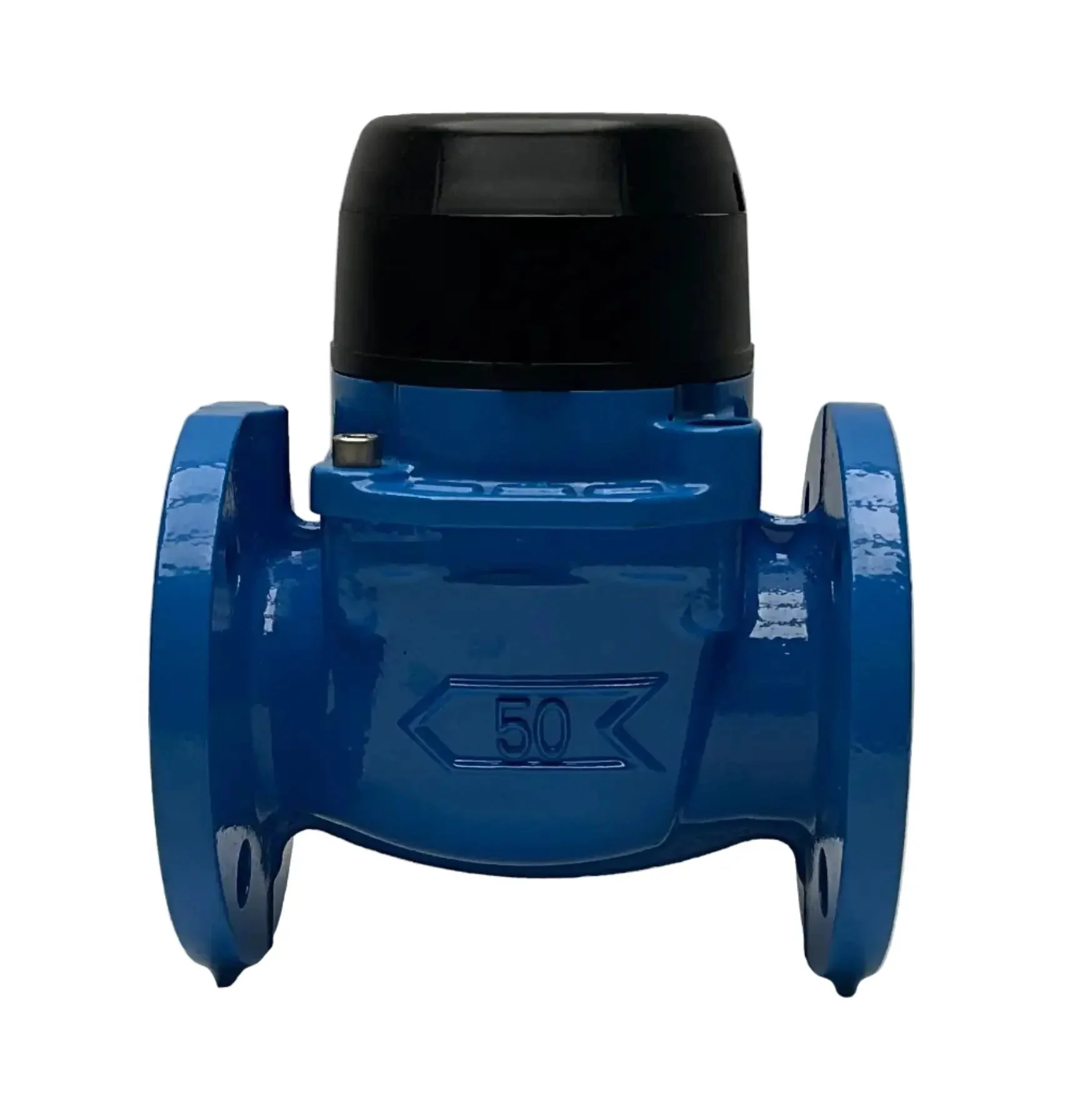

Woltmann Woltex WEN 50 Horizontal Water Meter

Brand: Woltmann (Woltmann Water Meters)
Model: Woltex WEN 50
Type: Horizontal Woltmann Water Meter
Part Number: WEN50GER

- Technical Specs:
- Meter Type: Horizontal Woltmann Itron water meter with interchangeable measuring unit
- Nominal Diameter (DN): 50 mm
- Nominal Flow Rate (Q3): 15 m³/h
- Starting Flow: < 0.15 m³/h
- Pressure Loss at Q3: Δp < 0.25 bar (typical)
- Maximum Operating Pressure: 20 bar
- Temperature Range: Cold water
- Body Material: Cast iron with epoxy coating
- Measuring Unit: Itron
- Counter: 8-digit roller counter + pointer (totalizer in m³)
- Protection Class: IP68
- Installation: Horizontal (H)
- Connections: Flanged PN 16
- Compatibility: Cyble pre equipped
- Additional Features:
  - High accuracy across wide flow range
  - Low starting flow and pressure loss
  - Tamper-proof dry dial (protected from condensation)
  - Replaceable measuring insert
  - Long-term stability and low maintenance
  - MID certified (OIML R49 / EN 14154)

Dimensions:
- Nominal Diameter (DN): 50 mm
- Length (lay length): 200 mm
- Flange Diameter: 165 mm (PN 16)
- Height: 250 mm

Weight: 10 kg

Country of Origin: France

HS Code: 9028.20
